Curt Rebellion XD ShockDrop ™

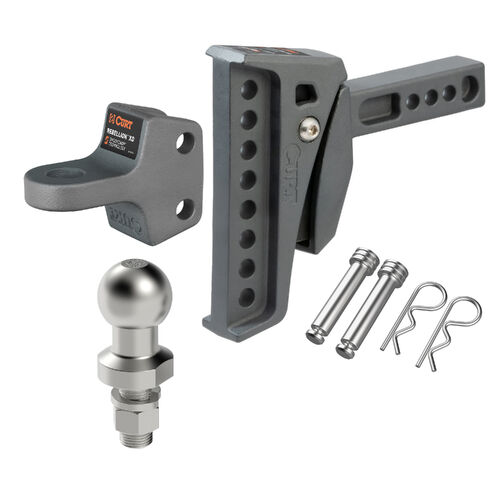

Kit Includes:

• CURT Rebellion XD ShockDrop Ball Mount Base
• CURT Rebellion XD Tongue Attachment 50mm Tow Ball / 3500kg

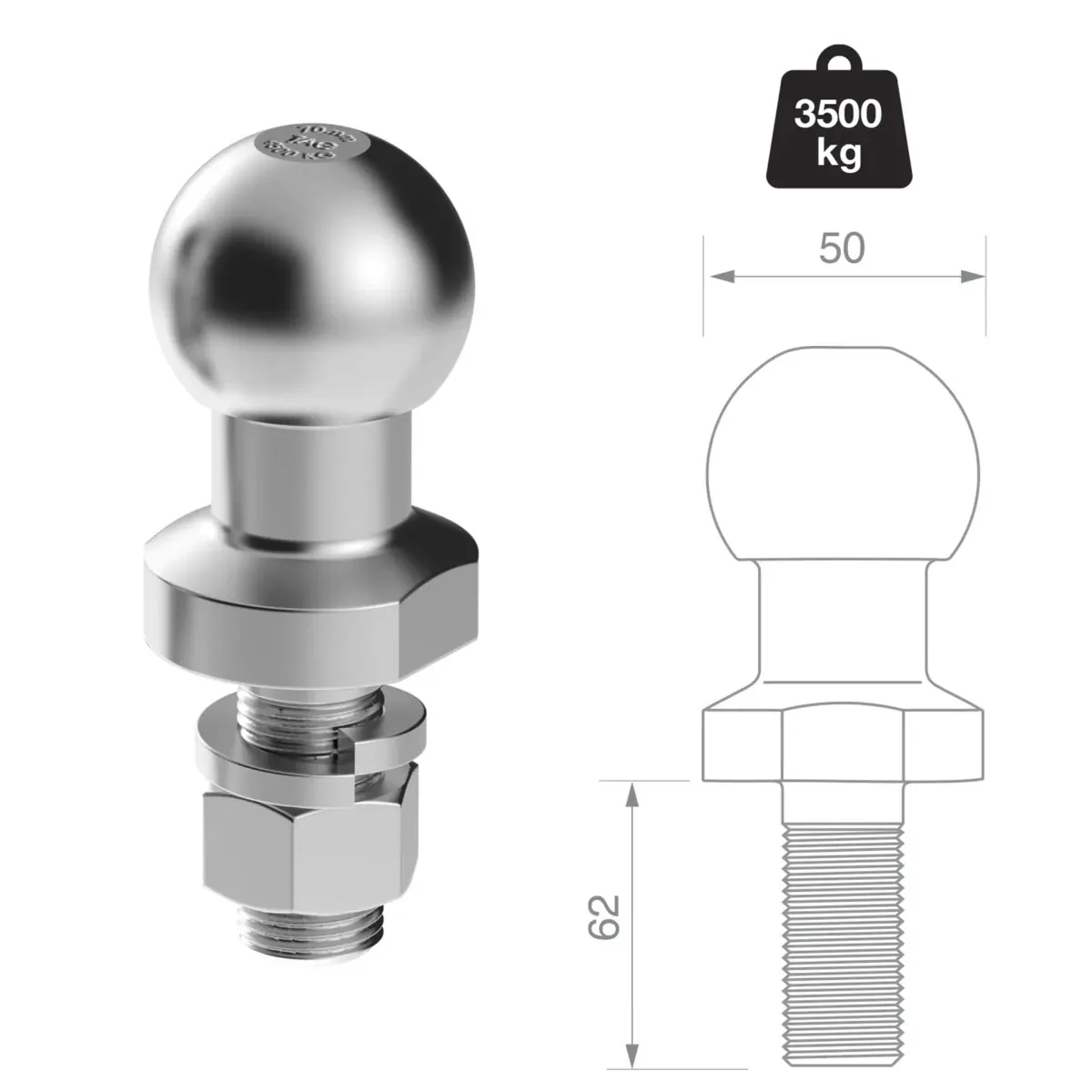

• TAG 50mm Trailer Tow Ball (3500kg)

CURT Rebellion XD ShockDrop Ball Mount 50mm Square Hitch (Class 4) is a leap forward in Towing technology. It provides more control, confidence, and a more comfortable ride, all while protecting your towing system from jerking, jarring, rattling, and trailer sway.CURT Rebellion XD Ball Mount is constructed with ShockDrop technology. Built into the ball mount is a cushioned isolator that inserts between the receiver shank and vertical shank. The isolator provides dynamic, adaptive suspension of the coupling point giving you a comfortable towing experience and provides increased control in events of sudden braking.Unlike other cushioned ball mounts, the CURT Rebellion XD ShockDrop Ball Mount has no airbags or bearings, making the unit virtually maintenance-free. When you're ready to tow, simply mount it onto your receiver hitch like you would any other ball hitch.

The six height adjustment positions ensure level towing of the trailer, and it is perfect for all kinds of pickup trucks and SUVs, including larger and lifted trucks.

• Adjustable, six-position head for precise levelling with different trailers

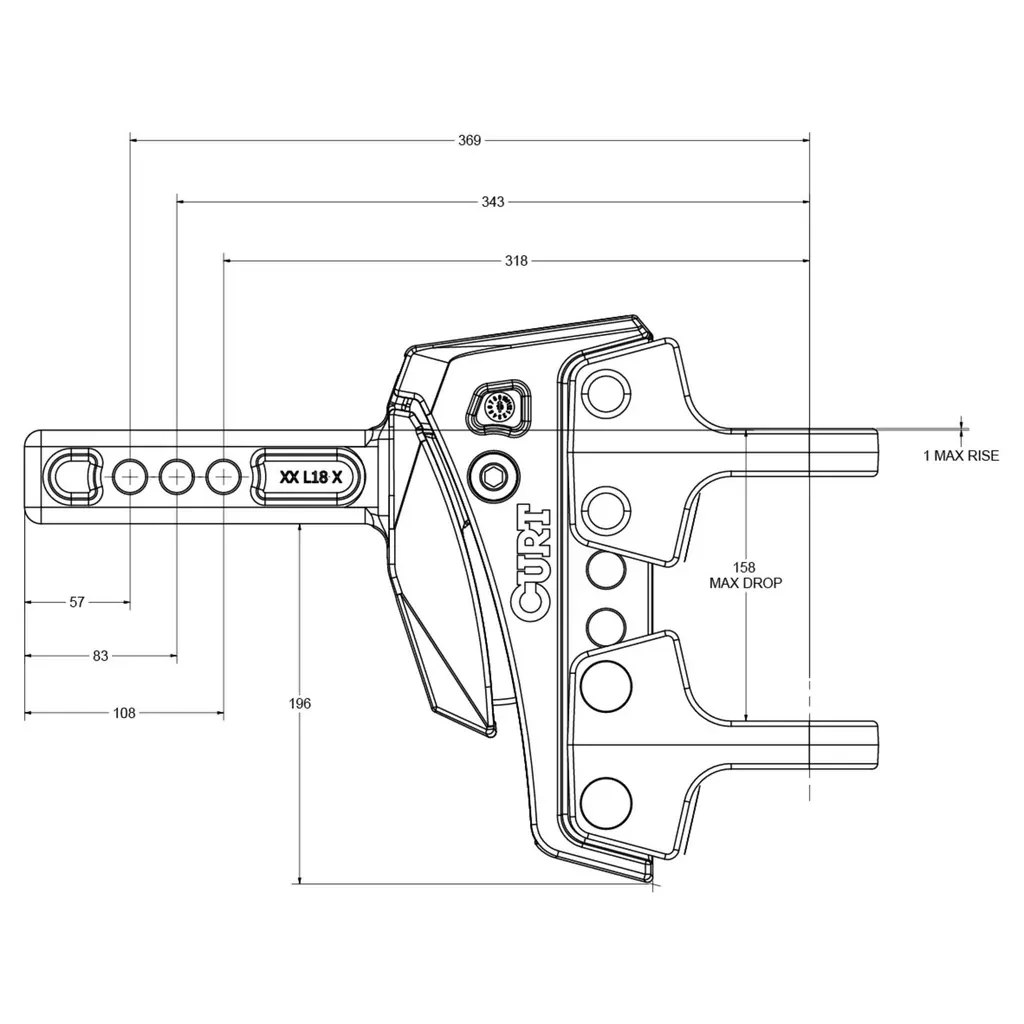

• 152mm maximum drop (shank cannot be flipped)

Specifications

• Type: Towballs / Covers / Spanner
• Diameter: 50mm
• Capacity: 3500kg/350kg (UNT010)
• Coating: Chrome Plated
• Attachment Type: 50mm Tow Ball Mount
• Curt Limited Lifetime Warranty
• Finish: Dark Grey Teridium
• Material Type: Cast Steel
• Tow Ball Mount Class: Heavy Duty (Class 4)

FAQ on the ShockDrop Technology

How does ShockDrop™ technology improve my towing comfort?

ShockDrop™ technology uses a flexible polyurethane isolator that absorbs bumps and vibrations before they reach your vehicle. This reduces rattling and jolts inside the cabin, giving you and your passengers a smoother ride, even on rough roads.

Does ShockDrop™ technology help during sudden braking?

Yes. The cushioned isolators dynamically react during hard braking. They reduce the jarring effect on both the tow vehicle and trailer, which helps you stay in better control.

How does this ball mount protect my vehicle’s suspension and hitch?

The isolator reduces direct metal-on-metal impact between the tow vehicle and trailer. By softening the connection point, it lowers strain on your suspension, hitch, and even the cargo you’re hauling.

Is the ShockDrop™ system high-maintenance like airbag-style hitches?

No. Unlike systems with airbags or bearings, ShockDrop™ is virtually maintenance-free. It is tested for thousands of cycles to ensure long-lasting performance without the need for frequent servicing.

Can this technology help reduce trailer sway?

Yes. Because ShockDrop™ absorbs sudden jerks and vibration at the source, it can limit the effects of sway when driving over uneven terrain or in windy conditions.
