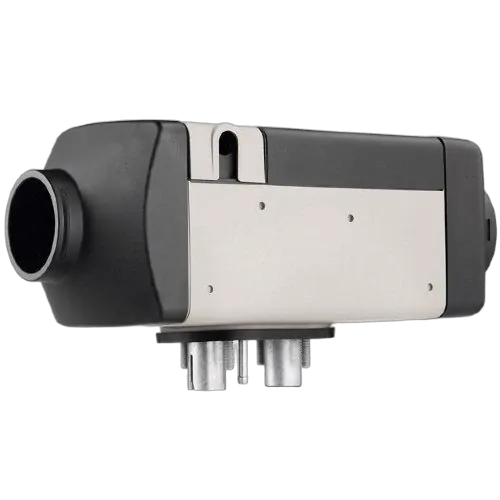

Webasto KTH-1OUTW12V-RTC 12V Diesel Heater Single Outlet with Rotary Controller. The Webasto Diesel Heater is a quiet running 2kW diesel fired air top heater, it is highly economical in fuel and power consumption. Readily available in 12v & 24V power options. The Webasto not only warms the cab interior but dehumidifies the air its warming for complete comfort. This function removes moisture from the air and effectively stops the growth of mould and dust mites. Normal operation of this device would see the heater using 1L of diesel fuel every 5-6hrs.

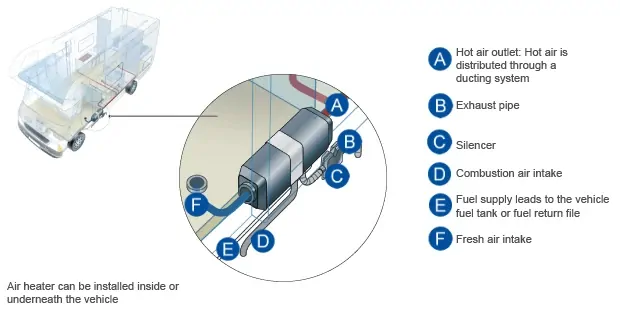

The Webasto Air Top heaters are easy to install inside the vehicle due to their compact design. Webasto offers a 2yr Australian-wide warranty with service agents all around the country.
FEATURES AND BENEFITS:
2 Year Manufacturers Warranty
Easy to install
Normal operation of this device would see the heater using 1L of diesel fuel every 5-6hrs
Removes moisture
SPECIFICATIONS:
Dimensions (mm) – 317x120x121
Power consumption (Watts) – 9 – 22
Voltage (V) – 12/24
Heat output (kW) partial/full – 0.9 – 2.0
Fuel consumption is 0.12-0.24L per hour (partial-full load)
Weight (kg) – 2.6
WHAT IS INCLUDED:
- 1 x Webasto KTH-1OUTW12V-RTC 12V Diesel Heater Single Outlet with Rotary Controller
- 1x Air Top 2000 STC diesel heater unit
- 1x Standard rotary control
- 1x Fuel connector kit: fuel connector (1), fuel clamps (2), fuel filter (1) & exhaust end cap (1)
- 1x Fuel pump harness (7m length)
- 1x Fuel pump kit with mounting hardware
- 1x Exhaust silencer with mounting hardware
- 1x Combustion kit: combustion air silencer (1), combustion air intake (400mm) (1), hose clamp (1)
- 1x Rubber mounting gasket and air grille
- 1x 620 Ohm resistor
- 1x RV main harness
Documentation
- 1x Single outlet accessory kit:
- 1x Stainless steel floor mount heater bracket
- 1x 1m length 60mm ducting
- 4x 47-70mm ducting clamps
- 1x 45° air outlet
- 1x Vent collar
- 1x Vent 60mm flat open
- 1x 0.8m length exhaust pipe
- 1x 6m length fuel line
- Proven 2.0 kW Webasto heater setup
- Low diesel burn 0.12–0.24 L per hour
- 12 V friendly draw of 9–22 W
- Compact 2.6 kg unit for under-seat fits
- Single 60 mm outlet keeps installs simple
- Two year warranty for long term touring
- Heater type: 12 V diesel-fired air heater
- Heat output range: 0.9–2.0 kW (partial to full load)
- Fuel type: Diesel
- Fuel consumption: 0.12–0.24 L per hour (partial to full load)
- Typical fuel use: 1 L every 5–6 hours of normal operation
- Power consumption: 9–22 W
- Operating voltage: 12/24 V
- Dimensions: 317 x 120 x 121 mm
- Weight: 2.6 kg
- Outlet configuration: Single outlet with 60 mm ducting
- Control type: Standard rotary controller
- Warranty: 2 year manufacturer warranty
- Mounting: Suitable for installation inside the vehicle
- Included exhaust pipe length: 0.8 m
- Included fuel line length: 6 m
1 x Webasto KTH-1OUTW12V-RTC 12V Diesel Heater Single Outlet with Rotary Controller
1 x Air Top 2000 STC diesel heater unit
1 x Standard rotary control
1 x Fuel connector kit including: fuel connector (1), fuel clamps (2), fuel filter (1) and exhaust end cap (1)
1 x Fuel pump harness (7 m length)
1 x Fuel pump kit with mounting hardware
1 x Exhaust silencer with mounting hardware
1 x Combustion kit including: combustion air silencer (1), combustion air intake 400 mm (1), hose clamp (1)
1 x Rubber mounting gasket and air grille
1 x 620 Ohm resistor
1 x RV main harness
1 x Single outlet accessory kit
1 x Stainless steel floor mount heater bracket
1 x 1 m length 60 mm ducting
4 x 47–70 mm ducting clamps
1 x 45° air outlet
1 x Vent collar
1 x 60 mm flat open vent
1 x 0.8 m exhaust pipe
1 x 6 m fuel line
Documentation
| SKU | 053406-A |
|---|---|
| Barcode # | OEBC564634 |
| Brand | Webasto |
| Shipping Weight | 8.6000kg |
