*Please note these systems are built to order and have a lead time of 4-6 weeks*

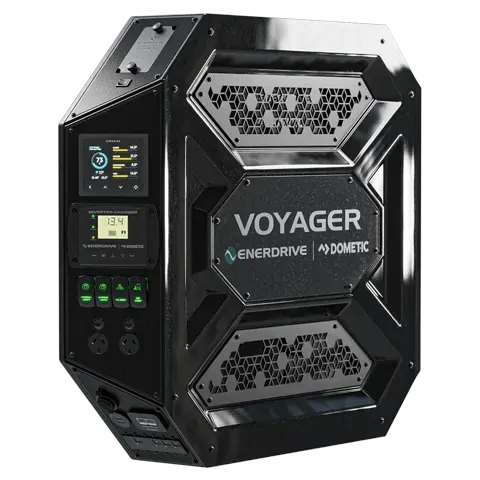

Voyager System Left 3000W/100A Inverter-Charger 40Dc Inc Simarine Scq50
COMPLETE ACCESSIBILITY
The Voyager has been designed and built to give you access to every part of the build you may need without the hassle of finding tools to remove bulky covers or shifting everything within the canopy to access the side of your system.
All of your loads connect via the custom flush mounted 1 in, 12 out fuse panel at the top of the system, main system breakers are located at the bottom of the system and a subtle finger hole in the bottom grill gives you access to the Combi’s RCD reset switch.
DESIGNED TO MAXIMISE YOUR SPACE
The Voyager has been designed to make use of all available space in your canopy build. The octagonal shape allows you to push the Voyager closer to the door return on your canopy while still allowing access to the fuse panel when needed.
The most prominent design feature of Voyager is the angled display panel. This panel allows you to read and access your instruments with greater ease no matter the orientation or mounting location.
HAND BUILT BY THE EXPERTS IN MOBILE POWER SOLUTIONS
The Voyager is completely built and wired in house using only the best components to guarantee that every system meets our incredibly high standards. ENERDRIVE | DOMETIC Accessories Range components provide the ultimate in accessibility, with every system coming as standard with our own 1 in/12 out fuse block, an individually monitored Anderson Plug outlet and 2 x 12V socket outlets.
-
830W x 700H x 155Dmm
-
5 year warranty
-
Available orientations: Left, Right & Top (Ceiling)
-
Charge via a Vehicle input, Solar or Mains Power:
-
Vehicle: 12 or 24v 40+ Output
-
Solar (DC2DC): up to 45V/800W
-
Mains 240V: 100A Charging
-
-
Inverter suitable for appliances that use up to 3000W of power for operation, such as induction cooktops, microwaves, coffee machines and more
-

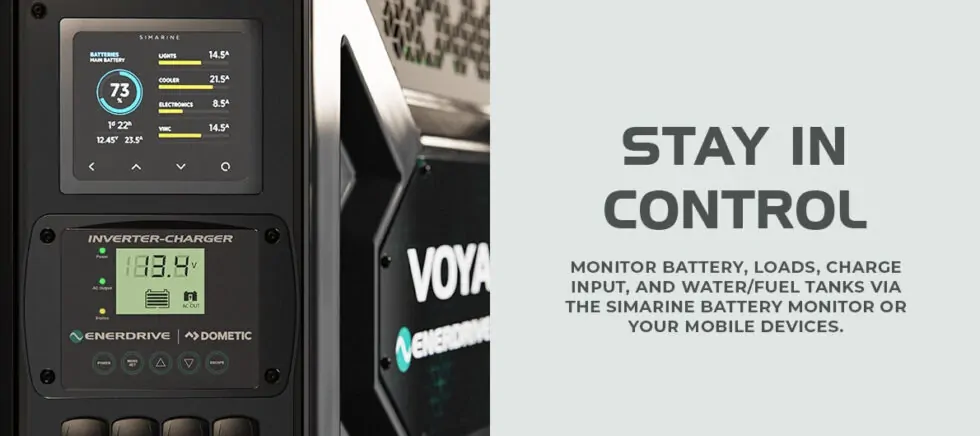

Monitor battery, loads, charge input, and water/fuel tanks via the Simarine battery monitor or your mobile devices
-
Intelligent face panel design gives you access to:
-
4 x Customisable laser-etched rocker switches
-
1 x USB socket
-
1 x Cig socket
-
1 x Anderson plug socket
-
1 x Twin RCD-protected powerpoint
-
8 x ATO (Blade fuses) for easy sizing of your circuit protection
-
- Complete AC and DC power hub
- 3000W inverter for heavy campsite loads
- 100A mains charger for quick top ups
- Simarine SCQ50 monitor for clear data
- Multiple sockets keep gear plugged in
- Five year warranty for long term use
- System dimensions: 830W x 700H x 155D mm
- Inverter continuous power rating: 3000W
- Charger maximum mains charging current: 100A at 240V AC input
- DC vehicle input voltage: 12V or 24V compatible
- DC vehicle charge output: 40A+ (DC-DC charging)
- Solar DC-DC input voltage: up to 45V
- Solar input power capacity: up to 800W
- AC input supply: 240V mains power
- Warranty period: 5 years
- Available mounting orientations: Left, Right, Top (ceiling)
- Integrated fuse panel configuration: 1 input / 12 outputs
- Front face panel fuses: 8 x ATO blade style
- Front outlets: 2 x 12V sockets, 1 x USB, 1 x Cig socket, 1 x Anderson plug socket, 1 x twin RCD-protected power point
- Monitoring system: Simarine battery monitor with load, charge and tank monitoring capability
- Enerdrive Voyager System Left 3000W/100A inverter-charger assembly with integrated DC control hub
- Custom flush-mounted 1 in / 12 out fuse panel
- Simarine SCQ50 battery monitoring system
- Individually monitored Anderson plug outlet
- 2 x 12V socket outlets on face panel
- 4 x customisable laser-etched rocker switches
- 1 x USB socket on face panel
- 1 x cigarette (Cig) socket on face panel
- 1 x Anderson plug socket on face panel
- 1 x twin RCD-protected 240V power point
- Integrated ATO blade fuse block (8 x fuse positions)
| SKU | K-V3L01 |
|---|---|
| Barcode # | OEBC569668 |
| Brand | Enerdrive |
| Shipping Weight | 45.0000kg |
| Shipping Width | 1.160m |
| Shipping Height | 0.700m |
| Shipping Length | 1.160m |
| Shipping Cubic | 0.941920000m3 |
