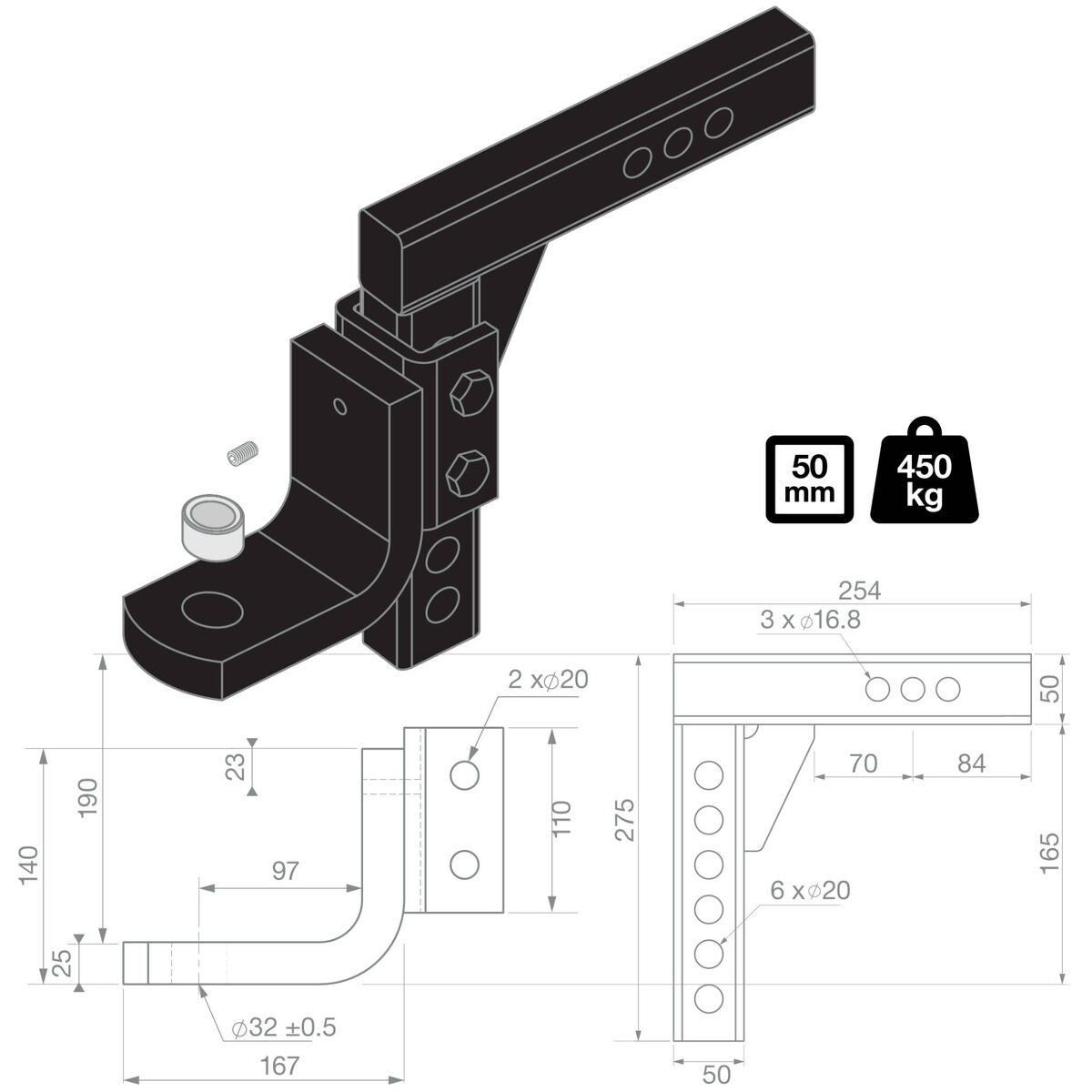

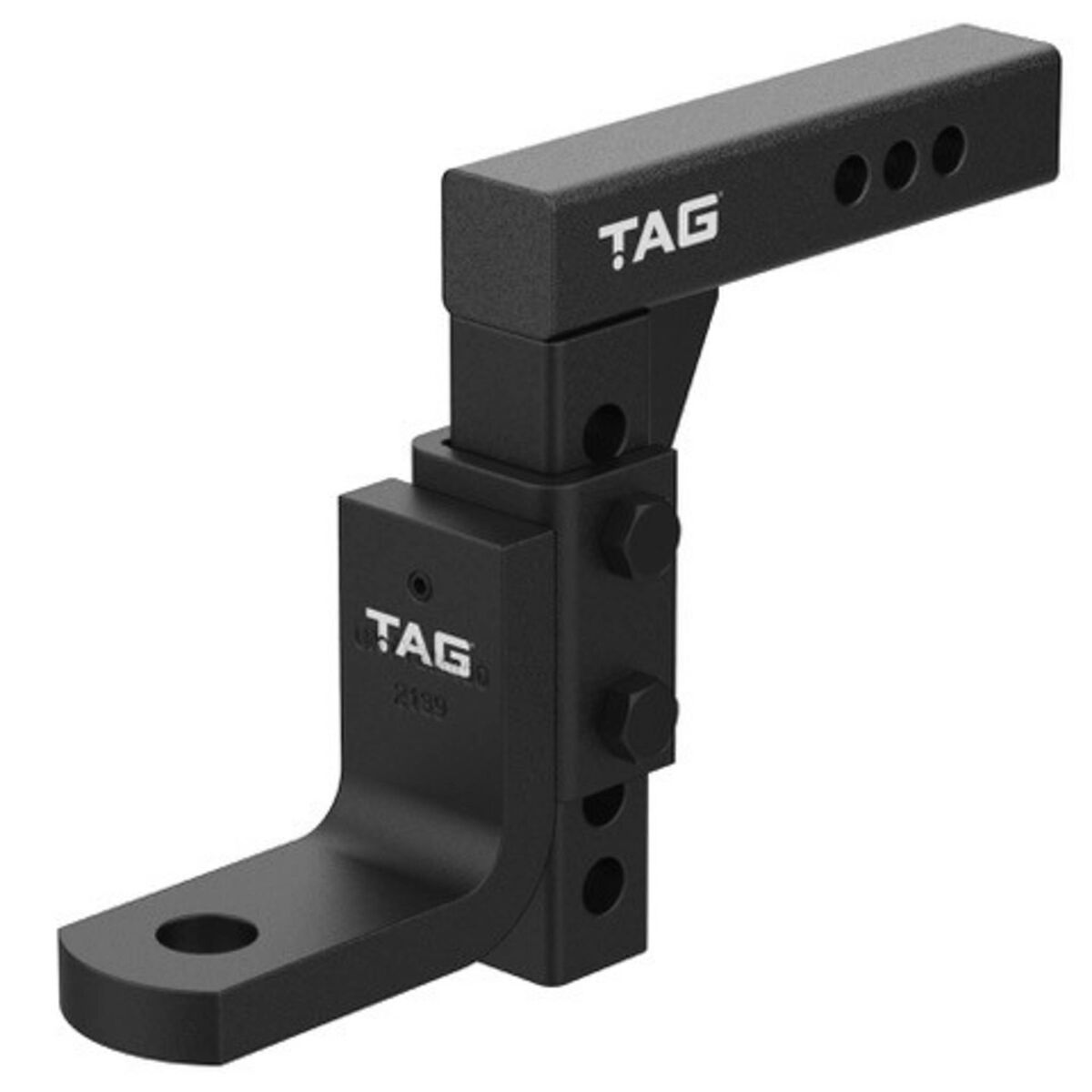

The TAG Adjustable Tow Ball Mount features a heavy-duty 50mm square shank with multiple pin holes for horizontal and vertical adjustment to suit your towing setup. For full compatibility, the unit includes a reducer allowing the use of a 70mm or 50mm tow ball. Made from solid steel with a durable powder-coated finish that resists rust, corrosion, and chipping.
-
90° Separate Tongue Face with four adjustable positions.
-
Drop 115mm
-

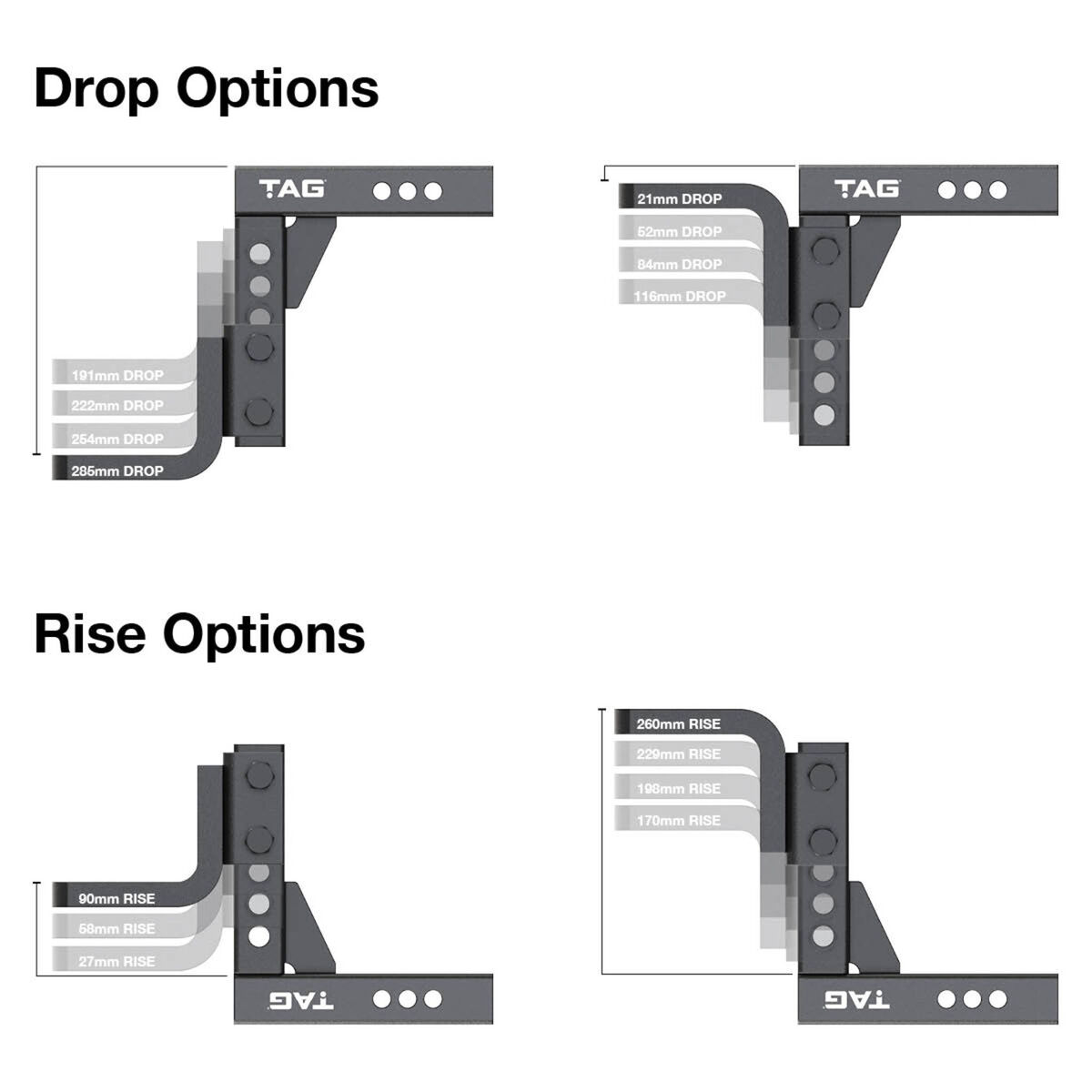

Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
-
Fits 70mm tow ball (or 50mm tow ball using included reducer)
-
Gross Trailer Weight 4500kg (70mm Tow Ball) / 3500kg (50mm Tow Ball)
-
Ball Weight 450kg (70mm Tow Ball) / 350kg (50mm Tow Ball)
-
Durable Powder Coated Finish
-
ADR 62/02 Compliant
-
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin are sold separately. Always check your vehicle and towbar's maximum towing capacity.
-
Ensure you tighten Allen key grub screw before main attachment bolts.
-
Torque spec on bolts that attach head to shank is 280nm.
- Adjustable height for mixed trailer fleets
- 50mm hitch setup suits most 4x4s
- 4500kg rating tackles heavy loads
- Steel construction built for Aussie conditions
- Powder-coated finish resists chips and rust
- Smart buy for regular towing gear

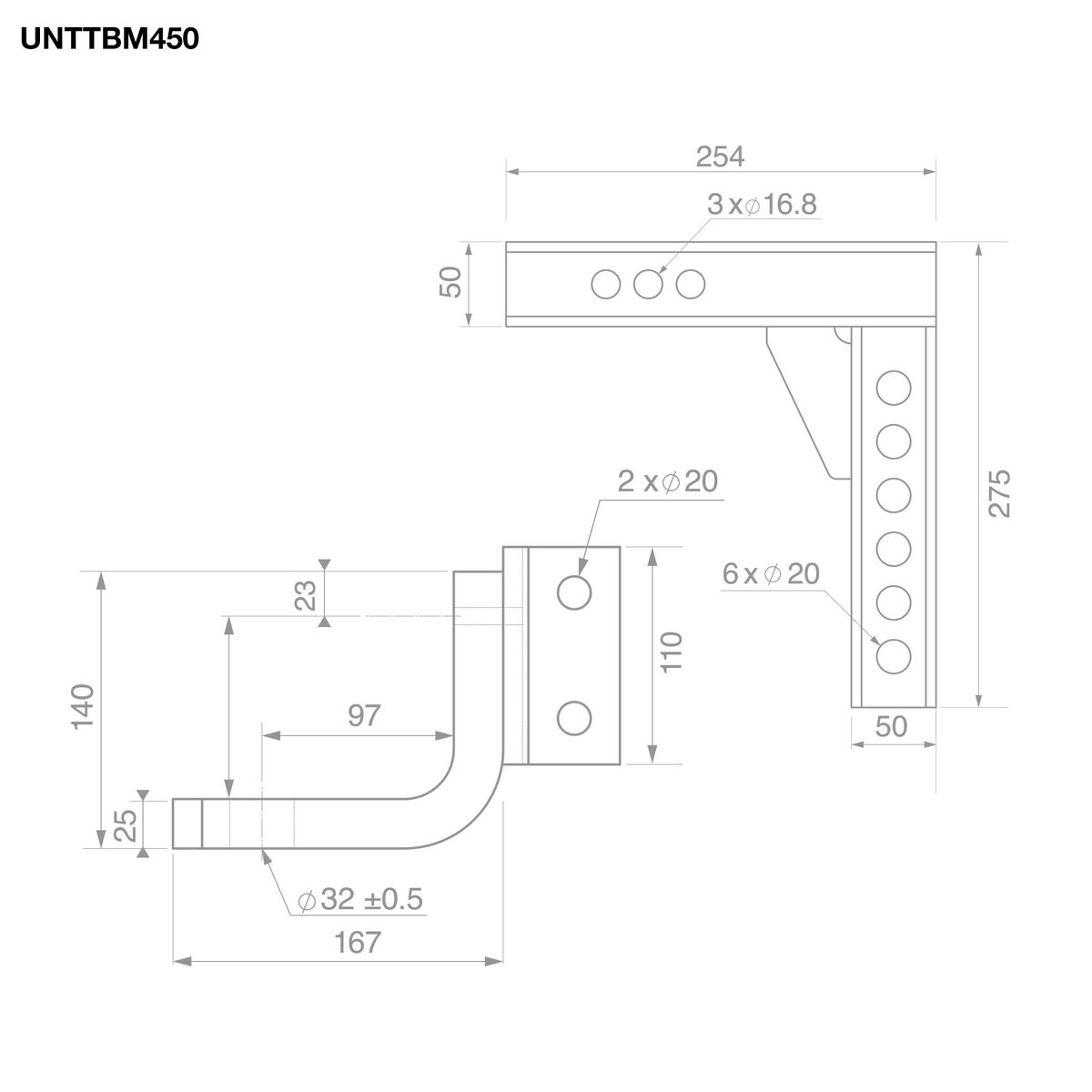

- Hitch receiver size: 50mm square shank
- Tongue face: 90° separate face with four positions
- Maximum drop: 115mm
- Mounting modes: Drop mode or rise mode
- Compatible tow balls: 70mm or 50mm (via included reducer)
- Gross trailer weight rating: 4500kg (70mm tow ball)
- Gross trailer weight rating: 3500kg (50mm tow ball)
- Maximum ball weight: 450kg (70mm tow ball)
- Maximum ball weight: 350kg (50mm tow ball)
- Construction: solid steel
- Finish: durable powder-coated coating
- Compliance: ADR 62/02 compliant
- Warranty: TAG limited lifetime warranty
- Torque specification for head-to-shank bolts: 280Nm
- Note: Tow ball, R-clip and hitch pin sold separately
- 1 x TAG adjustable heavy duty tow ball mount with 90° separate tongue face
- 1 x reducer sleeve for 70mm to 50mm tow ball
| SKU | UNTTBM450 |
|---|---|
| Barcode # | 9340407045381 |
| Brand | TAG |
| Shipping Weight | 15.0000kg |
