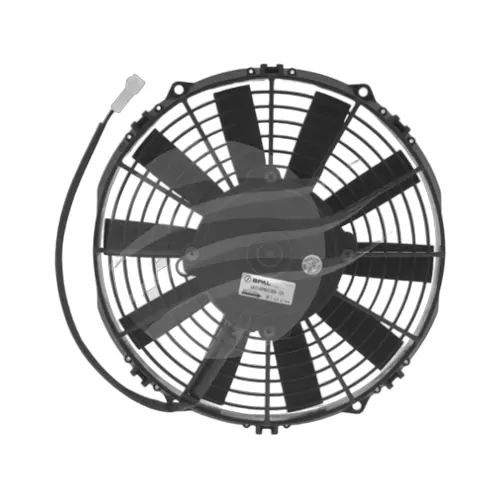

The VA07-AP7/C-31S (EF3501) 12v 9" SPAL Pusher Fan features a Straight Blade Design which can push up to 673cfm / 1140m3/h.
The EF3501 9" Fan is individually balanced for long life and features a fully sealed waterproof motor of superior quality and backed with a 3-year manufacturers .
| EF3501 9" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA07-AP7/C-31S |
| Voltage | 12V |
| Flow Type | Pusher |
| Blade Diam. | 9 inch (225mm) |
| Blade Type | Straight |
| Shroud Type | Finger Guard |
| Amps | 8.3 |
| CFM | 673 |
| M3/H | 1140 |
| Mounting Match | VA07-AP8/C-58S VA07-AP12/C-31S |
| Spec. Sheet | View Specifications  |
| EF3501 9" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 247mm / 9.72" |
| B | 247mm / 9.72" |
| C | 139mm / 5.41" |
| D | 206mm / 8.11" |
| E | 52mm / 2.05" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
- 673 CFM keeps temps under control
- Compact 9 inch setup suits tight spaces
- Fully sealed 12V motor for wet tracks
- Finger guard shroud protects hands and loom
- Individually balanced fan cuts vibration
- Three year warranty from SPAL Italy
- Brand: SPAL
- Model: VA07-AP7/C-31S
- Fan type: Thermo pusher
- Voltage: 12V
- Current draw: 8.3A
- Airflow: 673 CFM
- Airflow metric: 1140 m³/h
- Blade diameter: 9 inch (225mm)
- Blade type: Straight
- Shroud type: Finger guard
- Overall dimension A: 247mm (9.72")
- Overall dimension B: 247mm (9.72")
- Dimension C: 139mm (5.41")
- Dimension D: 206mm (8.11")
- Dimension E: 52mm (2.05")
- Mounting match: VA07-AP8/C-58S and VA07-AP12/C-31S
- Motor: Fully sealed waterproof electric motor
- Balance: Individually balanced fan assembly
- Country of manufacture: Italy
- Warranty: 3-year manufacturer warranty
- 1 x SPAL VA07-AP7/C-31S 9" 12V pusher thermo fan assembly
| SKU | EF3501 |
|---|---|
| Barcode # | 9316042080858 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.052m |
| Shipping Height | 0.247m |
| Shipping Length | 0.247m |
