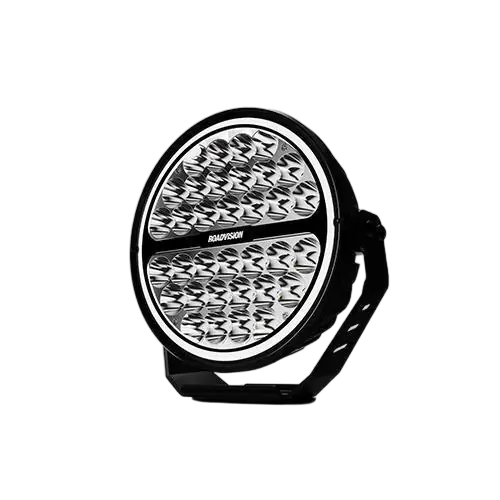

Roadvision’s Stealth Halo Series Driving Lights deliver a sleek modern appearance for your vehicle. Available in 7″ and 9″, the Stealth Halo Series feature black mounting hardware, innovative HALO DRL, stylish modern bezel-less design and 3W Osram LEDs. The Stealth Halo Series punches out up to an impressive 10485lm per light and 912m of beam penetration @ 1 lux by utilising Roadvision’s Thermal Management Technology. Built to withstand the harshest conditions, the Stealth Halo Series feature a tough yet lightweight aluminium housing and polycarbonate lens providing superior performance and durability.
FEATURES
- Stealth Halo Series 7″ and 9” Driving Light with Halo DRL
- Blackout mounting hardware
- 3W Osram LED’s produce super white light close to daylight
- Multi-volt 10-30V DC input & low current draw
- 50,000 hour LED lifespan with solid state technology
- Thermal Management Technology
- Light weight tough die-cast aluminium housing & polycarbonate lens
- Water & dust proof IP67 rated
- Simple 2 wire installation
- Over/under voltage, reverse polarity protection & EMI/EMC
- Radio interference approved
Specifics:
| Beam Pattern | Spot |
| Maximum Lumens per Light (pair) | 10,485lm (20,970lm) |
| Maximum Lux @ 10m per Light (pair) | 8,311lx (16,622lx) |
| Maximum Beam Distance @ 0.5lx per Light (pair) | 1,289m (1,823m) |
| Maximum Beam Distance @ 1lx per Light (pair) | 912m (1,289m) |
| Input Voltage | 10-30VDC |
| Maximum Watts | 143W |
| Number of LEDS | 34 x 3W Osram |
| Current Draw @ 13.8V | 5.56~10.34 Amps |
| Lens Construction | Polycarbonate |
| Housing Construction | Die-Cast Aluminium |
| Wiring | 2 Pin Deutsch Plug |
| Dimensions AxBxC | 238 x 87 x 249mm |
- Long-range spot beam for highways
- 10-30V input suits most vehicles
- Osram LEDs with 50,000 hour rating
- IP67 gear for mud and dust
- Tough die-cast housing and lens
- Easy two-wire setup with Deutsch plug
- Beam pattern: spot
- Maximum lumens per light: 10,485 lm
- Maximum lumens per pair: 20,970 lm
- Maximum lux @ 10 m per light: 8,311 lx
- Maximum lux @ 10 m per pair: 16,622 lx
- Maximum beam distance @ 0.5 lx per light: 1,289 m
- Maximum beam distance @ 0.5 lx per pair: 1,823 m
- Maximum beam distance @ 1 lx per light: 912 m
- Maximum beam distance @ 1 lx per pair: 1,289 m
- Input voltage: 10–30 V DC
- Maximum power: 143 W
- LED configuration: 34 x 3 W Osram LEDs
- Current draw @ 13.8 V: 5.56–10.34 A
- Lens material: polycarbonate
- Housing material: die‑cast aluminium
- Wiring connection: 2‑pin Deutsch plug
- Dimensions (A x B x C): 238 x 87 x 249 mm
- LED lifespan: 50,000 hours (solid state)
- Protection rating: IP67 water and dust proof
- Protection features: over/under voltage, reverse polarity, EMI/EMC
- Mounting hardware: blackout style
- DRL type: Halo DRL
- Construction: lightweight tough aluminium housing with polycarbonate lens
- Radio interference: approved
| SKU | RDL6900S |
|---|---|
| Barcode # | 9340330073758 |
| Brand | Roadvision |
| Shipping Weight | 4.0000kg |
| Assembled Length | 0.090m |
| Assembled Height | 0.230m |
| Assembled Width | 0.230m |
