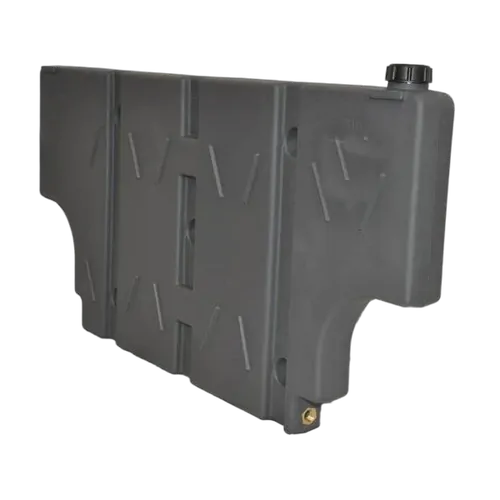

Vertical Water Tank

This 42L vertical water tank gives you smart storage in tight spaces. It sits against the tub or canopy wall and uses the slim 75mm body to create room where most tanks will not fit. The wheel arch cut outs help it sit flush in the space between the arches for a neat and tidy setup.

It holds enough water for basic touring needs. You also get a tough poly build that handles rough tracks and long trips with ease. The 1/2in brass outlet fits common plumbing fittings so you can build your own hose line or use a pump kit if you want more flow.

This design is trusted by tourers who want simple storage that does not waste space. It is light and compact. It mounts in a spot most 4WDs do not use well.

Key Features

• 42L vertical tank for tubs and canopies
• Slim 75mm profile to save space
• Wheel arch cut outs for a flush fit
• 1/2in BSPT brass outlet
• Works with standard hardware plumbing fittings
• Tough polyethylene body
• UV-resistant build
• Can be used with hose or pump kits
• Light and easy to position
• Vertical mount design

Technical Specifications

Capacity: 42 litres
Mount Style: Vertical

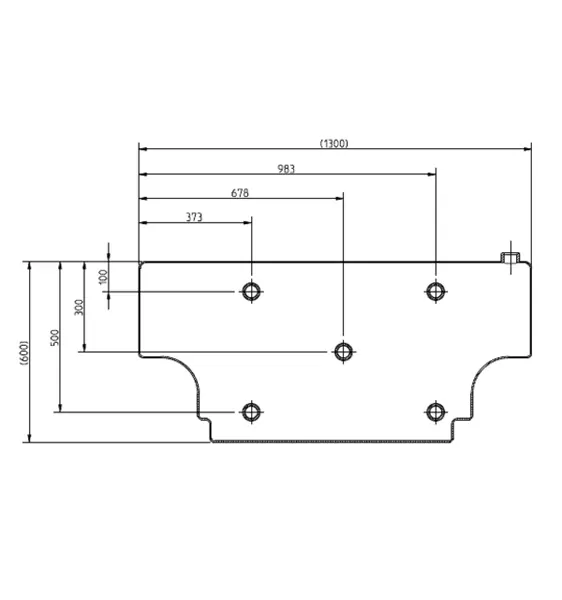

Dimensions:

• Length: 1295mm
• Height: 600mm (plus 30mm for cap)
• Thickness: 75mm
• Wheel Arch Cut Outs: 200mm wide x 300mm high (each side)
  Outlet: 1/2in BSPT brass outlet
  Material: Polyethylene (UV-resistant)
  Use: General camp water, washing gear, hand cleaning, hose feed
  Colour: Black

This tank suits:

• Most dual-cab and extra-cab ute tubs
• Canopy walls with vertical mounting room
• Setups with unused space between wheel arches
• Tourers who need compact water storage

Fitment depends on your vehicle layout. A qualified installer should measure the tub width and mounting points before installation.

Frequenty Asked Questions about this vertical water tank

Can it run a pump?
Yes. The 1/2in brass outlet works with common pump fittings. You can pair it with a Tuff Terrain pump kit if you want more flow.

How do I fill the tank once it is mounted?

Fill it through the cap at the top. It is positioned high on the tub or canopy wall, which makes it easy to reach with a hose.

What type of hose should I use with the brass outlet?

Use hose or plumbing fittings that match a 1/2in BSP outlet.
A good option is the John Guest 12mm Pipe Hose, which connects using a standard 1/2in BSP to 12mm adapter.


This water tank is featured in the following video
