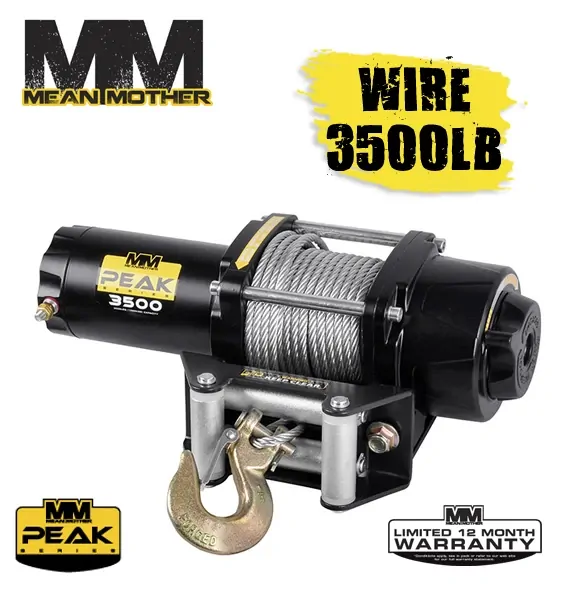

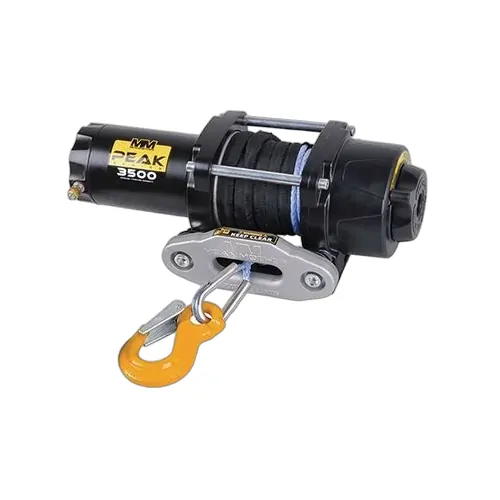

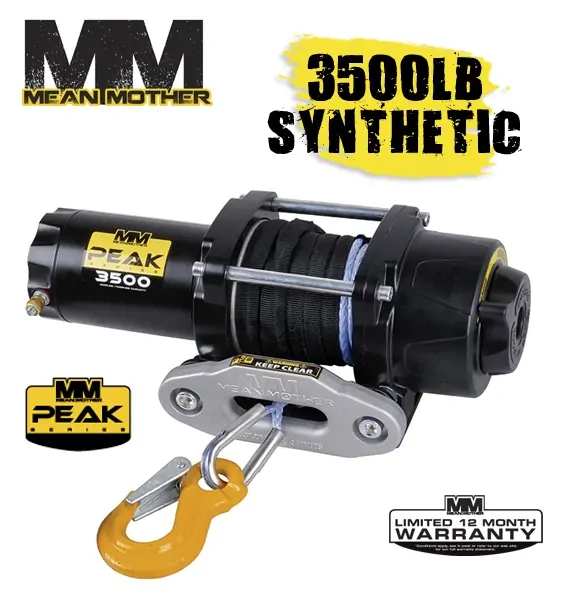

Mean Mother ATV 3500lb winches have been designed to be compact and light weight and are ideal for most ATV/UTV vehicles. The 2500lb and 3500lb models are supplied with a universal mounting plate for easy installation. Each model has more than enough power to recover ATV/UTV vehicles from most situations. When selecting a winch you should always select one that is 1.5 times the Gross Vehicle Mass (GVM).
- Free spool function
- Steel bushings
- Steel gears
- Forward and reverse operation
General Information
| Specifications | 3500lb (1589kg) |
| Gear ratio | 242:01:00 |
| Gear transmission | 2 stage planetary |
| Clutch | Turn 90° by handle |
| Motor type | Permanent magnet |
| Motor | 3.5hp (2.61kw) |
| Control | Handle bar mountable switch, 2.4m lead |
| Braking | Self locking brake |
| Drum size | 50mm x 80mm (2" x 3.15") |
| Mounting bolt pattern | 124mm x 76mm (4.88" x 3") |
| Battery power cables | 2 x 8mm² (8 AWG) x 2350mm (92.5") |
| Motor power cables | 1 x 8mm² (8 AWG) x 600mm (23.6") & 1 x 8mm² (8 AWG) x 450mm (17.7") |
| Finish | Powder coating |

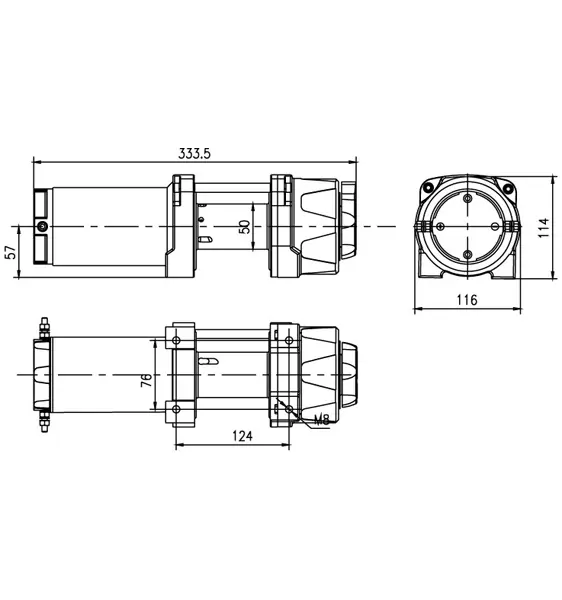

| Overall dimensions (L x W x H) | 333.5mm x 116mm x 114mm (13.13" x 4.57" x 4.5") |
| Voltage | 12 volt |
| Cable | Genuine Dyneema SK75 4.76 x 15m (3/16" x 50') |
| Clevis hook | 6/6" |
| Nett weight | 10.5kg (23.1lb) |
| SKU | EW3500S |
|---|---|
| Barcode # | 9311902021538 |
| Brand | Mean Mother |
| Shipping Weight | 11.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.300m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.036000000m3 |
Download instructions to help you install, use and get the most out of your product.
