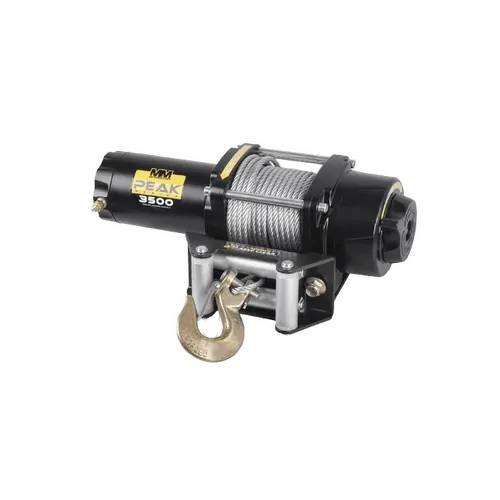

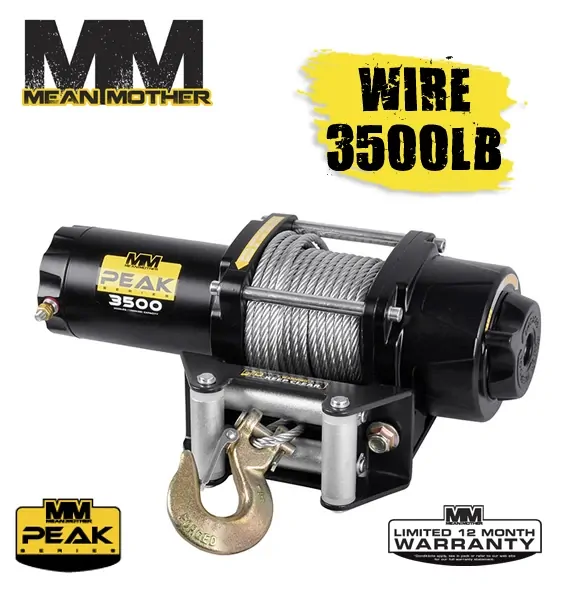

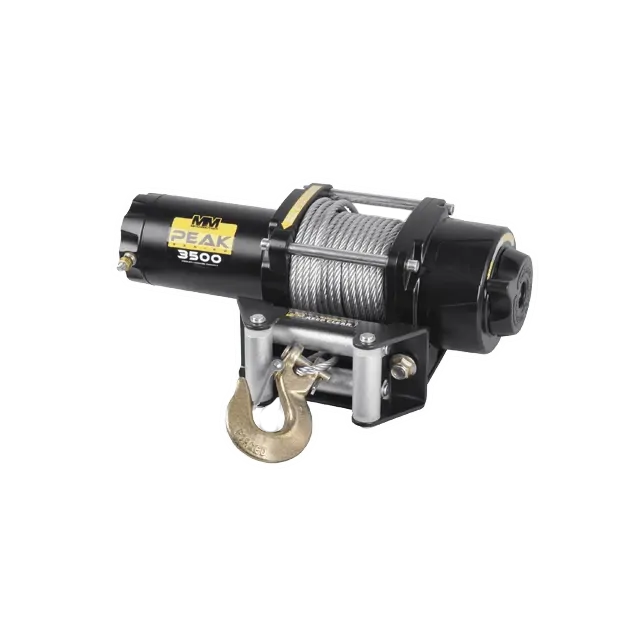

The Mean Mother Peak ATV 3500lb Winch with wire cable gives an ATV the grunt to tackle stuck situations where a 3500 lb line pull is enough for the job. The compact body is about 333.5 mm long and around 114 mm high, so it sits neatly between bars and plastics on smaller rigs. Hook it to a rated point and you can get out there on rutted tracks without relying on a tow.

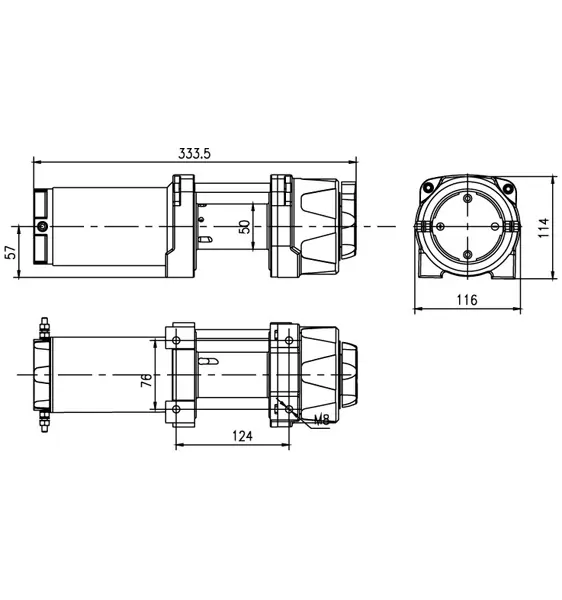

The housing is roughly 116 mm wide with a mounting foot spacing near 124 mm, matching common ATV winch plates without odd bracket work. A wire cable drum and steel hook form a solid setup for repeated pulls on clay or rocky ground. The drum centre height at about 78 mm keeps the cable low and controlled, which helps when you are working slopes or side angles in typical Aussie bush conditions.

• Mean Mother Peak ATV 3500lb winch
• Wire cable drum suited to ATV work
• Rated 3500 lb line pull capacity
• Compact overall length around 333.5 mm
• Body height approximately 114 mm
• Mounting foot width near 124 mm
• Drum centre height about 78 mm
• End housing width roughly 116 mm
• 12V electric operation for ATV / UTV
• Ideal for light vehicle and trailer recoveries

Q: What vehicles suit the Mean Mother Peak ATV 3500lb wire winch?

This winch suits ATVs and UTVs that can accept a compact 12V winch with a 3500 lb rating. Most mid-size and larger ATVs with a front winch plate will be suitable. Always check your owner manual for maximum winch load on the frame. If the plate matches the mounting footprint and the electrical system supports the load, you are good to go.

Q: Does the wire cable need special maintenance after use in mud or sand?

Yes, the wire cable should be cleaned and inspected after muddy or sandy recoveries. Rinse off grit with low-pressure water and let the cable dry fully on the drum. Look for broken strands or flat spots as you rewind. A light spray of suitable cable lubricant on a dry rope helps reduce corrosion over time.

Q: Can this 3500lb winch be used on light trailers around the property?

It can, as long as the mounting and load stay within the 3500 lb rating. Many people mount ATV-size winches on small farm or box trailers for pulling equipment or game. Make sure the trailer frame is reinforced where the winch mounts. Always keep the pulling line straight and avoid shock loads when tension comes on.

Q: What power supply is required to run the winch properly?

The winch runs from a 12V DC electrical system, common on ATVs and side-by-sides. Use suitable gauge cables and quality terminals from the battery to the winch. A correctly rated fuse or circuit breaker helps protect the wiring. Keep cable runs as short as practical to reduce voltage drop during heavy pulls.

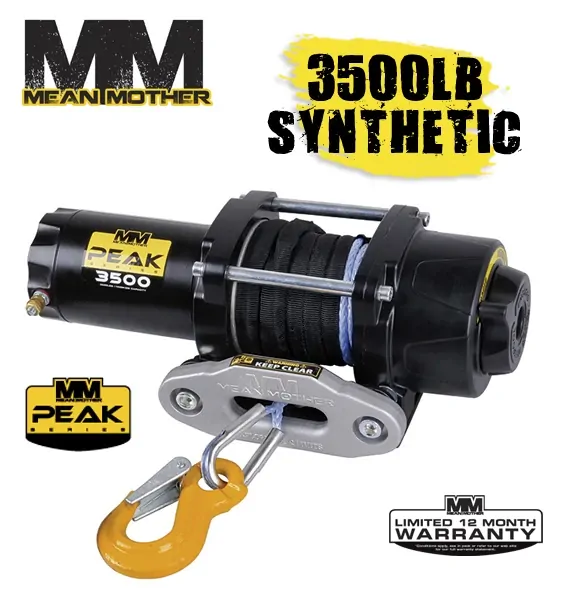

Also available in 3500lb synthetic rope version under parent SKU EW3500-S.

• Suitable platform: ATV and UTV applications
• Power requirement: 12V electrical system
• Winch rating: 3500 lb line pull
• Mounting: Suits compatible ATV / UTV winch mounting plates
• Typical use: Front mounted on ATV or side‑by‑side vehicles
