iCheckTPMS IntelliData™

What is IntelliData™?  Unlike iCheckTPMS, other tyre pressure monitoring systems can be difficult to set up, especially when setting your high and low alarm pressures for each wheel, for car and then caravan, which generally run different pressures.
With our exclusive IntelliData™, it’s much easier and quicker. Here’s how.
On cold tyres, simply screw the wheel sensors onto your tyre valves. This sets the benchmark alarm pressure alerts. If a tyre pressure increases by 25% (from the cold benchmark pressure), it will give a visual and audible alarm. If a tyre drops by 15% (from the cold benchmark pressure), it will give a visual and audible alarm. With this feature, you do not have to set different high and low pressures for your tow vehicle or caravan; simply screw them on and you’re done.

Intelligent Off Road Mode

When the need arises to reduce the air pressure of your tyres, simply unscrew the wheel sensors, air them down, and reinstall the sensors. This then sets a new benchmark with pressure alerts if the tyres pressure rises by 25% or drops by 15%.
Every time your sensors and removed and reinstalled, they reset to the current pressure so there’s no need to keep readjusting your high and low pressure alarms. Clever huh?

iCheckTPMS InstaData™

What is InstaData™?  Currently other TPMS systems have wheel sensors that go into sleep mode after a short period of time and no movement, and are only activated by motion, generally at speeds over 25km/h.

Here lies the problem…if your caravan has been sitting for some weeks or months and has a slow leak you won’t know until your halfway down the road. Having hooked up ready for your trip then only to be made aware that you have low pressures in one or more tyres.

This then is a pain having to pull over and put air in your tyres on the side of the road. Keep in mind too that there is visually no difference between a tyre with 40psi and 20psi and there is no way of telling whether you have low pressures in your car and or caravan before you leave, (unless checked manually with a tyre pressure gauge).

The iCheckTPMS wheel sensors send data every five minutes to the monitor whether in motion or not via our exclusive InstaData™ This means as soon as you hop in your car with your caravan on tow you will have the latest PSI data before you even drive out the driveway.

The iCheckTPMS Tyre Pressure Monitor is a solar-power tyre pressure monitoring system suitable for 4WD’s, caravans, horse floats and boat trailers. With a product range to suit your 4WD, single and dual axle caravan the iCheckTPMS is the intelligent choice.

It features a solar powered LCD display with up to 10 waterproof external sensors for easy DIY installation. If towing a caravan the display will rotate between the caravan and car tyres automatically every 5 seconds. When you’re not towing you can simply ‘un-link’ the caravan so you won’t have the monitor beeping while worried about lost sensors. Each sensor weighs less than 9 grams and is IP67 water resistant and dust-proof.

The iCheck tyre pressure monitoring system works up to 8 meters from the display to the most rear wheels thus allowing it to be installed on even the largest of caravans.

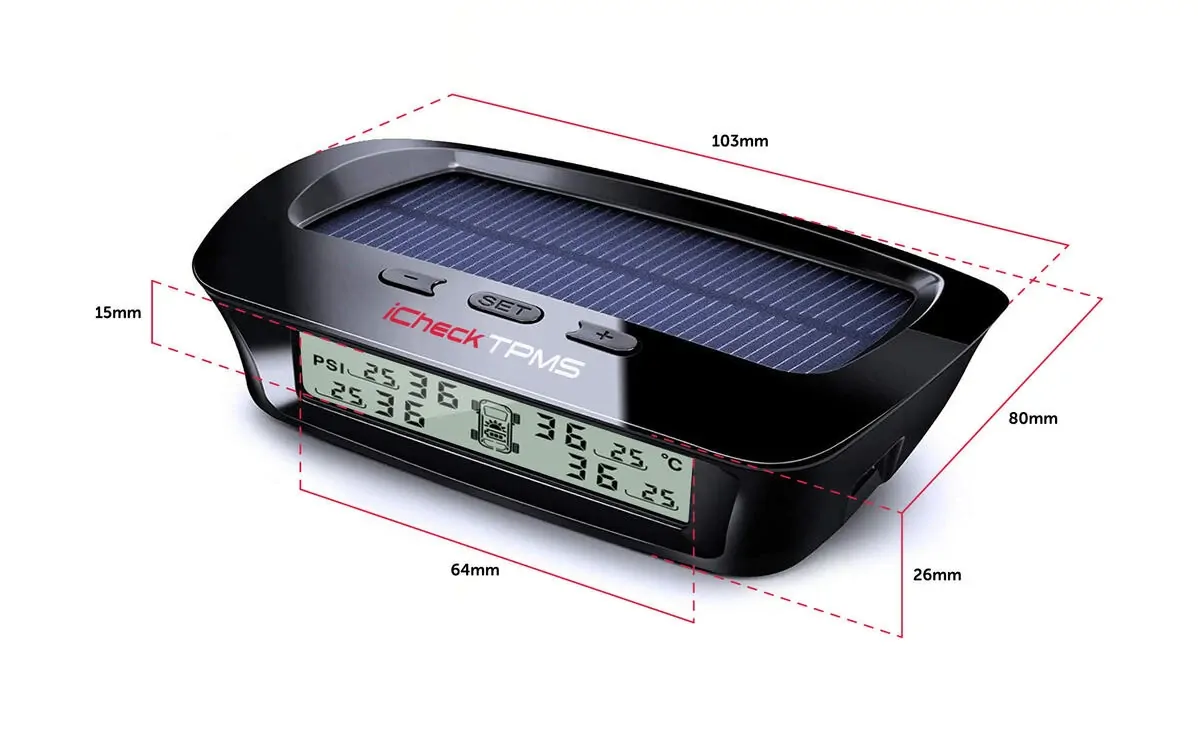

As a dash mount system it gets its power from the built in solar panel meaning no ugly cables to worry about and can be installed within minutes. Even in low light or no sun situations the built in lithium battery gives weeks of use before the need for charging via the included USB cable.

A must have for car and caravanning use and especially off-roading enthusiasts. Everyone knows that driving on a flat tyre is the worst thing for it and your own safety. Now you can be alerted to any abnormalities immediately, address the issue sooner and save yourself any serious damage!

iCheckTPMS is able to turn a potential ‘trip-ruining experience’ into a quick fix and give you the peace of mind your tyres are all running at the right pressure at all times, all without needing to get out and check them by hand!

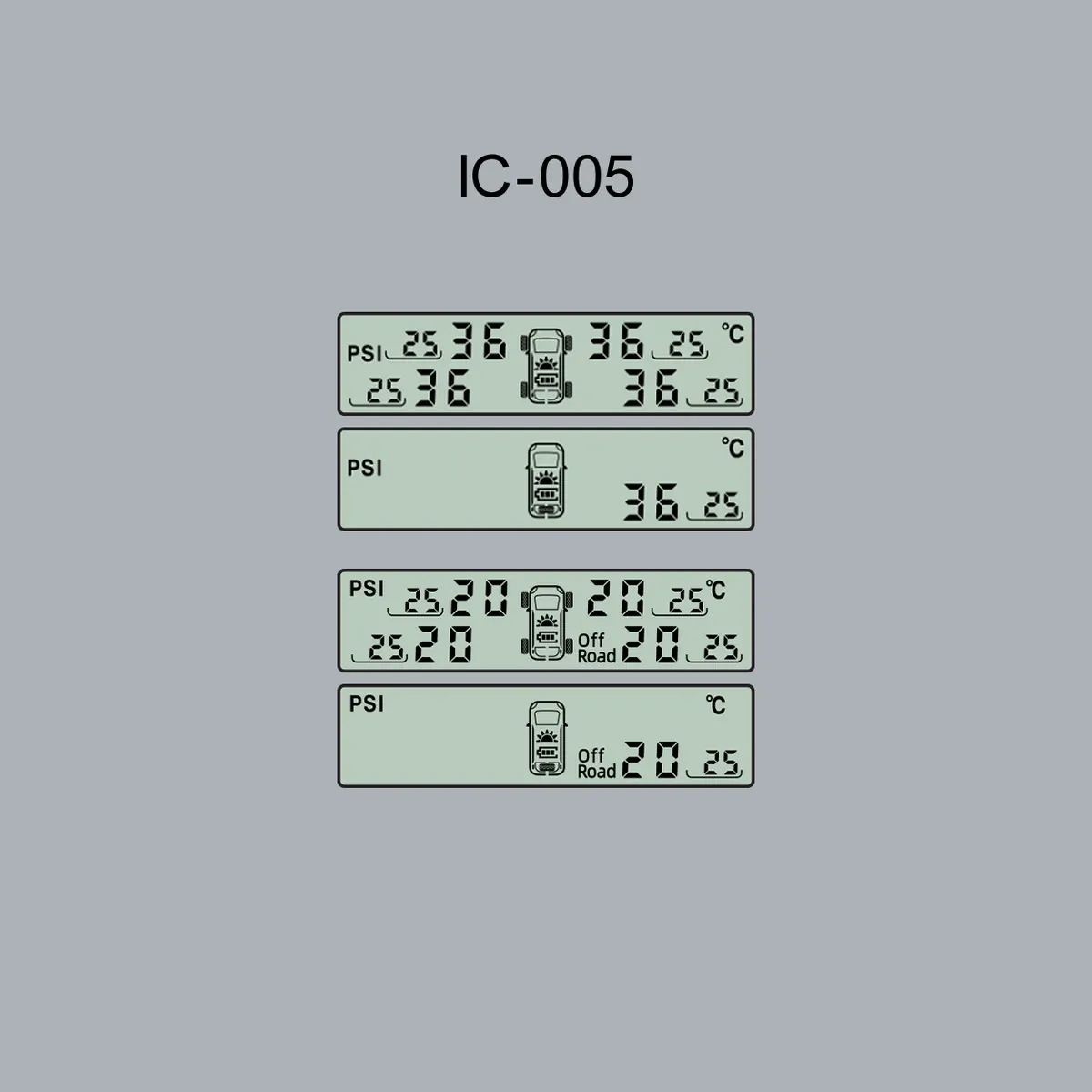

Display Features

BAR/PSI unit setting
°F/°C unit setting
Large LCD screen with automatic backlight
Rechargeable solar-powered display with high temperature resistant battery
Automatic screen rotation between car and caravan wheels
Auto-sleep function for power-saving
Vibration-activated auto-wake function
Extra micro usb charging port
One full charge lasts for 30+ days

Key Features

Monitors each individual tyre pressure and temperature in real-time
Alerts for low pressure, high pressures, fast air leakage and high tyre temperature
Visual and audible alerts
Caravan disconnect feature
On and Off road tyre pressure modes
Tyre Swap function available
Patented lock nut removal tool
Monitoring distance 7-8m. If there is electronic interference or the length exceeds 8m, we recommend adding an iCheckTPMS signal booster.

Frequently Asked Questions about the iCheck TPMS

What is a TPMS and why should I use one?

A tyre pressure monitoring system (TPMS) alerts you when pressure or temperature in any tyre becomes unsafe. It helps prevent blowouts, improves fuel use, and extends tyre life. It’s especially useful when towing, off-roading, or driving long distances across changing terrain.

How does the iCheck TPMS system work?

Each sensor screws onto your tyre’s valve stem and reads live pressure and temperature. These readings are sent wirelessly to a display inside your vehicle. If any tyre becomes under-inflated or overheats, the screen flashes a warning so you can stop safely.

Is iCheck TPMS compatible with caravans, 4WDs, and trailers?

Yes. iCheck kits work across a wide range of setups including 4WDs, vans, caravans, trailers, utes, and dual-axle combos. The 5-sensor kit suits cars or 4WDs. The 8 and 10-sensor kits are made for trailer and caravan monitoring.

How easy is it to install iCheck TPMS?

Very easy. Each sensor replaces your tyre valve cap and pairs wirelessly with the screen. No tyre removal, tools, or garage visit needed. Most people who bought this install the system in under 10 minutes.

Will the system detect slow leaks or overheating tyres?

Yes. iCheck TPMS shows the real pressure and temperature for each tyre. If one tyre drops slowly or gets too hot from a dragging brake or underinflation, you’ll see it on the screen.

How accurate are the sensors?

Sensors give readings accurate to within 1 PSI and update every 30 to 60 seconds. That’s more reliable than a quick visual check or using servos with faulty gauges.

Why is TPMS useful for caravanning and off-road use?

A TPMS is a crucial first line of defence for your on road safety. It enables constant and easy monitoring of your tyres to ensure they're always operating within a safe and expected range. TPMS monitors tyre pressure and temperature across your whole setup, including trailer or van. You’ll know if a tyre is losing air on corrugated roads, steep descents or long drives.

Can a TPMS save fuel and tyre costs?

Yes. Even a small drop in pressure can raise fuel use and cause faster wear. TPMS helps you stay within the ideal range for load and driving conditions. That means fewer fuel stops and longer life from each set of tyres.

Where can I buy iCheck TPMS?

You can buy iCheck TPMS 5, 8 and 10-sensor kits directly from Outback Equipment. All kits ship fast from within Australia. You’ll get easy returns, clear setup instructions and local support if you need help pairing or choosing the right model.
