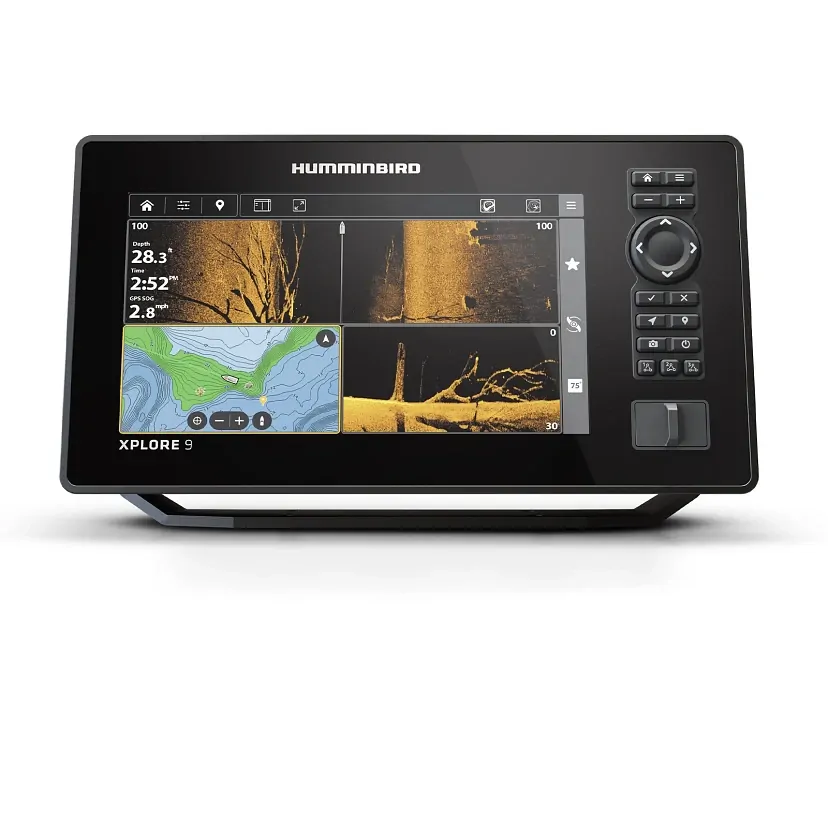

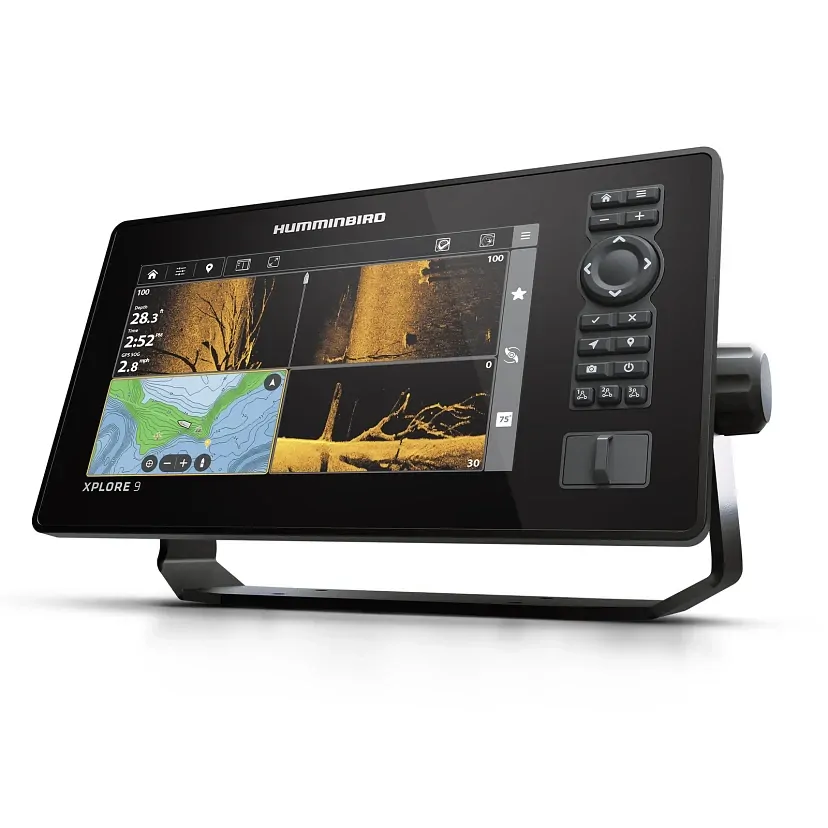

Humminbird XPLORE 9 CMSI+
The XPLORE 9 CMSI+ is a premium fish finder and chartplotter built for anglers who want full sonar performance and real-time mapping in one package. It features a 9 inch HD screen with anti-glare coating and Cross Touch™ controls for easy use by keypad or touchscreen.
This model includes a compact MEGA Side Imaging+ transducer, along with MEGA Down Imaging+ and Dual Spectrum CHIRP. You get crisp, wide sonar views with support for split-screen layouts and custom sonar display setups.
Built-in GPS and AutoChart Live let you map your own water as you go, with 8 hours of internal storage. A mapping card is also included to enhance onboard charts. You can mark, group, colour-code, and export waypoints, then manage them on your phone with the One-Boat app.
The XPLORE 9 CMSI+ includes Bluetooth, Wi-Fi, Ethernet, and NMEA 2000. It works with MEGA Live, Minn Kota trolling motors, Raptor shallow water anchors, and other One-Boat Network™ gear.
Already have a compatible transducer installed?
See the XPLORE 9 CHO model – head unit only.
Need detailed onboard charts from day one?
See the Humminbird XPLORE 9 CMSI + Nav Card.
Comparing the XPLORE 9 Models
| Feature | XPLORE 9 CHO | XPLORE 9 CMSI | XPLORE 9 CMSI + Nav Card |
|---|---|---|---|
| Transducer | ❌ Not included | ✅ Included (XM‑14 MSI+) | ✅ Included (XM‑14 MSI+) |
| MEGA Imaging | ✅ Yes | ✅ Yes | ✅ Yes |
| GPS & Basemap | ✅ Built-in Basemap | ✅ Built-in Basemaps | ✅ Built-in + LakeMaster & CoastMaster |
| AutoChart Live Mapping | ✅ Yes (card required) | ✅ Yes (8 hr internal) | ✅ Yes (8 hr internal) |
| Connectivity (Wi‑Fi, Ethernet, Bluetooth, NMEA 2000) | ✅ Yes | ✅ Yes | ✅ Yes |
| MEGA Live 2 & MEGA 360 | ✅ Compatible | ✅ Compatible | ✅ Compatible |
| Ideal For | Custom setups with existing transducer | Plug‑and‑play sonar system | All‑in‑one sonar + mapping setup |
Comparing the Humminbird XPLORE series
| Feature | XPLORE 9 | XPLORE 10 | XPLORE 12 |
|---|---|---|---|
| Screen Size | 9″ (22.86 cm) | 10″ (25.4 cm) | 12″ (30.73 cm) |
| Resolution | WXGA 1280 × 800 | WXGA 1280 × 800 | WXGA 1280 × 800 |
| Display Type | Cross Touch™ | Cross Touch™ | Cross Touch™ |
| Interface | Touch + Button | Touch + Button | Touch + Button |
| Ideal Use Case | Smaller boats | Mid-size consoles | Full-screen split views |
| Connectivity & Sonar | ✅ Same across all | ✅ Same across all | ✅ Same across all |
SPECIFICATIONS
| Item Number | 104675 CMSI+, 104674 CHO |
| Series | XPLORE |
| Display Size – Diagonal | 22.86cm |
| Display Pixel Matrix | HD 1280 x 720 |
| Enhancements | Cross Touch Interface In Pane Touch Targets Anti-glare, edge to edge screen display Updated Home Screen and User Interface Updated Menu/Setting structure New Keypad Design Two Micro SD card slots Twist lock cable connections Wi-Fi Software Updates Utilizes the same power cable as APEX units Dual Band GPS for better position accuracy |
| Display Features | High-Def Display Engineered for Polarized Eyewear |
| Sonar Capability | MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible |
| CHIRP-Frequencies Supported | Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o |
| Depth & Range – Sonar | MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz |
| Fish Finder Functionality | Intuitive Cross Touch® Quick-Launch Home Screen |
| Connectivity | CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi |
| Memory Card Slot | Duel Micro SD |
| Waterproof Rating | IPX7 |
| Power Input | 10-20 volts |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Trackplotting | Included |
| LakeMaster Compatibility | Yes |
| Coast Master Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| Upgradable Software | Yes |
| Included in the box *Applies for CMSI+ (104675) |
XPLORE Fish Finder, Power Cable, Unit Cover, Gimbal Mount with Hardware and Knobs PLUG-AND-PLAY MINN KOTA CAPABILITY |
- 22.86 cm screen suits split views
- MEGA Imaging shows structure and fish
- IPX7 rating handles spray and rain
- Dual micro SD keeps charts handy
- Network ready with NMEA 2000 and Ethernet
- Smart buy for serious sounder upgrades
Series: XPLORE
Display size (diagonal): 22.86 cm (9 inch)
Display resolution: HD 1280 x 720
Display type: Cross Touch interface with touch and button control
Display features: High-definition display engineered for polarised eyewear
Screen finish: Anti-glare edge-to-edge screen display
Sonar capability: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
Live sonar compatibility: MEGA Live 2 Imaging+ compatible
Scanning sonar compatibility: MEGA 360 compatible
CHIRP frequencies full: 150–220 kHz @ 25°/42°
CHIRP frequencies narrow: 180–240 kHz @ 25°
CHIRP frequencies wide: 140–200 kHz @ 42°
Side Imaging range: 800 ft (244 m) at 455 kHz
Side Imaging range MEGA: 400 ft (122 m) at 1100–1200 kHz
Down Imaging depth: 400 ft (122 m) at 455 kHz
Down Imaging depth MEGA: 200 ft (61 m) at 1125–1225 kHz

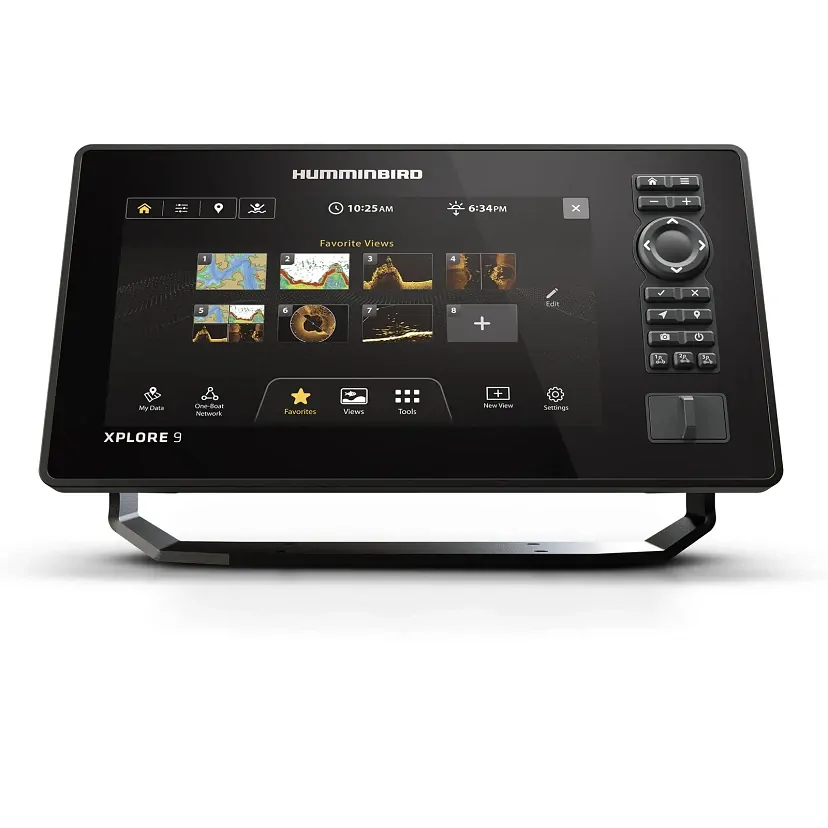

Fish finder functionality: Intuitive Cross Touch with quick-launch home screen
Connectivity: CE, NMEA 2000, Bluetooth, Ethernet, Wi‑Fi, MFi
GPS chartplotting: Included
GPS trackplotting: Included
AutoChart Live internal recording: 8 hours
Basemaps: Built-in basemaps
Chart compatibility: LakeMaster, CoastMaster, Navionics Gold/HotMaps, Navionics Platinum+, Platinum
Heading sensor GPS compatibility: Yes
Memory card slots: Dual micro SD
Waterproof rating: IPX7
Power input: 10–20 volts DC
Power output peak-to-peak: 8000 watts
Power output RMS: 1000 watts
Transducer mount location: Transom
Software: Upgradable via Wi‑Fi
Included item number: 104675 CMSI+
XPLORE 9 CMSI+ fish finder unit
Power cable

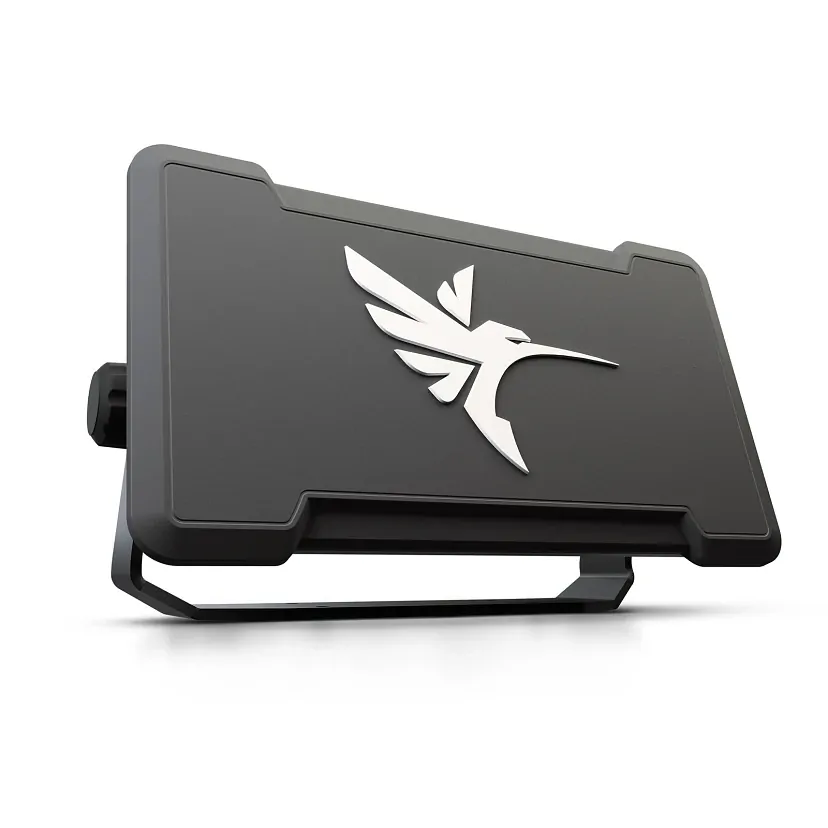

Unit cover

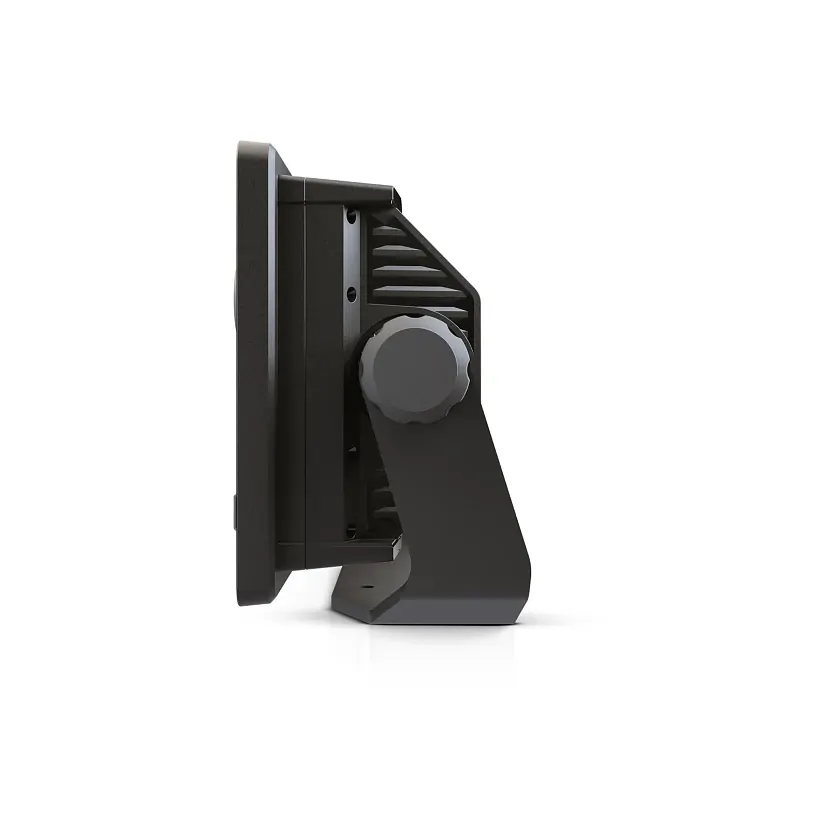

Gimbal mount
Gimbal mounting hardware
Gimbal mounting knobs
XM-14 MSI+ transom-mount transducer
Mapping card
| SKU | 104675 |
|---|---|
| Barcode # | 82324059728 |
| Brand | Humminbird |
| Shipping Weight | 5.6800kg |
| Shipping Width | 0.270m |
| Shipping Height | 0.280m |
| Shipping Length | 0.410m |
