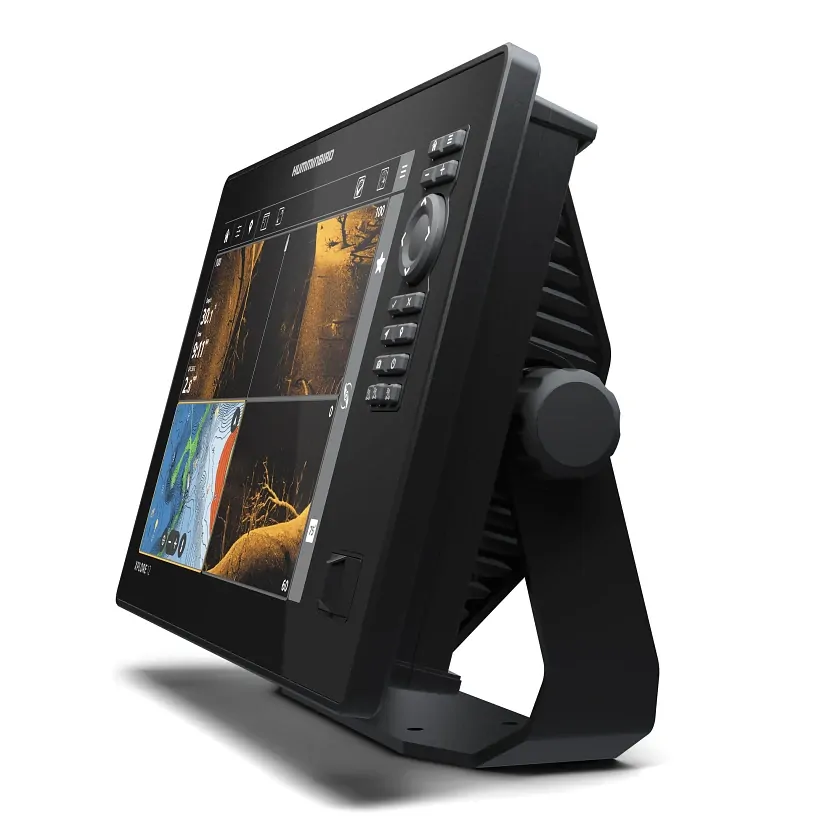

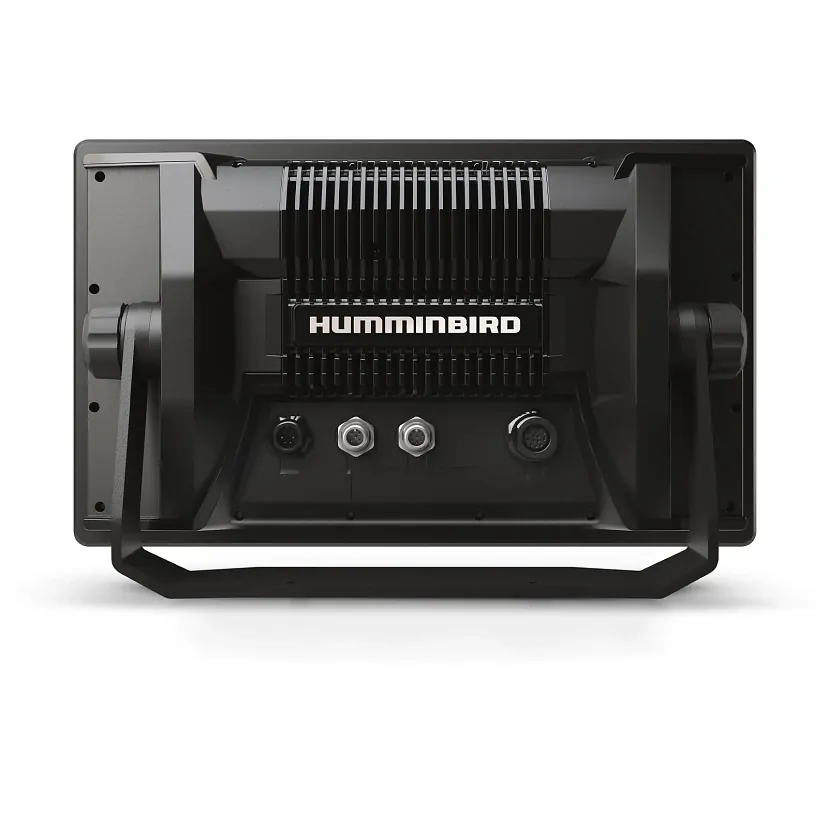

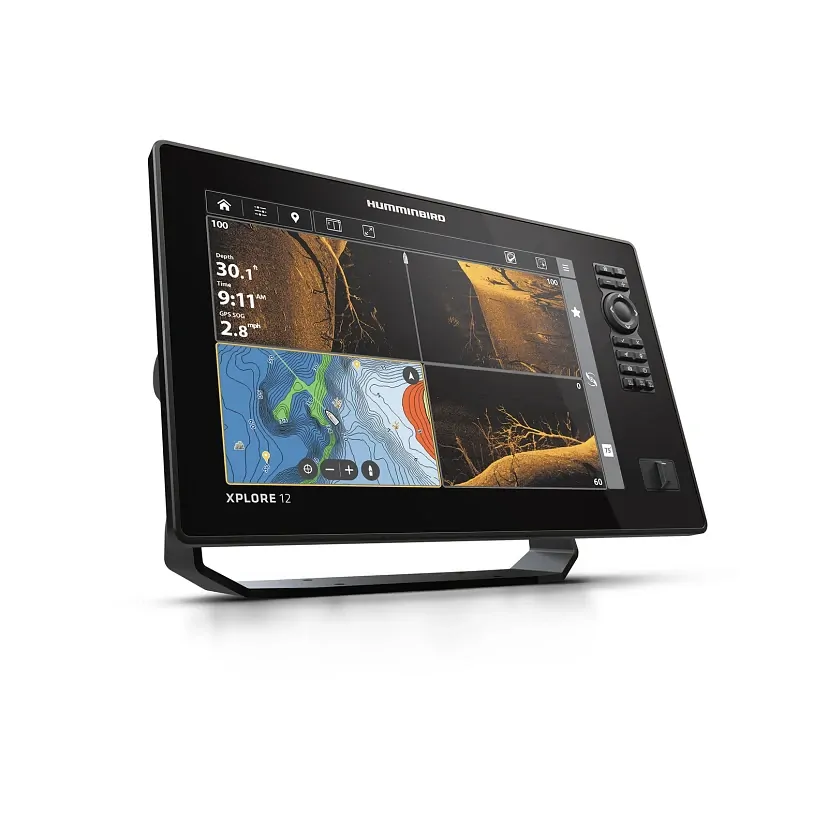

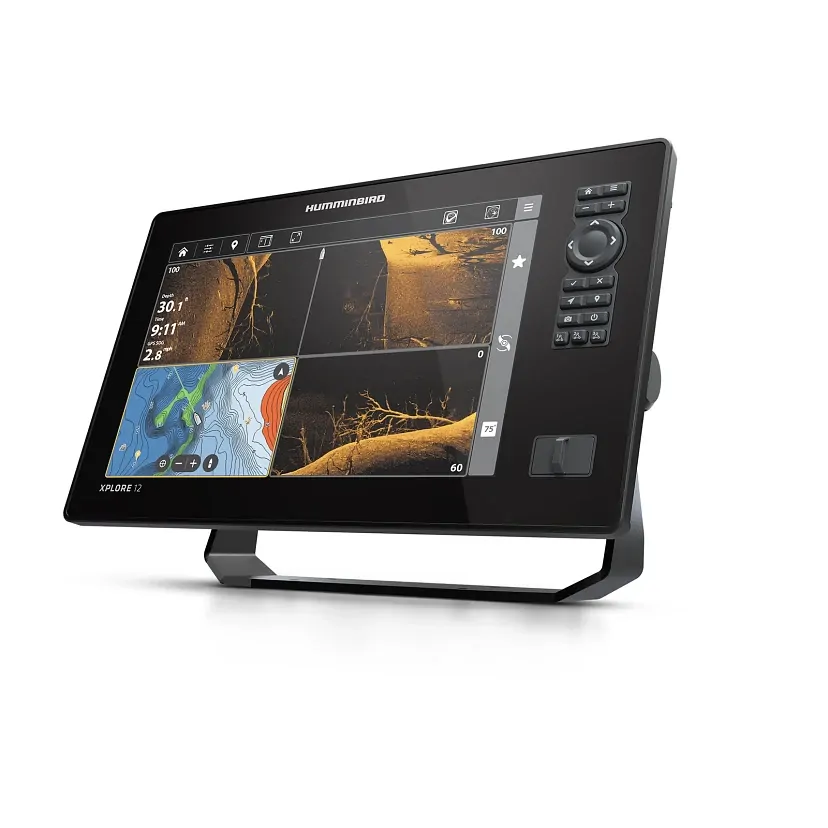

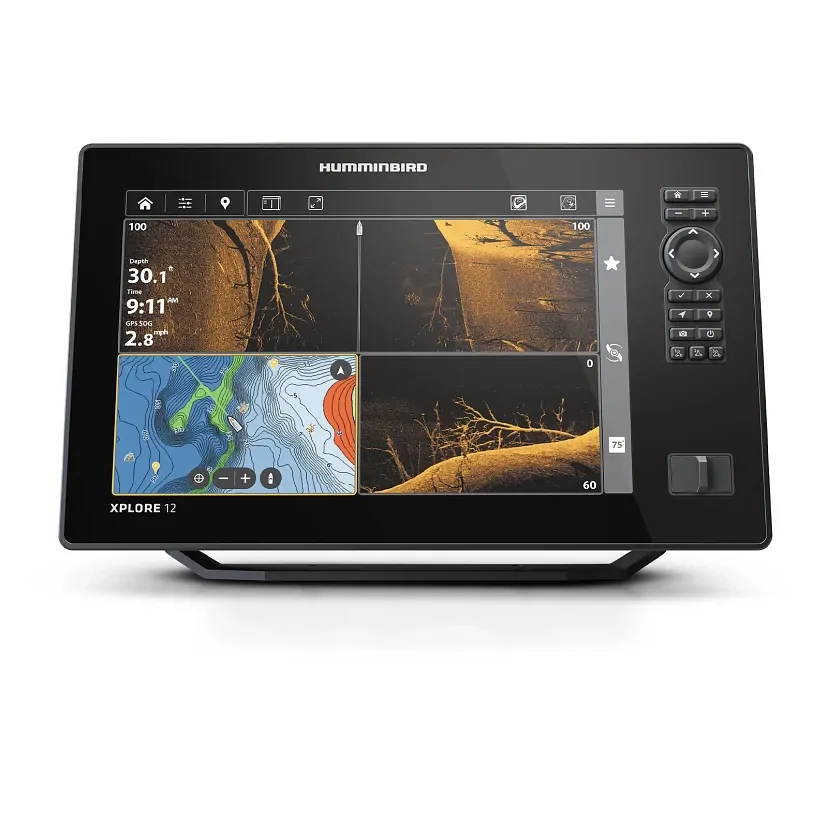

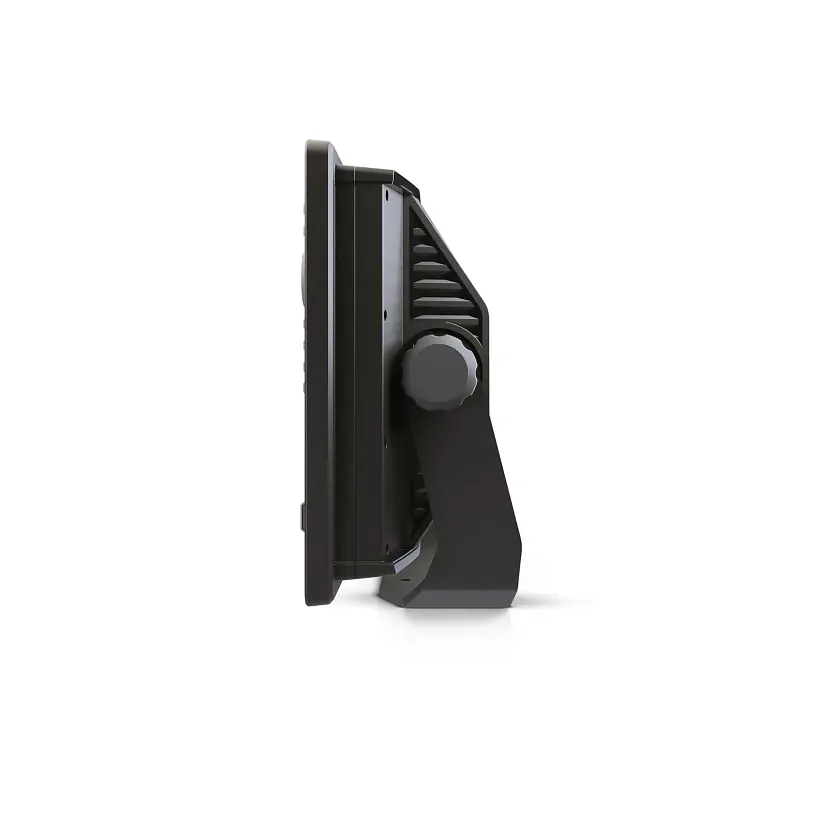

Humminbird XPLORE 12 CMSI+
The XPLORE 12 CMSI+ is a high-powered fish finder and chartplotter built for serious fishing. It features a 12 inch HD display with anti-glare coating, fast load times, and Cross Touch™ controls. You can navigate using the touchscreen or keypad.
It includes a compact MEGA Side Imaging+ transducer with support for MEGA Down Imaging+ and Dual Spectrum CHIRP sonar. Build your own sonar display with split-screen views and access your favourite layouts in seconds. You also get GPS, AutoChart Live, and full mapping functions with built-in memory.
This model is fully network-ready. It comes with Bluetooth, Wi-Fi, Ethernet, and NMEA 2000. You can link it to Minn Kota trolling motors, MEGA Live sonar, and other One-Boat Network™ gear for full control from a single screen.
A LakeMaster and CoastMaster contour card is preloaded, offering detailed U.S. inland and coastal charts. You can mark waypoints, group them by colour or icon, and sync everything to your phone using the One-Boat app.
Already have a compatible Humminbird transducer?
Check out the XPLORE 12 CHO version, this one is the head unit only.
Want sonar and detailed mapping in one box?
Check out the XPLORE 12 CMSI+ with Nav Card
Comparing the XPLORE 12 Models
| Feature | XPLORE 12 CHO | XPLORE 12 CMSI+ | XPLORE 12 CMSI + Nav Card |
| Transducer | ❌ Not included | ✅ Included (XM-14 HW CMSI T) | ✅ Included (XM-14 HW CMSI T) |
| MEGA Imaging | ✅ Yes | ✅ Yes | ✅ Yes |
| GPS & Basemap | ✅ Built-in | ✅ Built-in + maps | ✅ Built-in + LakeMaster & CoastMaster |
| AutoChart Live | Enabled (card required) | ✅ 8hr internal storage | ✅ 8hr internal storage |
| Connectivity: Wi-Fi, NMEA 2000, Bluetooth, Ethernet | ✅ Yes | ✅ Yes | ✅ Yes |
| MEGA Live 2 Compatible | ✅ Yes | ✅ Yes | ✅ Yes |
| Ideal For | Custom setups | Ready-to-go sonar package | All-in-one sonar + mapping |
Comparing the Humminbord XPLORE series
| Feature | XPLORE 9 | XPLORE 10 | XPLORE 12 |
| Screen Size | 9″ (22.86 cm) | 10″ (25.4 cm) | 12″ (30.73 cm) |
| Resolution | WXGA 1280 × 800 | WXGA 1280 × 800 | WXGA 1280 × 800 |
| Display Type | Cross Touch™ | Cross Touch™ | Cross Touch™ |
| Interface | Touch + Button | Touch + Button | Touch + Button |
| Ideal Use Case | Smaller boats | Mid-size consoles | Full-screen split views |
| Connectivity & Sonar | ✅ Same across all | ✅ Same across all | ✅ Same across all |
SPECIFICATIONS
| Item Number | 104681 CMSI+, 104680 CHO |
| Series | XPLORE |
| Display Size – Diagonal | 30.73 cm |
| Display Pixel Matrix | WXGA 1280 x 800 |
| Enhancements | Cross Touch Interface In Pane Touch Targets Anti-glare, edge to edge screen display Updated Home Screen and User Interface Updated Menu/Setting structure New Keypad Design Two Micro SD card slots Twist lock cable connections Wi-Fi Software Updates Utilizes the same power cable as APEX units Dual Band GPS for better position accuracy |
| Display Features | High-Def Display Engineered for Polarized Eyewear |
| Sonar Capability | MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible |
| CHIRP-Frequencies Supported | Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o |
| Depth & Range – Sonar | MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz |
| Fish Finder Functionality | Intuitive Cross Touch® Quick-Launch Home Screen |
| Connectivity | CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi |
| Memory Card Slot | Duel Micro SD |
| Waterproof Rating | IPX7 |
| Power Input | 10-20 volts |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Trackplotting | Included |
| LakeMaster Compatibility | Yes |
| Coast Master Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| Upgradable Software | Yes |
| Included in the box *Applies for CMSI+ (104681) |
XPLORE Fish Finder, Power Cable, Unit Cover, Gimbal Mount with Hardware and Knobs
PLUG-AND-PLAY MINN KOTA CAPABILITY |
- Big 12 inch screen for split views
- Strong 1000 W RMS sonar output
- MEGA Imaging+ for structure and fish
- Dual-band GPS for accurate track lines
- Dual micro SD slots for extra charts
- NMEA 2000 and Ethernet for full networking
- Series: XPLORE
- Display size (diagonal): 30.73 cm (12")
- Display resolution: WXGA 1280 x 800
- Display type: High-definition Cross Touch interface with anti-glare, edge-to-edge glass
- Display features: Engineered for use with polarised eyewear
- Interface: Touchscreen plus keypad controls with new keypad design
- Sonar capabilities: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP, MEGA Live 2 Imaging+ and MEGA 360 compatible
- CHIRP frequencies supported: Full 150–220 kHz @ 25°/42°; Narrow 180–240 kHz @ 25°; Wide 140–200 kHz @ 42°
- MEGA Side Imaging+ range: 800 ft (244 m) @ 455 kHz (405–505 kHz); 400 ft (122 m) @ MEGA 1100–1200 kHz
- MEGA Down Imaging+ depth: 400 ft (122 m) @ 455 kHz (420–520 kHz); 200 ft (61 m) @ MEGA 1125–1225 kHz

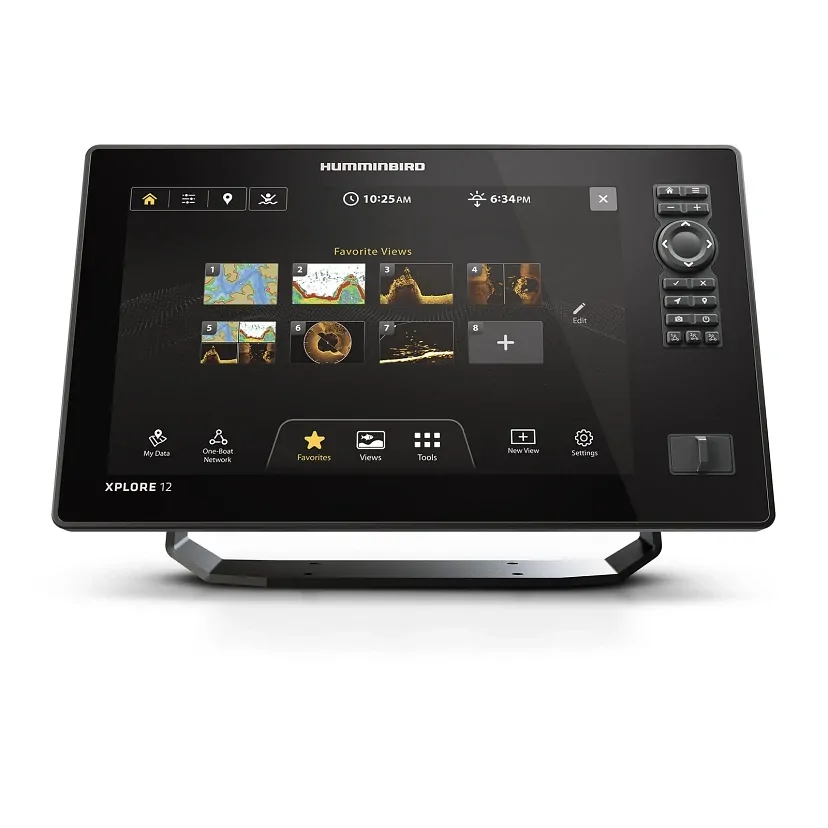

- Fish finder functionality: Cross Touch control and quick-launch home screen
- Connectivity: NMEA 2000, Bluetooth, Ethernet, Wi‑Fi, MFi, CE
- GPS functions: Built-in GPS chartplotting and trackplotting with dual-band receiver
- Mapping: Preloaded LakeMaster and CoastMaster contour charts; compatible with Navionics Gold/HotMaps, Navionics Platinum+, and Platinum
- AutoChart Live: 8 hours of internal recording storage
- Memory card slots: Dual micro SD
- Waterproof rating: IPX7
- Power input: 10–20 V DC
- Power output (peak-to-peak): 8000 W
- Power output (RMS): 1000 W
- Transducer mount location: Transom
- Heading sensor GPS compatibility: Yes
- Software: Upgradable via Wi‑Fi
- Humminbird XPLORE 12 CMSI+ fish finder head unit
- XM-14 HW CMSI T transom-mount MEGA Side Imaging+ transducer
- Power cable

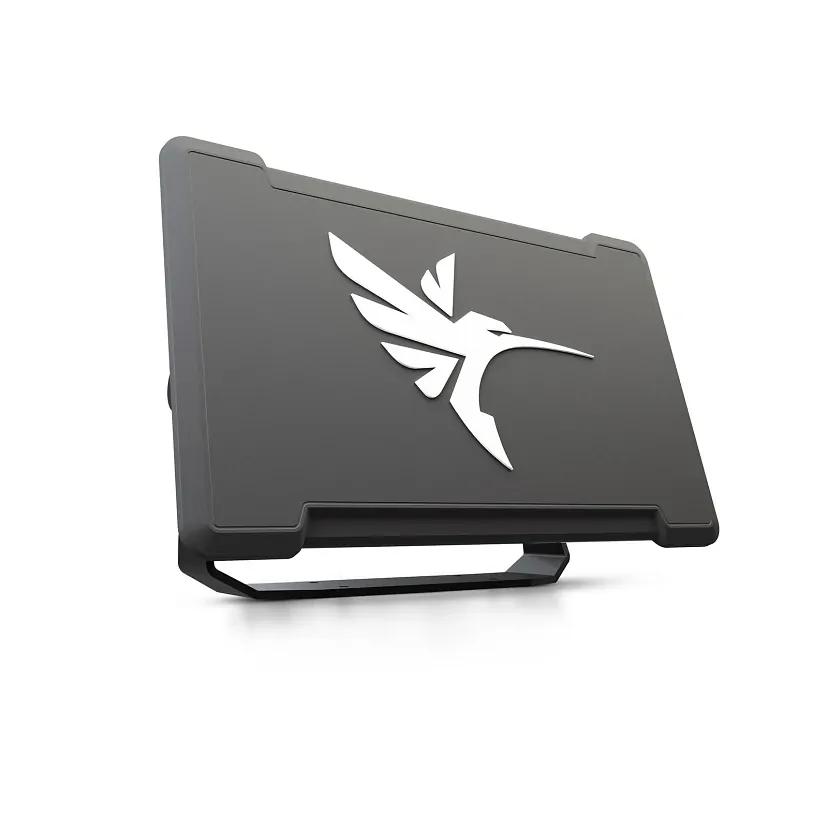

- Unit cover
- Gimbal mount with hardware and knobs
| SKU | 104681 |
|---|---|
| Barcode # | 82324059704 |
| Brand | Humminbird |
| Shipping Weight | 7.1800kg |
| Shipping Width | 0.480m |
| Shipping Height | 0.320m |
| Shipping Length | 0.310m |
