All-in-One Sonar and Mapping System for Serious Anglers

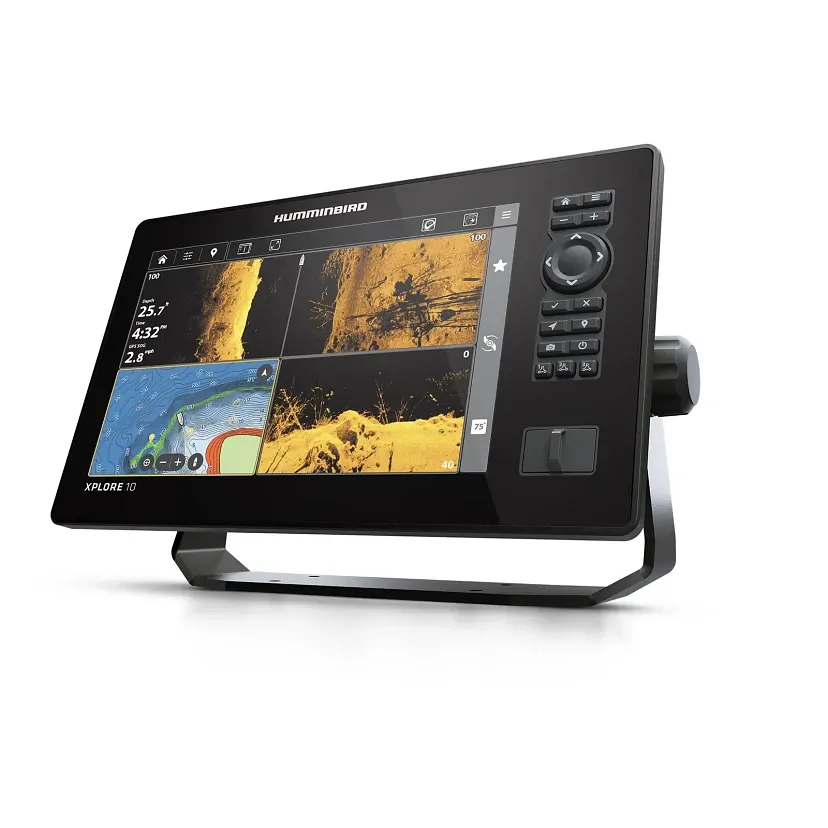

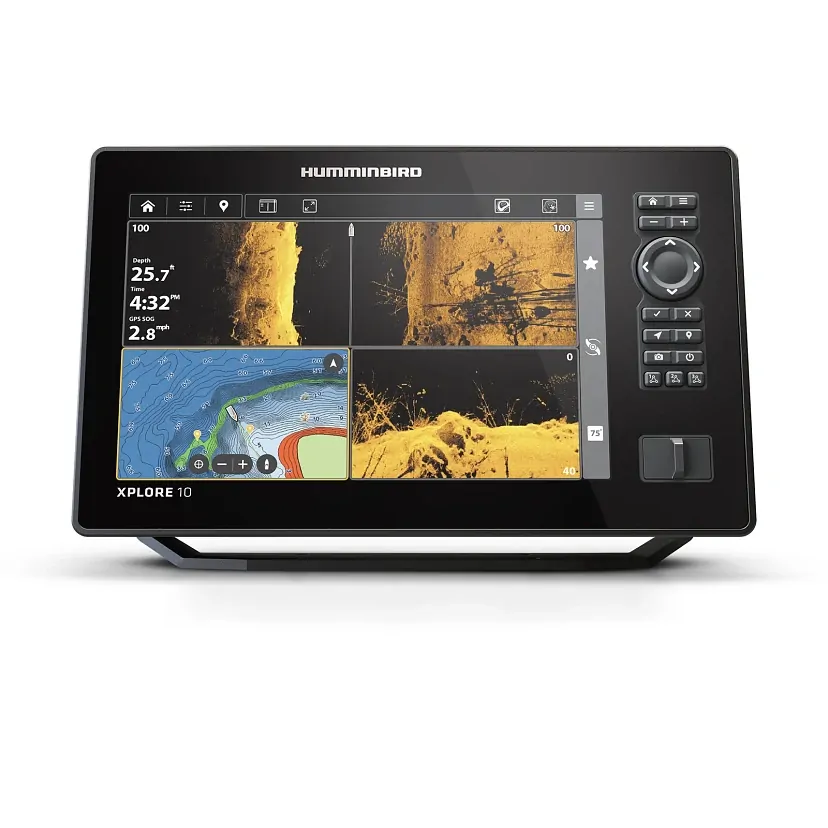

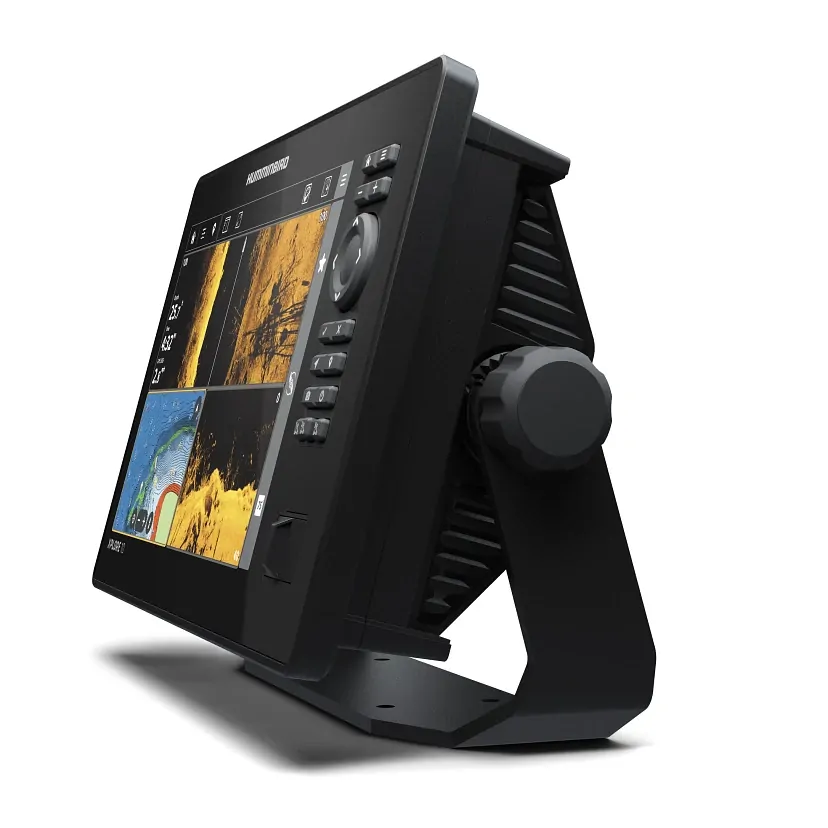

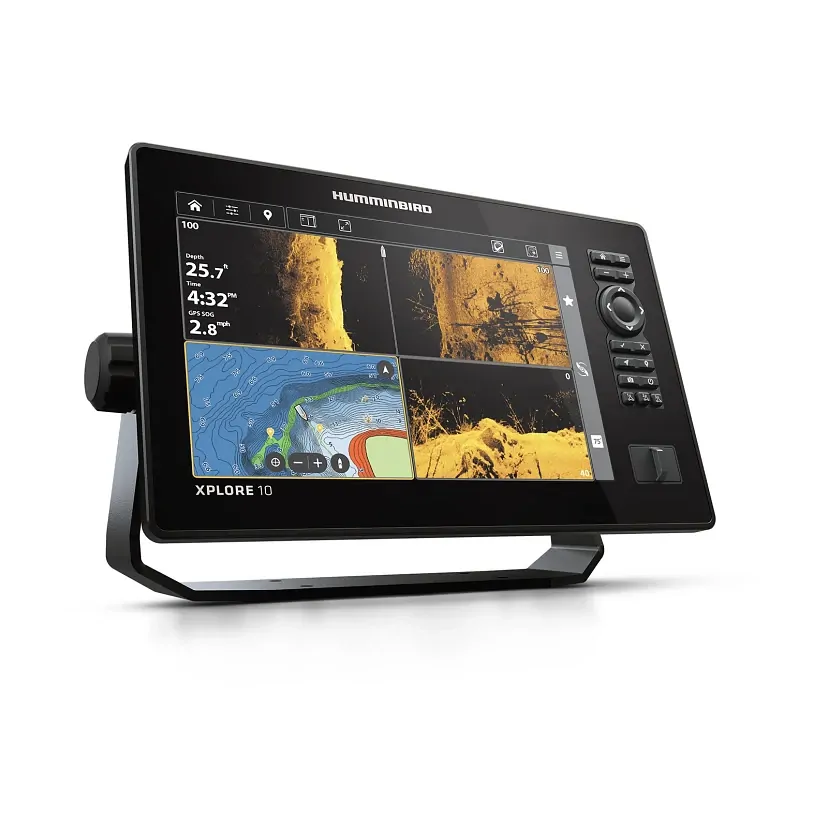

The XPLORE 10 CMSI is a high-powered fish finder and chartplotter with a 10 inch HD screen, Cross Touch™ controls, and full sonar capability. It includes a compact MEGA Side Imaging+ transducer with support for MEGA Down Imaging+ and Dual Spectrum CHIRP.
The display is anti-glare and fast to navigate, giving you smooth access to split-screen sonar layouts, mapping tools, and saved views. Use the touchscreen or keypad depending on conditions.
This model includes built-in GPS, AutoChart Live with onboard memory, and a preloaded mapping card for more detailed charts right out of the box. You can mark, group, and colour-code waypoints, then sync them to your phone using the One-Boat app.
It also includes Wi-Fi, Bluetooth, Ethernet, and NMEA 2000. It connects with MEGA Live sonar, Minn Kota trolling motors, Raptor shallow water anchors, and other One-Boat Network™ gear — making it a complete boat electronics hub.
Don’t need onboard charts?
Check out the Humminbird XPLORE 10 CMSI version without the mapping card.
Already have a compatible transducer installed?
See the Humminbird XPLORE 10 CHO – head unit only.
Comparing the XPLORE 10 Models
| Feature | XPLORE 10 CHO | XPLORE 10 CMSI | XPLORE 10 CMSI + Nav Card |
| Transducer | ❌ Not included | ✅ Included (XM‑14 MSI+) | ✅ Included (XM‑14 MSI+) |
| MEGA Imaging | ✅ Yes | ✅ Yes | ✅ Yes |
| GPS & Basemap | ✅ Built-in Basemap | ✅ Built-in Basemaps | ✅ Built-in + LakeMaster & CoastMaster |
| AutoChart Live Mapping | ✅ Yes (card required) | ✅ Yes (8 hr internal) | ✅ Yes (8 hr internal) |
| Connectivity (Wi‑Fi, Ethernet, Bluetooth, NMEA 2000) | ✅ Yes | ✅ Yes | ✅ Yes |
| MEGA Live 2 & MEGA 360 | ✅ Compatible | ✅ Compatible | ✅ Compatible |
| Ideal For | Custom setups with existing transducer | Plug‑and‑play sonar system | All‑in‑one sonar + mapping setup |
Comparing the Humminbird XPLORE series
| Feature | XPLORE 9 | XPLORE 10 | XPLORE 12 |
| Screen Size | 9″ (22.86 cm) | 10″ (25.4 cm) | 12″ (30.73 cm) |
| Resolution | WXGA 1280 × 800 | WXGA 1280 × 800 | WXGA 1280 × 800 |
| Display Type | Cross Touch™ | Cross Touch™ | Cross Touch™ |
| Interface | Touch + Button | Touch + Button | Touch + Button |
| Ideal Use Case | Smaller boats | Mid-size consoles | Full-screen split views |
| Connectivity & Sonar | ✅ Same across all | ✅ Same across all |
✅ Same across all |
SPECIFICATIONS
| Item Number | 104678 CMSI+, 104677 CHO |
| Series | XPLORE |
| Display Size – Diagonal | 25.65 cm |
| Display Pixel Matrix | WXGA 1280 x 800 |
| Enhancements | Cross Touch Interface In Pane Touch Targets Anti-glare, edge to edge screen display Updated Home Screen and User Interface Updated Menu/Setting structure New Keypad Design Two Micro SD card slots Twist lock cable connections Wi-Fi Software Updates Utilizes the same power cable as APEX units Dual Band GPS for better position accuracy |
| Display Features | High-Def Display Engineered for Polarized Eyewear |
| Sonar Capability | MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible |
| CHIRP-Frequencies Supported | Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o |
| Depth & Range – Sonar | MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz |

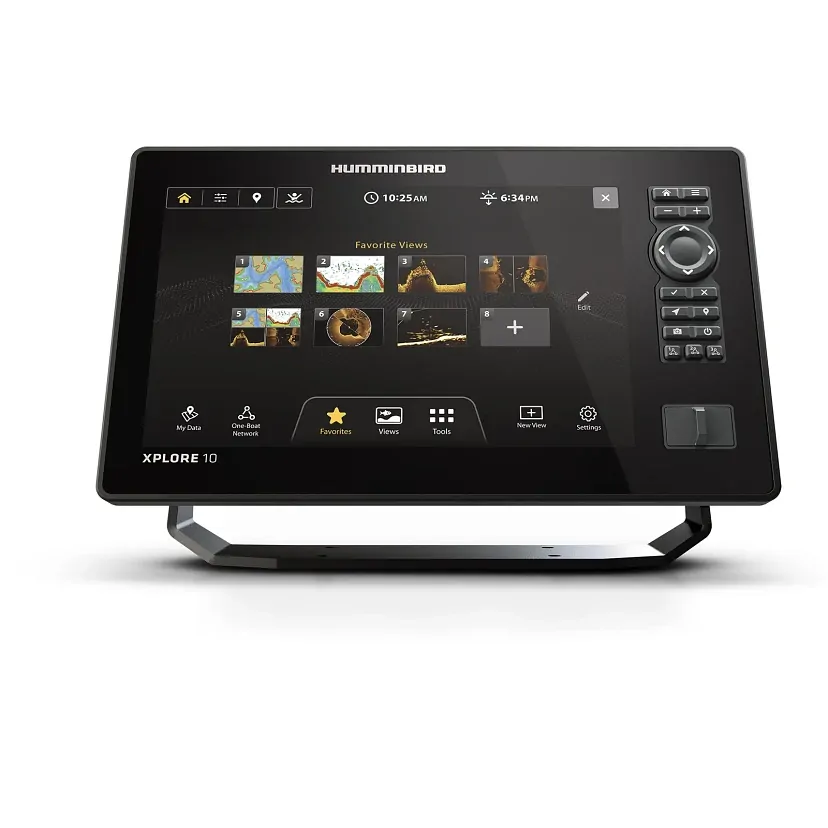

| Fish Finder Functionality | Intuitive Cross Touch® Quick-Launch Home Screen |
| Connectivity | CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi |
| Memory Card Slot | Duel Micro SD |
| Waterproof Rating | IPX7 |
| Power Input | 10-20 volts |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Trackplotting | Included |
| LakeMaster Compatibility | Yes |
| Coast Master Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| Upgradable Software | Yes |
| Included in the box *Applies for CMSI+ (104678) |
XPLORE Fish Finder, Power Cable, Unit Cover, Gimbal Mount with Hardware and Knobs
PLUG-AND-PLAY MINN KOTA CAPABILITY |
- Serious sonar kit for dedicated anglers
- 10 inch display suits mid-size consoles
- MEGA Imaging+ reveals fish and structure
- Built tough IPX7 housing for rough days
- Network ready with One-Boat compatible ports
- Smart buy for sonar and mapping in one
- Series: XPLORE
- Display size (diagonal): 25.65 cm (10 inch)
- Screen resolution: WXGA 1280 x 800
- Display type: Cross Touch interface with touch and button control
- Display features: High-definition anti-glare screen engineered for polarised eyewear
- Sonar capability: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
- MEGA Live 2 Imaging+ and MEGA 360 compatible: Yes
- CHIRP frequency ranges: Full 150–220 kHz; Narrow 180–240 kHz; Wide 140–200 kHz
- Side Imaging+ range: 800 ft (244 m) at 455 kHz; 400 ft (122 m) at MEGA 1100–1200 kHz
- Down Imaging+ depth: 400 ft (122 m) at 455 kHz; 200 ft (61 m) at MEGA 1125–1225 kHz
- GPS: Dual band GPS with chartplotting and trackplotting included
- Preloaded mapping: Built-in basemaps plus LakeMaster and CoastMaster card included
- AutoChart Live mapping: 8 hours internal memory
- Connectivity: NMEA 2000, Bluetooth, Ethernet, Wi‑Fi, CE, MFi
- Memory card slots: Dual micro SD
- Waterproof rating: IPX7
- Power input: 10–20 volts DC
- Power output: 1000 W RMS / 8000 W peak-to-peak
- Transducer mount location: Transom
- Software: Upgradable
- XPLORE 10 fish finder head unit
- Compact MEGA Side Imaging+ transducer (XM-14 MSI+)
- Power cable

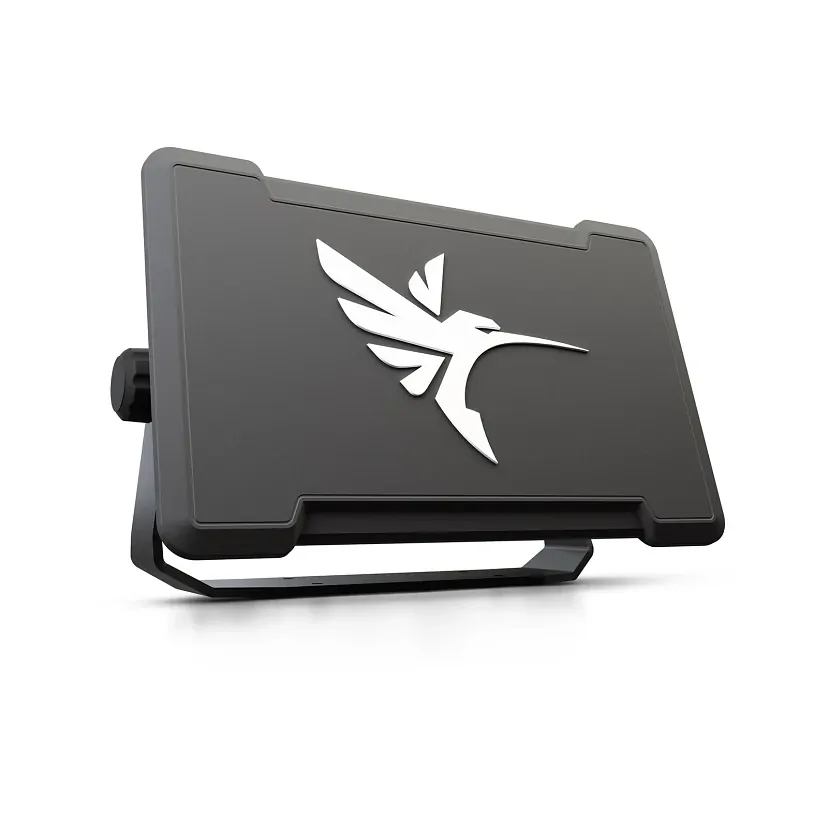

- Unit cover

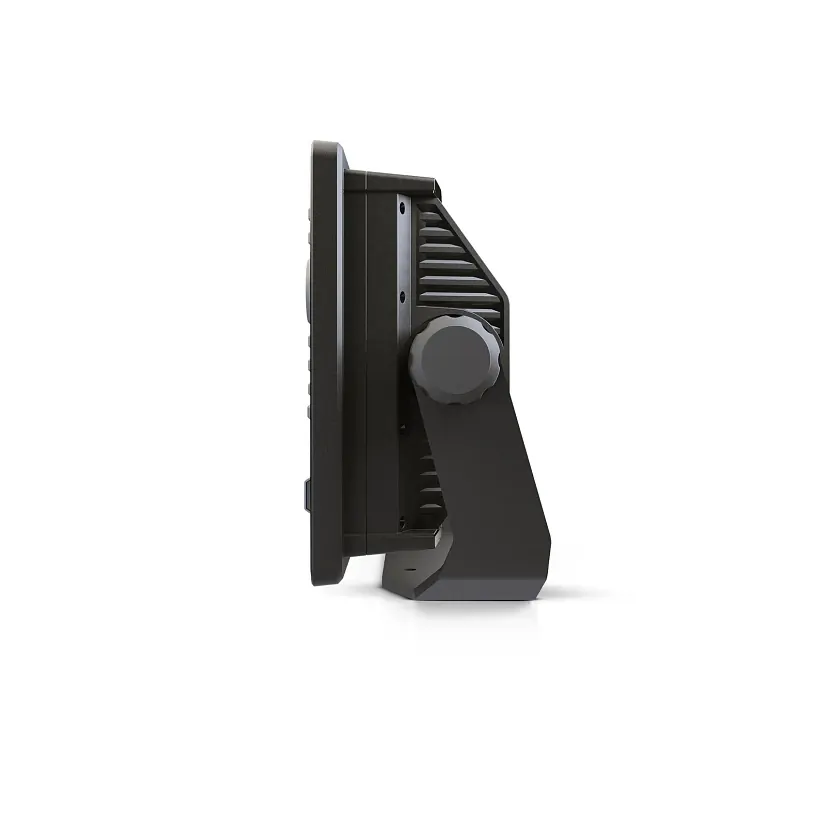

- Gimbal mount
- Gimbal mount hardware and knobs
- Preloaded LakeMaster and CoastMaster Nav card
- Two micro SD card slots on unit (cards not included except supplied Nav card)
| SKU | 104678AU |
|---|---|
| Barcode # | 9319786466537 |
| Brand | Humminbird |
| Shipping Weight | 5.9000kg |
| Shipping Width | 0.280m |
| Shipping Height | 0.280m |
| Shipping Length | 0.410m |
