Description
Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature
- Compatible with: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support this transducer as a 2D sonar only transducer.
- Cable Length: 20 Feet
- This transducer does not support Side Imaging™ or Down Imaging™.
- Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
- Dual Spectrum CHIRP- Max Depth: 1200ft (365m)
- 1-Year Limited Warranty
Features
- Dual Spectrum CHIRP finds structure fast
- Wide and narrow beams match conditions
- Plays nice with heaps of HELIX units
- Temp sensor helps follow current lines
- Long cable keeps installs straightforward
- Solid gear for regular trips offshore
Specifications
- Mount type: Transom mount
- Sonar type: Dual Spectrum CHIRP 2D sonar
- CHIRP full mode frequency range: 150–220 kHz
- CHIRP narrow mode frequency range: 180–240 kHz
- CHIRP wide mode frequency range: 140–200 kHz
- Maximum depth rating: 1200 ft (365 m)
- Cable length: 20 ft (approx. 6.1 m)
- Temperature sensor: Built-in
- Compatibility: HELIX 5/7/8/9/10/12 CHIRP G2 G2N G3 G3N GPS models and ICE HELIX CHIRP G2 (Open Water Mode)
- Supported use with Side Imaging/Down Imaging units: 2D sonar only
- Side Imaging support: Not supported
- Down Imaging support: Not supported
- Warranty: 1-year limited

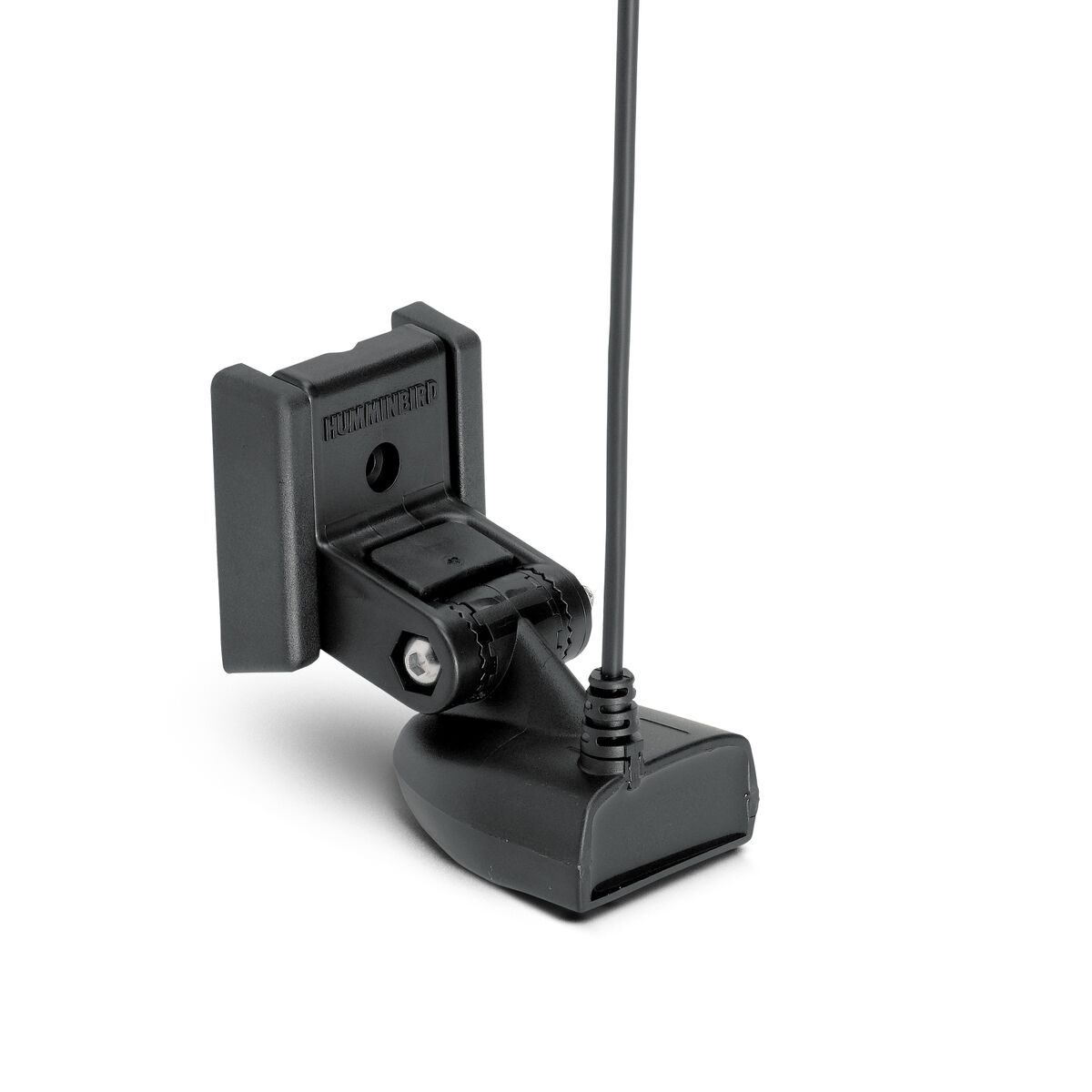

• 1 x Humminbird Transom Mount Dual Spectrum CHIRP transducer
• 1 x transom mounting bracket assembly
• Attached transducer cable 20 ft (approx. 6.1 m)
| SKU | 103035 |
|---|---|
| Barcode # | 82324053061 |
| Brand | Humminbird |
| Shipping Weight | 0.4600kg |
| Shipping Width | 0.216m |
| Shipping Height | 0.090m |
| Shipping Length | 0.184m |
In stock
Dispatch in 1 day
