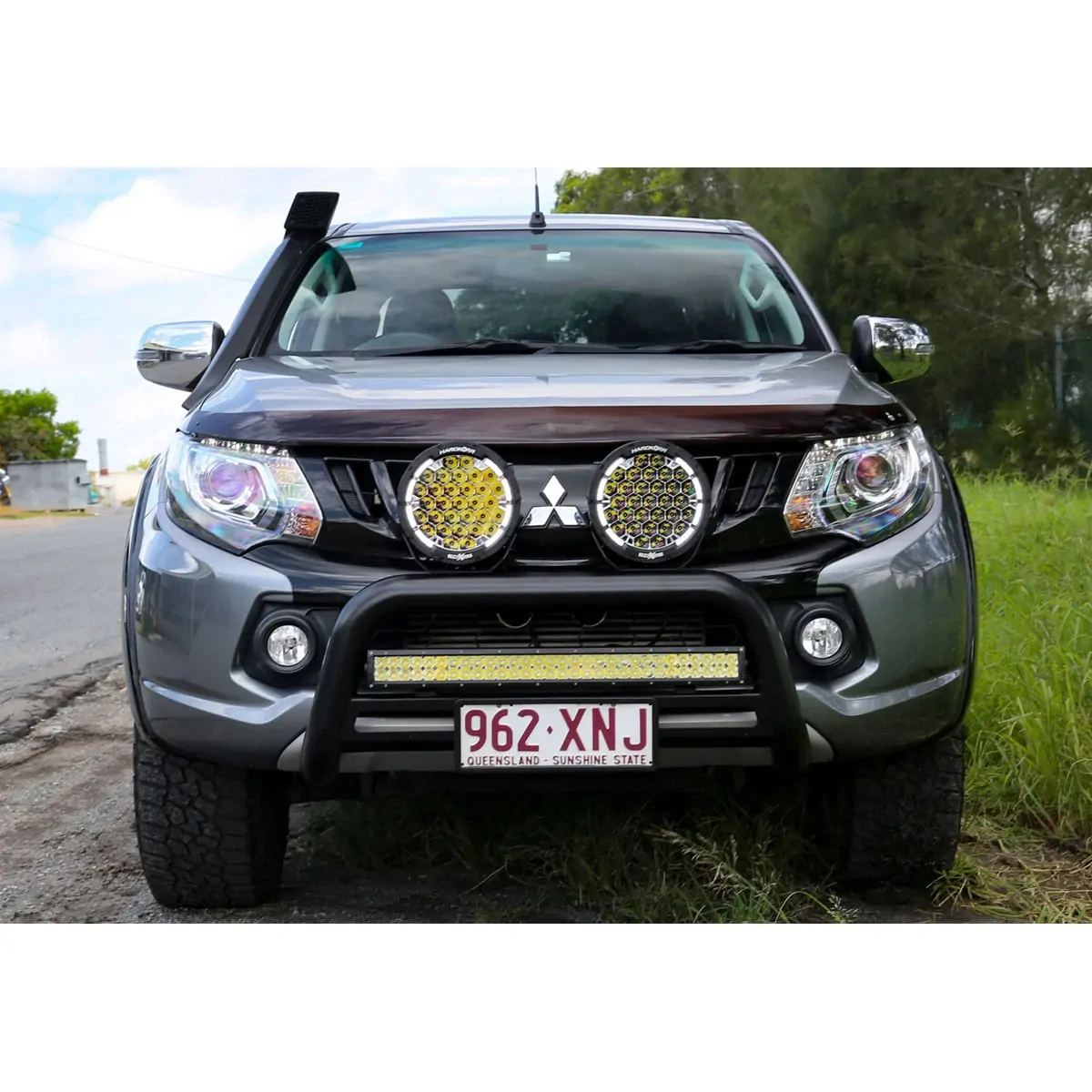

The Hard Korr BZR-X Series 9 inch LED driving lights are designed to deliver long-range visibility with a wide and even combination beam. They are built for night driving on country roads and remote tracks where clear forward vision matters.

These lights solve a common problem with traditional driving lights. Many offer distance or spread but not both. By using high-output Lumileds LED chips and custom-engineered reflectors, the BZR-X Series achieves strong forward reach without sacrificing side spread.

Their slim profile makes them easier to mount on modern vehicles with limited space on factory bullbars. With integrated daytime running lights, strong stainless steel brackets, and tested electrical compliance, they are a proven option for touring vehicles and work rigs alike.

Key Features

• 9 inch LED driving lights with combination beam
• Genuine Lumileds LED chips
• Integrated daytime running lights with progressive start
• Ultra-slim 75mm thick housing for narrow mounting surfaces
• Stainless steel mounting brackets
• Supplied with wiring harness and security bolts
• Tested for radio frequency interference

Technical Specifications

• LED Manufacturer: Genuine Lumileds®
• LED Count (Each): 31 x 5W
• Effective Output (Pair): 34,196 lumens
• Distance (Pair): 1 lux at 1,460 metres
• Beam Pattern: Combination
• Colour Temperature: 6000K
• Operating Voltage: 10 to 30V DC
• Current Draw (Each):
  • 10.6A at 12V
  • 5.3A at 24V
• Ingress Protection: IP69K
• EMC Rating: CISPR 15 Class 3
• Impact Rating: IK08 (5J)
• Vibration Rating: IEC 60068-2-6 and ISO16750-1
• LED Lifespan: 50,000 plus hours
• Weight (Each): 2.7kg
• Certifications: CE, RoHS, RCM

What’s Included

• 2 x 155W LED driving lights
• 2 x 316 stainless steel mounting brackets
• 2 x sets of security bolts and anti-vibration rubber bases
• 1 x dual-output wiring harness

Warranty Period: Covered by Hardkorr manufacturer warranty
Download the manual for the BZR-X Series
