Description
Features

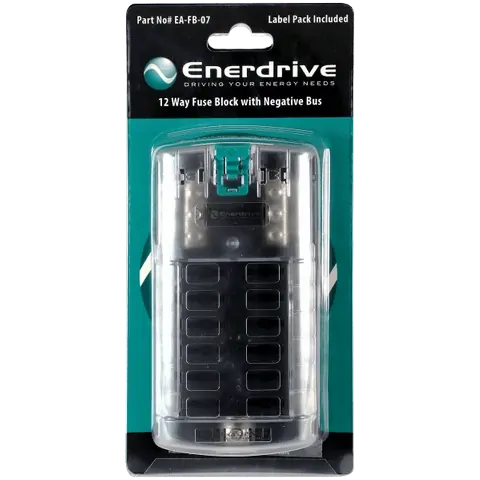

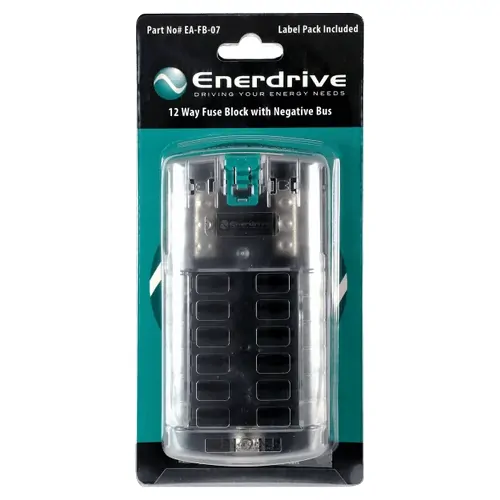

ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover
Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- 32V 100Amp Max – 30Amp Max per circuit
- Can be used for 24-hour circuits
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Fuses sold separately
- Includes two label sets and screws.
- Retail Packaging
Specifications
| Enerdrive Fuse Box - 12 Circuit with Negative Bus and Cover | |
|---|---|
| Circuits | 12 |
| Maximum Amperage | 30A per circuit 100A per block |
| Maximum Voltage | 32V DC |
| Mounting | 8″ Screw [M4] |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N.m) |
| Screw Terminal Type | #8-32 with Flat/Spring Washers |
| Weight | 0.34 kg |
| Size | 164 x 84 x 39mm |
Features
- 12 separate circuits from one hub
- Shared negative bus cuts extra cabling
- 32V DC rating covers 12V and 24V
- Tin plated copper buses handle moisture
- Clear cover and labels for quick checks
- Compact size suits campers and canopies
Specifications
- Fuse block type: ST Blade 12-circuit with negative bus and cover
- Circuits: 12
- Maximum amperage: 30A per circuit
- Maximum amperage: 100A per block
- Maximum voltage: 32V DC
- Positive distribution bus: #10-32 stud
- Negative bus: #10-32 stud
- Screw terminal type: #8-32 with flat and spring washers
- Recommended terminal torque: 24 in-lb (2.71 N·m)
- Mounting: 8" screw (M4)
- Fuse compatibility: ATO and ATC fast-acting blade fuses
- Terminal compatibility: accepts ring or snap fork type terminals
- Bus and clips material: tin-plated copper
- Physical size: 164 x 84 x 39mm
- Weight: 0.34kg
- Can be used for 24-hour circuits
- Fuses sold separately
- Enerdrive ST Blade fuse block – 12 circuits with negative bus and clear cover
- Two label sets
- Mounting screws
- Retail packaging
| SKU | EA-FB-07 |
|---|---|
| Barcode # | OEBC527640 |
| Brand | Enerdrive |
| Shipping Weight | 0.4000kg |
