Description

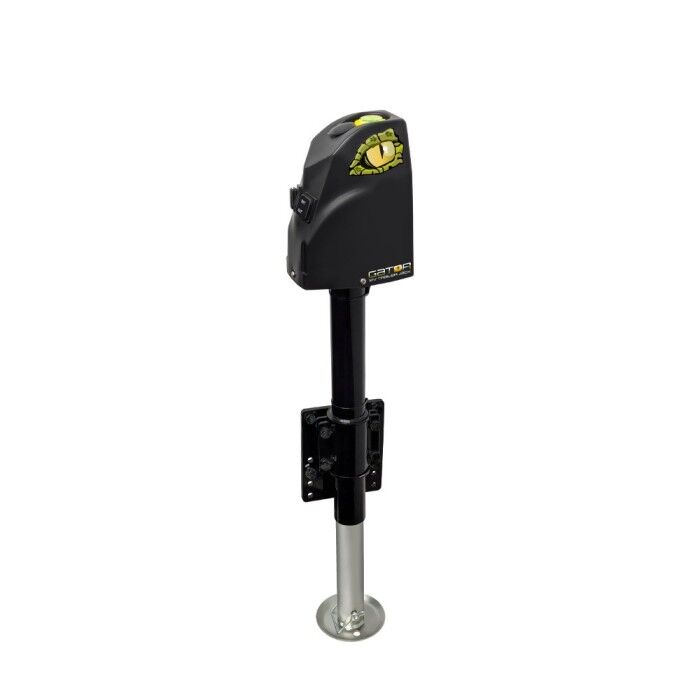

The Gator Jack 12V Trailer Jack is designed to make raising and lowering trailers a straightforward task, offering both power and precision in one compact system. Operating via electronic controls, this jack takes the strain out of manual lifting and provides smooth, reliable performance with just the push of a button. Suitable for a wide range of chassis sizes, it comes with a mounting bracket that supports full 360-degree rotation, offering unmatched flexibility for various installation configurations.Built for demanding applications, the Gator Jack can lift trailers up to 1800kg, making it a dependable solution for even the heaviest setups. It features a built-in level to assist with accurate levelling on uneven ground, and includes a manual crank handle for backup operation during power outages or unforeseen issues. An LED night light ensures visibility during low-light conditions, enhancing safety and usability after dark. The 700mm lifting stroke clears most tow vehicle hitches with ease, simplifying both hitching and unhitching.
Its pre-wired Anderson plug and 1.3m lead make connection quick and easy. The included clamp suits a wide range of drawbar sizes from 3 to 6 inches, providing a secure and stable fit. A swivel wheel (sold separately) can be added for further manoeuvrability. Whether setting up camp or packing down, the Gator Jack offers dependable performance every time.
Features
- Lifts trailers up to 1800kg

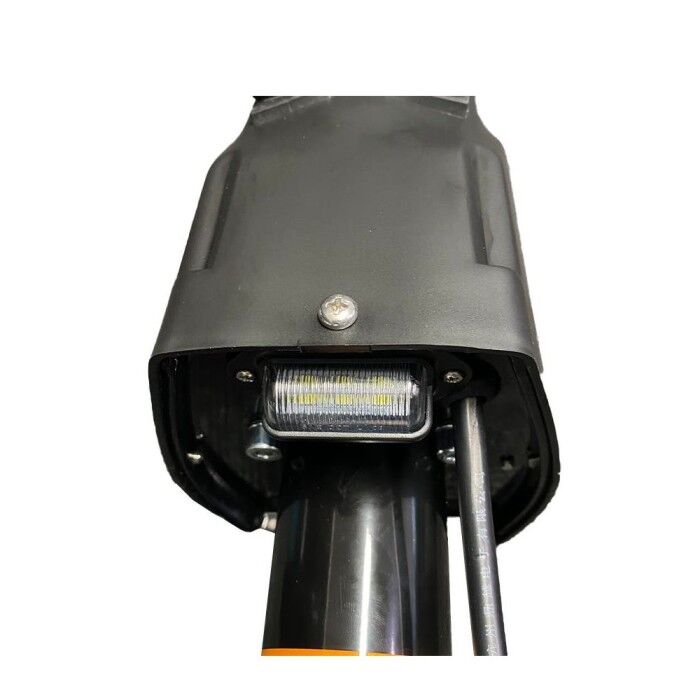

- 12V DC operation with LED night light for visibility in low light

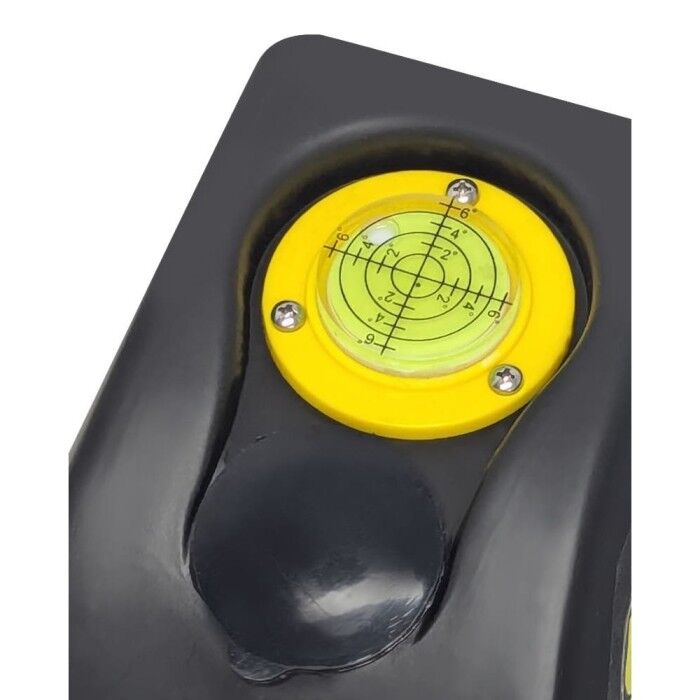

- Built-in level for precise levelling

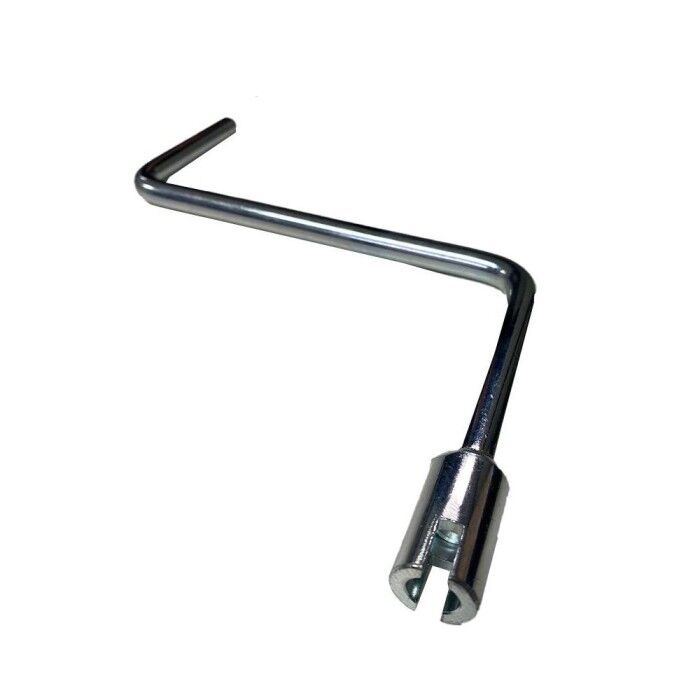

- Manual crank handle for emergency backup
- 700mm stroke for extended lifting range

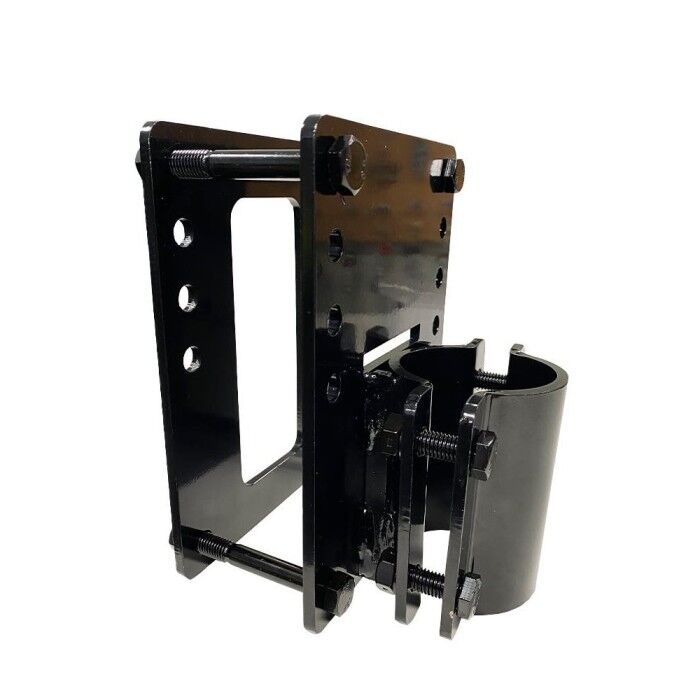

- Gator Jack clamp suits 3,4,5,6 inch drawbars
- Full 360 mounting for flexible installation

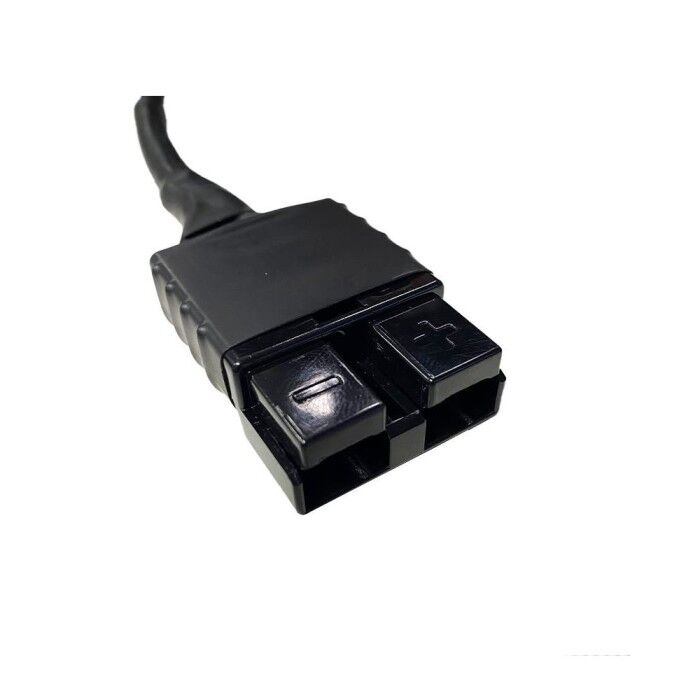

- Pre-wired Anderson plug with 1.3m lead
- Optional Accessories - Wheel attachment & Fixed Wiring Kit
- 1 year warranty.
Specifications
-
- Model: 450-10030
- Brand: Coast to Coast
- Max Load: 1800 kg
- Foot Plate: 133mm
- Handle: Manual Crank Override (supplied)
- Construction: Steel and polypropylene
- Outer Finish: Powder Coated outer Tube
- Inner Finish: Zinc Plated
- Voltage Rating: 12V DC
- Overall Dimensions: (H) 781mm x (W) 216mm x (D)140mm
- Outer Shaft Diameter: 60mm
- Mounting Bracket Dimensions: 190 x 150mm
- Mounting Bracket Bolts: M10 x 120mm
- Current Rating: 28amps Extending, 6amps Retracting
- IP Rating: IP 55
- Weight: 13 kg
- Shipping Weight: 14.00 Kgs.
- Shipping Dimensions: 83 cm x 22 cm x 15 cm.
| SKU | 450-10030 |
|---|---|
| Barcode # | OEBC698351 |
| Brand | Coast to Coast |
| Shipping Weight | 15.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.150m |
| Shipping Length | 0.800m |
| Shipping Cubic | 9.000000000m3 |
