Clearview Easy Slide

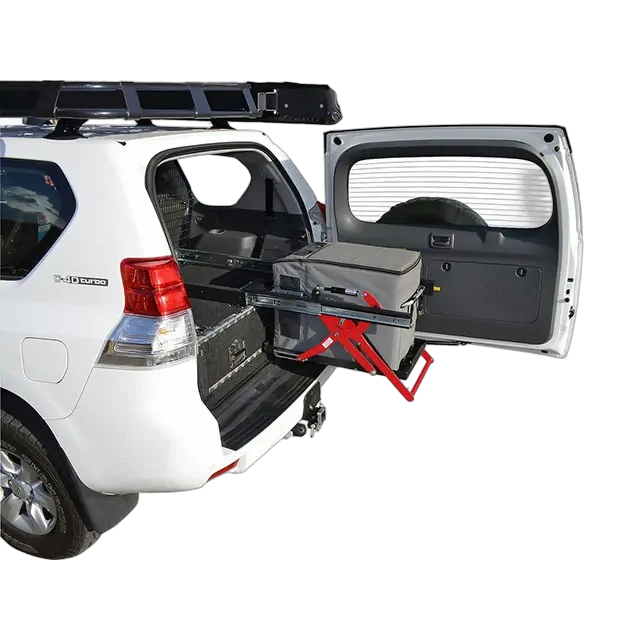

The Clearview Easy Slide is an ADR and OHS complaint quality-designed product that can be easily installed in your vehicle so you have easy access to cold food and drinks no matter where you’re going. This state-of-the-art fridge slide is easy to use and access from the back of your vehicle or from within your canopy.
Simply unlock the travel lock mechanism and pull the fridge towards you to full extension. A gas strut-assisted vertical scissor lift action and safety latch system then allows for safe and easy lowering of your fridge.
Rated to hold 180KG, the Easy Slide makes accessing your fridge safe and easy. Being a quality product of Clearview Accessories, your Easy Slide has been tested to outlast over 10,000 movements and also comes with a three year warranty, so you know this is a quality product.

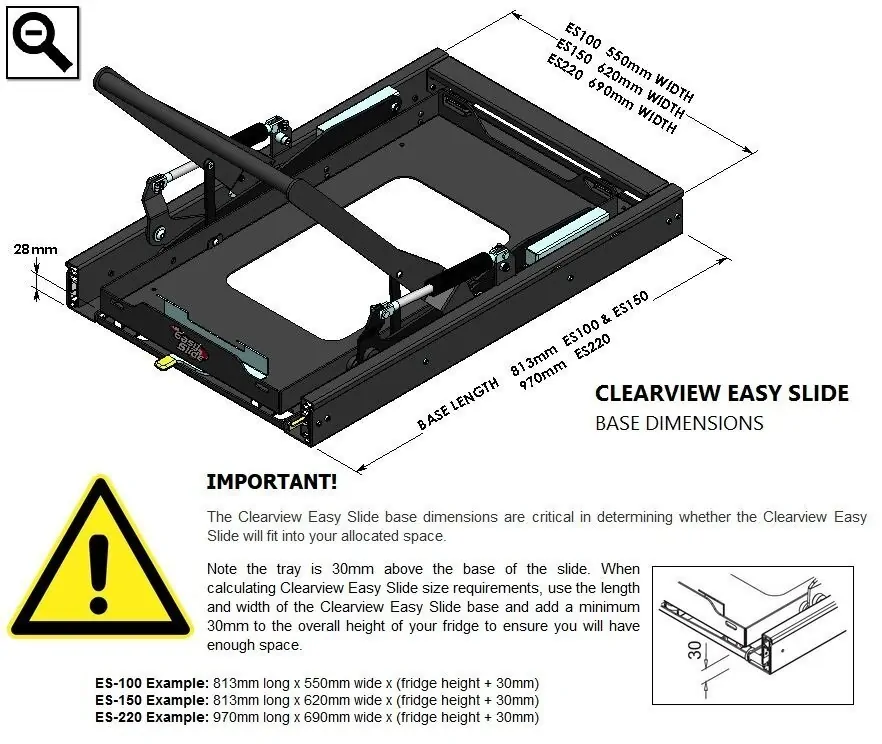

| Model | Base Dimensions (Length x Width) | Base Dimensions Including Lock Length | Tray Dimensions (Length x Width) | Slide Travel |
| ES-100-PLUS | 813mm x 550mm | 846mm x 550mm | 738mm x 390mm | 933mm |
| ES-150-PLUS | 813mm x 620mm | 846mm x 620mm | 738mm x 460mm | 933mm |
| ES-220-PLUS | 965mm x 690mm | 1005mm x 690mm | 885mm x 530mm | 1085mm |
- Gas strut scissor lift drop-down action
- 180kg load rating for big fridges
- 1085mm slide travel for full reach
- ADR and OHS compliant in Australia
- Tested for over 10,000 operating cycles
- Three year warranty makes it a smart buy
- Model: ES-220-PLUS
- Base dimensions (L x W): 965mm x 690mm
- Base dimensions including lock length: 1005mm x 690mm
- Tray dimensions (L x W): 885mm x 530mm
- Slide travel: 1085mm
- Load rating: 180kg
- Tested duty cycle: over 10,000 movements
- Compliance: ADR and OHS compliant
- Warranty: three years
- Operation: gas strut-assisted vertical scissor lift with safety latch
- Application: vehicle or canopy mounted drop-down fridge slide
- 1 x Clearview Easy Slide ES-220 Plus drop-down fridge slide unit
| SKU | ES-220PLUS |
|---|---|
| Barcode # | 0740781795343 |
| Brand | Clearview |
| Shipping Weight | 50.0000kg |
| Shipping Width | 1.090m |
| Shipping Height | 0.300m |
| Shipping Length | 1.140m |
| Shipping Cubic | 0.372780000m3 |
