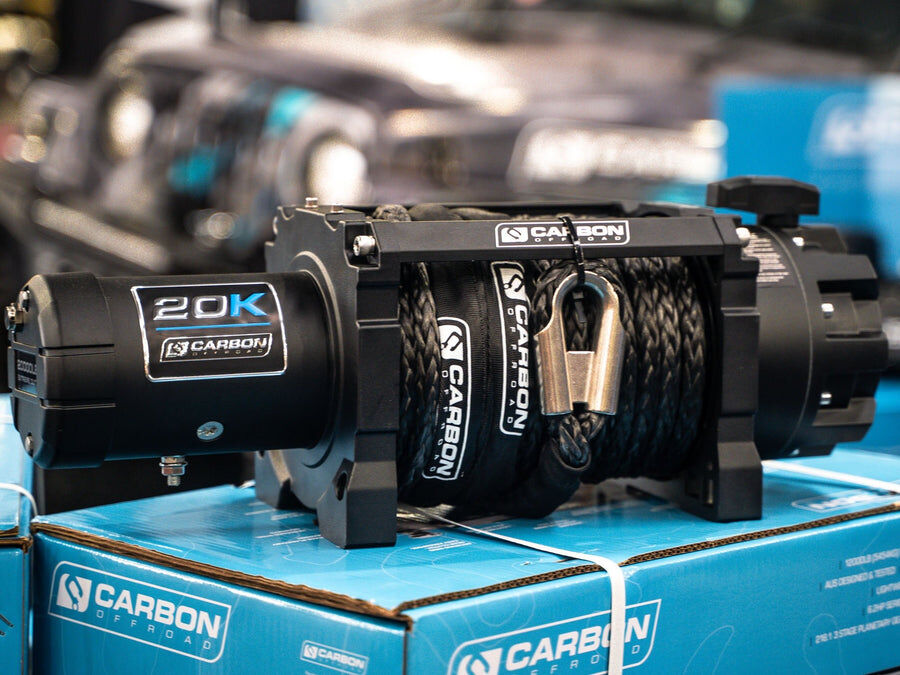

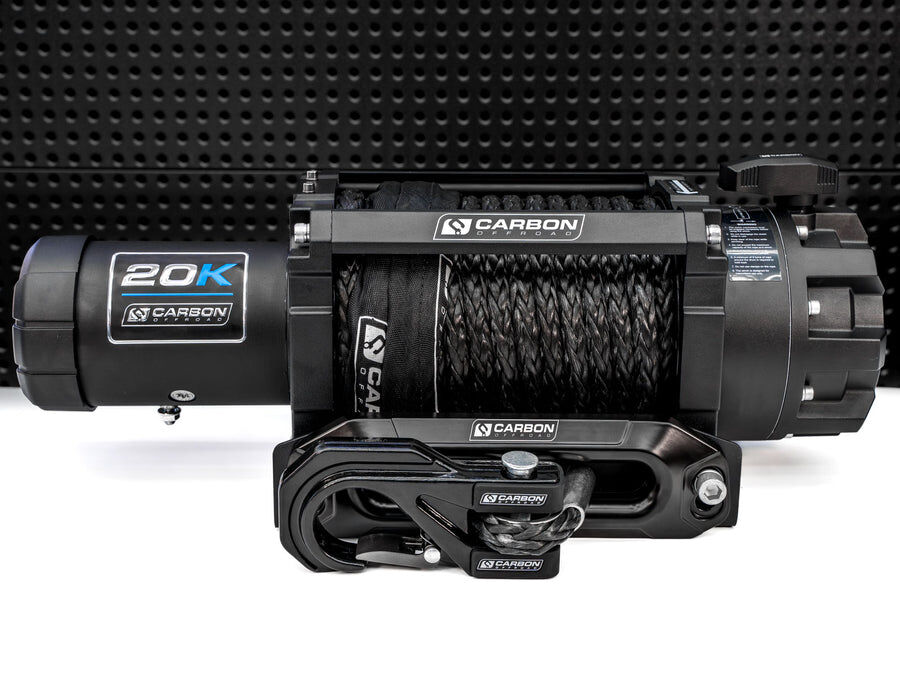

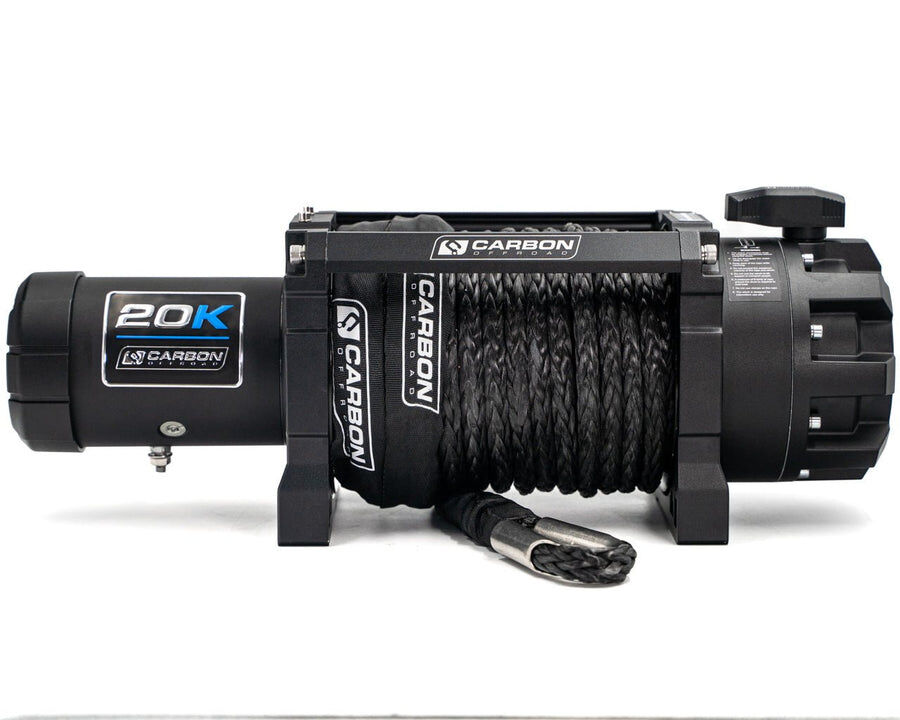

Introducing the Carbon Offroad Extreme Duty Scout Pro 20K Truck Winch, engineered to deliver exceptional performance and reliability in the most demanding environments.

Are you ready to take your offroad adventures to the next level? Look no further than the Carbon Offroad Scout 20K, a powerhouse designed to tackle the toughest challenges with ease. With a massive 20,000 lbs of pulling capacity, the Carbon CW-XD20 is engineered to handle the most demanding tasks. Whether you're hauling heavy trailers, or recovering heavy vehicles or tackling extreme terrain this winch has the power to get you through. If you own a large offroad vehicle, this is the winch you've been waiting for. With its unmatched power, durability and safety features, it is the perfect tool to conquer any terrain and make your offroad adventures unforgettable.

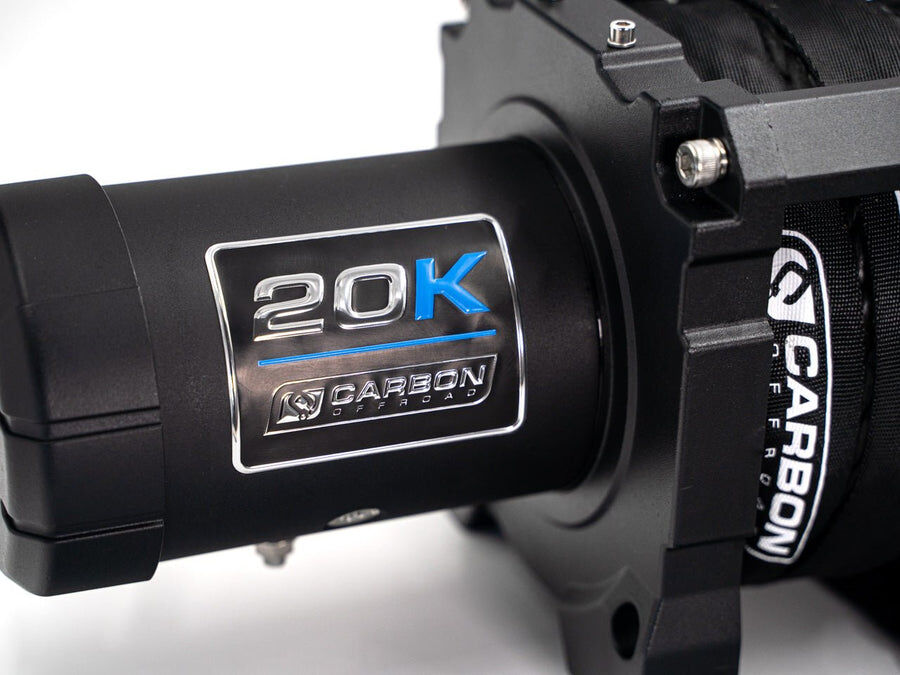

Powerful Performance: The series-wound motor generates 7HP.

Reliable and Durable: The three-stage planetary gearbox provides unmatched durability and reliability, even under the harshest conditions.

Enhanced Safety: The automatic brake system within the motor frame eliminates the risk of overheating and ensures maximum safety by applying consistent, proportional braking force to the rope based on the load.

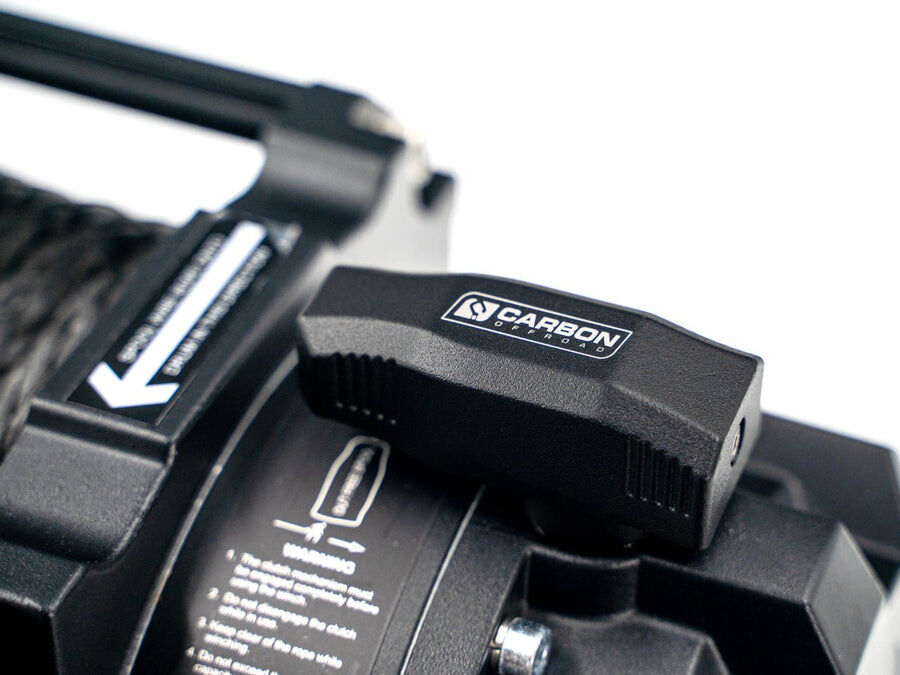

Easy Operation: The rotating ring gear clutch allows for effortless switching between freespool and engaged modes.

Versitile Control: Wired and wireless remote control options offer convenient and flexible operation.

Rubust Construction: The 600A sealed solenoid guarantees reliable and long lasting performance.

37.2kg installed weight

  • Part number: CW-XD20
  • Rated line pull: 20000 lbs, (9072kg) single-line

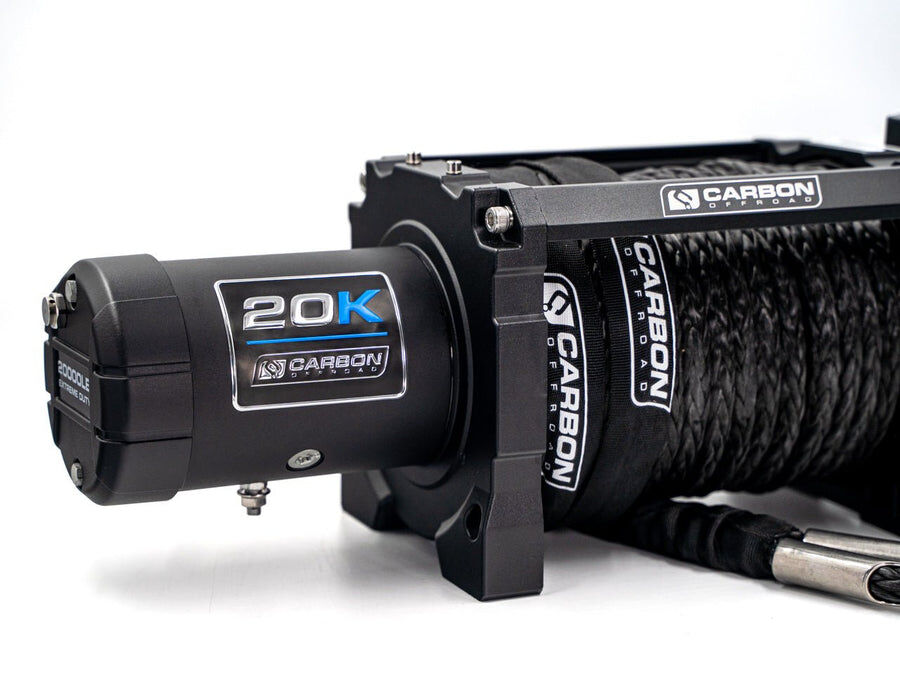

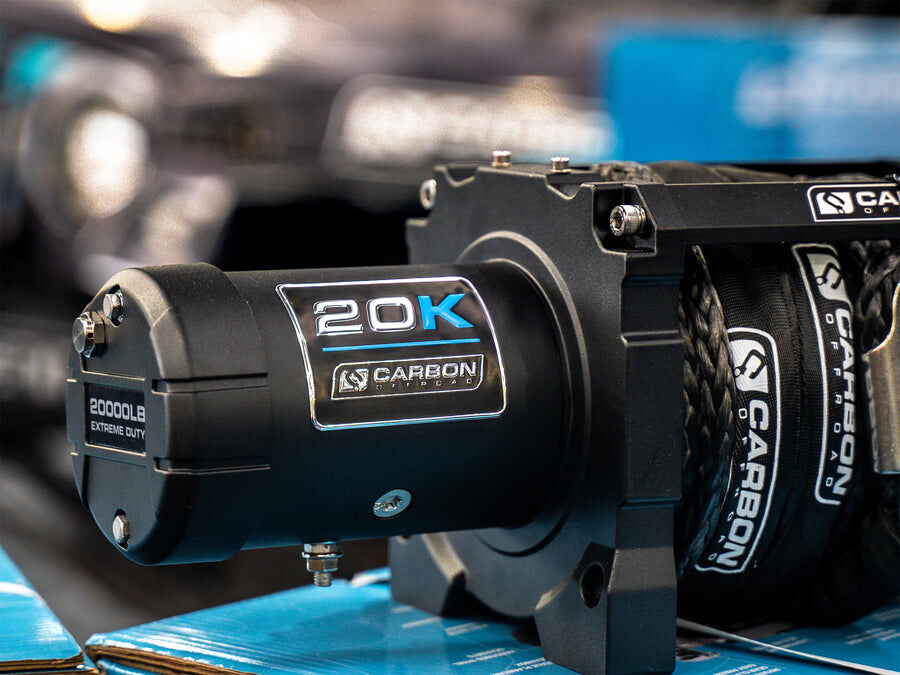

  • Motor: 12V DC 7 HP series wound motor (24V option available)
  • Remote Control: Wired with 3.6m lead
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary
  • Gear Ratio: 345:1
  • Rotating Ring Gear
  • Brake: Automatic brake in the motor bracket
  • Fairlead: Carbon Offroad MEGAPRO Premium CNC billet type 3 hard anodised multi position fairlead
  • Lifetime Mechanical Warranty
  • 5 Year Electrical Warranty
  • 5 Year Water Ingress Protection Warranty

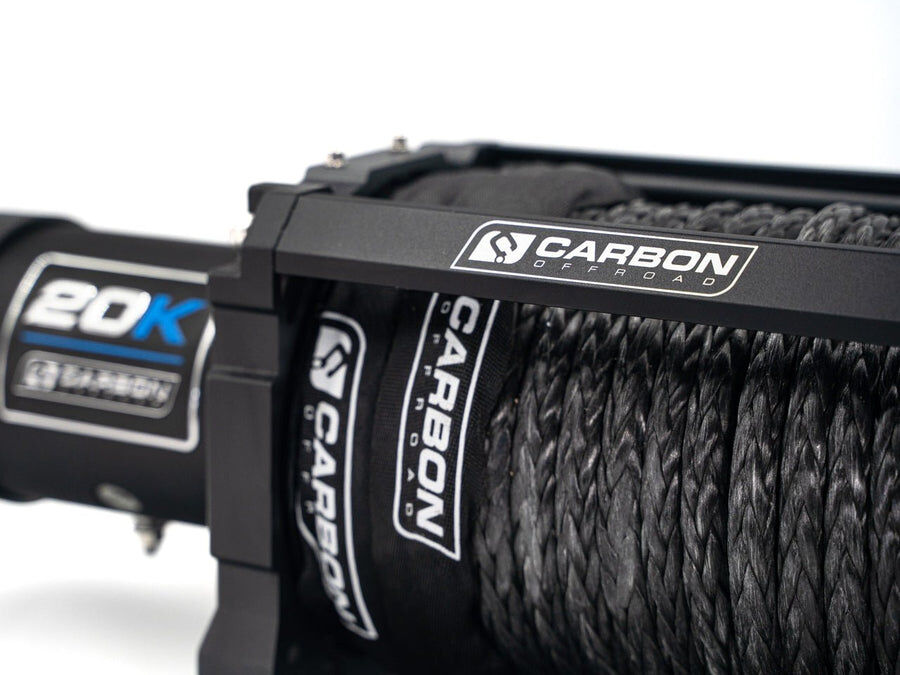

  • Synthetic Rope: 25m x 13mm diameter
  • Drum Diameter/Length: 88mm x 224mm
  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Recommended Battery: 650 CCA minimum for winching
  • Winch Dimensions (L x W x H): 579 x 192 x 224mm
  • Packing Dimensions (L x W x H): 640 x 250 x 345mm
  • Winch weight with synthetic rope attached: 30kg
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 37kg
12V DC Performance Specs
Line Pull lbs(kgs) Line Speed ft/min(m/min) Motor Current (Amps) Rated line pull lbs(kgs)
0 26.2(8.0) 70 1/20000(9072)
4000(1814) 10.8(3.3) 145 2/16140(7321)
8000(3629) 8.5(2.6) 230 3/13520(6133)
12000(5443) 6.2(1.9) 310 4/11660(5289)
16000(7257) 4.6(1.4) 390
20000(9072) 3.3(1.0) 460
SKU CW-XD20BLK
Barcode # OEBC706539
Brand Carbon Offroad
Shipping Weight 30.0000kg
Shipping Width 0.250m
Shipping Height 0.345m
Shipping Length 0.640m

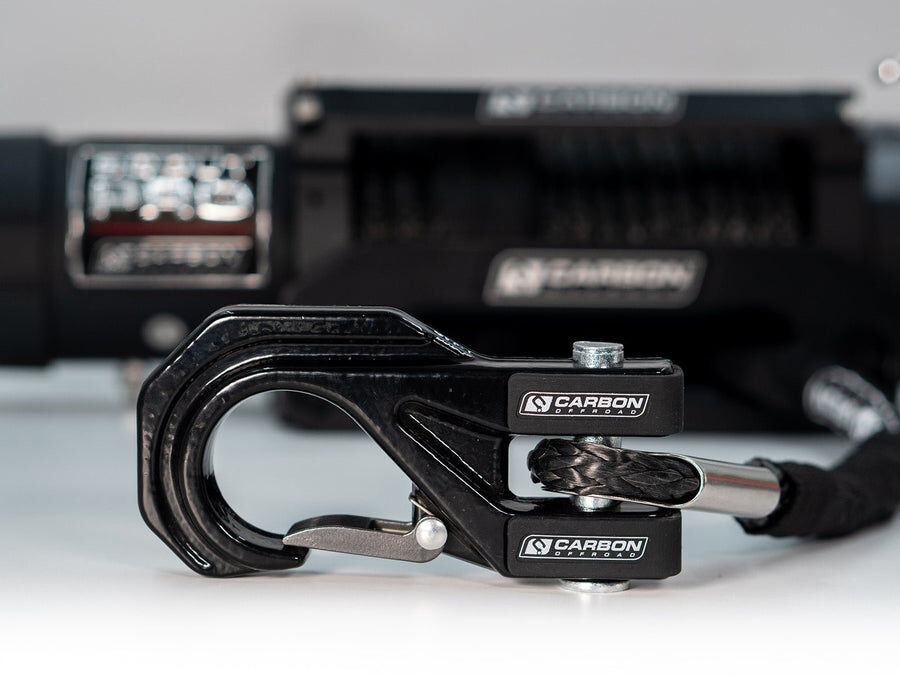

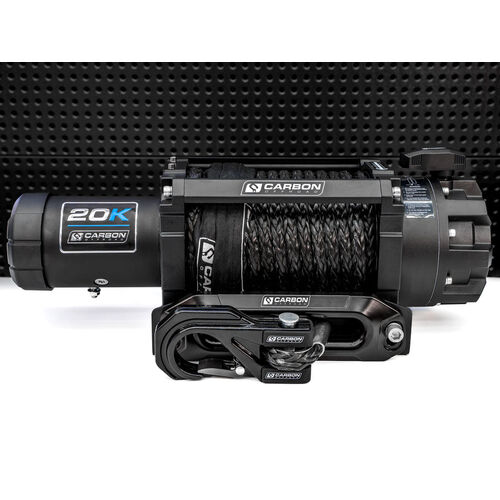

Carbon Scout Pro - 20000lb Extreme Duty Truck Winch with Mega Pro Winch Hook - Black
