Carbon Offroad Scout Pro RS Series: Built for Speed
The Scout Pro RS Series is designed for winch challenges and high-speed recovery. If you’re looking to minimize recovery time without adding unnecessary weight to your rig, this series provides the highest power-to-weight ratio in its class.
The RS Series Breakdown
-
High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio. This combination is tuned specifically for fast line speeds under load.
-
Weight Optimization: Built on the V3 chassis, the RS series focuses on reducing front-axle weight to maintain vehicle handling and suspension performance.
-

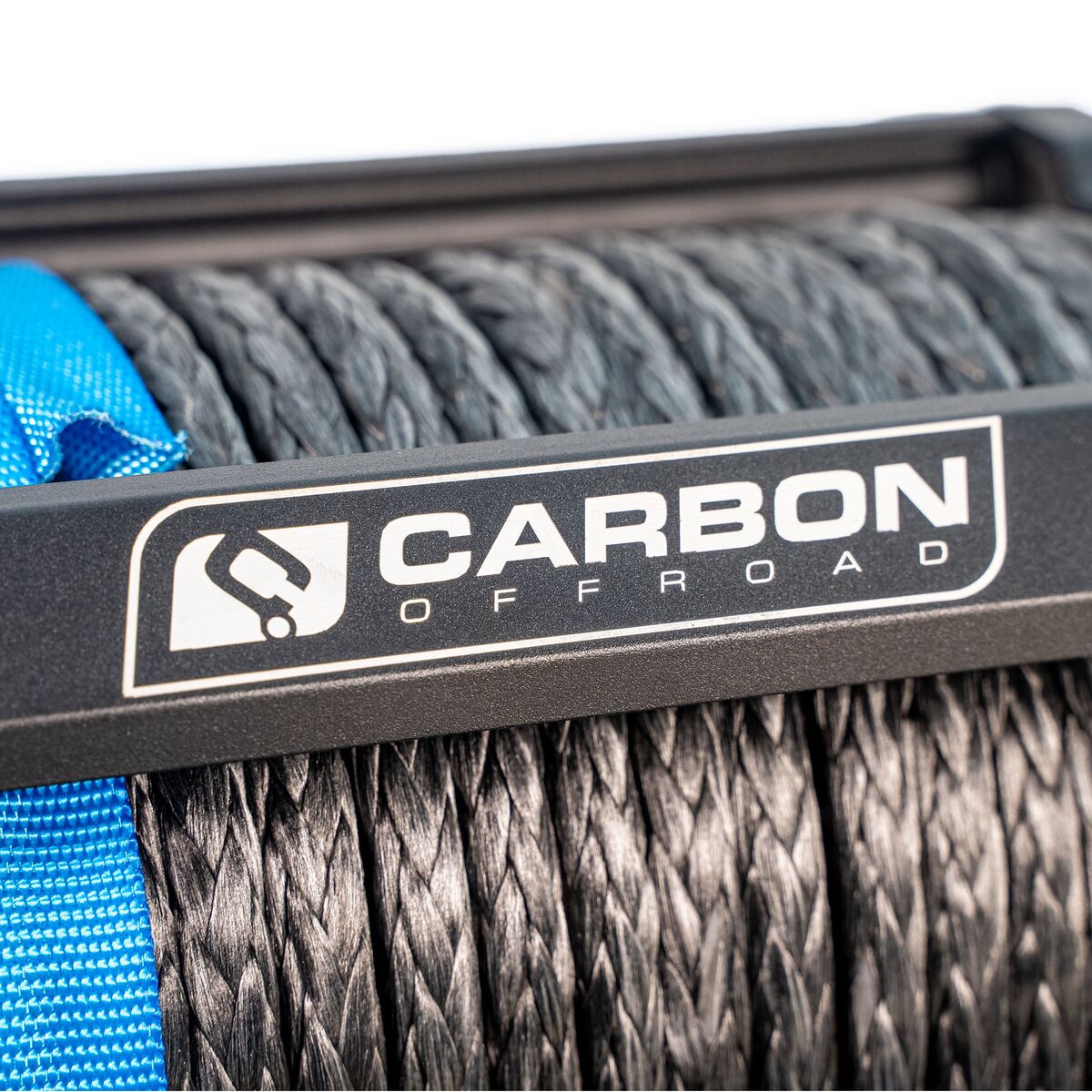

Line Capacity: Comes standard with 42m (137ft) of 8mm Spectra™ Fiber Synthetic UHMWPE rope. This extended length allows for distant anchor points that typically require external extensions.
-

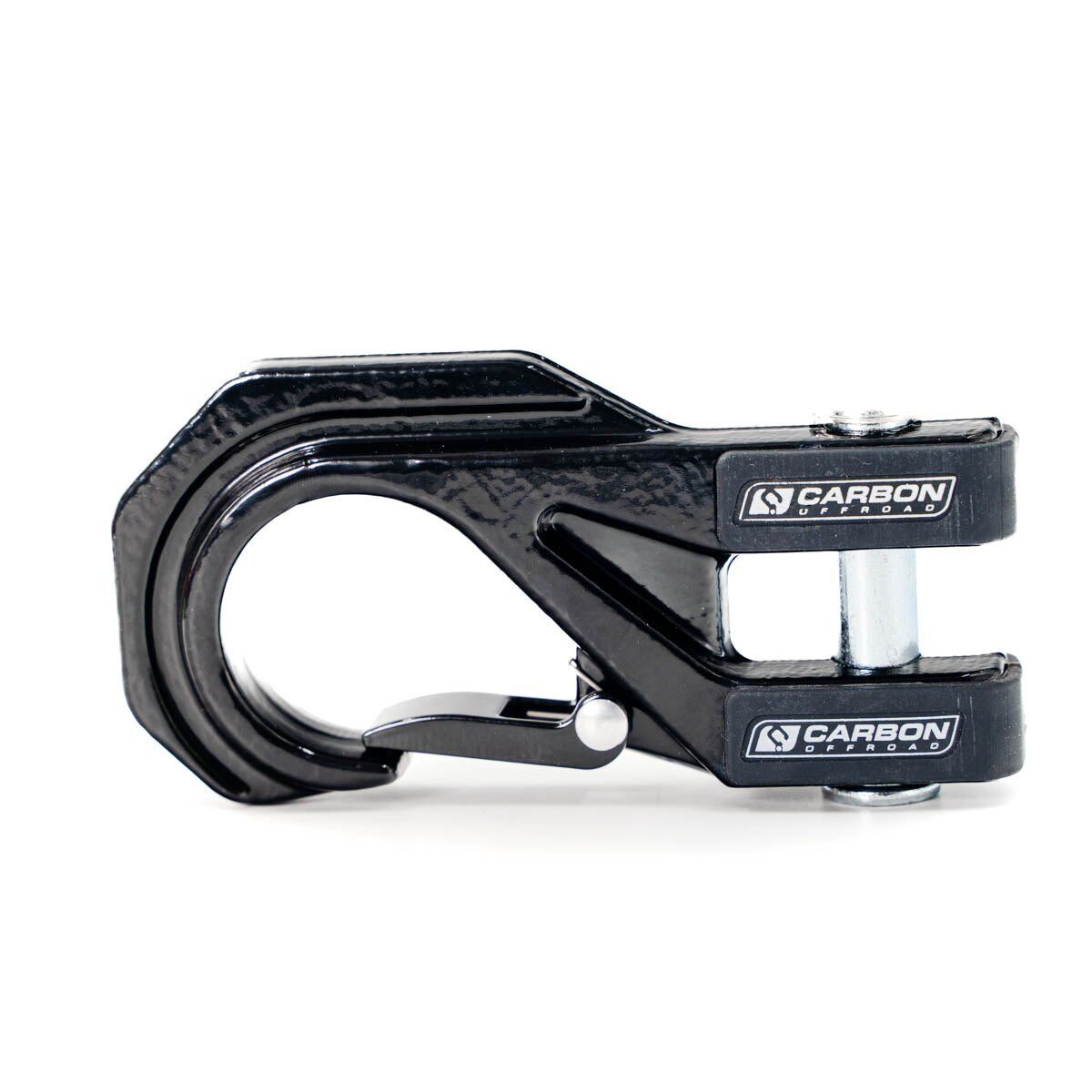

Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment.
The Bottom Line: This is a purpose-built winch for operators who prioritize fast cycle times, extended reach, and weight savings.
Specifications
| Rated Line Pull | 4,080kg (9,000lb) |
|---|---|
| Motor | 8.0HP 12V Series-Wound |
| Gear Ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope Dimensions | 8mm × 42m (5/16" × 137ft) |
| Rope Material | Spectra™ Fiber Synthetic UHMWPE |
| Water / Dust Sealing | IP68 Rated |
| Winch Dimensions (L × W × H) | 572mm × 158mm × 187mm (22.52" × 6.22" × 7.36") |
| Drum Diameter × Length | 63mm × 224mm (2.5" × 8.8") |
| Mounting Bolt Pattern | 254mm × 114.3mm (10" × 4.5") |
| Chassis | Carbon Offroad Version 3 (V3) |

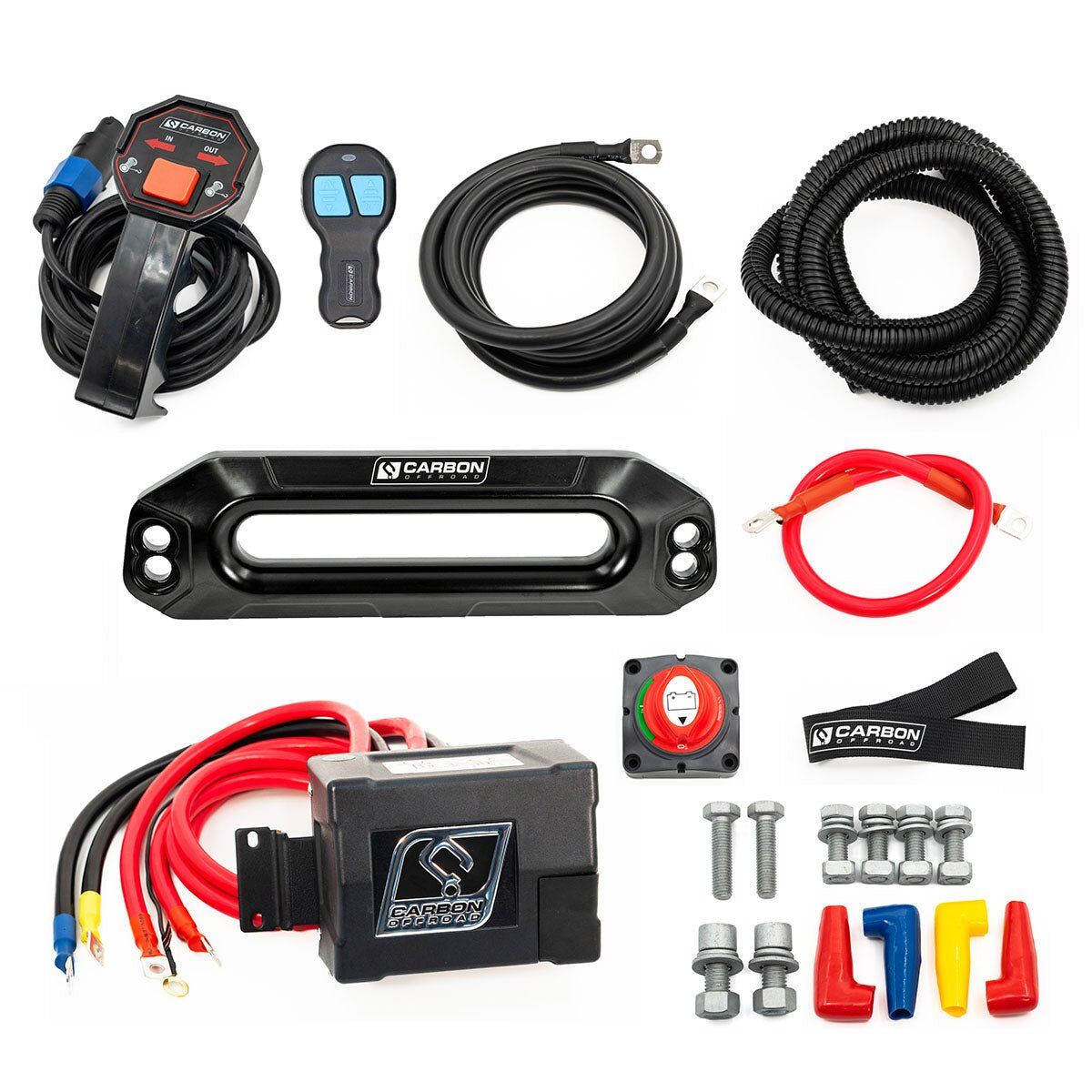

| Included Hardware | MegaPro Hook, Fairlead, Wiring Accessory Kit |
| Line Pull (lbs / kgs) | Line Speed (ft/min / m/min) | Motor Current (Amps) |
|---|---|---|
| 0 | 79.4 ft (24.2 m) | 55 A |
| 4000 lbs (1816 kg) | 18.4 ft (5.6 m) | 180 A |
| 7000 lbs (3180 kg) | 13.8 ft (4.2 m) | 310 A |
| 9000 lbs (4090 kg) | 8.5 ft (2.6 m) | 440 A |
| SKU | CW-RS9-BLK |
|---|---|
| Brand | Carbon Offroad |
| Shipping Weight | 21.2000kg |
| Shipping Width | 0.585m |
| Shipping Height | 0.215m |
| Shipping Length | 0.190m |

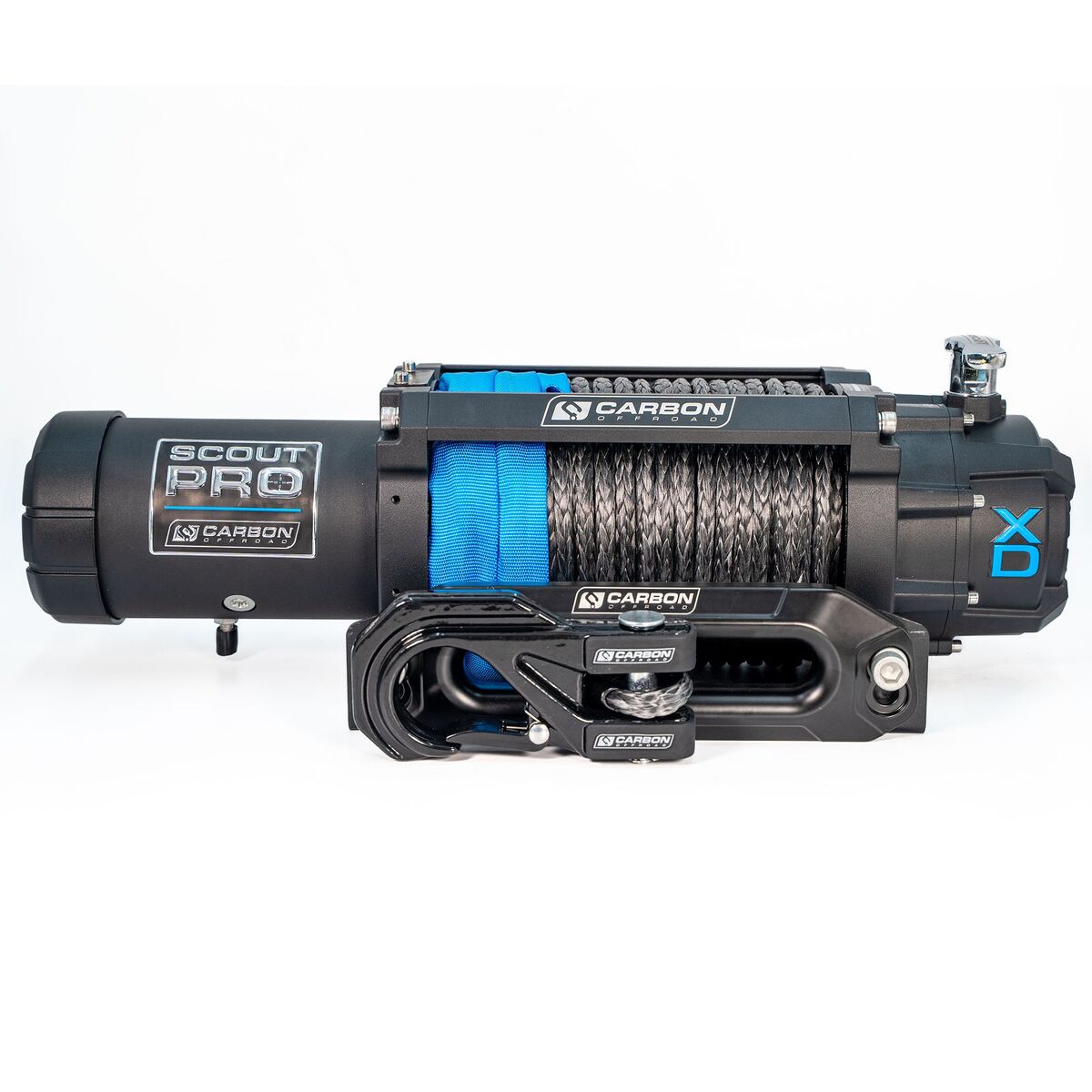

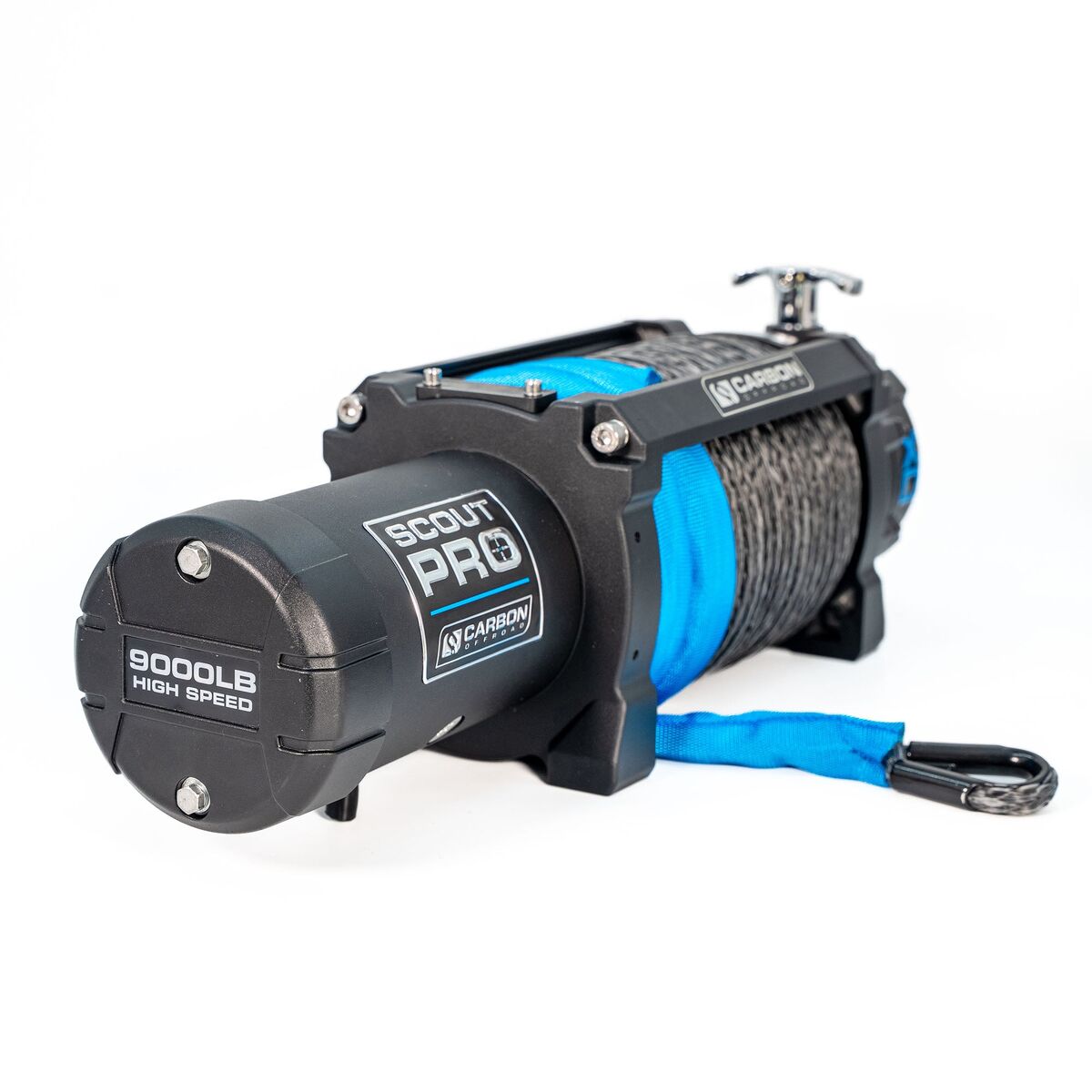

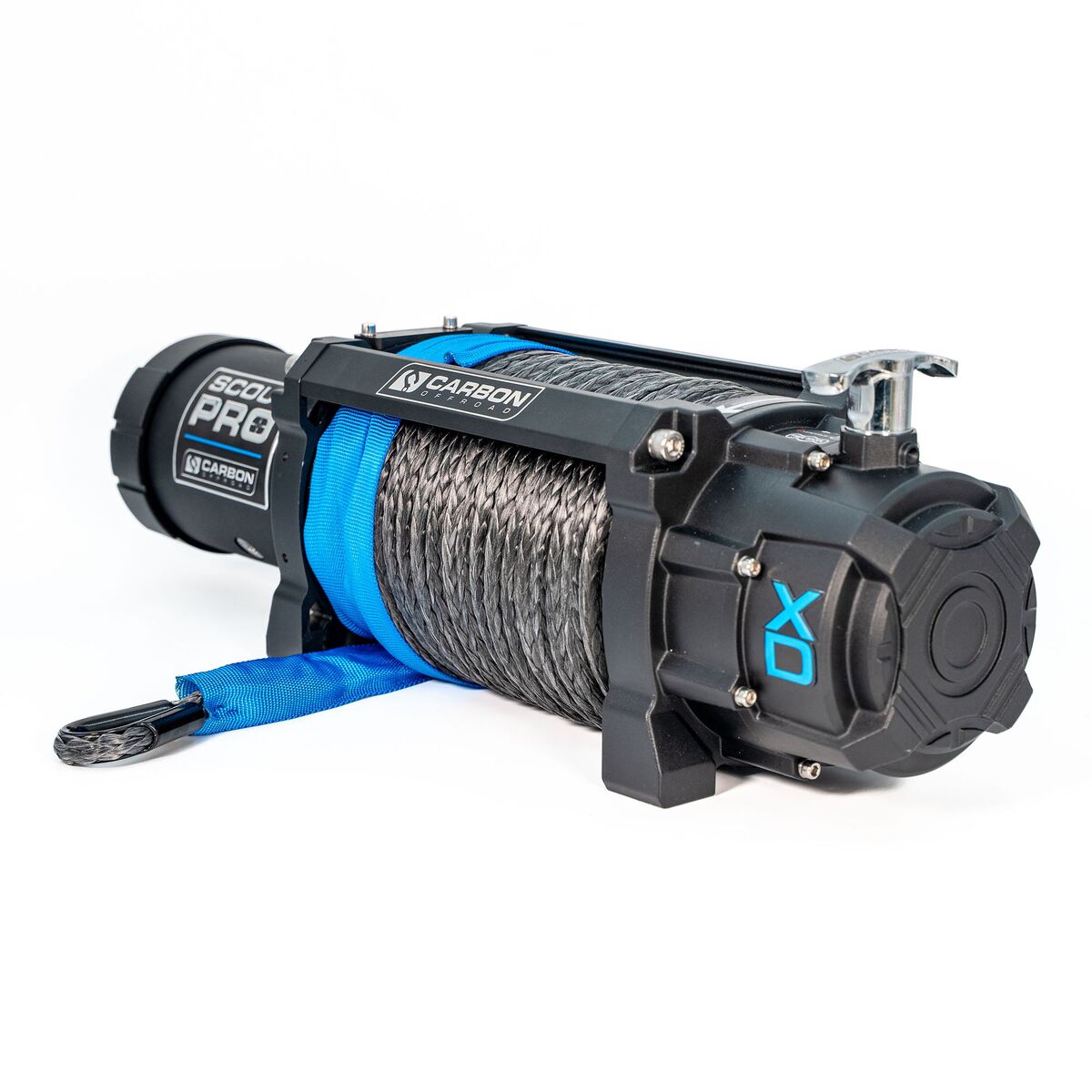

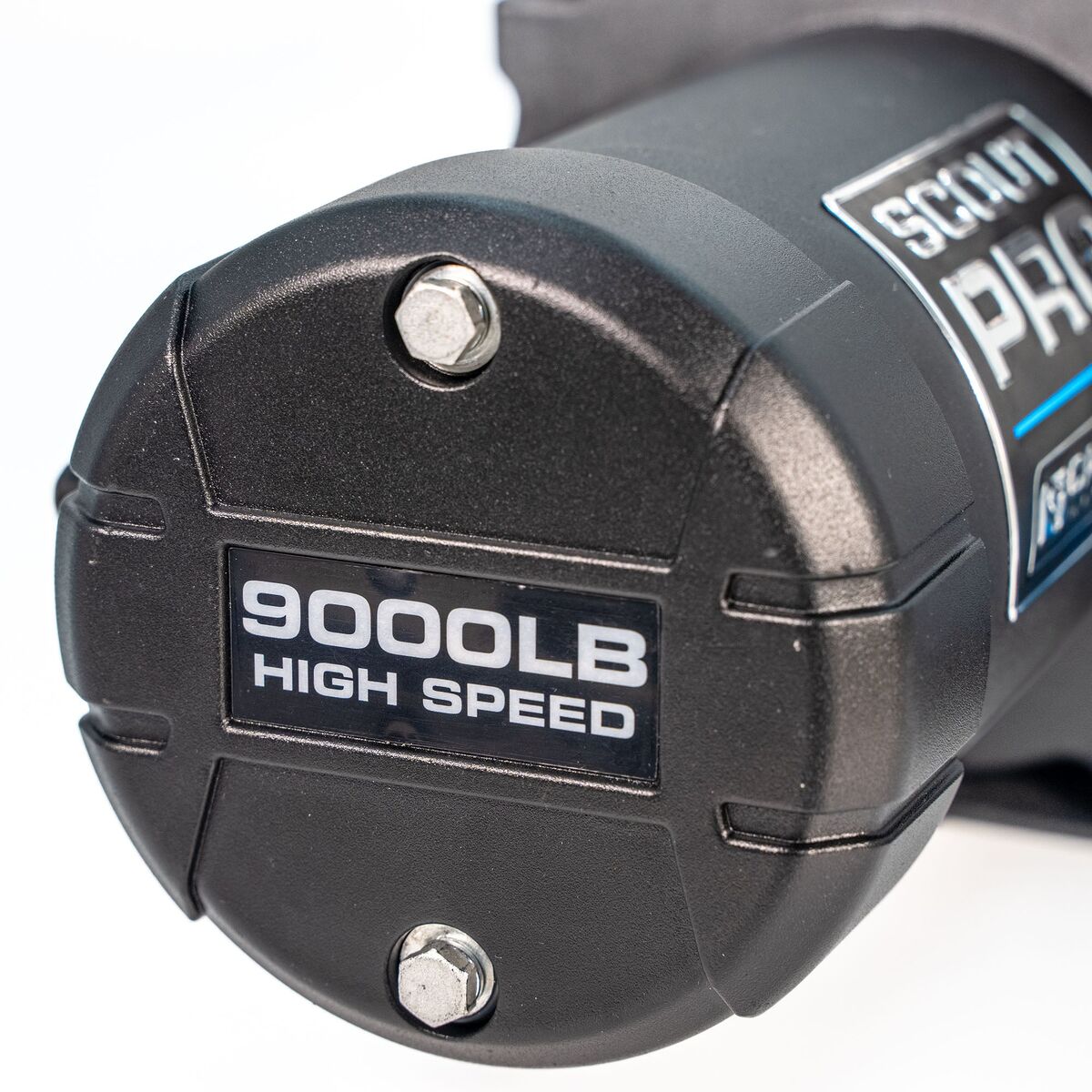

Carbon Offroad Scout Pro RS9 9000lb High Speed Winch with MegaPro Hook - Black
More infoMake 4 payments of $387.25 over 8 weeks and get it now!
