The Carbon Offroad Long Drum 6000 lb ATV winch for ATVs, small 4wds, caravans, trailers, boats.
A compact winch with a long drum and 26m of rope. Installation to an existing pedestal on a trailer, or into a winch location on an small form factor bar. With wireless and wired remote control included free, it's a very versatile winch setup. Perfect for small car and equipment trailers, great to mount in the back of a van to help load heavy equipment and has even been used to load tinny's and open cattle gates on Livestock Truck Trailers. A great small all rounder winch to make work easier or to get your Jimny or trailer out of the bog.
- Sealed motor and geartrain allows for flawless operations in extreme conditions
- Permanent magnet motor provides heavy duty torque for increased pulling power
- Cam action disengages gears for near silent free-spooling
- Mechanical and dynamic brake offers increased control and prevents rollback
- Part number: CW-XD6L
- Rated line pull: 6000 lbs, (2725kg) single-line
- Motor: 12V DC 2.5 HP permanent magnet
- Remote Control: Handlebar Mini-Rocker
- Wireless Remote Control: Included
- Geartrain: 3-Stage Planetary
- Gear Ratio: 147:1
- Clutch: Roller disc full load automatic
- Brake: Automatic brake in the motor bracket
- Aluminium hawse
- Lifetime Mechanical Warranty
- 5 Year Electrical Warranty
- 5 Year Water Ingress Protection Warranty
- Synthetic Rope: 24m x 6.5mm diameter
- Drum Diameter/Length: 51mm x 208mm
- Mounting Bolt Pattern: 254mm x 76mm
- Recommended Battery: 650 CCA minimum for winching

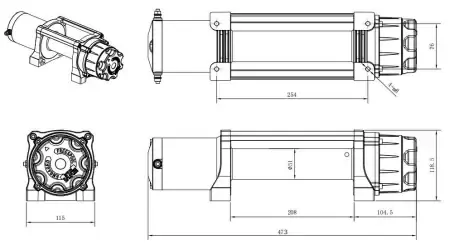

- Winch Dimensions (L x W x H): 473 x 125 x 120mm
- Packing Dimensions (L x W x H): 530 x 170 x 230mm
- Winch weight with synthetic rope attached: 8.3kg
- Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 11.2kg
| Line Pull (lbs (kg)) | Line Speed (ft/min (m/min)) | Motor Current (amps) | Pull By Layer (layer/lbs (kg)) |
|---|---|---|---|
| 0 | 31.8 (12.8) | 60 amps | 1/10000 (4536) |
| 2000 (907) | 15.1 (4.6) | 120 amps | 2/8200 (3720) |
| 4000 (1814) | 12.8 (3.9) | 190 amps | 3/6840 (3103) |
| 6000 (2722) | 10.8 (3.3) | 255 amps | 4/5820 (2640) |
| 8000 (3630) | 9.2 (2.8) | 320 amps | |
| 10000 (4536) | 7.9 (2.4) | 380 amps |
- 6000lb pull for ATVs and trailers
- 24m rope helps with tricky angles
- Compact footprint suits small bar mounts
- Synthetic line keeps overall weight down
- Proven Carbon Offroad gear made to last
- Smart buy for work and weekend trips
• Rated line pull: 6000 lb (2725 kg) single line
• Motor: 12V DC permanent magnet 2.5 HP
• Geartrain: 3-stage planetary with 147:1 gear ratio
• Brake: mechanical and dynamic automatic brake in motor bracket
• Clutch: roller disc full load automatic with cam action free-spool
• Rope: synthetic 24 m length x 6.5 mm diameter
• Drum size: 51 mm diameter x 208 mm length
• Mounting bolt pattern: 254 mm x 76 mm
• Winch dimensions (L x W x H): 473 x 125 x 120 mm
• Winch weight with rope: 8.3 kg; full kit weight: 11.2 kg
• Recommended battery: minimum 650 CCA for winching
• Lifetime mechanical warranty
• 5 year electrical warranty
• 5 year water ingress protection warranty
• Carbon Offroad Long Drum 6000 lb winch unit
• Synthetic rope 24m x 6.5mm pre-fitted to drum
• Control box with cables
• Handlebar mini-rocker wired remote control
• Wireless remote control
• Aluminium hawse fairlead
• Mounting bolts and hardware
| SKU | CW-XD6L |
|---|---|
| Barcode # | 9361605001313 |
| Brand | Carbon Offroad |
| Shipping Weight | 12.0000kg |
| Shipping Width | 0.530m |
| Shipping Height | 0.230m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.020723000m3 |

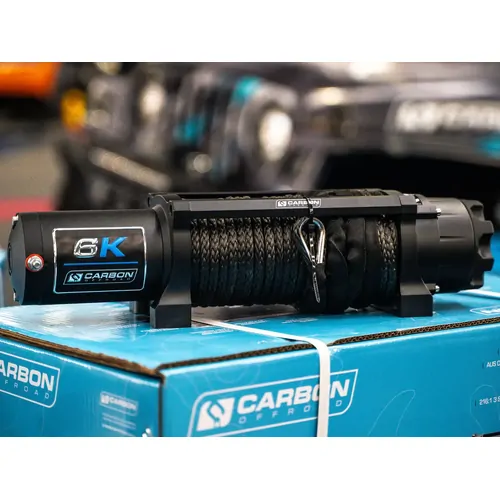

Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
