Description
Features

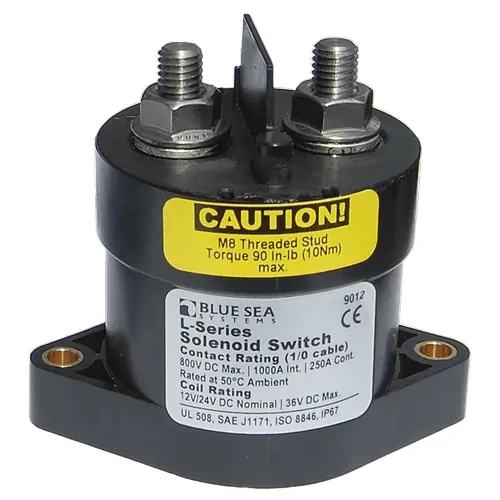

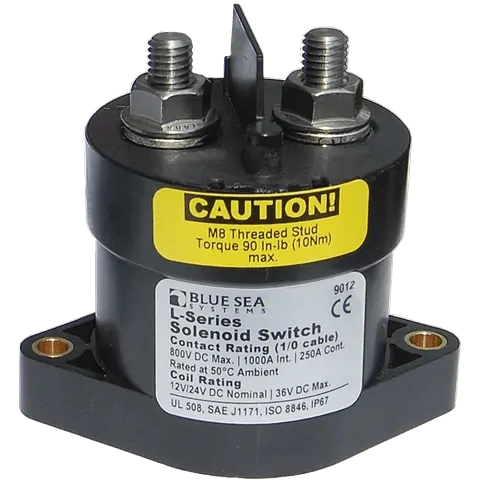

L Solenoid – 12/24V DC 250A
- Hermetically sealed contacts / vaporproof
- Ignition protected – safe for installation aboard gasoline powered boats
- Activated by an ON-OFF switch mounted anywhere
- integrated coil control minimizes heating and amperage draw
- 450 Amp Class
- Designed for 12 or 24 Volt systems
- Ignition protected — safe for installation aboard gasoline-powered boats
- Activated by a low amperage ON-OFF switch mounted anywhere
Specifications
| L Solenoid – 12/24V DC 250A | |
|---|---|
| Control Circuit Connection | 20 AWG Tinned Wire |
| Nominal Voltage | 12V DC 24V DC |
| Coil Function | Normally Open |
| Mounting | #10 |
| Operating Amperage Current | 3.6A when changing state |
| Amperage Operating Current continuous | 0.13A @ 12 V 0.07A @ 24 V |
| Terminal Stud Torque | 80 in-lb (9.04 Nm) |
| Continuous Rating | 250A 300A 400A 450A |
| Intermittent Rating | 275A (5 min) 400A (5 min) 500A (5 min) 600A (5 min) |
| Contact Form | SPST-NO |
| Cranking Rating 30 sec | 1,000A |
| Input Voltage | 9-36V DC |
| Inrush Rating: 0.25 sec (10 repeats) | 2000A |
| Switching Cycles | 1,000,000 |
| Terminal Stud | Serrated Flange Nut |
| Terminal Stud Length | 0.66in (16.76 mm) |
| Terminal Stud Size | 5/16″ (M8) |
| Weight | 0.45 kg |
Note: Specifications subject to change without notice.
Features
- Proven 250A continuous current handling
- Wide 9–36V DC operating range
- Low amperage control switch required
- Handles 1,000A cranking for heavy loads
- Hermetically sealed, ignition protected contacts
- Built tough for long-term marine setups
Specifications
- Nominal voltage: 12V DC or 24V DC
- Input voltage range: 9–36V DC
- Continuous rating: 250A–450A
- Intermittent rating: 275A–600A for 5 minutes
- Cranking rating: 1,000A for 30 seconds
- Inrush rating: 2,000A for 0.25 seconds (10 repeats)
- Coil function: Normally Open (SPST-NO contact form)
- Operating current when changing state: 3.6A
- Continuous amperage draw: 0.13A at 12V, 0.07A at 24V
- Control circuit connection: 20 AWG tinned wire
- Terminal stud size: 5/16" (M8)
- Terminal stud length: 0.66 in (16.76 mm)
- Terminal stud torque: 80 in-lb (9.04 Nm)
- Mounting: #10 hardware
- Switching cycles: 1,000,000
- Weight: 0.45 kg
- Contacts: Hermetically sealed and vaporproof
- Ignition protected for gasoline-powered boats
1 x Blue Sea Systems L-Series solenoid switch
Integrated 20 AWG tinned control wires attached to housing
| SKU | BS-9012 |
|---|---|
| Barcode # | OEBC527284 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.5000kg |
