Reaching a portable fridge buried at the back of the tray usually means climbing onto the tailgate, leaning over a cargo barrier, and digging blind for the last cold drink. A fridge slide fixes that. Choosing the right fridge slide is less about brand loyalty and more about these two things: how big it is and how much room you actually have to work with. Get those right and the slide becomes one of the most used upgrades in your setup. Get them wrong and you end up with a slide that won't fit, won't lock, or won't take the weight.
This guide walks through what to look for, the difference between a fixed slide and a drop down fridge slide, and how to measure your space before you buy.
Why a Fridge Slide Is Worth It
A loaded fridge is heavy and awkward. A 40L fridge full of food and ice bricks can sit well over 30kg, and the bigger 60L to 95L units climb past that quickly. Lifting that in and out of a tray every time you want lunch wears thin fast, and it is hard on your back. A quality slide lets the fridge pull out past the cargo barrier so you can open the lid fully and reach the whole interior, front and side. On rough tracks it also keeps the fridge anchored instead of sliding around and rattling against your gear.
The catch is that not every slide suits every vehicle. A slide built for a wagon floor behaves differently to one mounted high in a canopy. That is where the buying criteria matter.
What to Look For When Choosing a Fridge Slide
Work through these in order. The first three rule most products in or out before you even look at price.
1. Load Rating
This is the single most important spec. The slide has to carry your fridge fully loaded, not empty, and ideally with headroom to spare. Most quality 4WD fridge slides are rated between 150kg and 200kg at the runner. The MSA DS drop slide range carries a heavy duty 200kg runner rating across its sizes, and the powered Clearview Power Slide is rated to 180kg. You will never load a fridge to those numbers, and that is the point. The extra rating is what keeps the slide smooth and rattle free after years of corrugations.
2. Slide Type
There are four common styles, and the right one depends almost entirely on how high your fridge sits.
- Fixed (straight) slide. The fridge slides straight out at the same height. Simple, light, and the cheapest option. Best when the fridge sits at a comfortable height already, like on a low wagon floor or a tray with no drawers underneath. See the straight slides range.
- Drop down fridge slide. The fridge slides out, then lowers toward you so you are not reaching up and over. This is the one most canopy and drawer owners need. It solves the high mounting problem that a fixed slide can't. Browse the drop slides range.
- Powered slide. A drop slide that lowers and raises at the press of a button instead of by hand. The premium option for effortless access. See the powered slides range.
- Sideways slide. Pulls the fridge out the side rather than the rear. Useful for canopy and ute layouts where rear access is blocked, or for better access if you have a chest fridge. MSA offers a side version of most models in its range, so you are not locked into rear access.
If your fridge is mounted on top of a drawer system or false floor, a fixed slide will leave it too high to use comfortably. That is exactly the gap a drop slide closes.
3. Locking and Security
A slide that doesn't lock properly is a hazard. On corrugations a fridge that creeps out of position can shift your load, wear the rails, and start the rattle that drives everyone in the cab mad. It is also a legal issue. Under the National Transport Commission's Load Restraint Guide for Light Vehicles, a load in any vehicle under 4.5 tonnes must be restrained so it cannot move in a way that affects the vehicle's stability or safety. A loaded fridge sliding around the back fails that test. Look for a positive travel lock that holds the fridge in place during transit, and a separate lock when the slide is extended so it can't roll back on you while you have the lid open. The MSA drop slides use a lock-in lock-out safety latch that holds firm in both positions, and they ship with tie-down straps as standard. This is not a feature to compromise on.
4. Extension and Access
A good slide pulls the fridge fully clear of the cargo barrier so you can open the lid all the way and reach the back baskets. Cheaper slides only extend part way, which leaves you fighting the lid against the tailgate. Check the extension figure, and on chest fridges make sure the lid clears the vehicle once the slide is out.
5. Build Quality
Aluminium construction keeps weight down without giving up strength, which matters when you are adding kilos to a tray that already carries drawers, water, and recovery gear. On drop slides, gas struts do the lifting work. The MSA range steps its struts up with fridge size, from 650N on the DS40 to 1000N on the larger DS60 and DS95, so the fridge lowers and lifts in a controlled motion rather than dropping. Anodised handles and stainless fittings hold up to dust and salt far better than raw steel.
6. Fit
This is where most buyers come unstuck. Measure the clear opening of your space, not the widest internal point. Canopies and tubs usually have a lip that narrows the opening, and the slide handle adds length out the back. Measure width, depth, and the height available above the fridge, since a drop slide needs clearance to lower. MSA makes this easier by matching the model number to fridge capacity, so the DS40 suits roughly 40L fridges, the DS60 around 60L, the DS95 around 95L, and so on. For sizing a slide to a specific fridge model, the MSA fridge slide size guide breaks the dimensions down model by model.
7. Fridge Compatibility and Tie-Downs
Check the slide suits your fridge brand and size. Most quality slides come with pre-drilled mounting holes and tie-down straps included, and fit the popular brands like Engel, Dometic, Evakool, and Waeco. If you are running an unusual fridge footprint, confirm the slide tray dimensions before ordering.
Fixed Slide vs Drop Down Slide
For most people the real decision comes down to these two. Here is how they compare.
| Feature | Fixed (horizontal) slide | Drop down fridge slide |
|---|---|---|
| Access height | Same height as mounted | Lowers fridge toward you (MSA drops 30cm) |
| Best for | Low wagon floors, trays without drawers | Canopies, fridges mounted on drawers or false floors |
| Weight | Lighter | Heavier due to lift mechanism |
| Price | Lower | Higher |
| Mechanism | Runners only | Gas strut or powered scissor lift |
| Clearance needed | Minimal | Needs room above to lower |
If your fridge already sits at a usable height, a fixed slide does the job for less money and less weight. If you are stretching or climbing to reach it, the extra spend on a drop slide pays for itself the first weekend.
Two Slides Worth Knowing
These cover the two ends of the drop slide market and show what the criteria above look like in real products.

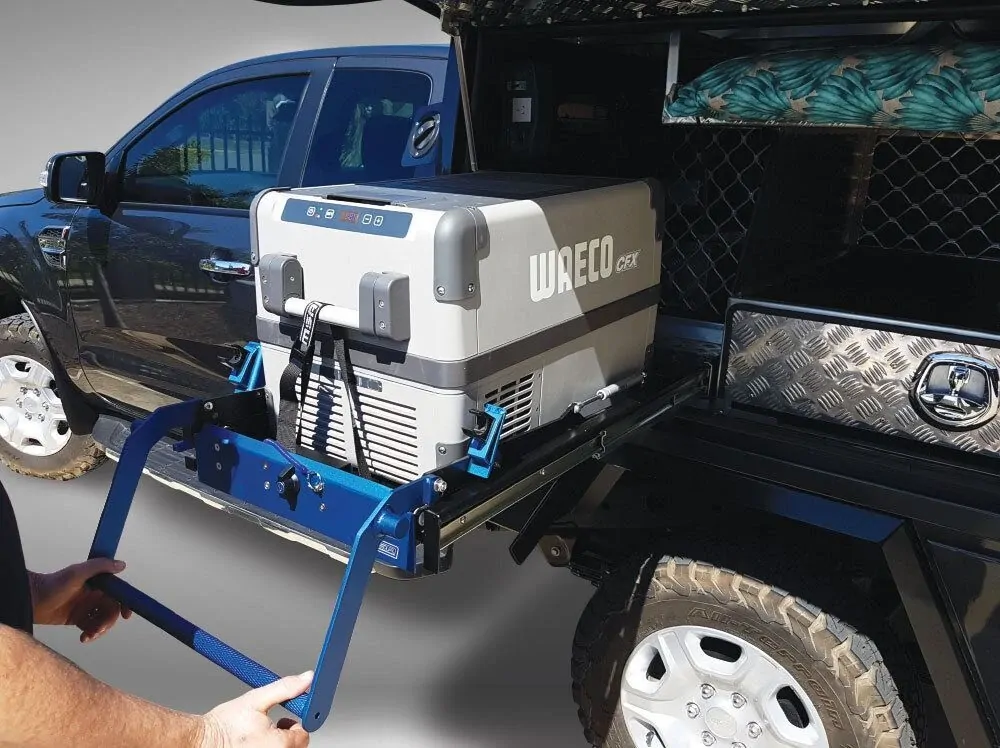

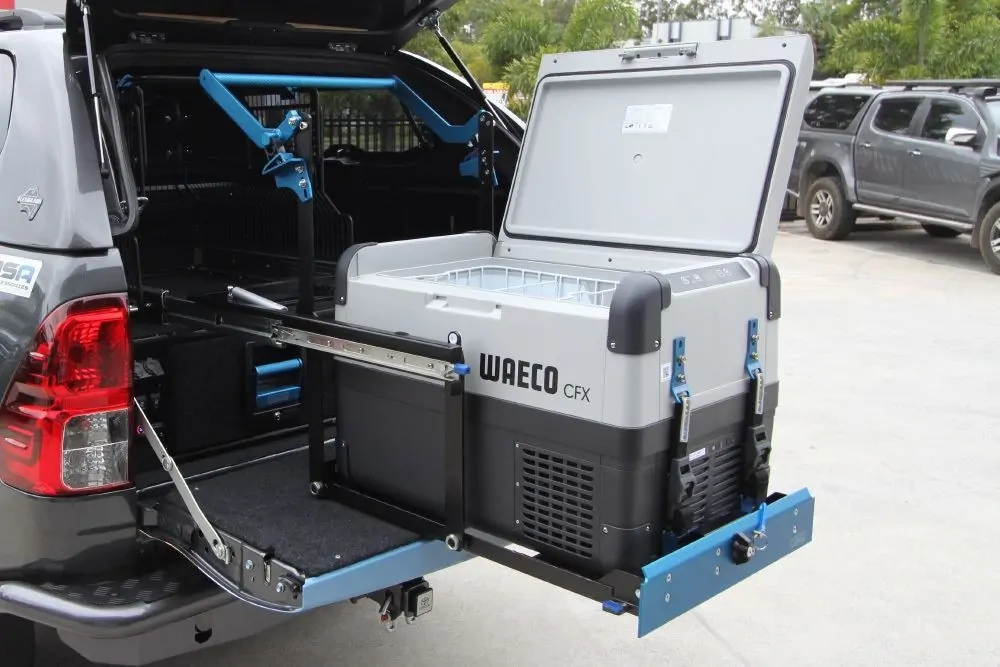

MSA DS Fridge Drop Slide range
The manual workhorse. The MSA drop slides pull out, then lower the fridge 30cm while keeping the tray horizontal the whole way, so nothing tips. Across the range they carry a 200kg load rating, use gas struts sized to the model from 650N up to 1000N, and include the lock-in lock-out safety latch, tie-down straps, and pre-drilled holes for most popular fridges. The model number matches your fridge capacity, so the DS40 suits smaller 40L fridges through to the DS95 for the big units, and most models have a side-mount version. This suits the touring setup that wants proven, mechanical reliability with no power draw.

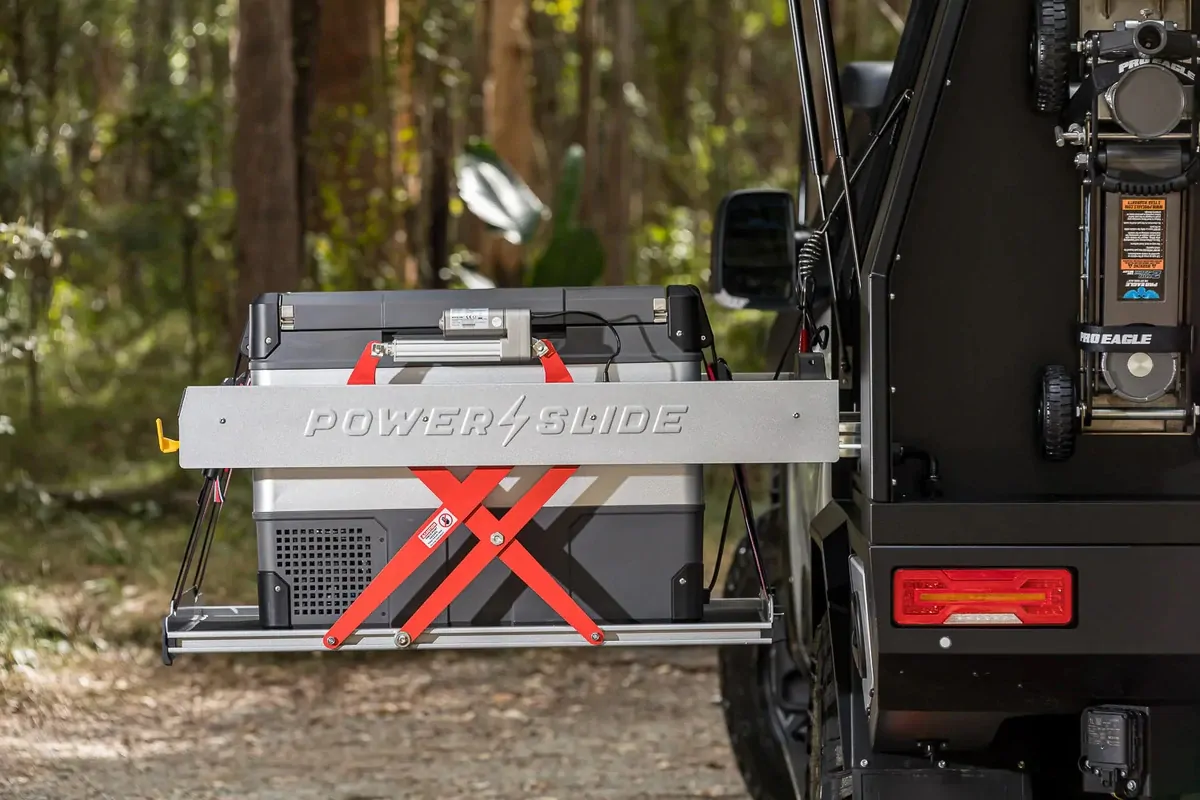

Clearview Power Slide
The powered option. Instead of gas struts, the Clearview Power Slide lowers and raises the fridge at the press of a button using a synchronised twin actuator scissor lift that keeps the platform perfectly level. It is rated to 180kg, weighs from 29kg, and is built from extruded aluminium. The trade-off is honest: it runs off your 12V system through a 15-amp Anderson plug and costs more than a manual slide. Clearview rates it past 10,000 lift cycles, so the mechanism is built to last. This suits owners who want effortless one-touch access and have the battery setup to support it.
Add-Ons That Earn Their Place
A few accessories are worth budgeting for. A combination fridge and table slide builds a fold-out prep surface into the slide itself, which turns the back of the vehicle into a usable kitchen at a remote camp. A fridge barrier or cage protects the fridge from gear shifting into it on rough tracks and can add tie-down points for extra storage. The full range of slide accessories covers tables, barriers, and mounting hardware. None of these are essential on day one, but each one makes the setup work harder.
Which Fridge Slide Is Right for You?
- Wagon with the fridge on the floor. A fixed slide is all you need. Save the money for a slide bench.
- Ute or canopy with the fridge mounted high. Go drop down. The 30cm of drop is the difference between using the fridge and resenting it.
- Fridge sitting on top of a drawer system. Drop slide, and check your height clearance carefully before buying.
- You want one-touch access and have the power. The powered Clearview Power Slide is the premium answer.
- Tight rear access or an unusual layout. Look at a sideways slide and measure twice.
Shop Fridge Slides by Brand
Outback Equipment stocks fridge slides from the brands that have earned their place in Australian touring setups, not a wall of unbranded imports. If you already know the brand you are after, you can jump straight to it:
- MSA 4X4. The most popular drop slide range, sized to your fridge litres with side versions on most models.
- Clearview. Australian designed powered slides for one-touch access, protected by Australian patents.
- Dometic. Slides to suit the wider Dometic fridge range.
- Front Runner. Modular slides that pair with their wider load system gear.
Need a Fridge First?
A slide is only half the setup. If you are still choosing the fridge that sits on it, start with the portable camping fridges range. Outback Equipment carries the brands worth running in remote conditions, including Engel, Dometic, EvaKool, National Luna, and myCOOLMAN, in chest, upright, and dual zone formats from compact 40L units up to 95L. Match the fridge to your trip length and the number of people you are feeding first, then size the slide to the fridge. The MSA model numbers and the size guide make that pairing simple.
Frequently Asked Questions
What is the difference between a fixed and a drop down fridge slide?
A fixed slide pulls the fridge straight out at the same height it is mounted. A drop down fridge slide pulls out and then lowers the fridge toward you, usually by around 30cm, so you are not reaching up and over. Fixed slides suit low mounting positions. Drop slides suit fridges mounted high in canopies or on top of drawers.
How much weight can a fridge slide hold?
Quality 4WD fridge slides are typically rated between 150kg and 200kg at the runner. The MSA drop slide range carries a 200kg rating and the Clearview Power Slide is rated to 180kg. You will never load a fridge close to those figures. The high rating is what keeps the slide smooth and rattle free over years of corrugations.
How do I know a fridge slide will fit my canopy?
Measure the clear opening of the space, not the widest internal point, because the canopy lip narrows the opening and the slide handle adds length out the back. Measure width, depth, and the height above the fridge, since a drop slide needs room to lower. Check the model size guide against your fridge dimensions before ordering.
Will a fridge slide rattle on corrugations?
A quality slide with a positive travel lock will not. Rattles come from worn rails or a slide that creeps out of position because the lock is weak or absent. Look for a lock-in lock-out style latch that holds the fridge firm in both the stowed and extended positions.
Can I add a table to my fridge slide?
Yes. A slide bench or prep table clips onto most slides and gives you a stable work surface at the back of the vehicle. It is a popular add-on for cooking and food prep at remote camps and can be removed when you do not need it.
Does a drop slide reduce my storage space?
Quality drop slides are designed to be compact and sit flat when stowed, so they take up little more room than the fridge itself. The main consideration is vertical clearance, since the slide needs space above the fridge to lower it.
The Bottom Line
Match the load rating to your fully loaded fridge, pick the slide type that suits how high your fridge sits, and measure your space before you buy. A fixed slide is the right call for low mounting positions, and a drop down slide is the answer for canopies and fridges sitting on drawers. Browse the full range of fridge slides to match one to your setup, with delivery Australia wide.
