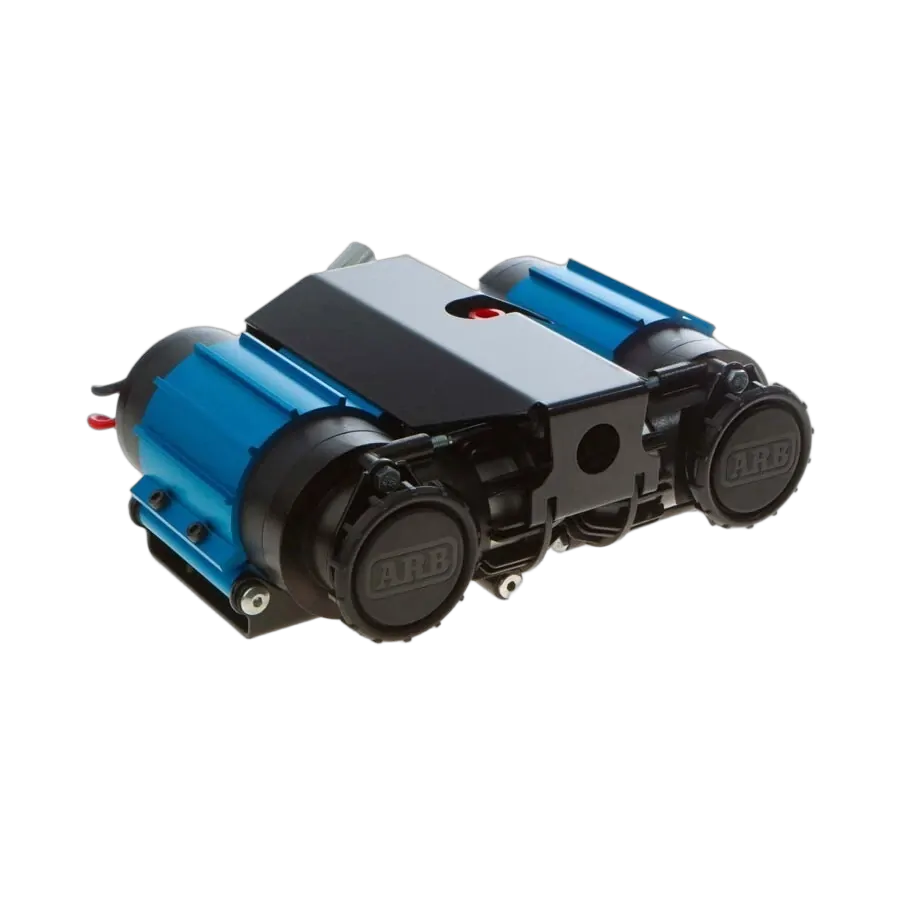

ARB Twin Compressor 12V
Providing optimum power, the twin motor design will deliver superior airflow for fast inflation purposes and comes with all the necessary hardware required.
Constructed of lightweight, high strength engineering grade materials, it incorporates quality components for quiet operation and extended durability.
Features:
- High flow, twin motor, dual cylinder, 12V DC air compressor
- Designed for inflating tyres and air locker activation when used in conjunction with optional accessories
- Suitable for many air tools when used in conjunction with optional air tank kit
- 100% duty cycle
- Sealed for moisture and dust resistance
- Hard anodised cylinder bores for reduced friction
- Teflon impregnated carbon fibre piston seals for maximum trouble-free life
- Anodised mounting bracket dissipates heat
- Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
- Quality components for quiet operation and extra long life
- Constructed of lightweight, high strength engineering grade materials
- Over-pressure safety valve equipped
- Motors are internally thermally protected against extreme heat damage
- Full wiring loom included for simplified installation and plug-in connectivity to Air Locker control solenoids
- Heavy-duty in-line maxi fuse for each motor provides professional circuit protection
Frequently asked questions about the ARB Twin Compressor
How many amps does a ARB Twin Compressor draw?
The ARB Twin Air Compressor (CKMTA12) draws 28.4 amps under no load, 50.4 amps under load, and a maximum of 68.6 amps. This variation ensures it operates efficiently depending on the demand.
What is the maximum PSI in ARB Twin Compressor?
The maximum pressure for the ARB twin air compressor is 150 PSI (1030 kPa). This high-pressure capability makes it suitable for various applications, including inflating tyres and running air tools.
Does the ARB Twin Compressor have a pressure switch?
Yes, the ARB twin air compressor includes an integrated pressure switch. This feature helps manage the compressor's operation, ensuring consistent performance and protection against overpressure.
- Twin cylinder compressor for strong airflow
- 100% duty cycle for touring rigs
- 12V setup suits most 4x4 builds
- Up to 150 PSI for tyres and lockers
- IP55 cooling fan helps manage heat
- Sealed construction suits Aussie conditions
- High flow twin motor dual cylinder 12V DC air compressor
- 100% duty cycle
- Maximum pressure: 150 PSI (1030 kPa)
- Current draw: 28.4 A (no load)
- Current draw under load: 50.4 A
- Maximum current draw: 68.6 A
- IP55 brushless cooling fan for electronics and motors
- Sealed for moisture and dust resistance
- Hard anodised cylinder bores
- Teflon impregnated carbon fibre piston seals
- Integrated over-pressure safety valve
- Motors internally thermally protected
- Constructed from lightweight high strength engineering grade materials

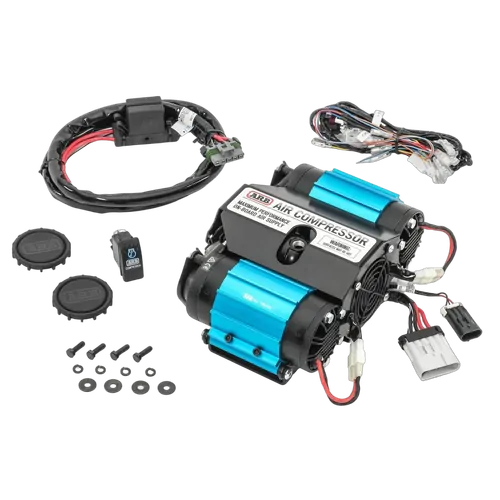

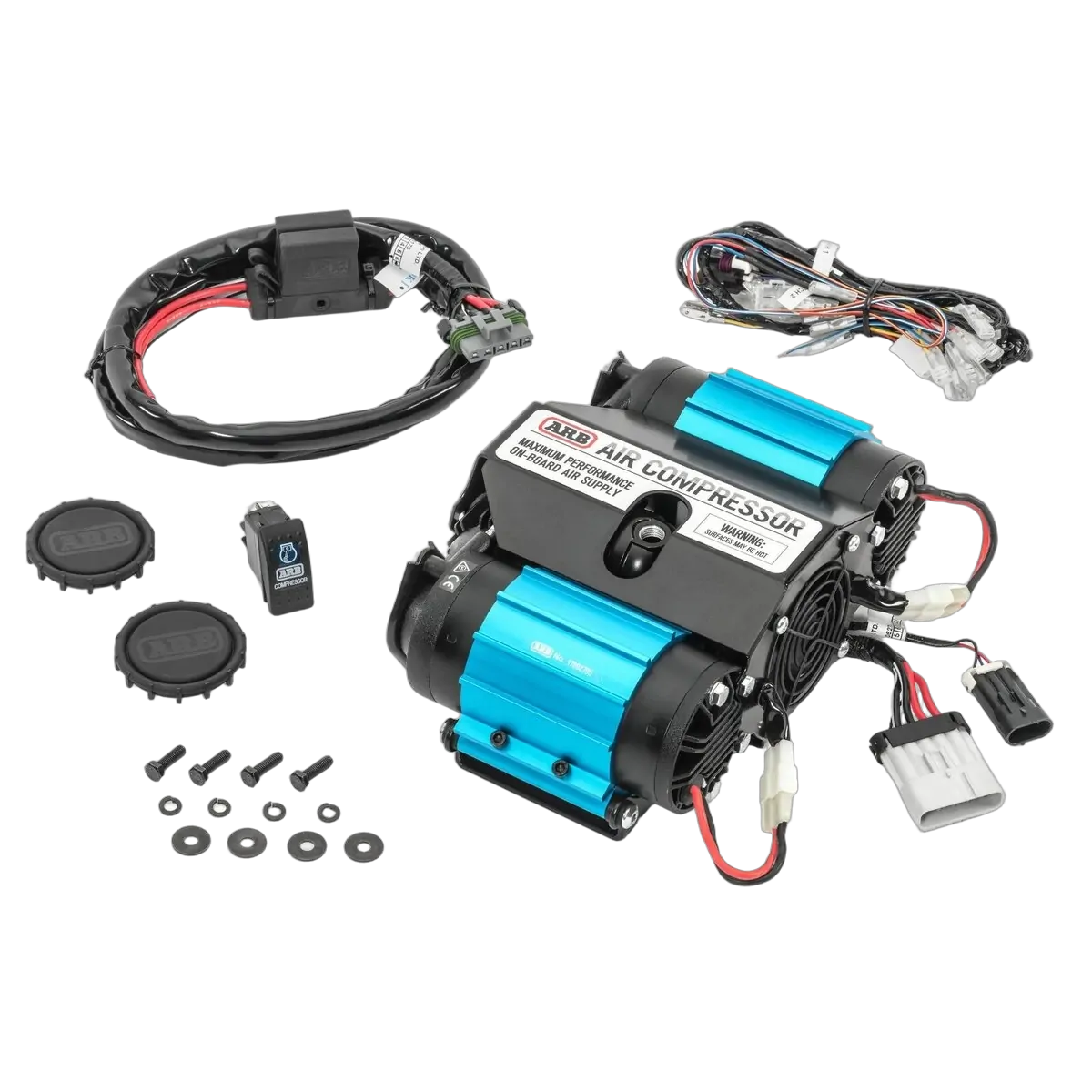

- ARB twin motor dual cylinder 12V air compressor unit
- Full wiring loom
- Integrated pressure switch and relays (pre-mounted)
- Anodised mounting bracket
- Two ARB dust/moisture caps
- ARB compressor switch
- Mounting hardware set (bolts and washers)
- Heavy-duty in-line maxi fuse assemblies
| SKU | CKMTA12 |
|---|---|
| Barcode # | OEBC560573 |
| Brand | ARB 4X4 Accessories |
| Shipping Weight | 10.0000kg |
| Shipping Width | 0.400m |
| Shipping Height | 0.200m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.024000000m3 |
