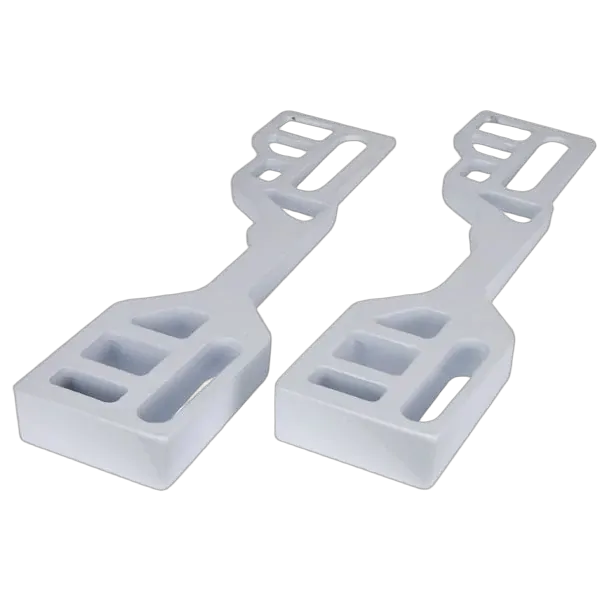

The Sam Allen 5 Degree Alloy Transom Wedge Pairs slot between your transom and the outboard to set a fixed 5 degree change at the mounting face. The wedges measure 285mm by 95mm so they spread the clamp load across a decent patch of transom. The solid alloy body keeps the motor sitting square so you can tackle choppy channels and river bars with more consistent trim.

The wedges use aluminium with a white epoxy coat that stands up to salt spray and sun on regular coastal runs. Each piece is 285mm long which gives room for the full bolt pattern on most mid-size outboards. The 95mm width helps keep the bracket footprint supported on both alloy and glass hulls. The pair comes matched so both sides of the motor share the same 5 degree correction every trip.

• 5 degree alloy transom wedge pair for outboard motors
• White epoxy coated aluminium construction for marine use
• Each wedge measures 285mm long by 95mm wide
• Used to adjust outboard motor mounting angle
• Helps fine tune hull trim and running attitude
• Broad contact area spreads load across transom surface
• Suitable for use between motor bracket and transom face
• Sold strictly in matched left and right pair
• Part number 44205 from Sam Allen
• Simple fixed-angle hardware with no moving parts

Q: Are these wedges supplied as a single piece or a pair?

They are supplied as a pair. You get two matching wedges so the outboard bracket sits evenly against the transom. A pair layout keeps both sides at the same 5 degree angle. That helps stop twist loads building up on the steering and mounting bolts.

Q: What material are the 5 Degree Alloy Transom Wedges made from?

They are made from aluminium with a white epoxy coating. The aluminium keeps weight down while still handling clamp and bolt pressure. The epoxy coating adds a barrier against salt water and UV. The white finish also matches most outboard pods and transoms visually.

Q: What are the overall dimensions of each wedge?

Each wedge measures 285mm by 95mm. The 285mm length gives plenty of contact area along the transom face. The 95mm width lines up with common outboard bracket widths. Knowing these dimensions helps you check clearance against existing holes and hardware.

Q: What is the purpose of a 5 degree transom wedge on an outboard setup?

The wedge changes the motor mounting angle by 5 degrees. This fixed angle change can help correct a bow-high or bow-low running attitude. The adjustment can improve how the hull climbs onto the plane and how it tracks in chop. It also lets you get more useful range from the outboard trim rams.
