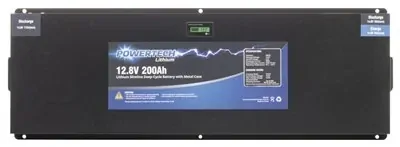

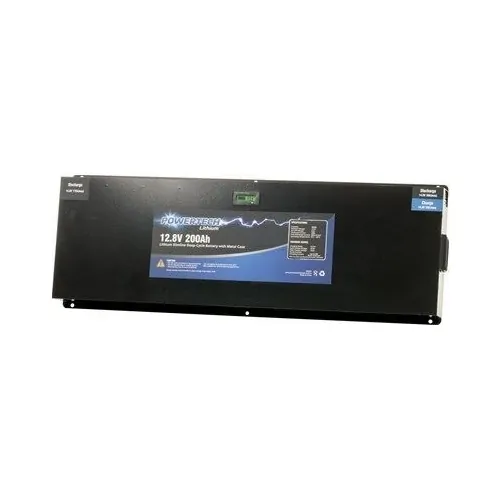

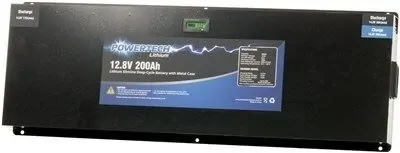

This battery comes in a sturdy mild steel black powder-coated case with mounting flanges. Identical to our 100Ah version SB2220 but double the amperage rating. It measures a semi-compact 850 long x 270w (excluding flanges) x 70h.  It has a strong metal handle on the long side above the battery display.  Including a steel box, it weighs 26kgs – quite light for a 200 A/hr battery.  On the end of one long side are 2 x flush mount 50A High Current sockets and on the other side there is 1 x flush mount 120A High Current Socket.  On the top of the case is a battery capacity voltage display that measures 60x40mm (backlit.)

Because of the low profile of this unit, it will fit neatly behind the driver/passenger seat in a car 4WD/RV. The Anderson connectors guarantee a neat wiring installation with no exposed electrical terminals.  It could easily fit somewhere in a box-type camping trailer or even a small boat under a seat.
