Includes: 1 Base Plate and 2 Pins

Will Mount from 2-4 Tred GT/HD/PRO

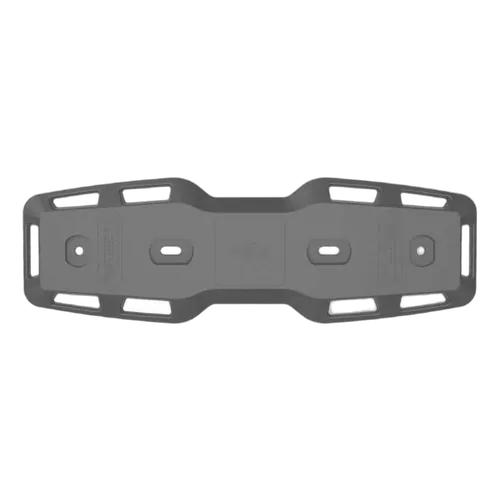

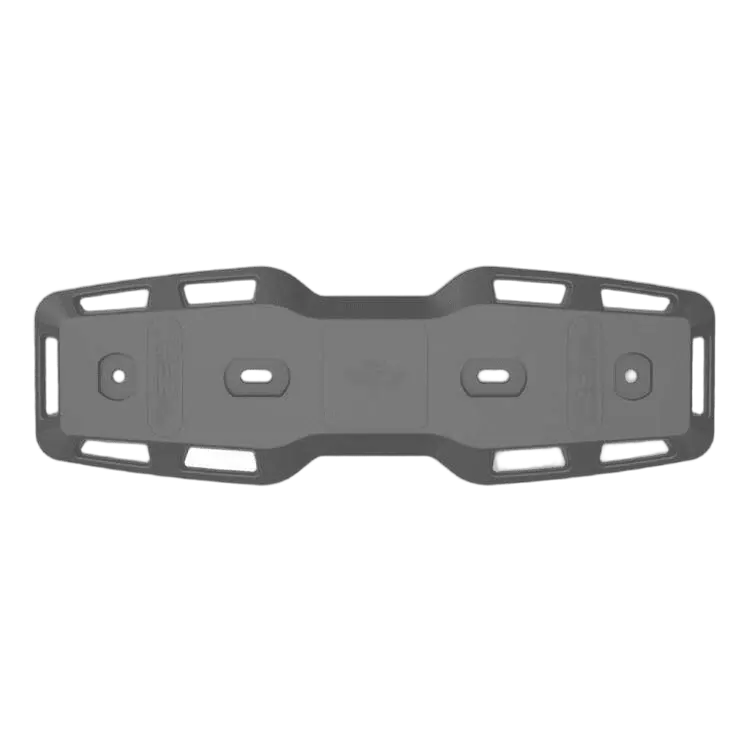

Base Plate

The TRED Mounting Base Plate makes the installation of recovery boards easier, and more secure due to the pin location slots, recesses and covers within the base plate design. The recessed slots on the front face of the base plate have been set for correct alignment of the TRED Mounting Pins to align with the recovery boards mounting pattern perfectly. Securing hardware from the TRED Mounting Pins have been designed to recess into the back of the plate to allow the plate to mount flush onto a surface.

The base plate includes multiple design allowances for permanently mounting with things like self-tapping screws, bolts, straps or even a less permanent solution using heavy-duty cable ties. Using a more secure system like bolts to fix the plate down onto the surface, then covering the hardware with the supplied base plate covers completes the install. It also adds a taper proof system, making it harder to remove the pins from the Baseplate and the whole Baseplate off the vehicle when the boards are mounted. Couple this with the locking features within the pin design, you have a secure method of mounting your investment to your vehicle.

*Mounting Pins Not Included

Features

Pin hole centre to centre measurements: 270mm (fixed), 115mm to 135mm (adjustable)
Threaded Mounting Pin has a securing height range of 18-73mm while maintaining the locking feature
Suits TRED Threaded and Quick release Pins
Designed for various fixing options
Suits base plate adapter kits
Pin Mount slots also work with other branded recovery boards
Flush Slot Covers included
Recessed Plate Mount Holes



Country Of Origin

Made In Australia.

Model / Product Code

TMBP01

Dimensions

Total size: 336 x 113 mm

Pin hole centre to centre measurements:
270 mm (fixed)
115 mm to 135mm (adjustable)

Product Weight

300 g

Contents

1 x Base Plate
1 x Centre Cover
2 x Slot covers

Warranty

12 Months

Primary Activity(s)

4WD Recovery

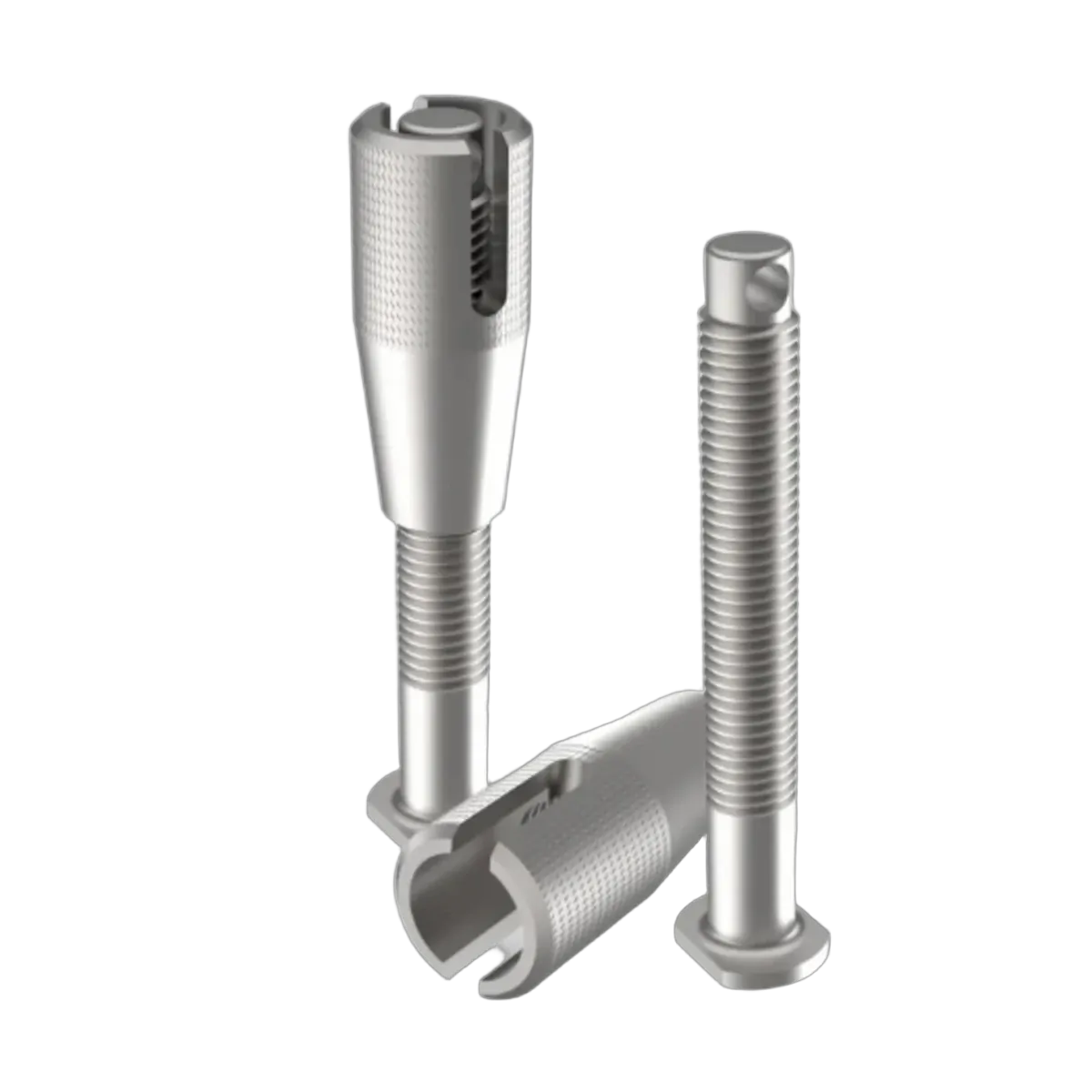

115mm Pins

The TRED Threaded Mounting Pins are designed to easily and securely mount your recovery boards to your vehicle, trailer or caravan. The unique design will mount up to four TRED GT, HD or Pro model recover boards or two of the TRED 800/1100 model recovery boards while allowing the option of a padlock for added security.

What's included:

2 x TRED 115mm/4.5" Threaded Mounting Pins
2 x TRED Securing Nuts
2 x Stainless Steel M6 Button Socket Head Cap Bolts
2 x Stainless Steel M6 Washers (12mm / 0.47" O.D.)
2 x Stainless Steel M6 Washers (17mm / 0.67" O.D.)
2 x Rubber Spacers (Grommets)
