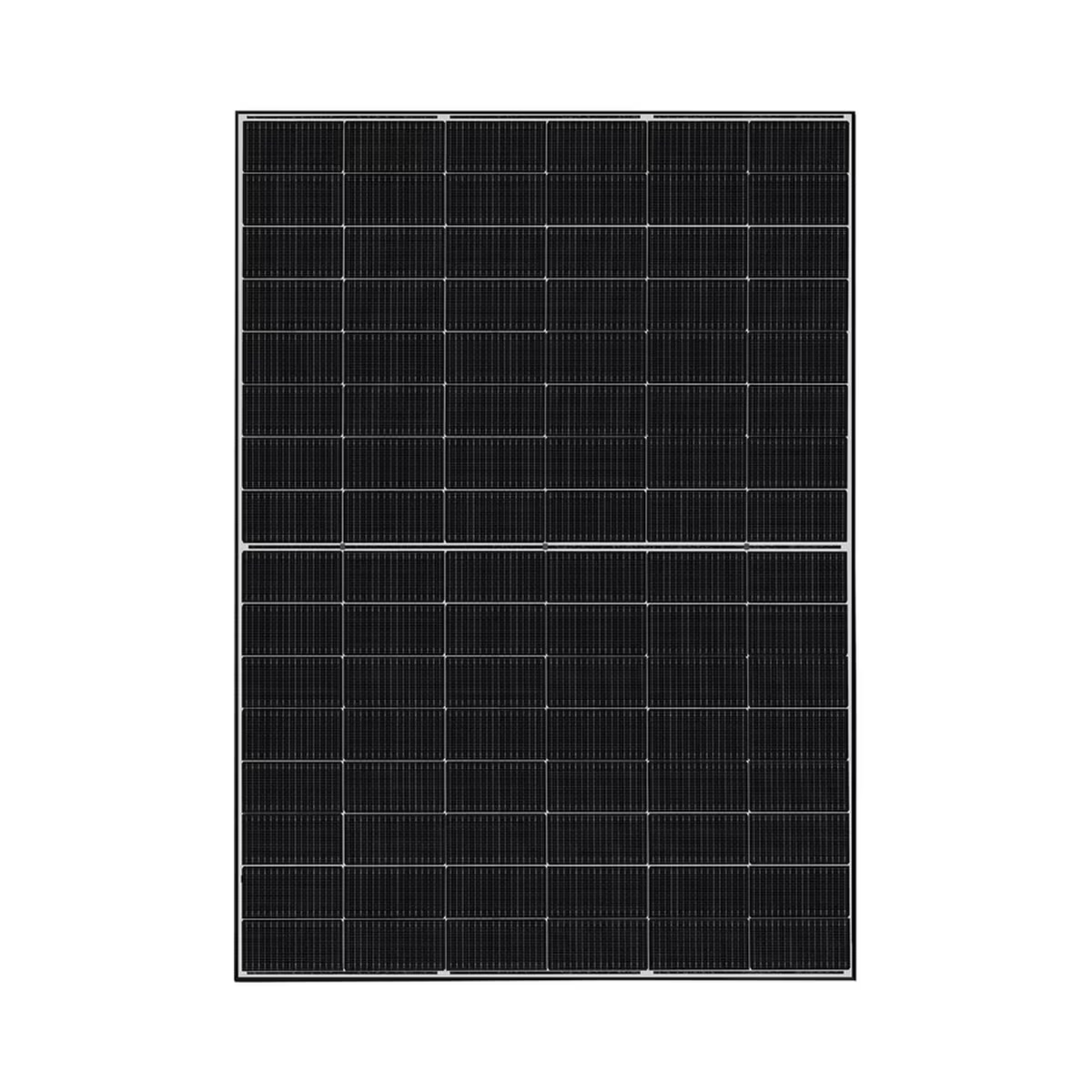

450W N-Type TOPCon, Transparent Black, Dual Glass, Bifacial Module
- Monocrystalline silicon 182 mm with a module efficiency of 22.5%
- More power output in low light conditions such as cloudy days
- Extended wind and snow load tests and withstanding harsh environment
- 25-year product warranty; 30-year linear performance warranty
Suntech Ultra V Pro N-type 450W Bifacial, Dual Glass, Transparent Black
- Dual glass design the polymer backsheet has been eliminated, boosting long-term durability
- Bifacial Design for Added Gains: The bifacial nature of this module captures sunlight from both the front and back, potentially increasing your energy harvest and providing greater flexibility in installation.
- High module conversion efficiency of 22.5% achieved through advanced cell technology and manufacturing process
- More power output in low light conditions such as cloudy days, mornings, and evenings
| Weight [kg] | 21.5 |
| Depth [mm] | 30 |
| Quantity Per Pallet | 36 |
| Brand | Suntech |
| IP Rating | IP68 |
| Operating Temperature Range [°C] | -40 °C to +85 °C |
| Maximum Power (Pmp) [W] | 450 |
| Maximum Series Fuse Rating [A] | 35 |
| Frame Colour | Black |
| Solar Cell Type | Monocrystalline |
| Maximum Power Voltage (Vmp) [V] | 30.04 |
| Maximum Power Current (Imp) [A] | 14.98 |
| Short Circuit Current (Isc) [A] | 15.92 |
| Open Circuit Voltage (Voc) [V] | 35.37 |
| Pmp Temp Coefficient [%/°C] | -0.29 |
| Voc Temp Coefficient [%/°C] | -0.25 |
| Isc Temp Coefficient [%/°C] | 0.046 |
| Junction Box | IP68 rated (3 bypass diodes) |
| Maximum System Voltage [V] | 1500 |
| Number of Cells | 96 |
| Width [mm] | 1134 |
| Length [mm] | 1762 |
| Max Efficiency | 22.5% |
| Family | Ultra V Pro Mini |
| SKU | STP-450S-H48-Nth |
|---|---|
| Barcode # | OEBC720156 |
| Brand | Suntech |
| Shipping Weight | 22.0000kg |
| Shipping Width | 1.200m |
| Shipping Height | 0.050m |
| Shipping Length | 1.800m |
