Description

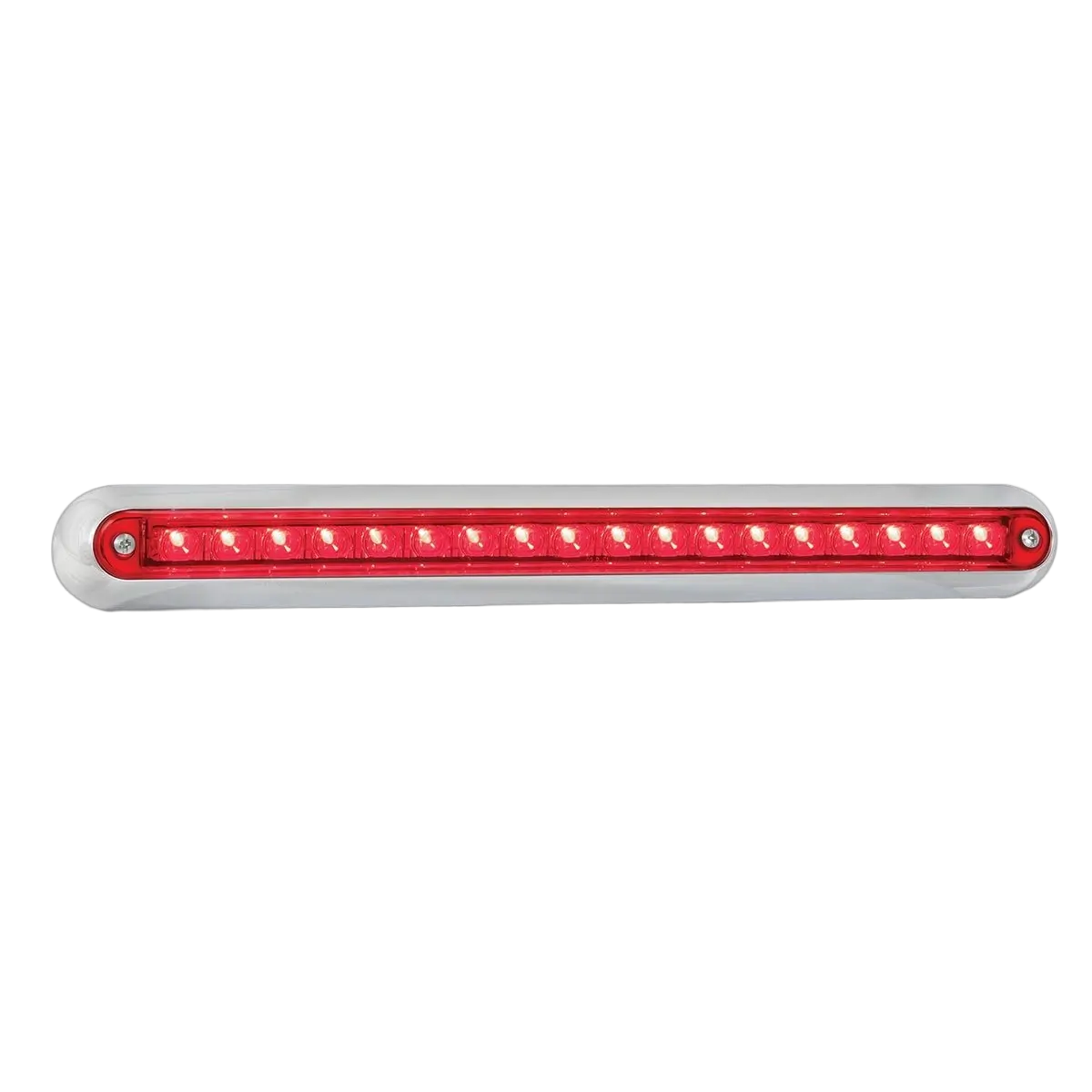

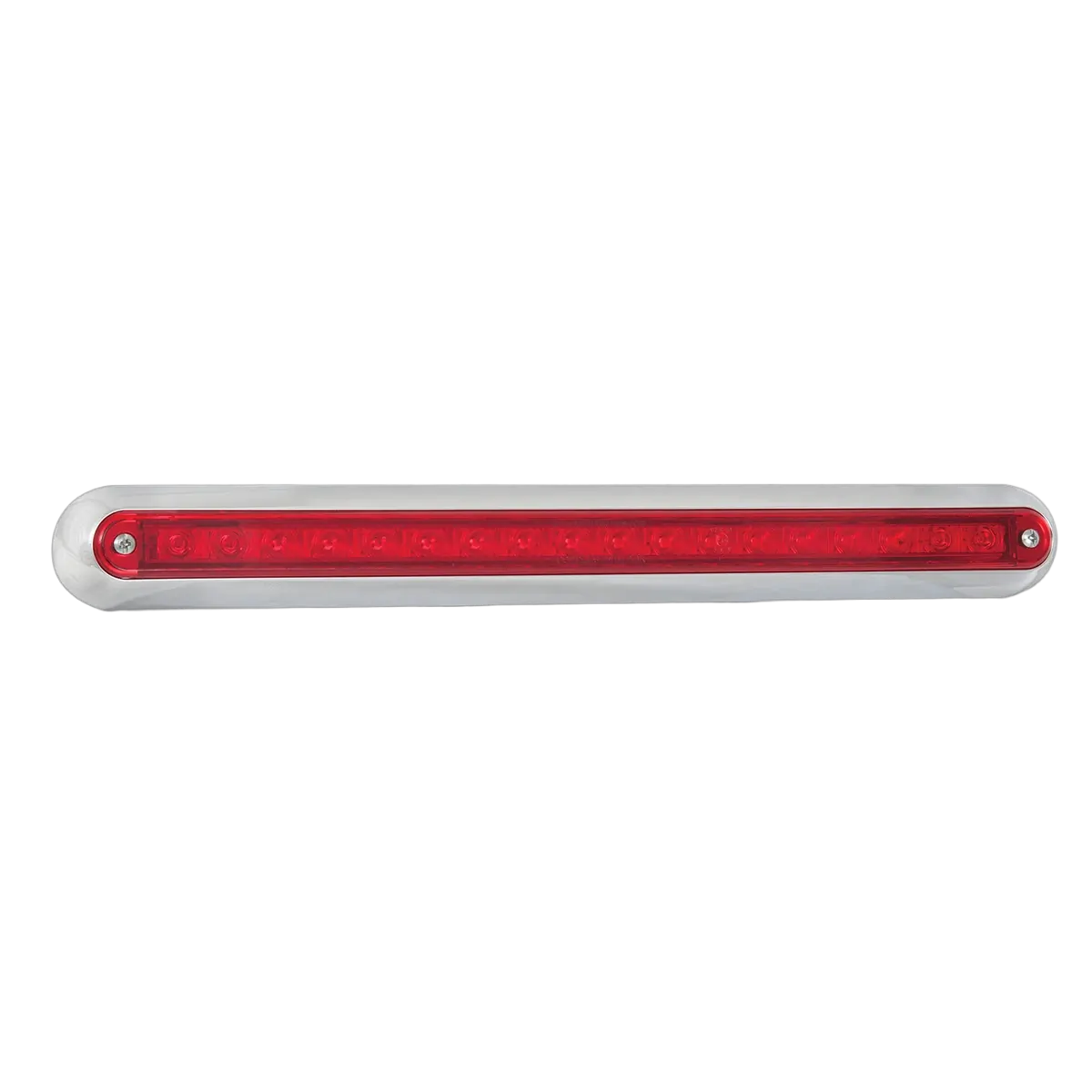

380 Series Surface Mount

Reference: 380 Series Surface Mount

Features / Specifications

Surface mount
Low profile slimline design
ADR/ECE approved
IP67 100% Water proof
Voltage Range 12 Volt
404mm x 46mm x 17mm
5 Year Warranty

Download Data Sheet

Fitting Instructions

Surface mount onto flat surface horizontally to the ground, run wires through back and fix with screws supplied at both ends. Please refer to ADR13/00 for mounting instructions.

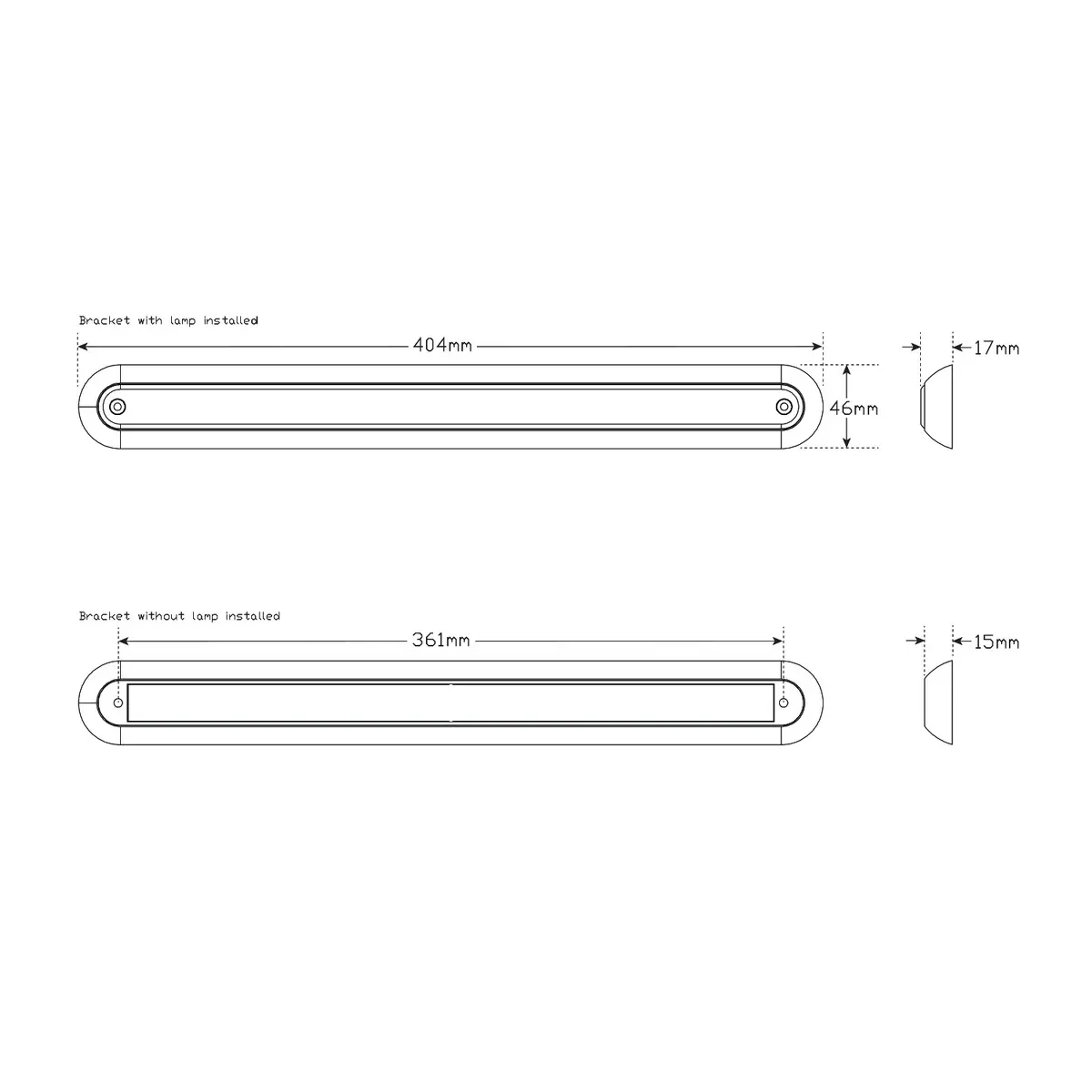

Technical Drawings

More details

Features

• 404mm strip spreads light across the rear

• Low 17mm profile keeps the bar out the way

• IP67 seal stands up to dust and water

• ADR/ECE tick keeps the rig legal

• Simple surface mount suits flat rear panels

Specifications

Brand: LED Autolamps
Series: 380 Series surface mount
Function: Stop / tail LED lamp
Mounting type: Surface mount on flat surface
Orientation: Horizontal to the ground
Overall length: 404mm
Overall height: 46mm
Overall depth: 17mm
Protection rating: IP67 100% waterproof
Voltage range: 12 Volt
Approval: ADR/ECE approved
Warranty: 5 year warranty

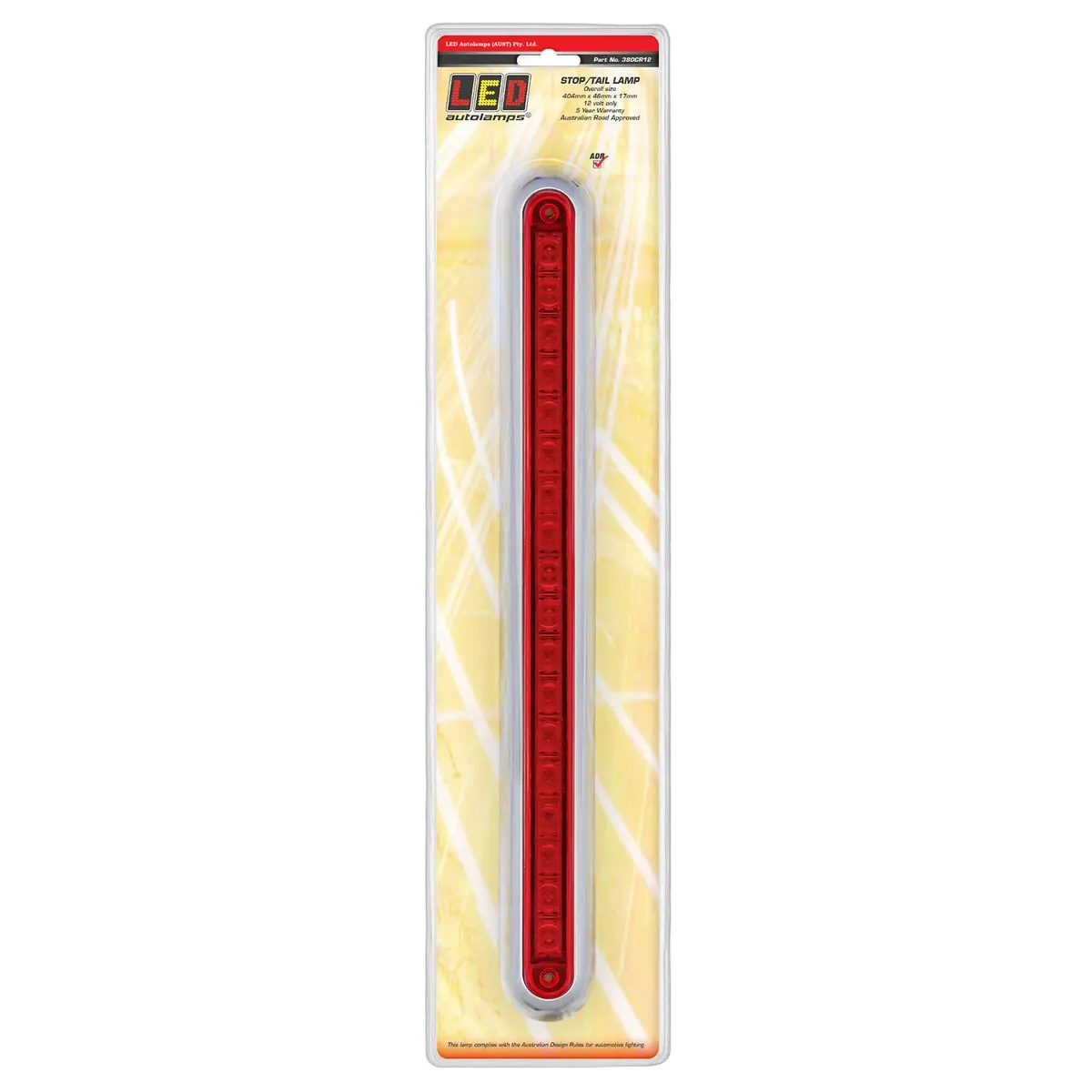

1 x LED Autolamps 380 Series surface mount stop/tail lamp in chrome bracket
Mounting screws

SKU	380CR12
Barcode #	9335962007561
Brand	LED Autolamps
Shipping Weight	0.2500kg
Shipping Width	0.057m
Shipping Height	0.040m
Shipping Length	0.443m

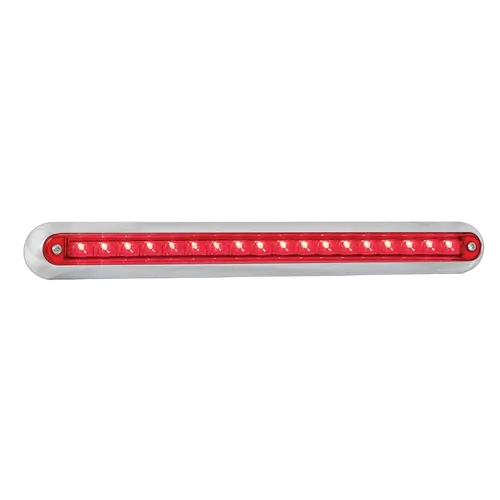

Stop/Tail Lamps 380CR12

SKU: 380CR12

$75.62

REG

$55.24 SALE

Earn 550 PTS on this item. Login or Join Free

SAVE $20.38

REG $75.62

SALE ENDS

Dispatch in 1-2 weeks
