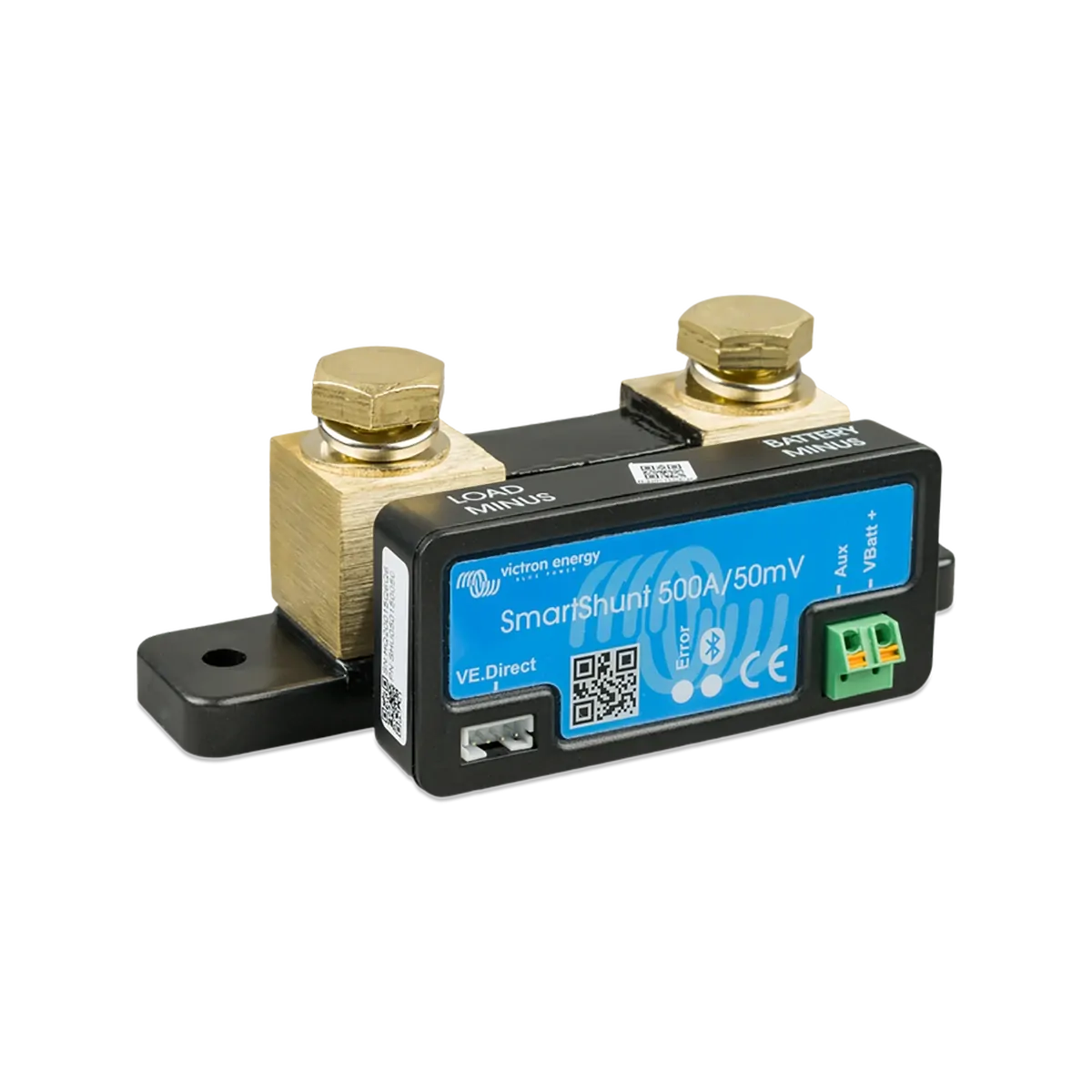

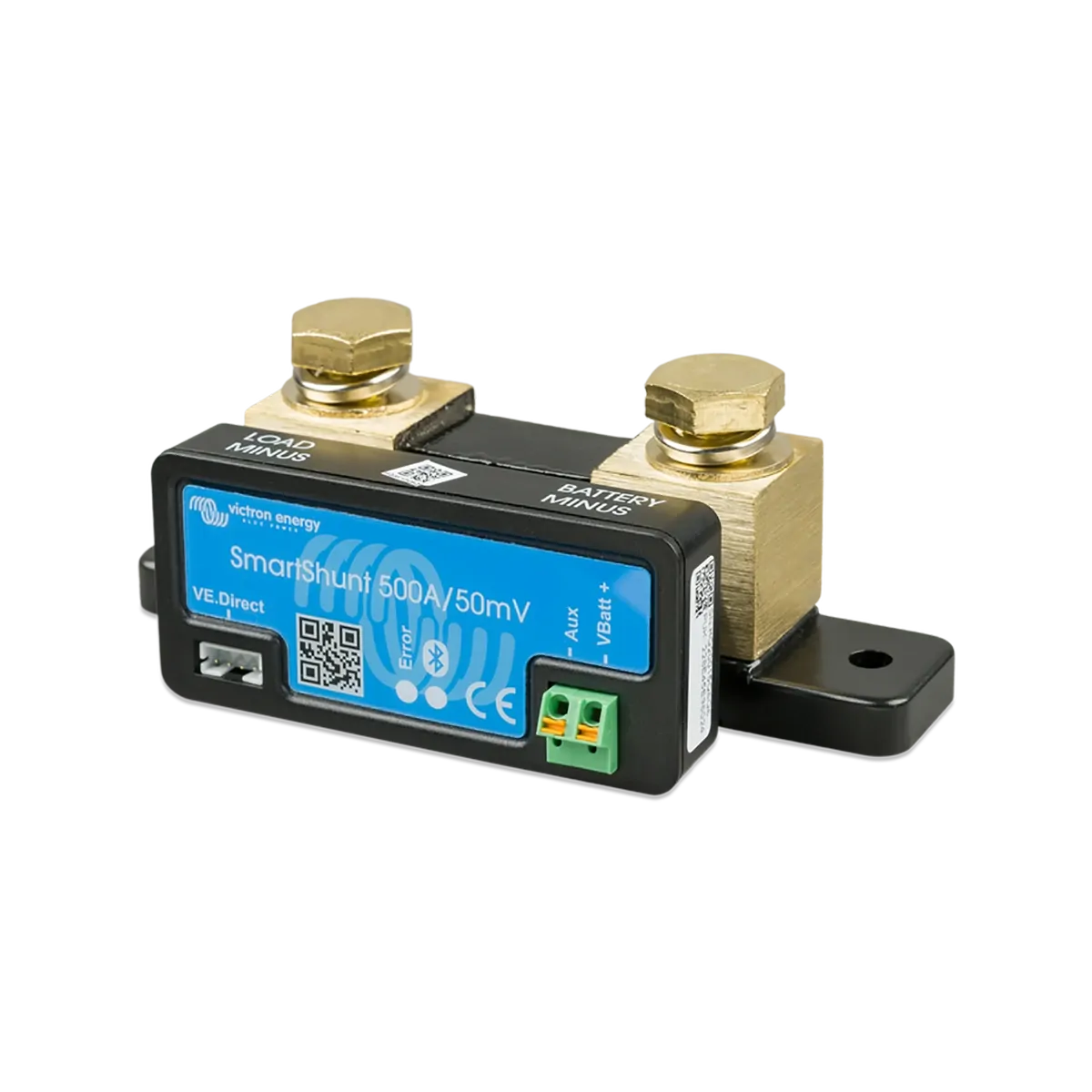

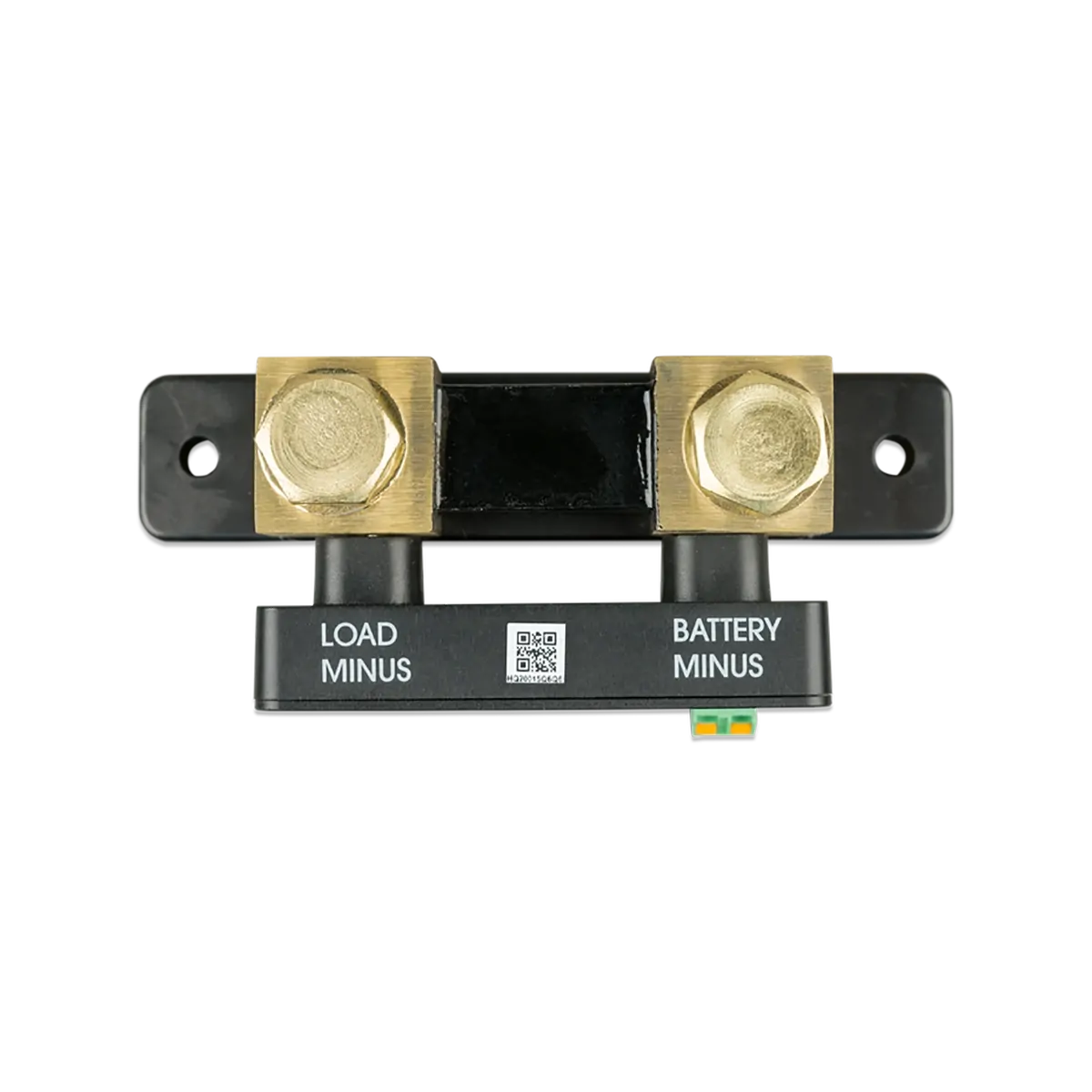

Victron SmartShunt:
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
The SmartShunt is available in 500A, 1000A and 2000A.
|
Specifications
|
SmartShunt 500A / 1000A / 2000A
|
|
Supply Voltage Range
|
6,5-70 VDC
|
|
Current Draw
|
<1mA
|
|
Input Voltage range, Auxiliary Battery
|
6,5 – 70 VDC
|
|
Battery Capacity (Ah)
|
1-9999 Ah
|
|
Operating Temperature Range
|
-40 +50°C (-40 - 120°F)
|
|
Measures voltage of second battery, or temperatures, or midpoint
|
Yes
|
|
Temperature Measurement range
|
-20 +50°C
|
|
VE.Direct communication port
|
Yes
|
|
Resolution & Accuracy
|
|
|
Current
|
±0,01A
|
|
Voltage
|
±0,01V
|
|
Amp hours
|
±0,1Ah
|
|
State of Charge (0-100%)
|
±0,1%
|
|
Time to go
|
±1 min
|
|
Temperature (0-50°C or 30 - 120°F)
|
±1°C/°F
|
|
Accuracy of current measurement
|
±0,4%
|
|
Accuracy of voltage measurement
|
±0,3%
|
|
Installation & Dimensions
|
|
|
Installation
|
Flush Mount
|
|
Front
|
63mm diameter
|
|
Front bezel
|
69 x 69mm (2.7 x 2.7 inch)
|
|
Body Diameter
|
52mm (2.0 inch)
|
|
Body Depth
|
31mm (1.2 inch)
|
|
Standards
|
|
|
Safety
|
EN 60335-1
|
|
Emission/Immunity
|
EN 55014-1/EN 55014-2
|
|
Automotive
|
ECR R10-4/EN 50498
|
|
Accessories
|
|
|
Shunt (Included)
|
500A/50mV
|
|
Cables (Included)
|
10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection
|
|
Temperature Sensor
|
Optional (ASS000100000)
|
- Smart shunt-based battery monitoring kit
- Handy stats through the VictronConnect app
- Suits 12V 24V and 48V setups
- Great value gear for touring rigs
- Built tough to handle wide temperatures
- Brand: Victron
- Model: SmartShunt 500A/50mV
- Supply voltage range: 6.5–70 VDC
- Current draw: <1 mA
- Auxiliary battery input voltage range: 6.5–70 VDC
- Measurable battery capacity: 1–9999 Ah
- Operating temperature range: -40 to +50 °C (-40 to 120 °F)
- Temperature measurement range: -20 to +50 °C
- Measures second battery voltage / temperature / midpoint: Yes
- VE.Direct communication port: Yes
- Current resolution: ±0.01 A
- Voltage resolution: ±0.01 V
- Amp-hour resolution: ±0.1 Ah
- State of charge resolution: ±0.1 %
- Time-to-go resolution: ±1 minute
- Temperature display accuracy: ±1 °C/°F
- Accuracy of current measurement: ±0.4 %
- Accuracy of voltage measurement: ±0.3 %
- Installation type: flush mount
- Front diameter: 63 mm
- Front bezel size: 69 x 69 mm (2.7 x 2.7 inch)
- Body diameter: 52 mm (2.0 inch)
- Body depth: 31 mm (1.2 inch)
- Safety standard: EN 60335-1
- Emission/Immunity standards: EN 55014-1 / EN 55014-2
- Automotive standard: ECR R10-4 / EN 50498
- Optional temperature sensor: ASS000100000
- 500A/50mV SmartShunt
- 10 metre 6 core UTP cable with RJ12 connectors
- Cable with fuse for positive battery connection
| SKU | SHU050150050 |
|---|---|
| Barcode # | 8719076044253 |
| Brand | Victron |
| Shipping Weight | 1.0000kg |

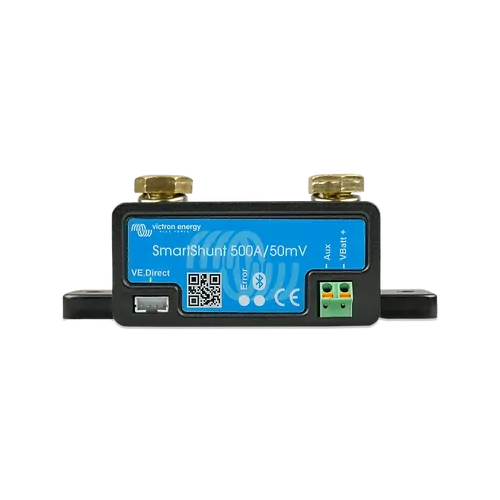

Smartshunt 500A
