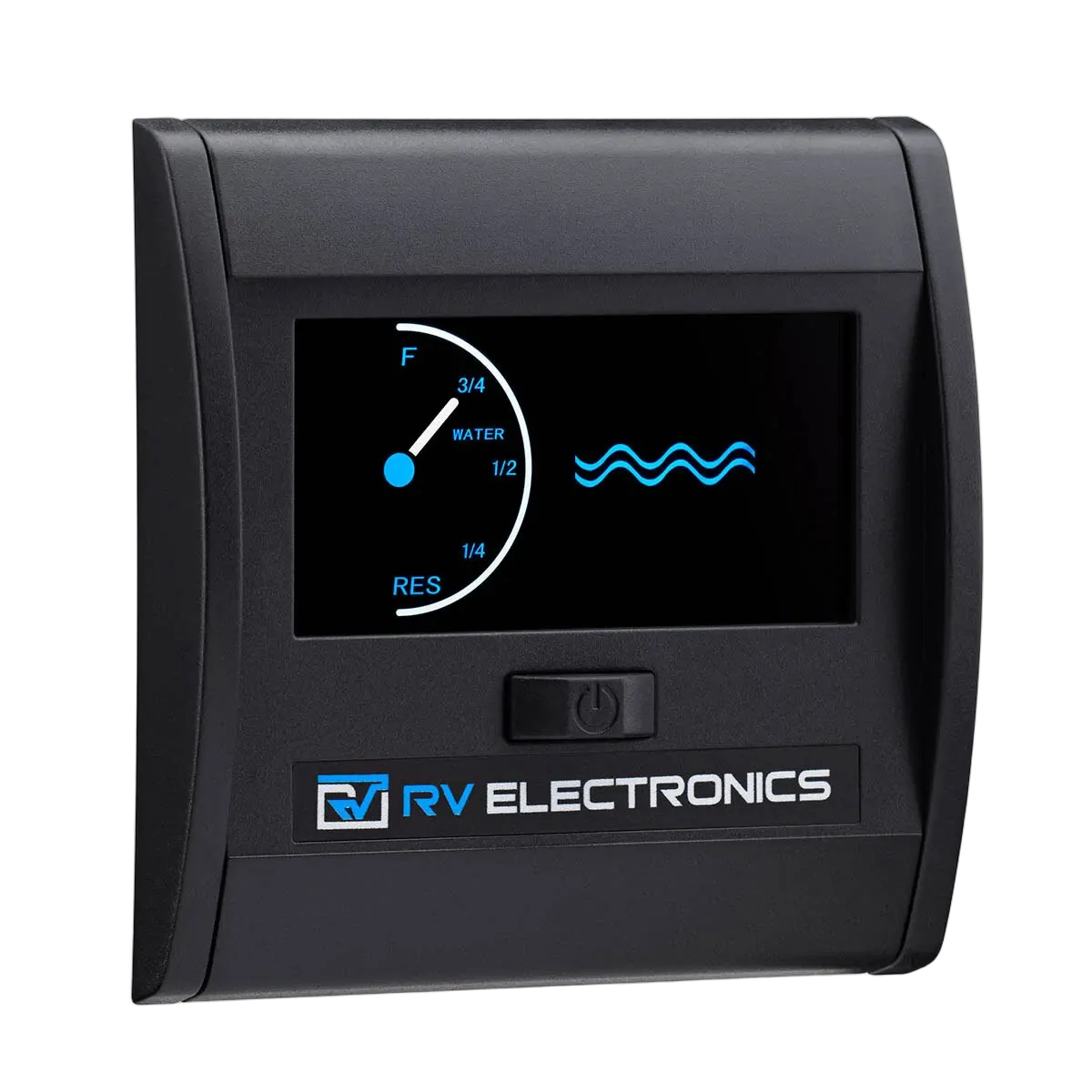

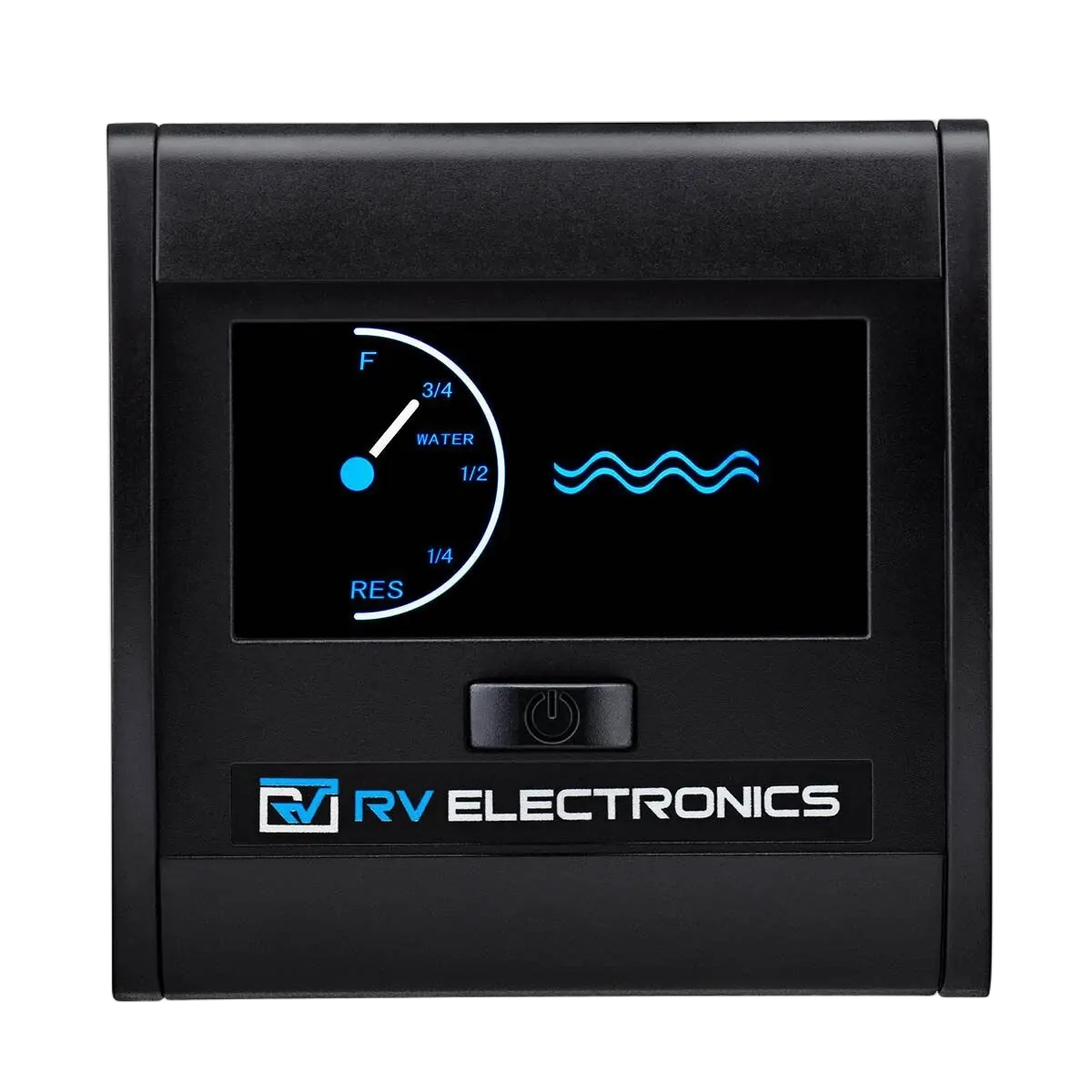

These new technology gauges have a coloured LCD analogue display with LED backlighting for crystal clear viewing.
Five levels are displayed.
A 12 volt supply is required. These gauges only draw 50 mA so they can be left on without flattening your on-board battery.
There is a power on/off switch to turn the gauge off when the caravan is not in use.
The gauges can be matched with 2.5 metre, 5 metre or 7.5 metre lead sender probes.
The LCD water gauge measures H108mm x W108mm x D20mm.
This easy to fit tank sender probe only requires one 22mm (7/8?) hole in the side of the tank and suits tanks from 100mm to 280mm (4? to 11?) deep. The sender probe is sealed by a special grommet which is compressed in the hole when the nut is tightened and measures the water level by contact with the 5 sensors along the arm. It has no moving parts.
- Compact 108 x 108 x 20 mm gauge
- Five-level readout for quick checks
- Low current draw for long camps
- Sender handles 100–280 mm tank depth
- Simple 22 mm side-wall tank mounting
- Fixed sensors, no moving mechanisms
- Display type: coloured LCD analogue gauge with LED backlighting
- Display levels: five water level stages shown
- Operating voltage: 12 V DC supply required
- Current draw: 50 mA during operation
- Gauge dimensions: height 108 mm x width 108 mm x depth 20 mm
- Compatible sender probe lead lengths: 2.5 m, 5 m or 7.5 m
- Tank depth compatibility for probe: 100 mm to 280 mm
- Tank mounting hole size for probe: 22 mm (7/8") in side of tank
- Probe sealing method: special grommet compressed by tightening nut
- Water level measurement method: contact with 5 fixed sensors along probe arm
- Material: plastic housing
- Colour: black
- Power control: front power on/off switch on gauge
- Moving parts: no moving parts in tank sender probe
| SKU | LCD0226_043453-A |
|---|---|
| Barcode # | 9345757000226 |
| Brand | RV Electronics |
| Shipping Weight | 1.5000kg |
Download instructions to help you install, use and get the most out of your product.
RV Electronics LCD Single Water Level Indicator
