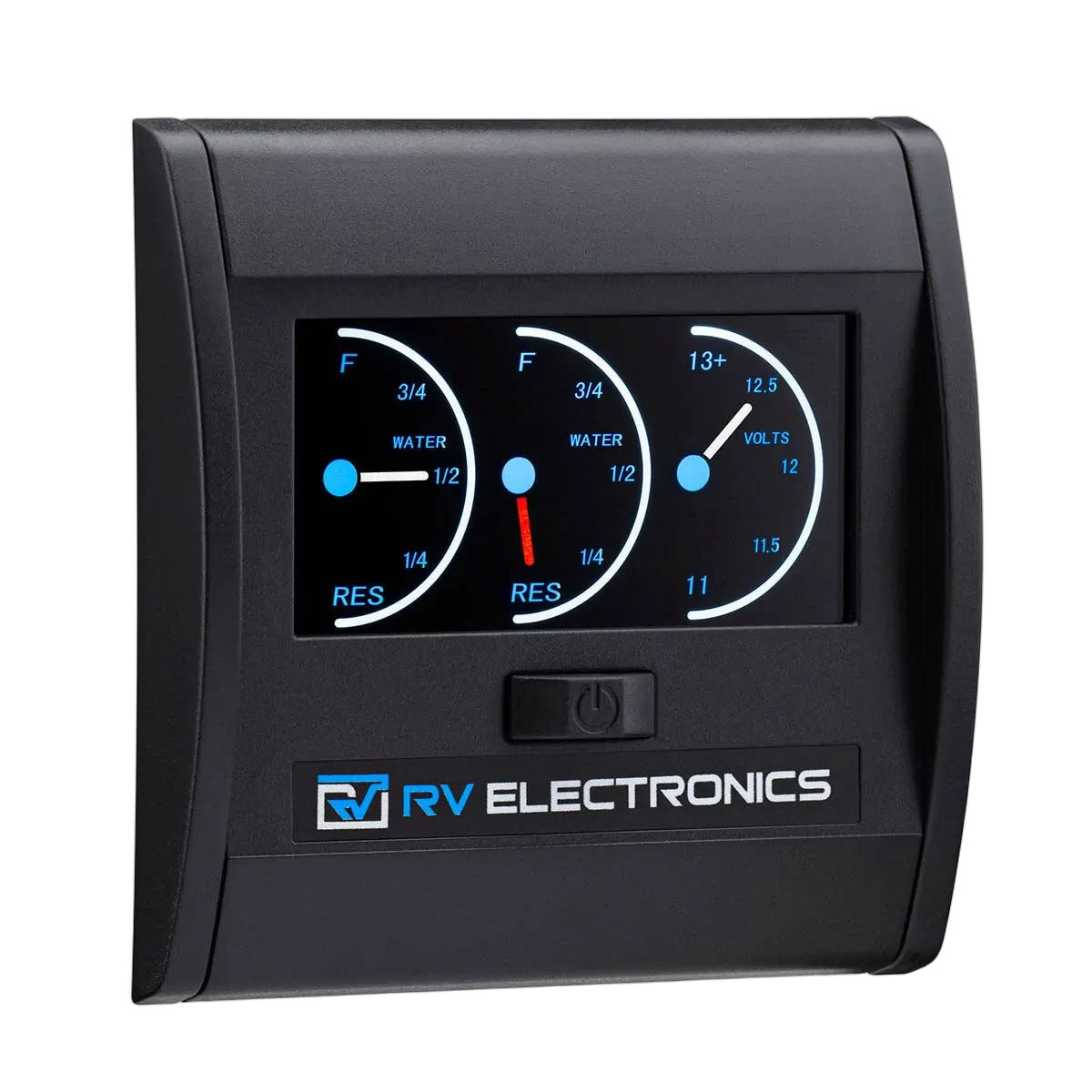

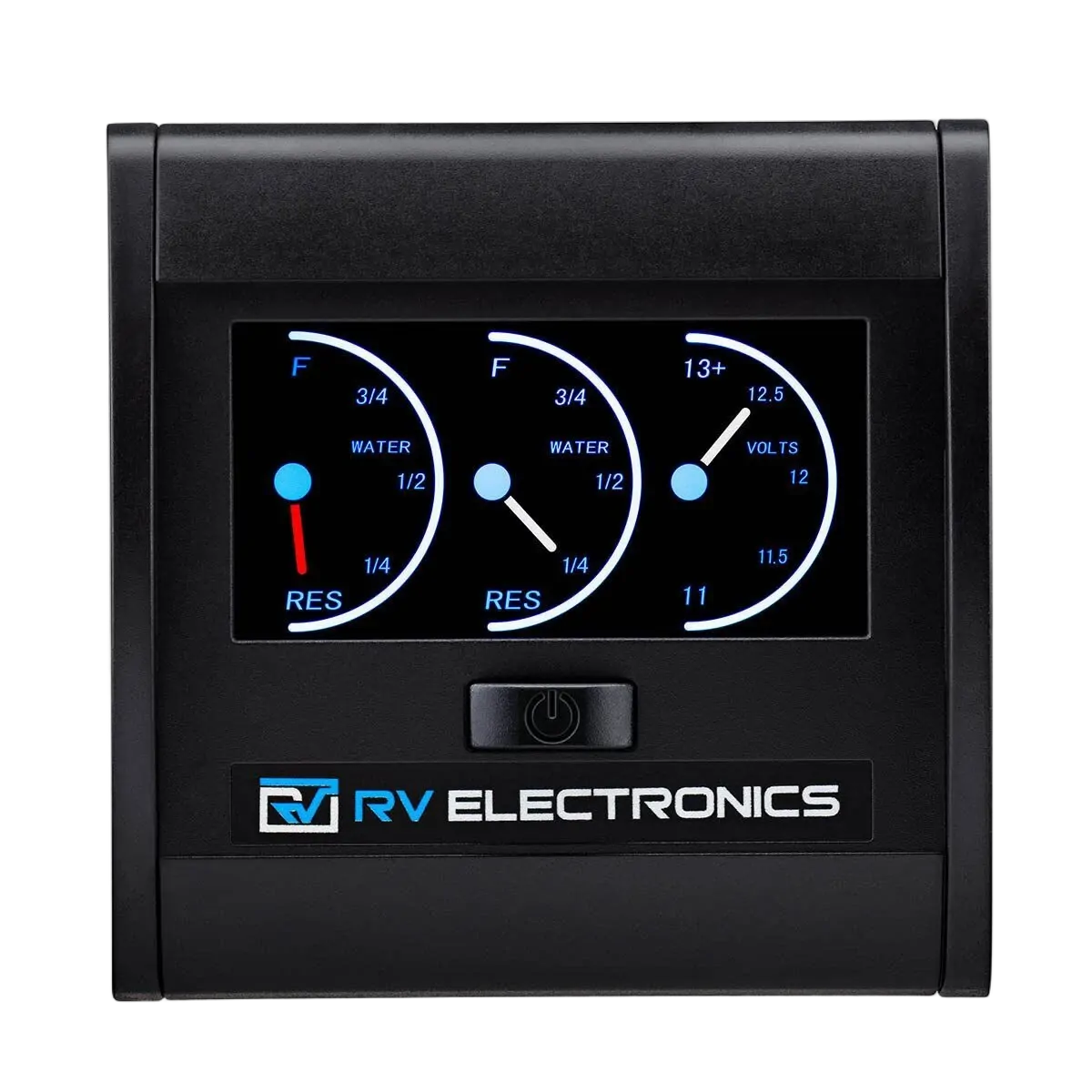

These new technology gauges have a coloured LCD analogue display with LED backlighting for crystal clear viewing.
Five levels are displayed.
A 12 volt supply is required. These gauges only draw 50 mA so they can be left on without flattening your on-board battery.
There is a power on/off switch to turn the gauge off when the caravan is not in use.
The gauges can be matched with 2.5 metre, 5 metre or 7.5 metre lead sender probes.
The LCD water gauge measures H108mm x W108mm x D20mm.
This easy to fit tank sender probe only requires one 22mm (7/8?) hole in the side of the tank and suits tanks from 100mm to 280mm (4? to 11?) deep. The sender probe is sealed by a special grommet which is compressed in the hole when the nut is tightened and measures the water level by contact with the 5 sensors along the arm. It has no moving parts.
- Dual tank and battery monitoring gear
- Low 50 mA draw for long stays
- Compact housing suits tight caravan panels
- Single 22 mm hole sender install
- Works with 100–280 mm deep tanks
- Fixed sensors mean no float hassles
- Display type: coloured LCD analogue display
- Backlighting: LED backlighting for improved visibility
- Levels displayed: five tank levels shown
- Power requirement: 12 volt DC supply
- Current draw: 50 mA
- Power control: integrated power on/off switch
- Compatible sender probe lead lengths: 2.5 m 5 m or 7.5 m
- Gauge dimensions: H108 mm x W108 mm x D20 mm
- Sender probe tank hole size: 22 mm (7/8 inch)
- Compatible tank depth range: 100 mm to 280 mm (4 inch to 11 inch)
- Sender probe construction: plastic with no moving parts
- Colour: black
| SKU | LCD0202_043456-A |
|---|---|
| Barcode # | 9345757000202 |
| Brand | RV Electronics |
| Shipping Weight | 0.5000kg |
Download instructions to help you install, use and get the most out of your product.

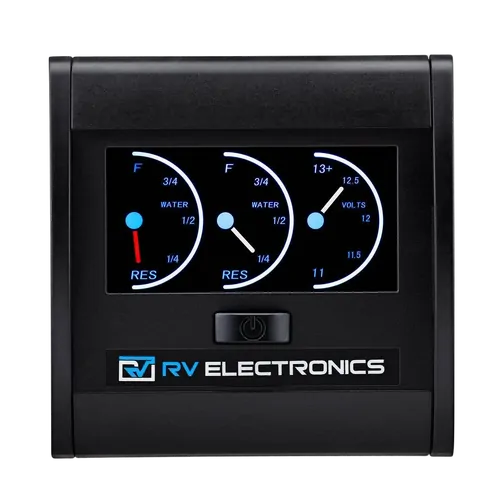

RV Electronics LCD Double Tank Water Level Indicator And Voltmeter Combination
