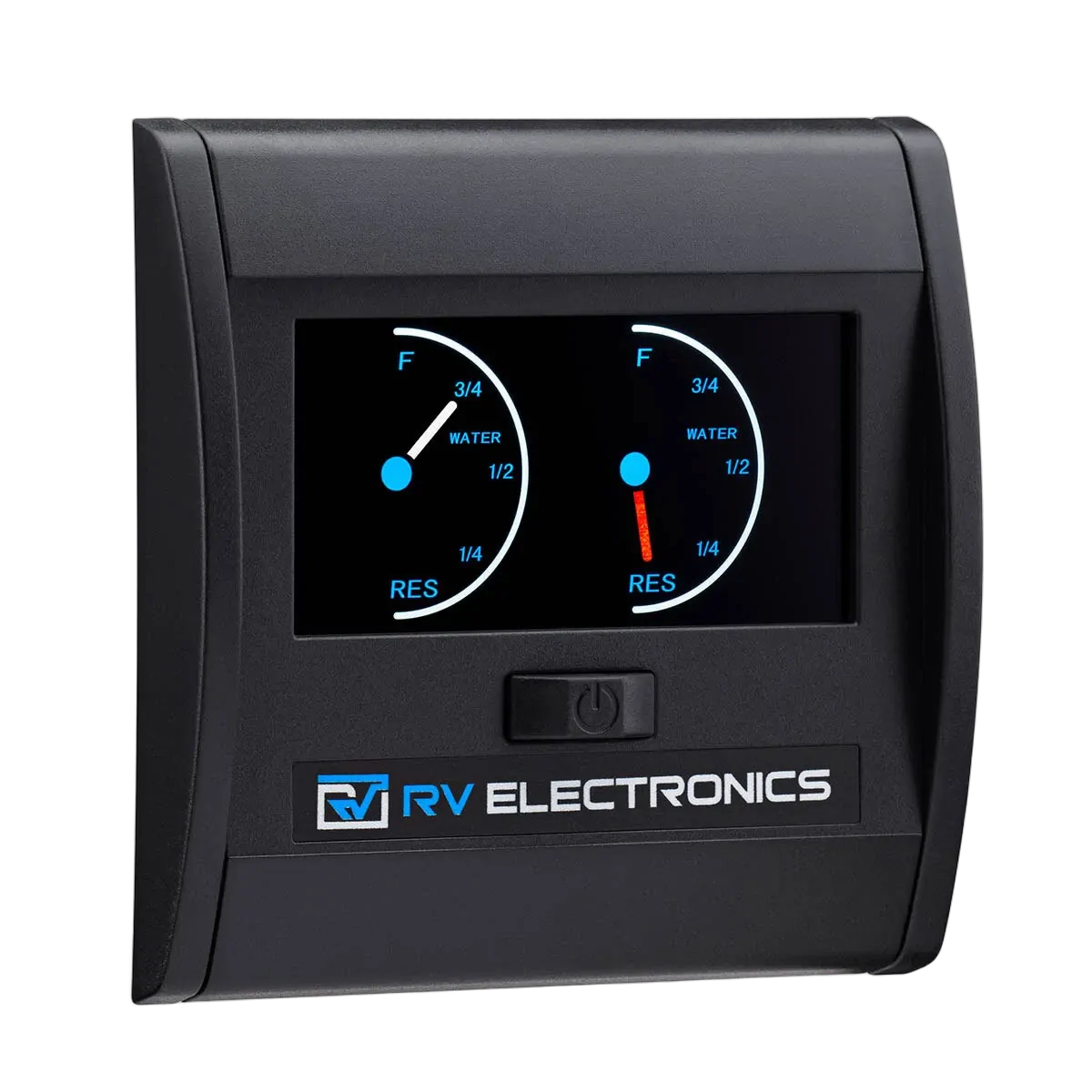

These new technology gauges have a coloured LCD analogue display with LED backlighting for crystal clear viewing.
Five levels are displayed.
A 12 volt supply is required. These gauges only draw 50 mA so they can be left on without flattening your on-board battery.
There is a power on/off switch to turn the gauge off when the caravan is not in use.
The gauges can be matched with 2.5 metre, 5 metre or 7.5 metre lead sender probes.
The LCD water gauge measures H108mm x W108mm x D20mm.
This easy to fit tank sender probe only requires one 22mm (7/8?) hole in the side of the tank and suits tanks from 100mm to 280mm (4? to 11?) deep. The sender probe is sealed by a special grommet which is compressed in the hole when the nut is tightened and measures the water level by contact with the 5 sensors along the arm. It has no moving parts.
- Monitors two RV water tanks accurately
- Five-level display helps plan refills
- LED backlighting aids night checks
- Low current draw suits off-grid camping
- Fixed-sensor probe handles constant slosh
- Supply voltage: 12 V DC
- Current draw: 50 mA
- Display type: coloured LCD analogue with LED backlighting
- Display levels: five water level steps
- Compatible sender lead lengths: 2.5 m, 5 m or 7.5 m
- Gauge dimensions: H108 mm x W108 mm x D20 mm
- Tank sender hole size: 22 mm (7/8")
- Compatible tank depth range: 100 mm to 280 mm (4" to 11")
- Material: plastic
- Colour: black
- Power control: integrated on/off switch
- Sender design: no moving parts with 5 sensors along arm
| SKU | LCD0196_043455-A |
|---|---|
| Barcode # | 9345757000196 |
| Brand | RV Electronics |
| Shipping Weight | 1.5000kg |
Download instructions to help you install, use and get the most out of your product.
RV Electronics LCD Double Tank Water Level Indicator
