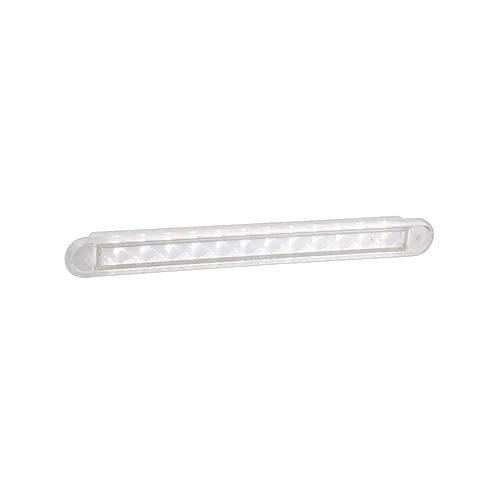

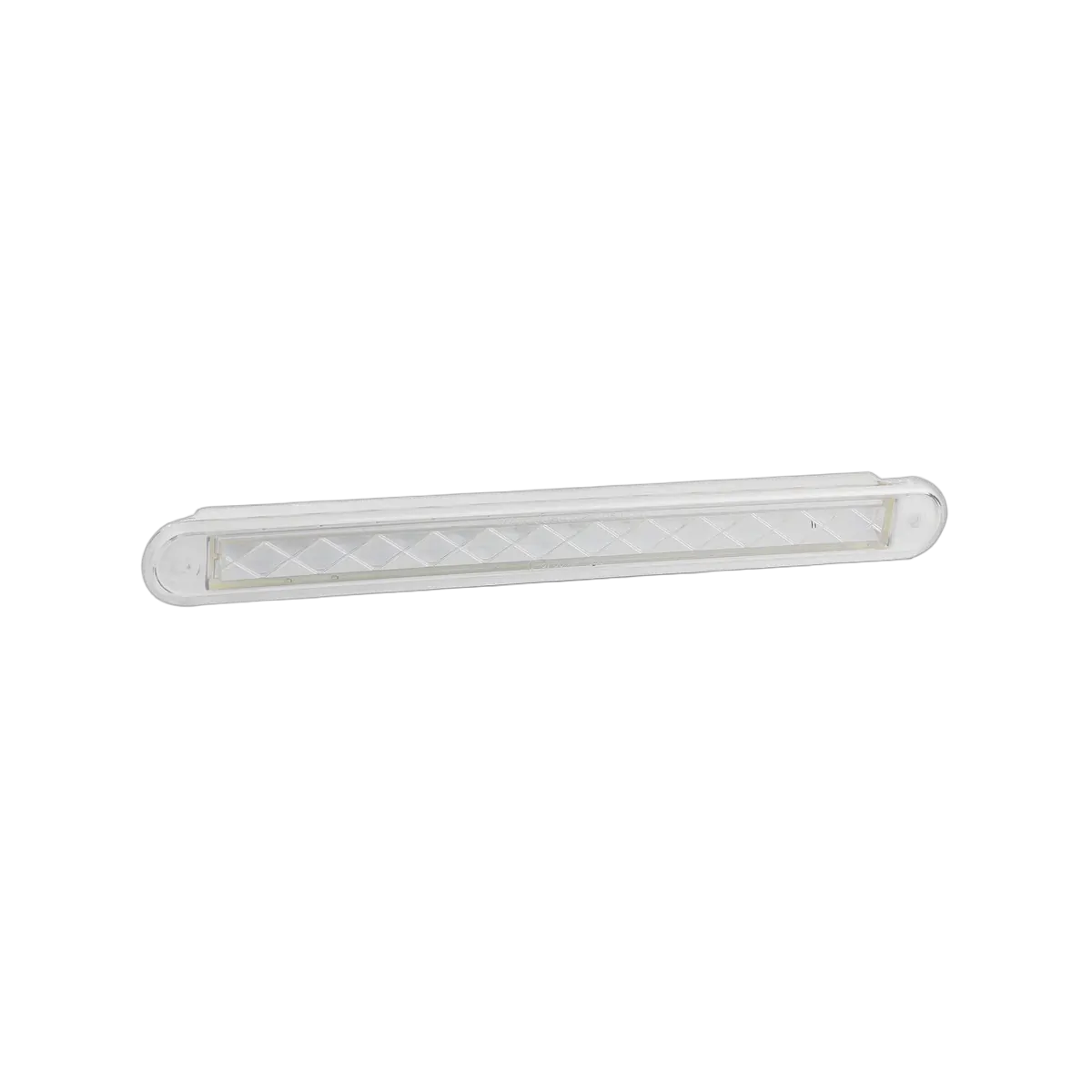

235 Series Recessed Mount
235 Series Recessed Mount
Features / Specifications
|

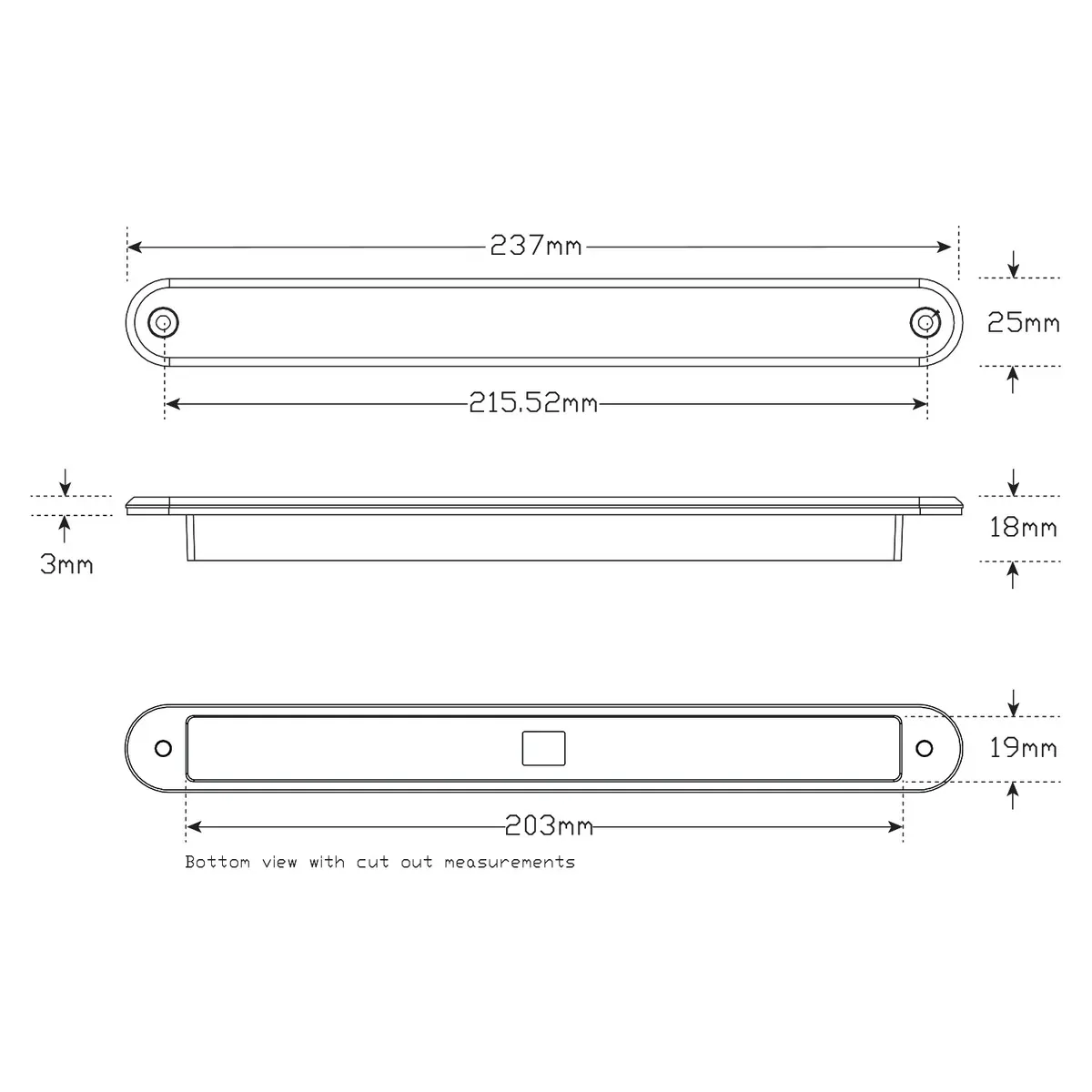

Fitting InstructionsRecessed - Mount onto flat surface horizontally. Push lamp and grommet into cutout (cut out 203mm x 19mm) in mounting surface, run wires through back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions. Technical Drawings
|
- Slim 237mm strip suits tight spots
- Recessed mount protects the lamp
- IP67 seal handles Aussie weather
- ADR/ECE approved for road use
- 12V circuit with 12 bright LEDs
- Five year warranty is a smart buy
- Brand: LED Autolamps
- Series: 235 Series recessed mount reverse strip lamp
- Function: Reverse lamp
- Voltage: 12 Volt
- LEDs: 12 square LEDs
- Overall dimensions: 237mm (L) x 25mm (H) x 3mm (face thickness)
- Recess depth behind mounting surface: 18mm
- Cut-out size: 203mm (L) x 19mm (H)
- Mount type: Recessed mount into flat surface
- Surface mount brackets: Available separately
- Protection rating: IP67 100% waterproof
- Approvals: ADR/ECE approved
- Warranty: 5 year warranty

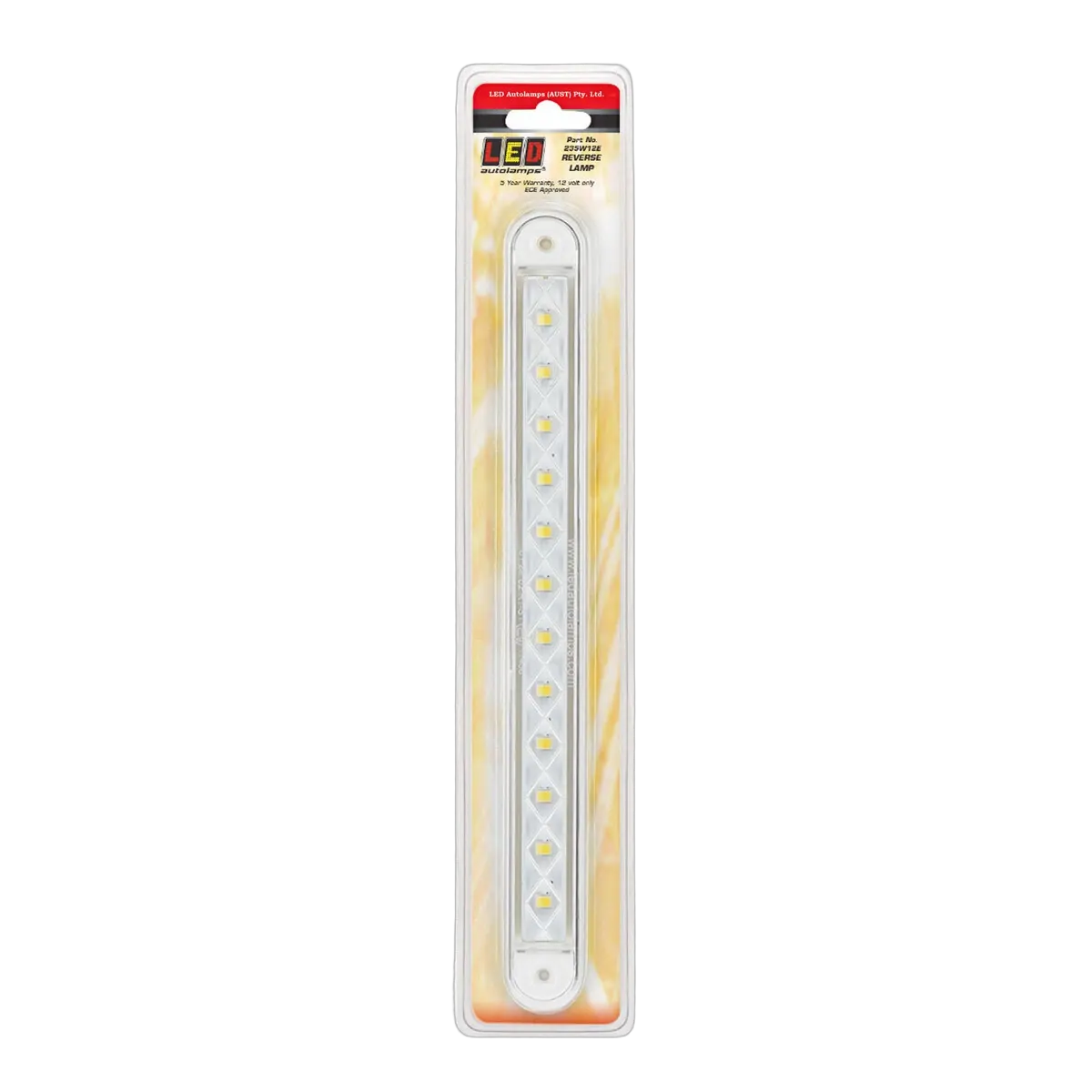

- 1 x LED Autolamps 235 Series recessed mount reverse strip lamp (12V, no bracket)
| SKU | 235W12E |
|---|---|
| Barcode # | 9335962019601 |
| Brand | LED Autolamps |
| Shipping Weight | 0.1080kg |
| Shipping Width | 0.057m |
| Shipping Height | 0.245m |
| Shipping Length | 0.030m |
