Description
Description

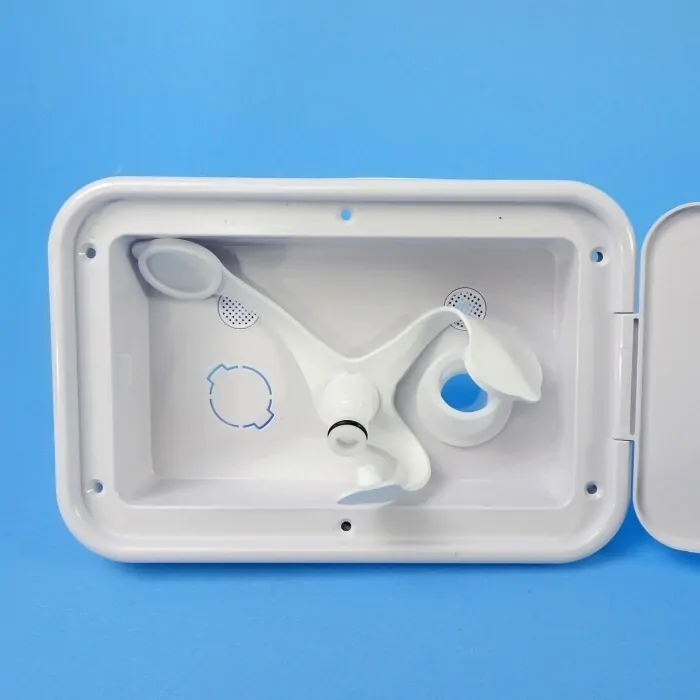

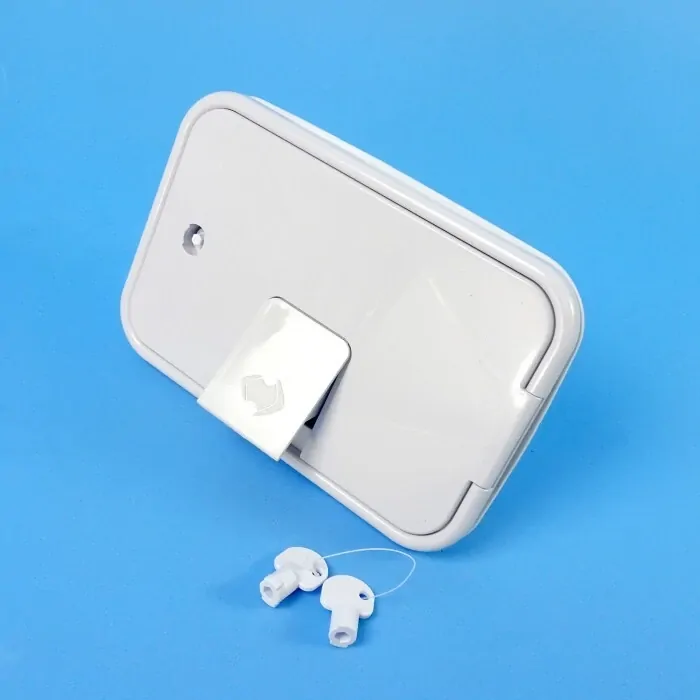

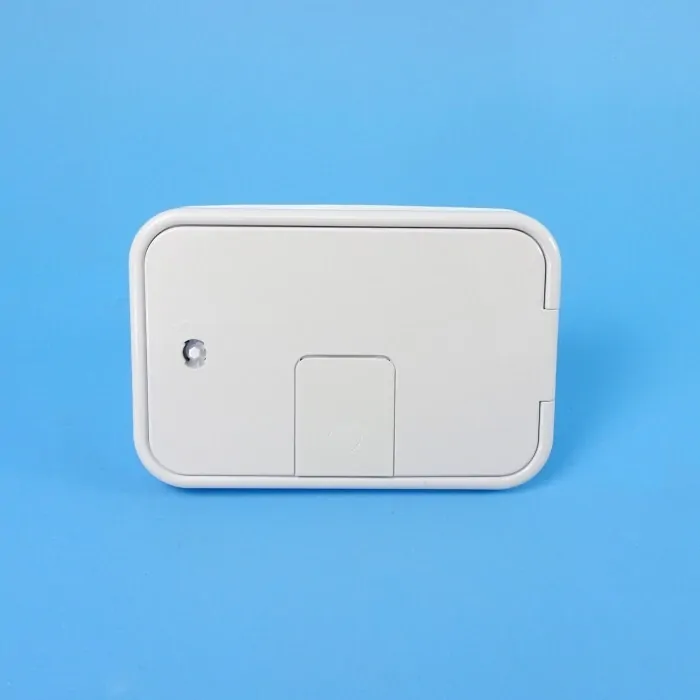

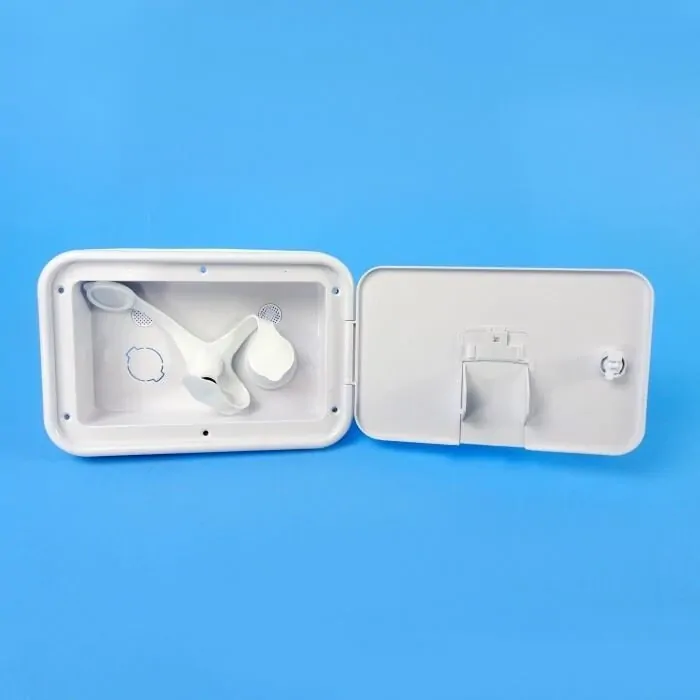

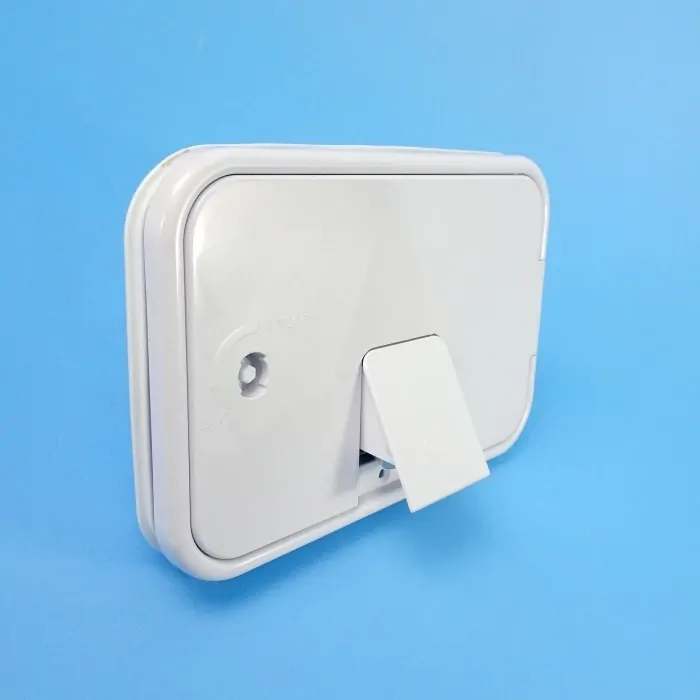

Lockable water filler. 230mm x 153mm, requires 83mm recess. Includes Clip-On fitting for connection to mains pressure system. One water tank filler is also included a space for second optional filler is built in. See 800-01092 if you need a second tank filler.
Features
- Spare doors available -Part 800-01091
- Door can be locked while hose is connected to van.
- Rubber gasket include for easy installation.
- Two Plastic keys (** Locked inside - see comments)
- 1 year warranty.
Features
- Built tough plastic inlet housing
- Lockable door guards your water
- Handles mains pressure and tank fill
- Twin breathers help tanks fill clean
- Ready for second tank with 800-01092
Specifications
- Overall face dimensions: 230mm x 153mm
- Required recess depth: 83mm
- Connection type: Clip-On fitting to mains pressure system
- Included tank fillers: 1 fitted plus provision for second filler
- Secondary tank port location: Pre-marked cut-out on back plate
- Water outlet barb size: 25mm
- Threaded mains pressure inlet: 1/2 inch BSP
- Breather connections: twin 12mm breathers
- Door locking: lockable door with two plastic keys
- Replacement door part number: 800-01091
- Compatible optional second tank filler: part 800-01092
- Supplied seal: rubber gasket
- Stated warranty period: 1 year
- 1 x Coast to Coast lockable water filler inlet assembly
- 1 x Clip-On fitting for mains pressure connection
- 1 x Integrated water tank filler
- 1 x Rubber gasket
- 2 x Plastic keys
| SKU | 800-01090 |
|---|---|
| Barcode # | OEBC525048 |
| Brand | Coast to Coast |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.250m |
| Shipping Length | 0.170m |
