Projecta's next generation in dual battery management, ideal for 4WD and camper trailer applications. Provides an advanced charge simultaneously from both solar and alternator inputs.
Market leading temperature compensation allows IDC25X to provide 25A charge both in hot and cold climates making it ideal for under bonnet installation.
WORKS HARDER IN TOUGHER CONDITIONS

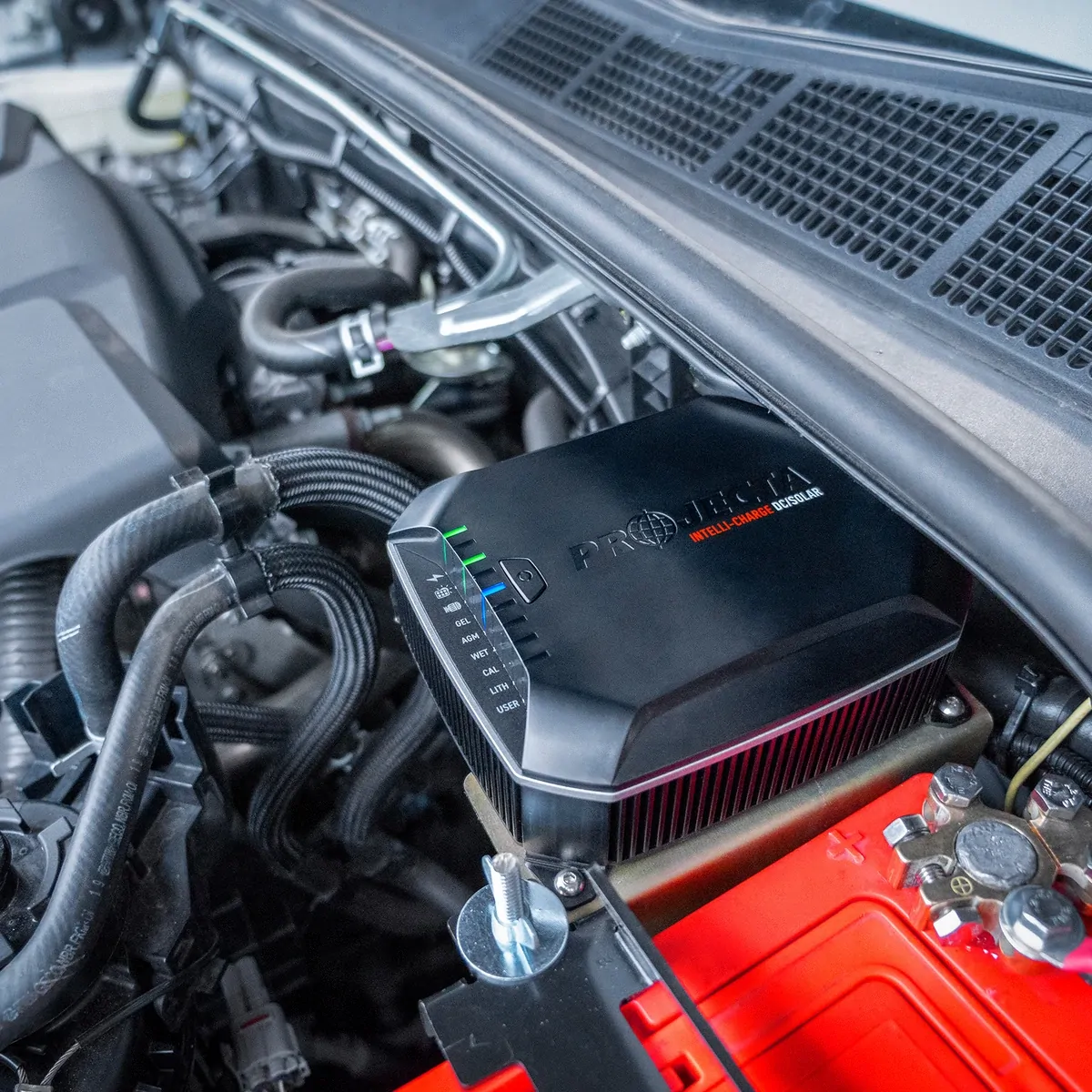

This super-efficient design is engineered to perform reliably in hot conditions, with a maximum charging capacity of 75°C. It operates up to 90°C, ideal for under-the-bonnet use. It offers the highest level of protection against dust, water, and pressure washing (IP68 & IP69K). Fully potted with thermal epoxy resin, it ensures durability and resistance..
WILL NOT LET YOU DOWN IN REMOTE LOCATIONS
Proudly designed and tested in Australia, this product offers high quality and reliability. It utilizes top-notch electronic components for an extended lifespan. Its ultra-efficient power conversion maximizes battery charging while reducing strain on the charger, ensuring longevity. Engineered to meet heavy vehicle standards, it is resistant to vibration and shock. Backed by a 5-year warranty, it provides peace of mind.
PROVIDES THE BEST POSSIBLE CARE FOR YOUR BATTERY
Utilizes 3 and 5 stage charging for fast and effective charging. It adjusts the charge with automatic temperature compensation, optimizes performance in different climates. Voltage drop compensation ensures accurate charge voltage. It supports simultaneous charging with solar and alternator inputs. The charger employs efficient MPPT solar charging for optimal performance, even in shaded areas. It also includes a convenient lithium wake-up mode for one-button charging activation, even if the battery's BMS is off.
MOST CONNECTED DC/DC CHARGER

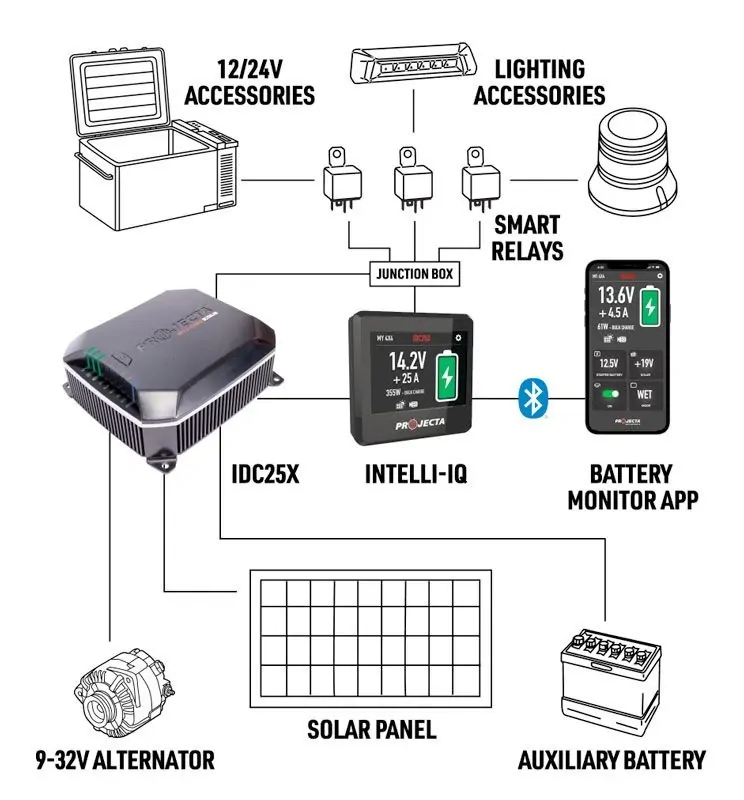

The Projecta Intelli-IQ (coming soon) is a compatible companion for this product. It enables users to conveniently set up, monitor, and control the device remotely. Accessible through a smartphone or the Intelli-IQ interface, it offers a user-friendly experience. The setup process is made simple with single wire connectivity. Additionally, the app provides the option for firmware upgrades, ensuring the device stays up-to-date with the latest features and improvements.
- 25A output for serious 12V gear
- Alternator and solar charging in one kit
- Rated from -10°C to +90°C engine bays
- IP68/IP69K housing takes dust and spray
- Suits 50–300Ah aux battery banks
- Backed by five year manufacturer warranty
- Output current: 25 A (11–32 V input), 20 A (9–11 V input)
- Alternator input voltage range: 9–32 V DC
- Maximum solar input voltage: 32 V DC
- Solar controller type: MPPT
- Maximum input current: 35 A
- Charging stages: 3 / 5 stages
- Battery compatibility: GEL, AGM, WET, CALCIUM, LiFePO4
- Operating temperature range: -10°C to +90°C
- Charger temperature derating: 25 A up to 75°C
- Ingress protection rating: IP68 and IP69K
- Vibration rating: Heavy Vehicle, vibration tested and mechanical shock tested
- Housing material: Aluminium
- Cover material: ABS + PC

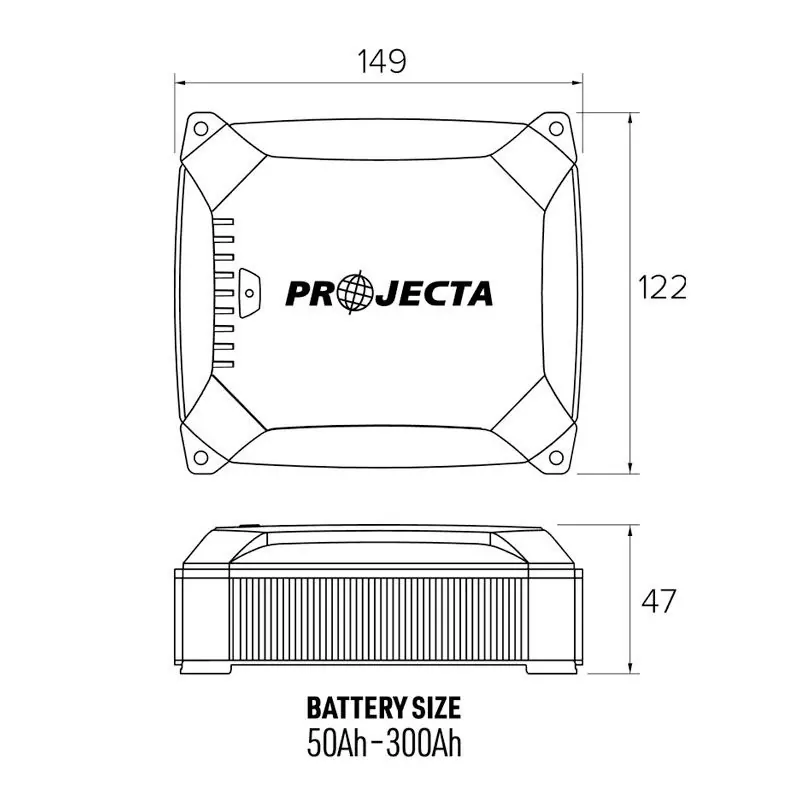

- Dimensions (L x W x H): 149 mm x 122 mm x 47 mm
- Weight: 1180 g
- Standby current: 8 mA
- Suits smart alternators: Yes
- Protection: Reverse connection, over and under voltage, over temperature
- Recommended input fuse: 50 A (FK25A recommended, not supplied)
- Recommended output fuse: 50 A (FK25A recommended, not supplied)
- Battery capacity range: 50 Ah to 300 Ah
- Vehicle voltage modes supported: 12 V DC and 24 V DC
- Certifications: ECE R10, CISPR11, RCM, CE, RoHS, REACH
- Country of origin: Taiwan
- Warranty period: 5 years
- 1 x Projecta IDC25X 25A dual battery DC-DC charger
- 4 x mounting screws
- 4 x mounting screw washers
- 4 x heat shrink for power cables
- 5 x quick connectors
- 4 x power screw lugs
- 4 x power screw washers
- 4 x power ring terminals
- 1 x 5 m temperature loom
| SKU | IDC25X |
|---|---|
| Barcode # | 9315219004796 |
| Brand | Projecta |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.004000000m3 |
Download instructions to help you install, use and get the most out of your product.

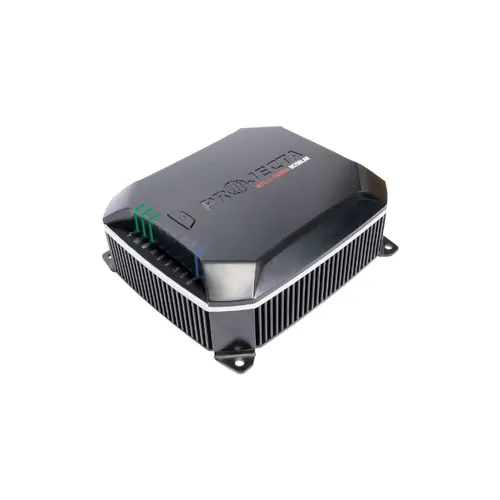

Intelli-Charge 25 Amp Dual Battery Charger | IDC25X
