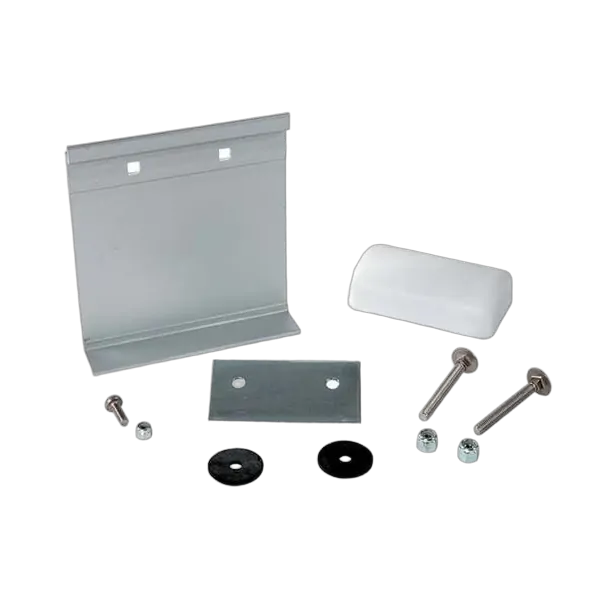

This Fiamma Awning Fix S Bracket kit adds an extra support point for your awning over a compact 12 cm section of flat RV wall, so you can tackle gusty park sites without overloading one mounting spot. The gear suits caravans and motorhomes that already run a Fiamma awning and have a flat outer wall wide enough for that 12 cm plate. You drill through the wall and tie it back with hardware to share the weight along the side.

The main bracket spans 12 cm in length with an S style profile that gives the awning rail a solid landing without taking up more than about 12 cm of space between existing mounts. The backing plate and hardware work together to clamp through typical RV wall thickness, giving the setup a firm hold once everything is tensioned. It is a smart buy if you want extra support on exposed sites without changing your whole awning system.

• Awning bracket kit for Fiamma setups
• Intended for RVs with a flat outer wall
• Acts as an optional extra mounting bracket
• Helps strengthen an existing awning mounting
• Bracket length is 12 cm
• S style bracket profile for awning support
• Installation requires drilling through RV wall
• Suitable for caravans and motorhomes with flat panels
• Compact hardware kit for localised reinforcement
• Genuine Fiamma spare part awning bracket

Q: Do I need this bracket if my Fiamma awning is already installed?

You only need it if you want extra support for the existing mounting. The bracket acts as an additional fixing point, not a replacement. It helps share the load across the wall when the awning is under strain. Many owners add it after noticing movement around the original mounts.

Q: Can I fit the Fiamma Awning Fix S Bracket on a curved van wall?

No, it is intended for flat outer walls only. The main plate is straight across its 12 cm length, so it needs a flat surface to sit flush. A curved or profiled wall can leave gaps that are hard to seal. That can lead to water ingress or uneven loading on the wall.

Q: Is sealant required when drilling the wall for this bracket?

Yes, you should use a suitable sealant around every drilled hole. Drilling through the outer skin opens a direct path for water. A continuous bead of sealant under the bracket and around the bolts helps keep moisture out. This matters over long periods in wet or coastal conditions.

Q: Can this kit be used as the only mounting for an awning?

No, it is described as an optional extra bracket for strengthening a current mounting. The existing Fiamma mounting hardware still carries the main design role. This kit is there to help share load, not to act as the sole support. Relying on it alone could overstress the wall or hardware.

Suitable for recreational vehicles with a flat outer wall where a Fiamma awning is mounted and additional strengthening of the existing mounting point is required. Drilling of the vehicle wall is required during installation. Intended as an extra mounting bracket to work with an existing Fiamma awning installation on caravans or motorhomes with compatible flat wall sections.
