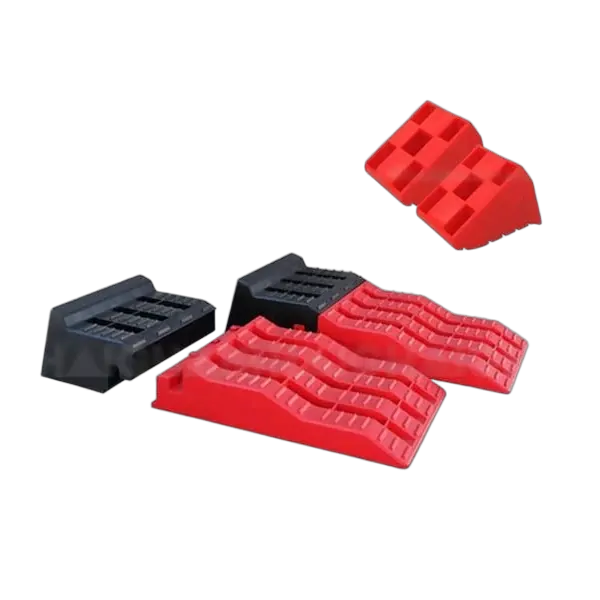

Level your van quickly on uneven ground with the Explore Dual Axle Caravan Levelling Ramps and Wheel Chocks. This kit includes two 3-step ramps and two lock-in chocks, giving you a stable and reliable base in minutes. The split design means the rear section can be removed so the front fits between tandem wheels. Each ramp lifts up to 100 mm, is UV-resistant, rust-proof, and made in Australia. Rated to 5 tonnes per axle, they are built tough for caravans, RVs, and motorhomes.

Key Features

• Two-piece design: the rear section detaches so the front fits between dual wheels.
• Three step levels: approx. 4 cm, 7 cm, and 8.5 cm lift.
• Dimensions: 42 cm (red front section) + 15 cm (black rear section) = 57 cm total length.
• Width: ~25 cm (standard for CVL2 ramps).
• UV-resistant polyethylene, rust-proof and built for outdoor use.
• Lightweight at ~1.8–1.9 kg per ramp.
• Designed for single and tandem axle caravans, RVs, and trailers.
• Not suitable for vans with tandem 13″ wheels and tyre tread spacing under 50 cm (as per fitment note in your image).

Specifications

• Model / SKU: CVL2_CWC1_CVLB
• Capacity: 5,000 kg per axle
• Step heights: ~40 mm / ~70 mm / ~85 mm
• Overall length: ~570 mm
• Width: ~250 mm
• Weight per ramp: ~1.8–1.9 kg
• Material: UV-resistant polyethylene
• Colour: Red front + Black rear

What’s in the Box

• 2 x CVL2 two-piece 3-step ramps (4 pieces total: red + black sections)

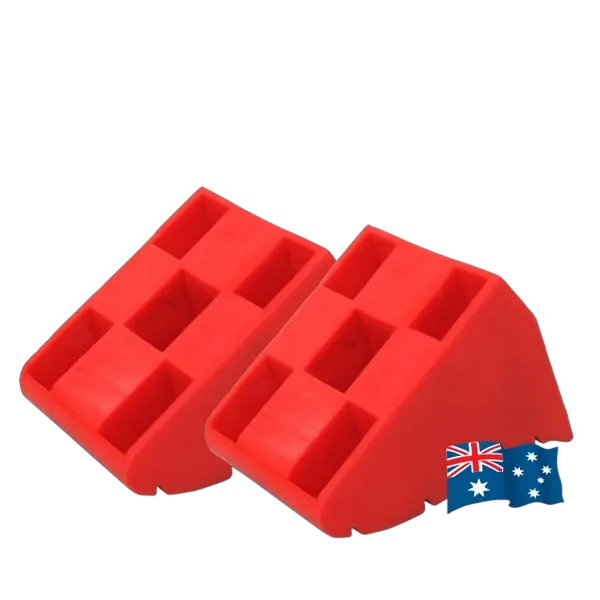

• 2 x lock-in wheel chocks (CWC1)
• 1 x carry/storage bag

Fit Notes (with CVL2_CWC1_CVLB)

• Works with single axle and dual axle caravans, RVs, and trailers.
• Designed to suit tyre widths up to ~250 mm.
• Not suitable for vans with tandem 13″ wheels and tread spacing under ~50 cm (as shown on your image).
• Can be used on firm or gravel surfaces. On soft ground, a base plate may help.
• The inclusion of lock-in wheel chocks provides added stability once the van is level.
• Carry bag makes storage and transport easier.

How to Use (with CVL2_CWC1_CVLB)

1. Place the front section of the ramp in front of the tyre. For dual axles, remove the rear section so the front fits between wheels.
2. Slowly drive forward until the tyre reaches the desired step height (40 mm, 70 mm, or 85 mm).
3. Once level, insert the supplied lock-in wheel chock behind the tyre. This helps prevent roll-back.
4. Repeat on the other side if needed to achieve side-to-side levelling.
5. Store unused ramps, chocks, and the bag in a dry place.

Always use ramps on stable ground and follow your caravan or RV manufacturer’s safety guidelines.
