CURT Rebellion XD ShockDrop Ball Mount 50mm Square Hitch (Class 4) is a leap forward in Towing technology. It provides more control, confidence, and a more comfortable ride, all while protecting your towing system from jerking, jarring, rattling, and trailer sway.
CURT Rebellion XD Ball Mount is constructed with ShockDrop technology. Built into the ball mount is a cushioned isolator that inserts between the receiver shank and vertical shank. The isolator provides dynamic, adaptive suspension of the coupling point giving you a comfortable towing experience and provides increased control in events of sudden braking.
Unlike other cushioned ball mounts, the CURT Rebellion XD ShockDrop Ball Mount has no airbags or bearings, making the unit virtually maintenance-free. When you're ready to tow, simply mount it onto your receiver hitch like you would any other ball hitch.
The six height adjustment positions ensure level towing of the trailer, and it is perfect for all kinds of pickup trucks and SUVs, including larger and lifted trucks.
-
Adjustable, six-position head for precise levelling with different trailers
-
152mm maximum drop (shank cannot be flipped)
Must be used in conjunction with either: 45940-85, 45970-85, 45950
- ShockDrop tech tames corrugations
- Six-position setup suits changing loads
- Handles up to 4500kg towing weight
- Cast steel construction for long service
- Zero-airbag design cuts maintenance
- Smart buy for serious touring rigs
- Hitch type: ball mount base for 50mm square hitch (Class 4)
- Maximum drop: 152mm (shank cannot be flipped)
- Adjustment: six vertical height positions
- Technology: ShockDrop cushioned isolator between receiver and vertical shank
- Material: cast steel construction
- Finish: dark grey Teridium coating
- Towing capacity: 4500kg
- Maximum tongue weight: 450kg
- Product type: CURT accessories
- Warranty: Curt limited lifetime warranty

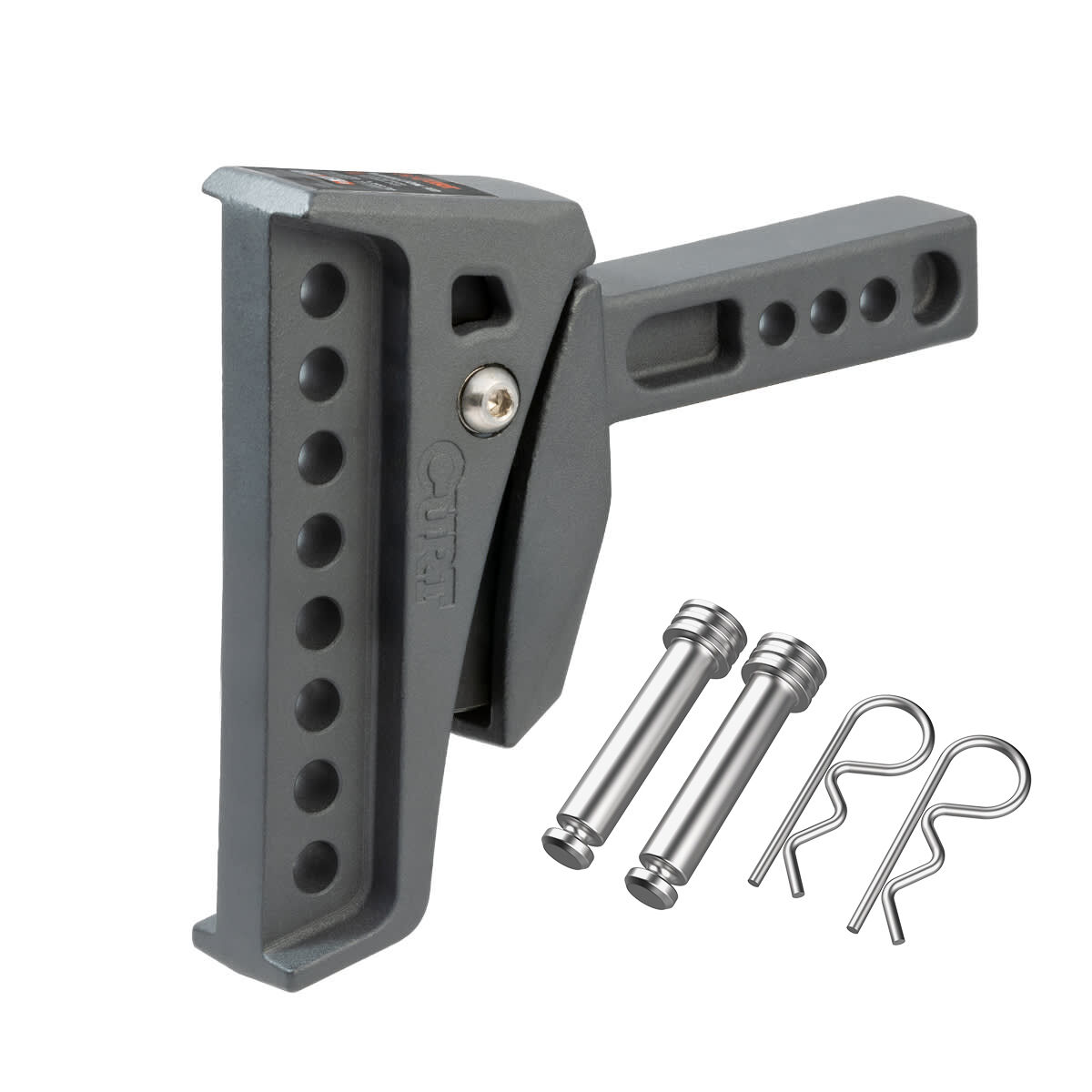

- 1 x CURT Rebellion XD ShockDrop ball mount base
- 2 x mounting pins
- 2 x R-clip pin retainers
| SKU | 45969-85 |
|---|---|
| Barcode # | 612314049653 |
| Brand | Curt |
| Shipping Weight | 18.0000kg |
| Assembled Length | 0.180m |
| Assembled Height | 0.130m |
| Assembled Width | 0.220m |
Download instructions to help you install, use and get the most out of your product.
