Key Features

• Lithium compatible
• Battery voltage & charge status
• Battery charging & discharging currents
• Auxiliary and solar charging currents
• Level indication of up to 4 water tanks
• Battery on/off status

Monitor Your RV Battery With a Wall-Mounted 12V Battery Monitor

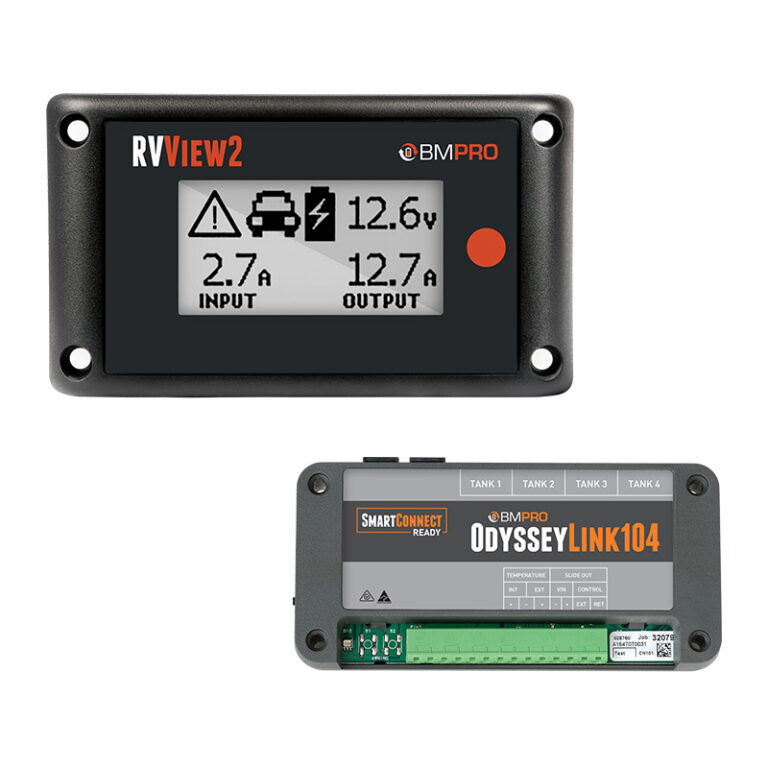

The RVView2 is a wall-mounted battery monitor designed specifically to operate with BMPRO’s BatteryPlus35-II. The RVView2 connects to the BatteryPlus35-II via the data cable. The monitor gives you vital up-to-the-minute data about your caravan’s current status using a clear back-lit display. The display shows volts and amps, battery charge and discharge status, as well as the source input for the vehicle’s 12V system.

Input Amps shows the total current going through the BatteryPlus35-II while Output Amps shows the current provided to appliances. Input source indicator displays mains, solar, auxiliary, or two simultaneously present power sources, if available.

System voltage displays the voltage across the battery terminals, while the battery symbol indicates whether the battery is charging, discharging, fully loaded or not fully loaded. As a power saving feature, the display will turn off automatically 30 sec after its activation.

In addition to battery monitoring, the RVView2 enables monitoring of water levels of up to four water tanks from a sleek, wall mounted display.

The RVView2 can be connected to the OdysseyLink to become a part of the Odyssey system. The OdysseyLink enables SmartConnect Bluetooth sensors and the use of a free Odyssey App to remotely monitor the battery and control caravan’s water pumps from the mobile phone.

The RVView2 is designed and manufactured in Australia.

OTHER FEATURES:

• Separate water tank screen
• Function to disconnect the battery from the load
• Includes OdysseyLink to enable SmartConnect and the Odyssey app
