Automatic & Manual 6/12/24v 12a 2 Stage Battery Charger
Automatic & Manual 6/12/24v 12a 2 Stage Battery Charger
Projecta
Automatic & Manual 6/12/24v 12a 2 Stage Battery Charger
Automatic & Manual 6/12/24v 12a 2 Stage Battery Charger

With plenty of power, engine start function and the ability to charge 6, 12 or 24V batteries, it is perfectly suited to mechanical workshops and auto electricians.

SPECIFICATIONS

PRODUCT DETAILS   L.E.D CHARGE INDICATION
PART NO. HDBC20   RED LIGHT FLASHING Overload
TYPE Automatic and Manual   SECOND RED
LIGHT ON		 Power on
INPUT 240V, 50Hz, 324W   SECOND RED LIGHT ON FLASHING Reverse connection
OUTPUT

 		 12.0A at 6.0V
12.0A at 12.0V
7.7A at 26.0V
  AMBER LIGHT ON Charging
  GREEN LIGHT ON Fully charged
ENGINE START



 		 3 cycles 5 min on, 20 min off   L.E.D SCREEN Voltage/Current
6V
50A at
3.6V		 12V
50A at
7.2V		 24V
25A at 14.4V		   BATTERY CHARGE TIMES
    Voltage Battery size Charge time
CHARGE CONTROL
Cut out:
Cut in:
Start:		 6V
7.1V
6.7V
0.0V		 12V
14.2V
13.4V
0.0V		 24V
28.4V
26.8V
0.0V		   AUTOMOTIVE 6, 12, 24V 450-1200CCA 6-15 hrs
  MARINE



 		 6, 12, 24V


 		 600-1400MCA


 		 8-18 hrs




APPROVALS Electrical Safety, EMC
  • 12A output covers most workshop batteries
  • Engine start mode helps crank stubborn motors
  • One charger for 6V 12V 24V setups
  • LED alerts flag overload or reverse hook-up
  • Digital readout keeps charge levels clear
  • Solid gear choice for Aussie sheds
  • Brand: Projecta
  • Model: Workshop 1200
  • Part number: HDBC20
  • Charger type: Automatic and manual 2 stage
  • Input: 240V AC, 50Hz, 324W
  • Output at 6V: 12.0A
  • Output at 12V: 12.0A
  • Output at 24V: 7.7A (at 26.0V)
  • Engine start function: 3 cycles, 5 minutes on, 20 minutes off
  • Engine start current 6V: 50A at 3.6V
  • Engine start current 12V: 50A at 7.2V
  • Engine start current 24V: 25A at 14.4V
  • Charge control 6V cut-out: 7.1V
  • Charge control 6V cut-in: 6.7V
  • Charge control 6V start: 0.0V
  • Charge control 12V cut-out: 14.2V
  • Charge control 12V cut-in: 13.4V
  • Charge control 12V start: 0.0V
  • Charge control 24V cut-out: 28.4V
  • Charge control 24V cut-in: 26.8V
  • Charge control 24V start: 0.0V
  • Automotive battery voltage compatibility: 6V, 12V, 24V
  • Automotive battery size range: 450–1200 CCA
  • Automotive approximate charge time: 6–15 hours
  • Marine battery voltage compatibility: 6V, 12V, 24V
  • Marine battery size range: 600–1400 MCA
  • Marine approximate charge time: 8–18 hours
  • LED indication: overload, power on, reverse connection, charging, fully charged
  • LED screen display: voltage and current
  • Approvals: Electrical Safety and EMC

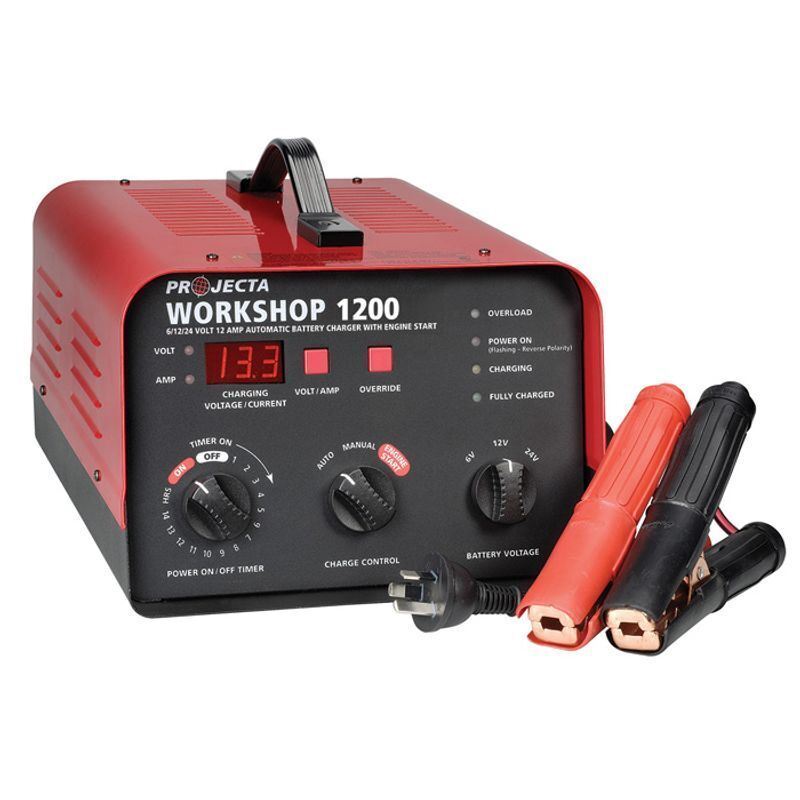

  • Projecta Workshop 1200 HDBC20 automatic and manual battery charger unit
  • Integrated mains power cable with 240V plug
  • Fixed output leads with heavy-duty red and black battery clamps

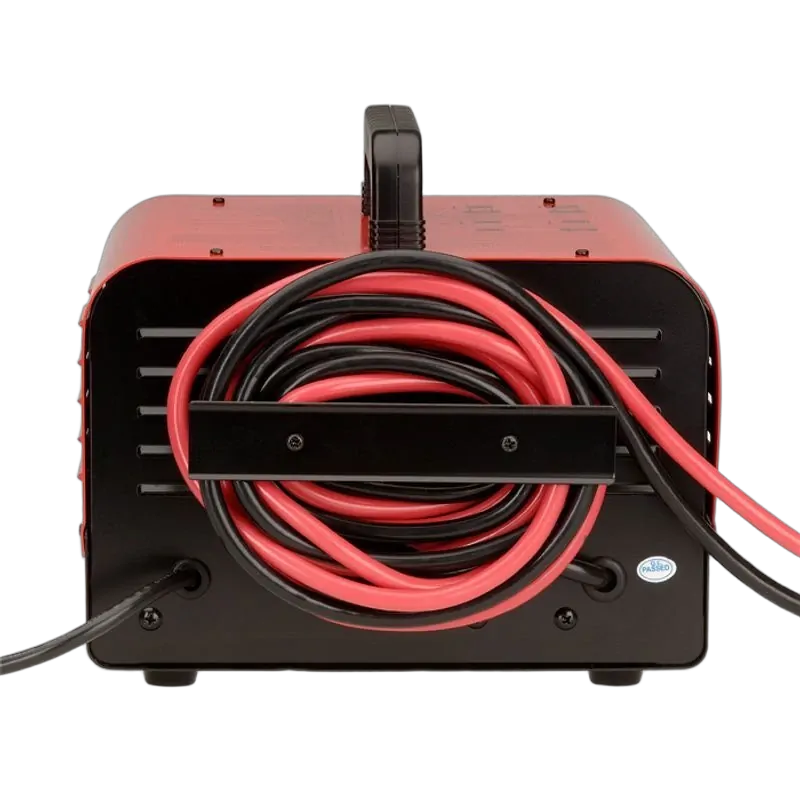

  • Built-in carry handle on charger housing
SKU HDBC20
Barcode # HDBC20
Brand Projecta
Shipping Weight 9.9400kg
