Description

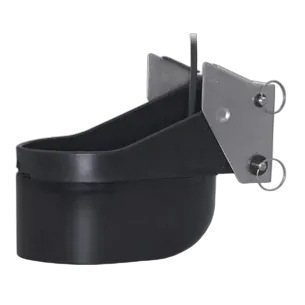

TM260 - Plastic 1kW Transom-Mounted 50/200kHz Depth and Temperature transducer. 9-pin connector and 10m cable.
Features
- Depth and fast-response water-temperature sensor
- 1 kW
- Dual-frequency element:
- 50 kHz with a 19° beamwidth for depth performance to 800 m (2,600')
- 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000')
- Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual transmission-line fishfinders
- Urethane transom transducer for installation on outboard and I/O powered boats
- Stainless steel kick-up bracket locks in the “up” position and will not damage the transom
Specifications
- Weight: 4 kg (8.9 lb.)
- Recommended Boat Length: 10 m (32') and up
- Hull Deadrise: Up to 28°
- Transom Angle: 3° to 21°
- Acoustic Window: Urethane
- Speed Performance: Up to 35 MPH
Features
- 1 kW power for deep soundings
- 50/200 kHz for flexible sounding
- 19° and 6° beams for coverage
- Handles hull deadrise up to 28°
- Stainless kick-up bracket for trailers
- Good value gear for offshore runs
Specifications
- Transducer type: Transom-mounted depth and temperature
- Frequency: 50/200 kHz dual-frequency
- Power rating: 1 kW
- Beamwidth: 19° at 50 kHz
- Beamwidth: 6° at 200 kHz
- Maximum depth performance: 800 m at 50 kHz
- Maximum depth performance: 294 m at 200 kHz
- Recommended boat length: 10 m and up
- Hull deadrise compatibility: Up to 28°
- Transom angle compatibility: 3° to 21°
- Acoustic window material: Urethane
- Mounting bracket material: Stainless steel
- Speed performance: Up to 35 MPH
- Weight: 4 kg
- Elements: 8
- Temperature sensor: Yes
- Speed sensor: No
- Mounting style: Transom mount
- Cable length: 10 m
- Connector type: 9-pin
- Housing material: Plastic / urethane transom body
TM260 1 kW transom-mounted 50/200 kHz depth and temperature transducer
Stainless steel kick-up transom bracket assembly
9-pin connector with attached 10 m cable
| SKU | 000-13904-001 |
|---|---|
| Barcode # | 9420024162590 |
| Brand | Airmar |
| Shipping Weight | 5.5000kg |
| Shipping Width | 0.397m |
| Shipping Height | 0.366m |
| Shipping Length | 0.264m |

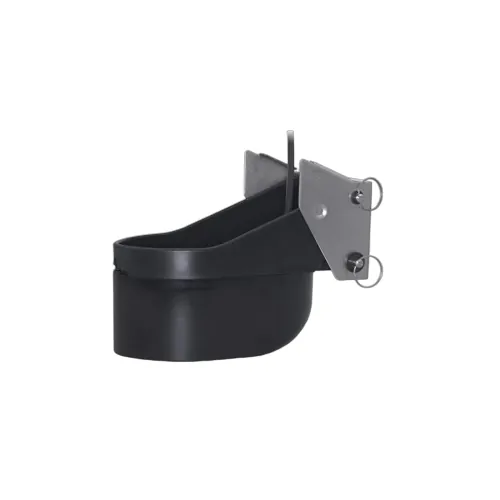

Airmar XSONIC Airmar TM260
SKU: 000-13904-001
Sale price
REG $1,899.00
SALE ENDS
Dispatch in 7 days
More infoMake 4 payments of $406.87 over 8 weeks and get it now!
