Description

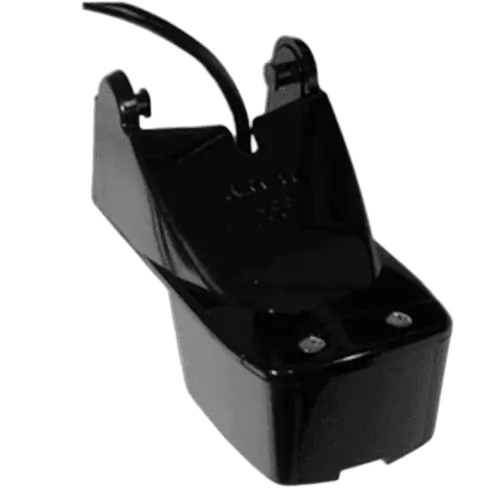

P66 - Plastic 600W 50/200kHz Transom Mount Depth and Temperature transducer. 9pin connector and 10m cable.
The P66 transom-mount features 50/200 kHz, dual-frequency, single, ceramic element. This hydrodynamic housing with its rounded nose reduces the turbulence under the transducer’s acoustic face for accurate high-speed readings and clear display images.
Features
- Depth, speed, and temperature
- 600 W Dual-frequency element
- 50 kHz with a 45° beamwidth for depth performance to 353 m (1,200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Recessed water-flow channel protects paddlewheel from obstructions
- Plastic release bracket protects sensor from frontal impact
- Sensor can be removed from bracket without tools for easy service or storage
- Chemical and impact-resistant plastic housing
Specifications
Specifications
| Weight | 0.5 kg (1.1 lb.) |
| Recommended Boat Length | Up to 8 m (25') |
| Transom Angle | 2° to 22° |
| Acoustic Window | Layered plastic urethane (LPU) |
| Speed Performance | Up to 44 knots (50 mph) |
| SKU | 000-13919-001 |
|---|---|
| Barcode # | OEBC672409 |
| Brand | Airmar |
| Shipping Weight | 5.0000kg |
