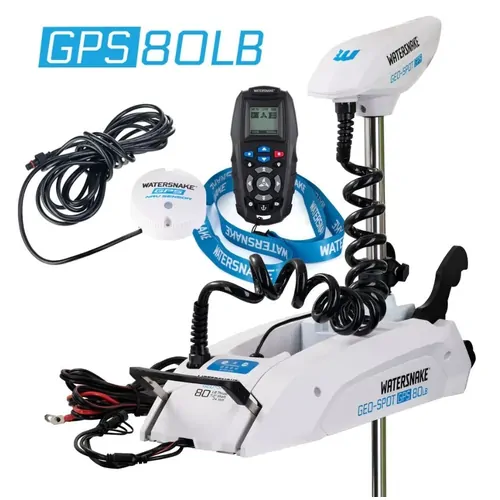

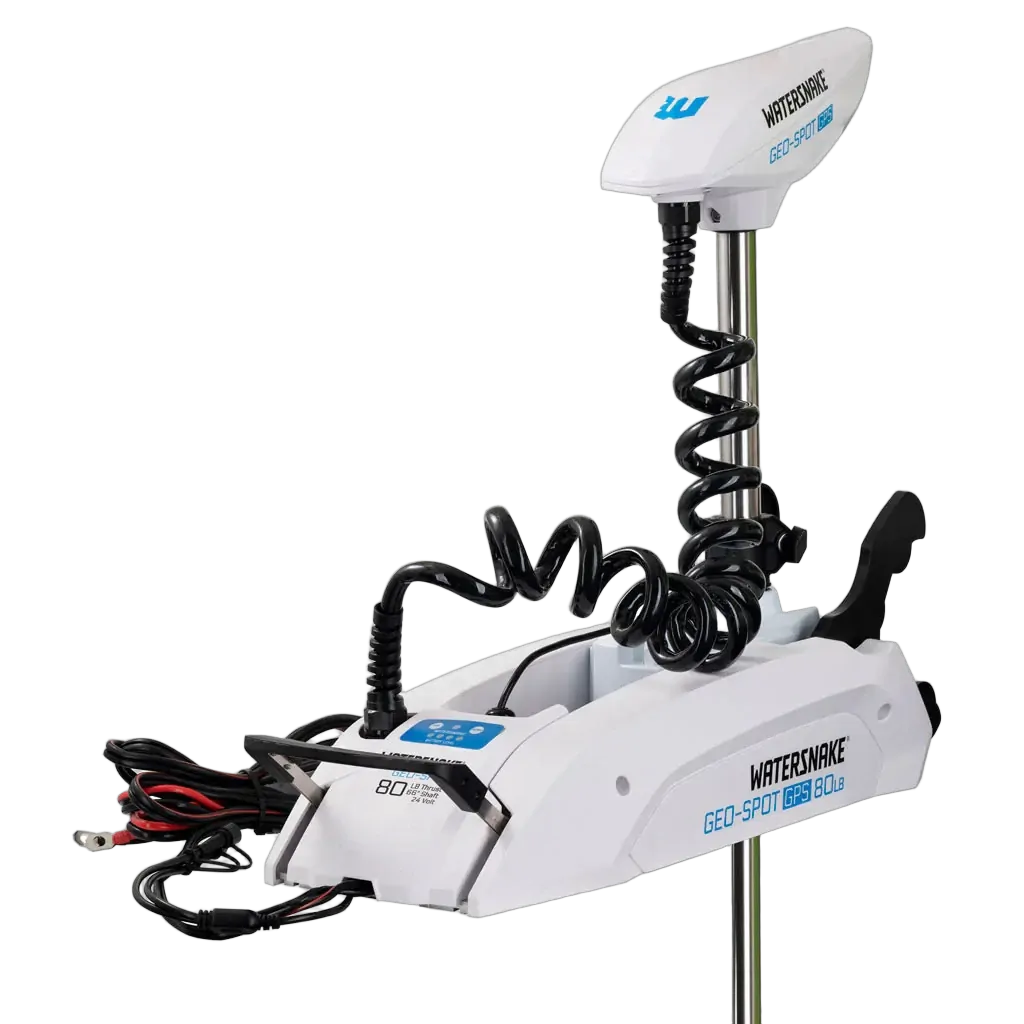

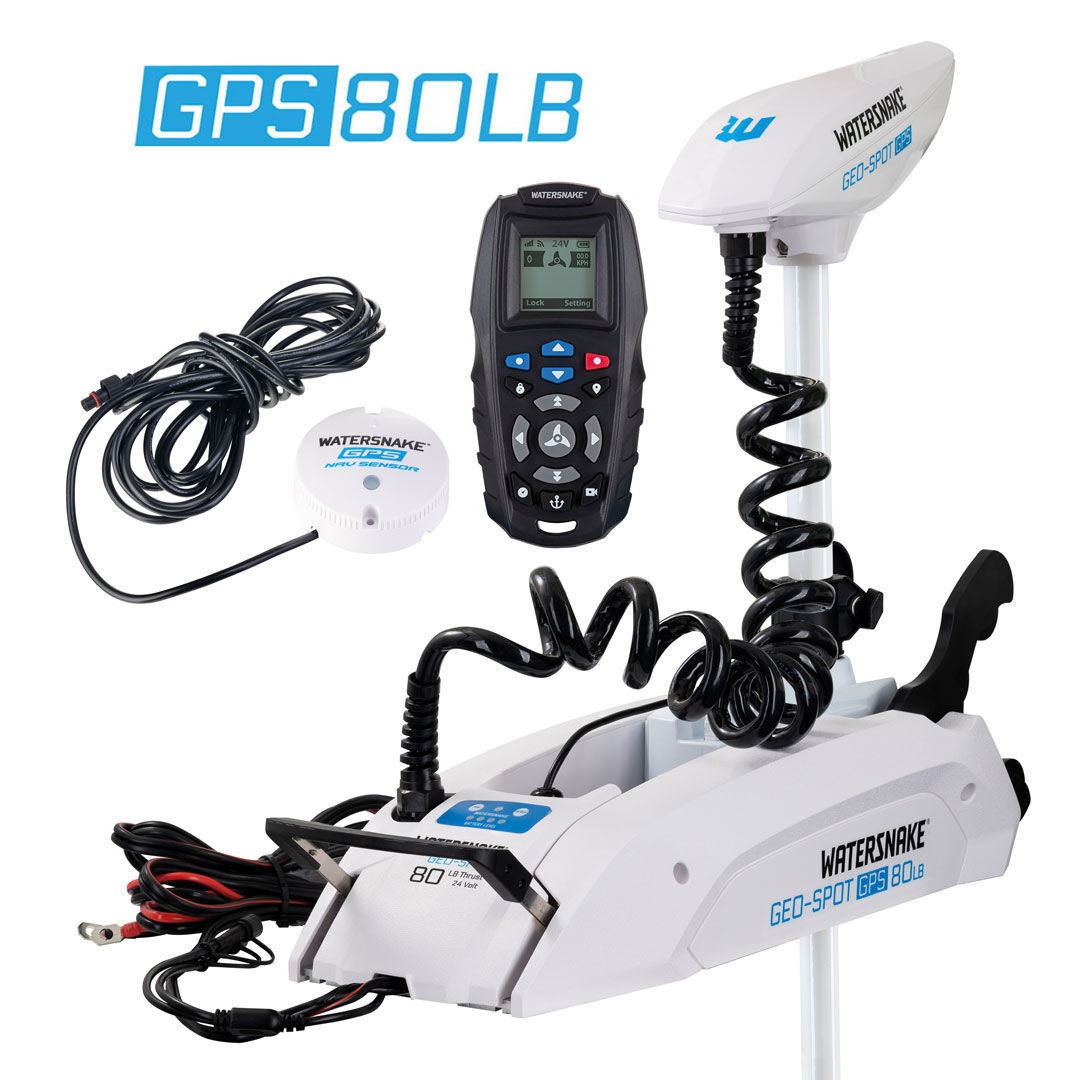

Watersnake Geo-Spot GPS SW80lb/72" Electric Motor
GPS FEATURES:
- Anchor Mode - Hold your position with the press of a button.
- Jog Function - Allows you to easily move your boat in 1.5m increments while staying in Anchor Mode.
- Cruise Mode - Maintain your ground speed regardless of wind or current.
- Pilot Mode - Maintain your heading regardless of wind or current.
- Track Recording - Record your favourite fishing routes to retrace them later automatically.
- Navigate Mode - Autonomously gets you to the start or end of your route, then follows it.
FEATURES:

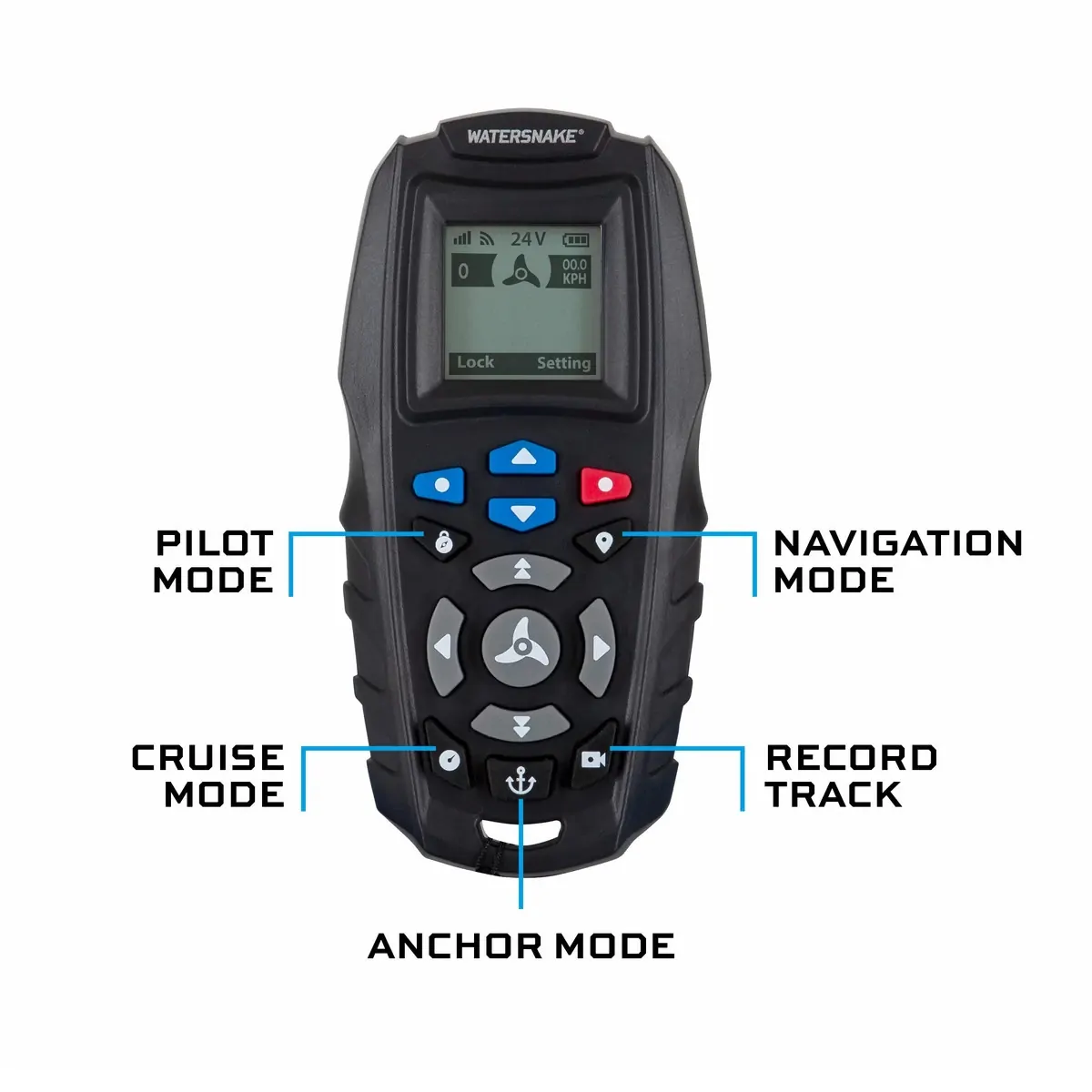

- Remote Control - Control your motor from anywhere on the boat.

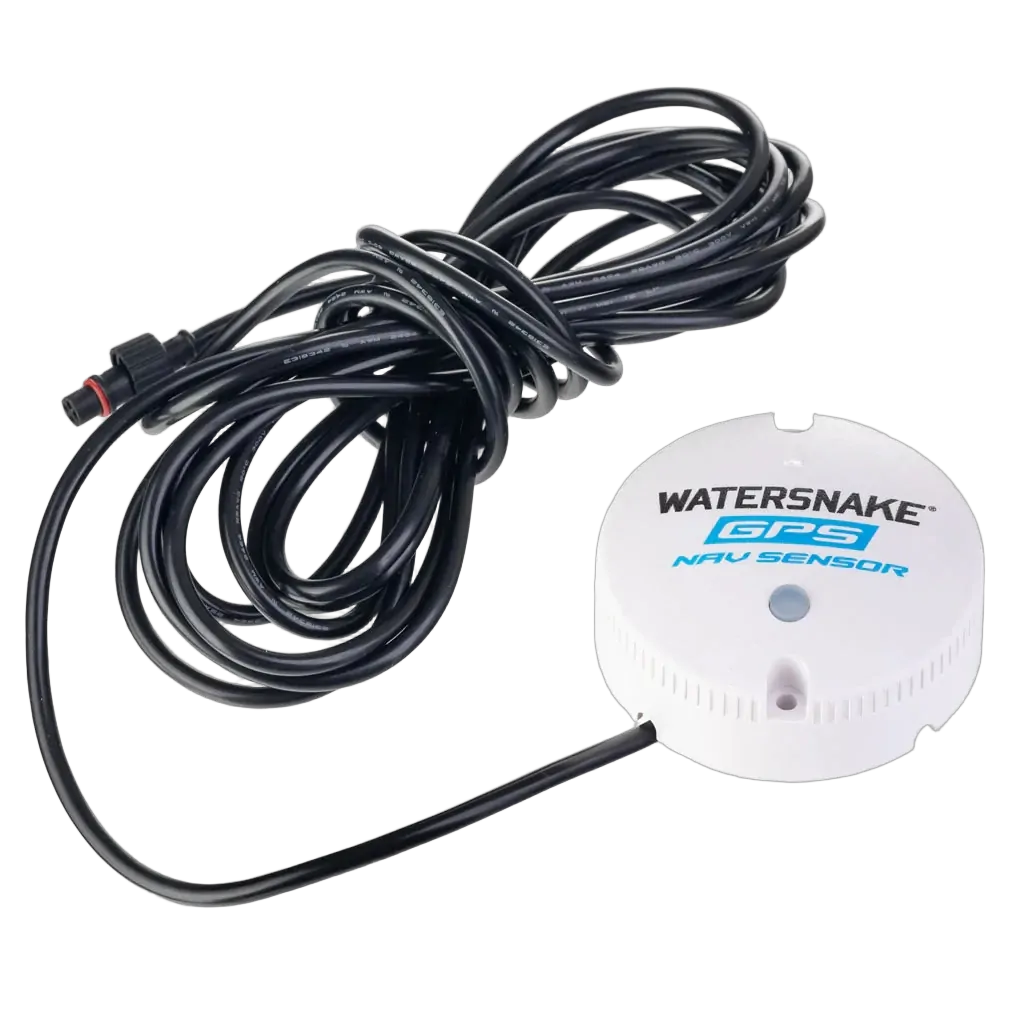

- GPS Nav Sensor Included - Adds Jog function to Anchor mode and improves navigation and tracking.
- Variable speed
- Built-in voltage, current and overheating protection – no circuit breaker needed.
- Strong Fibre-Reinforced Nylon Weedless 3-Blade propeller (Pitch 94mm)
- Upgraded Bracket Design – For ease of use and longevity
- Upgraded Turning Box - Smoother and faster turning performance.
- Saltwater-ready: Sacrificial anode / stainless steel shaft.
- Compatible with optional foot controller.
- Runs on a 24v battery system, including LiFePO4
Geo-Spot GPS 80/72 Specifications
| Code | 55320 |
|---|---|
| Thrust | 80lb |
| Volts | 24V |
| Amp Draw | 0–40A |
| Watts (Max) | 960W Input / 620W Output |
| Speeds | Variable |
| Max Prop RPM | 1900rpm |
| Motor Weight | 22kg |
| Shaft | 72" (182cm) |
| Shaft Dia. | 1.2 Inches (30mm) |
| Shaft Wall Thickness | 5mm |
| Steering | GPS, Remote Control Fob |
| Prop | Fibre-Reinforced Nylon 3-Blade (94mm Pitch) |
| Remote Control | Digital Fob |
| Mounting | Bow Mount Bracket |
| Wire Gauge | 10AWG |
| Battery Required | 24V Deep Cycle Battery or LiFePO4 |
| Suggested Min. Battery Size | 100 Amp hour |
| Suggested Max. Boat Weight | Up to 1200kg |
Installing the WaterSnake Electric Motor
| SKU | 55320 |
|---|---|
| Barcode # | OEBC581916 |
| Brand | Watersnake |
| Shipping Weight | 34.0000kg |
| Shipping Width | 0.350m |
| Shipping Height | 0.300m |
| Shipping Length | 2.300m |
| Shipping Cubic | 0.241500000m3 |
