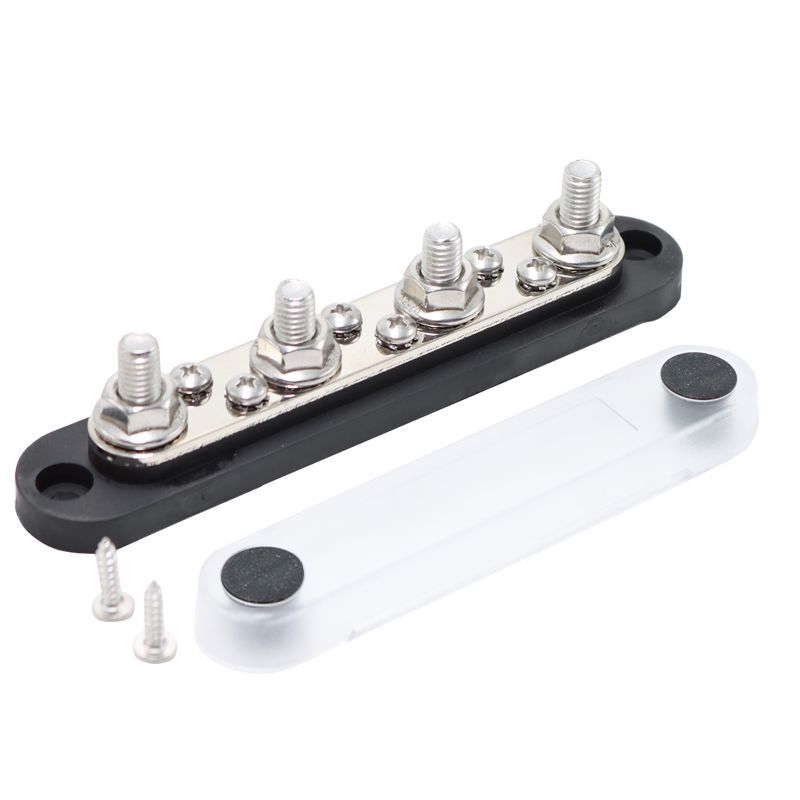

Four Post Bus Bar Black can be used in a wide variety of Automotive and Marine applications. The power distribution block can be used to keep the battery organised with just one wire attached to each terminal.

Having a battery busbar is a great way to prevent issues and troubleshoot problems as the leads be made more accessible for identifying and tracing faults.

This insulated busbar allows you to work in the area or store items without the fear or the battery terminals shorting on another item that may hit it.

An electrical busbar distribution block is an easy way to simplify your wiring and setup.

Max. Rating: 150A @ 12v
Max. Voltage Supply: 48vDC
Body Dimensions: 27.8mm (W) x 150mm (L) x 36.5mm (H - including cover)
Terminals: 4 x 8mm, 6 x 4mm
Mounting Holes: 5.5mm (recessed)
Mounting Hole Centres: 133.5 (L)

More Information:

• 4 x 8mm studs to suit M8 Terminals
• 6 x Size #8 (4mm) Screws with anti-vibration washers
• 304 Stainless Steel, corrosion resistant studs
• Push on clear cover for stud and wiring protection
• Nickel Plated Brass bridge plate
• Insulated Polypropylene/Nylon base

Unit includes:

• 4 x M8 Stud
• 4 x M8 Locking Nuts
• 6 x #8/M4 Bolts
• 6 x #8 Anti-vibration washer
• 1 x Cover
• 1 x Bridge/Base plate
• 2 x Mounting Screws
