Features
• Very low profile black bezel follows the curve of the lens to eliminate any water ‘trapping’
• White graphics and pointer on a black dial background
• Where applicable, metric information is shown in blue
• Light piping directs red light behind the translucent dial and white light to the pointer for optimal night vision
• Fog free domed glass lens is scratch resistant
• Suitable for 24 volt application with the addition of a drop resistor (112394, 112396) and 24 volt bulb 112390
• Shielded to prevent magnetic interference
• Silicone dampened
FOG FREE
DIMENSIONS |
A MM |
B MM |
C MM |
D MM |
|
|
|
|
|
75mm Tacho |
96 |
86 |
70 |
13 |
75mm Speedometer |
96 |
86 |
82 |
13 |
50mm Electrical |
61 |
53 |
63 |
11 |
BLA CODE |
DESCRIPTION |
FACE DIA. MM |
*SENDER STYLE |
|
|
|
|
|
Tachometers: |
|
|
112224 |
Tacho 7000 RPM inboard & outboard |
75 |
Coil and O/board alt |
112226 |
Tacho 4000 RPM diesel alternator |
75 |
Motor Alternator |
|
|
|
|
|
Speedometer: |
|
|
112230 |
Speedo kit 35 MPH |
75 |
G included |
112232 |
Speedo kit 50 MPH |
75 |
G included |
112234 |
Speedo kit 65 MPH |
75 |
G included |
|
Kits include 20' of pitot hose |
|
|
|
|
|
|
|
Water temperature gauge: |
|
|
112242 |
Water temperature 100ºF - 240ºF |
50 |
D |
112246 |
Water pressure gauge kit 0 - 40 psi |
50 |
WP Included |
|
|
|
|
|
Oil pressure: |
|
|

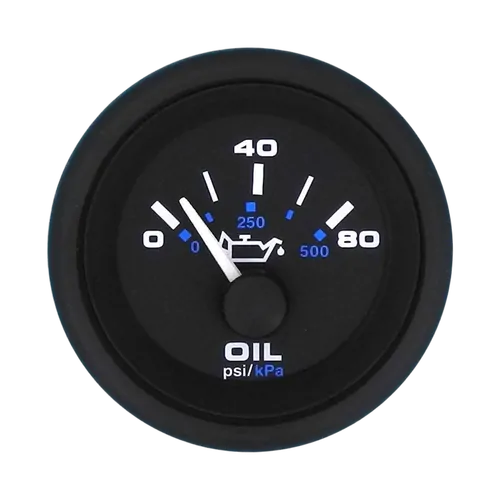

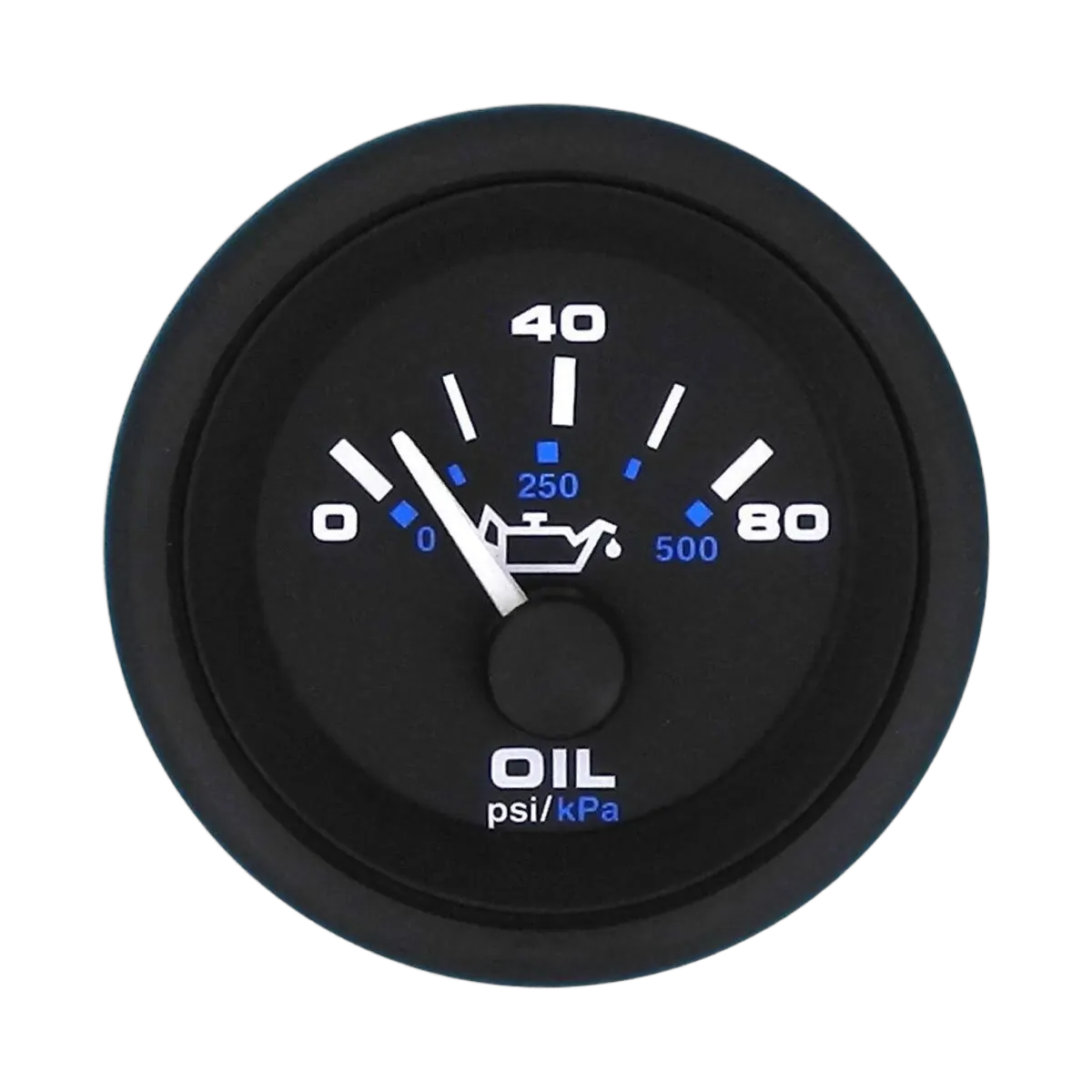

112252 |
Oil pressure 0 - 80 PSI |
50 |
C |
112254 |
Oil pressure 0 - 100 PSI |
50 |
C |
|
|
|
|
|
Hourmeter: |
|
|
112258 |
Hourmeter, 10,000 Hrs |
50 |
Not required |
|
|
|
|
|
Voltmeter: |
|
|
112262 |
Voltmeter, 10 - 16 volt |
50 |
Not required |
|
|
|
|
|
Fuel: |
|
|
112268 |
Fuel |
50 |
F |
|
|
|
|
|
Trim: |
|
|
112272 |
Evinrude®/Johnson® outboards |
50 |
Engine manufacturer |
112273 |
Honda® outboards |
50 |
Engine manufacturer |
112274 |
Mercury®/Mariner®, Cobra®, Volvo® DP & SX, Yamaha® O/B 2001 on |
50 |
Engine manufacturer |
Accessories
112394 Drop resistor suit 75mm gauge
112396 Drop resistor suit 50mm gauge
112390 24 volt bulb
