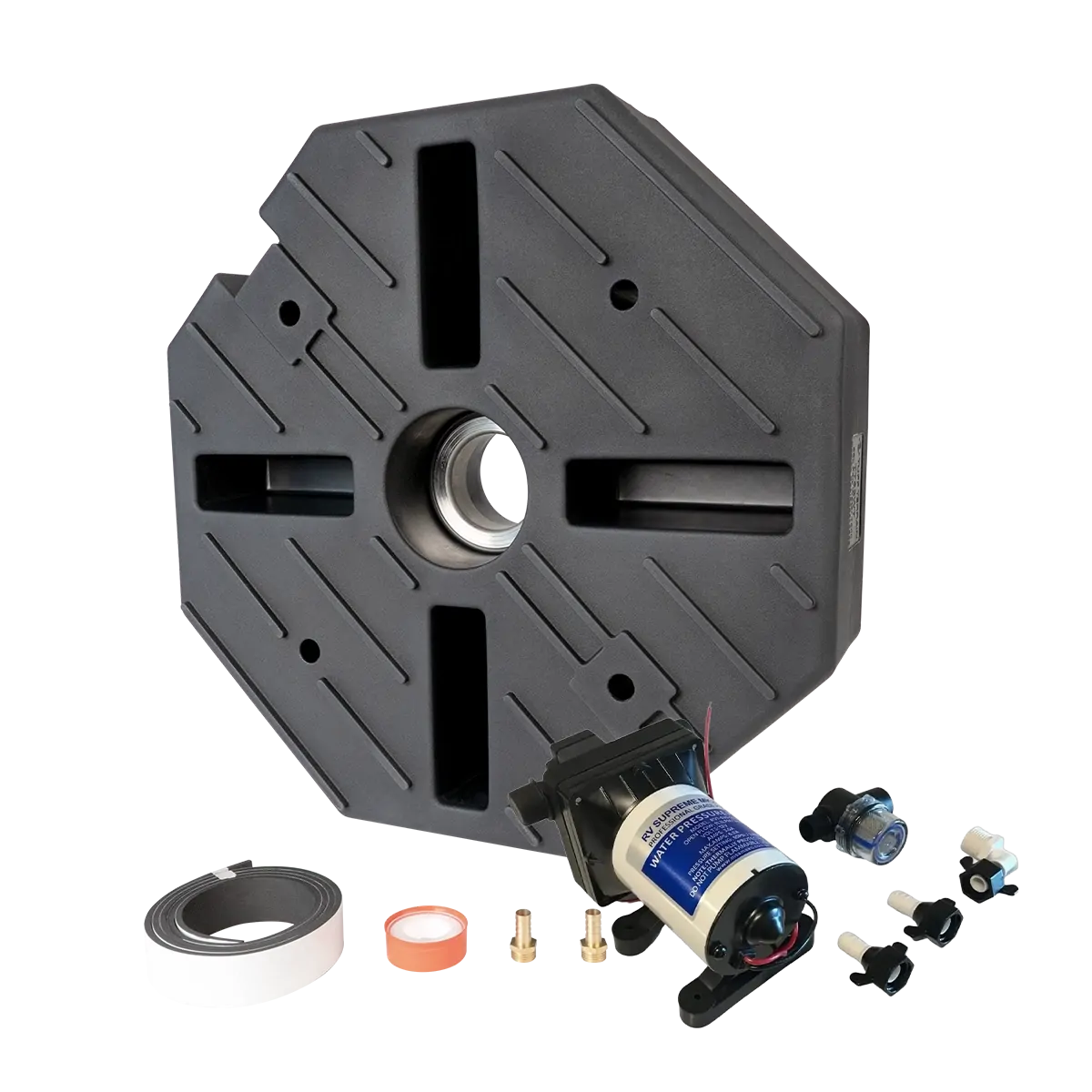

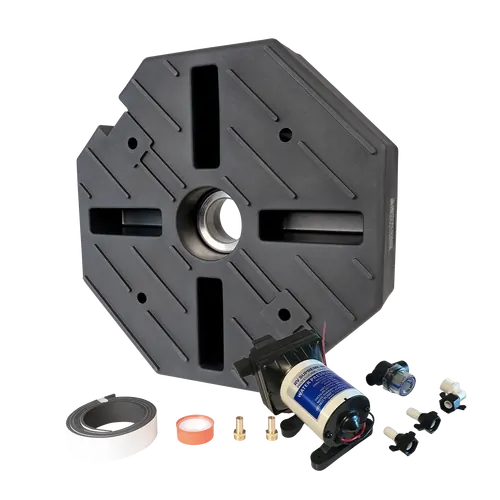

Tuff Terrain Underbody Spare Wheel Water Tank – 62L with Water Pump

The Tuff Terrain Underbody Spare Wheel Water Tank is the perfect solution for off-road enthusiasts looking to maximize their vehicle's utility without compromising on space. With a capacity of 62 liters, this tank is designed to fit conveniently under your vehicle, providing essential water storage while taking up the same space as your spare wheel.

Key Features:

• Capacity: 62L, perfect for long journeys and off-road expeditions

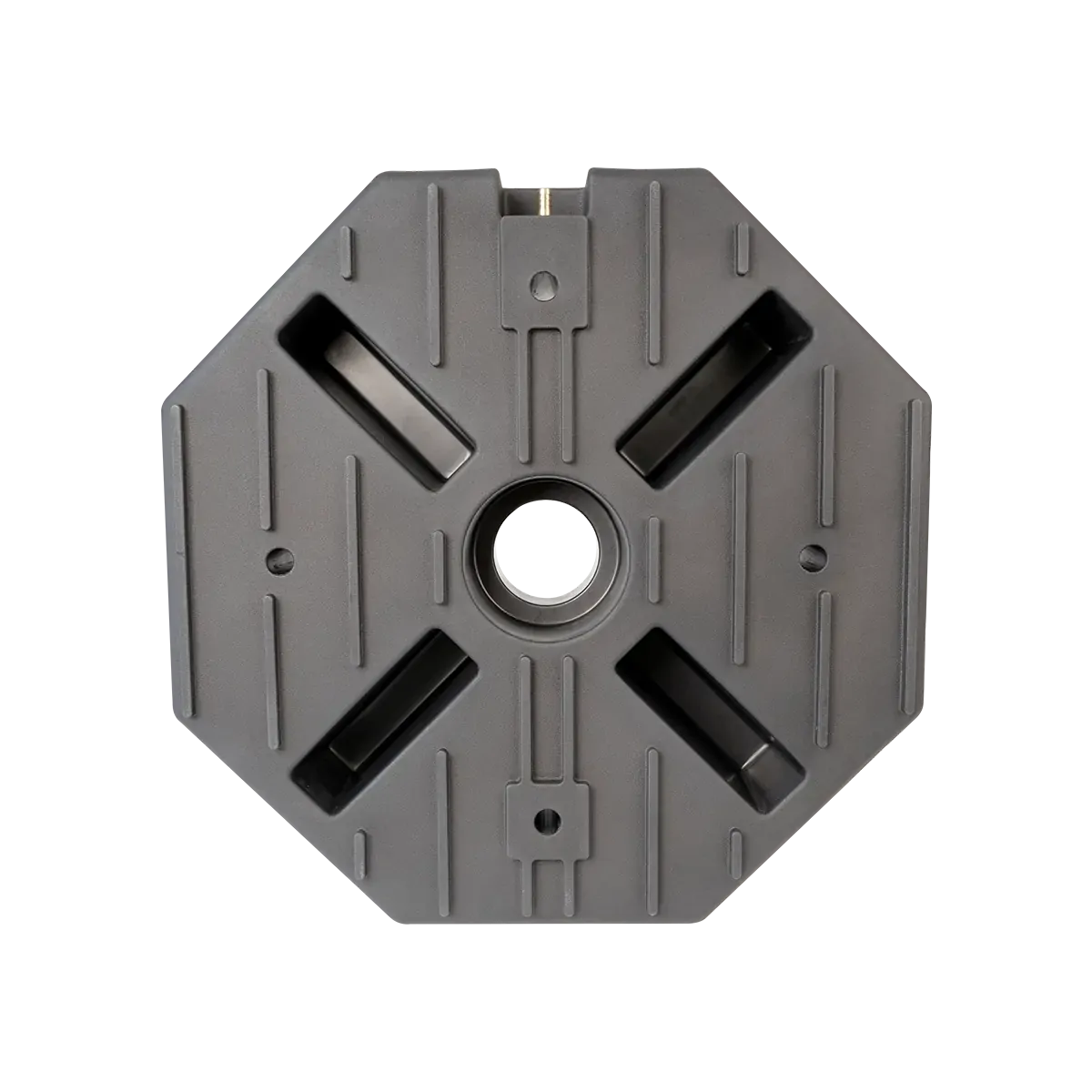

• Shape & Dimensions: Octagon-shaped design with dimensions of 730mm x 730mm (parralel edge to edge)  x 200mm high, equivalent to a 28" tire. *790mm corner to corner*
• Lightweight: At just 9kg, the tank is easy to handle and mount without adding unnecessary weight
• Durable Construction: Made from food-grade polyethylene (PE) material for a tough, long-lasting build
• Stainless Steel Sleeve: Built-in stainless steel sleeve provides weight distribution, ensuring your tank stays secure and stable on rough terrains
• Mounting Versatility: 108mm mounting hole fits a variety of spare winch sizes up to 145mm, with 4 additional mounting holes spaced 500mm apart for extra stability
• Baffled Internals: Internally baffled to reduce water movement while driving, ensuring safe and smooth handling

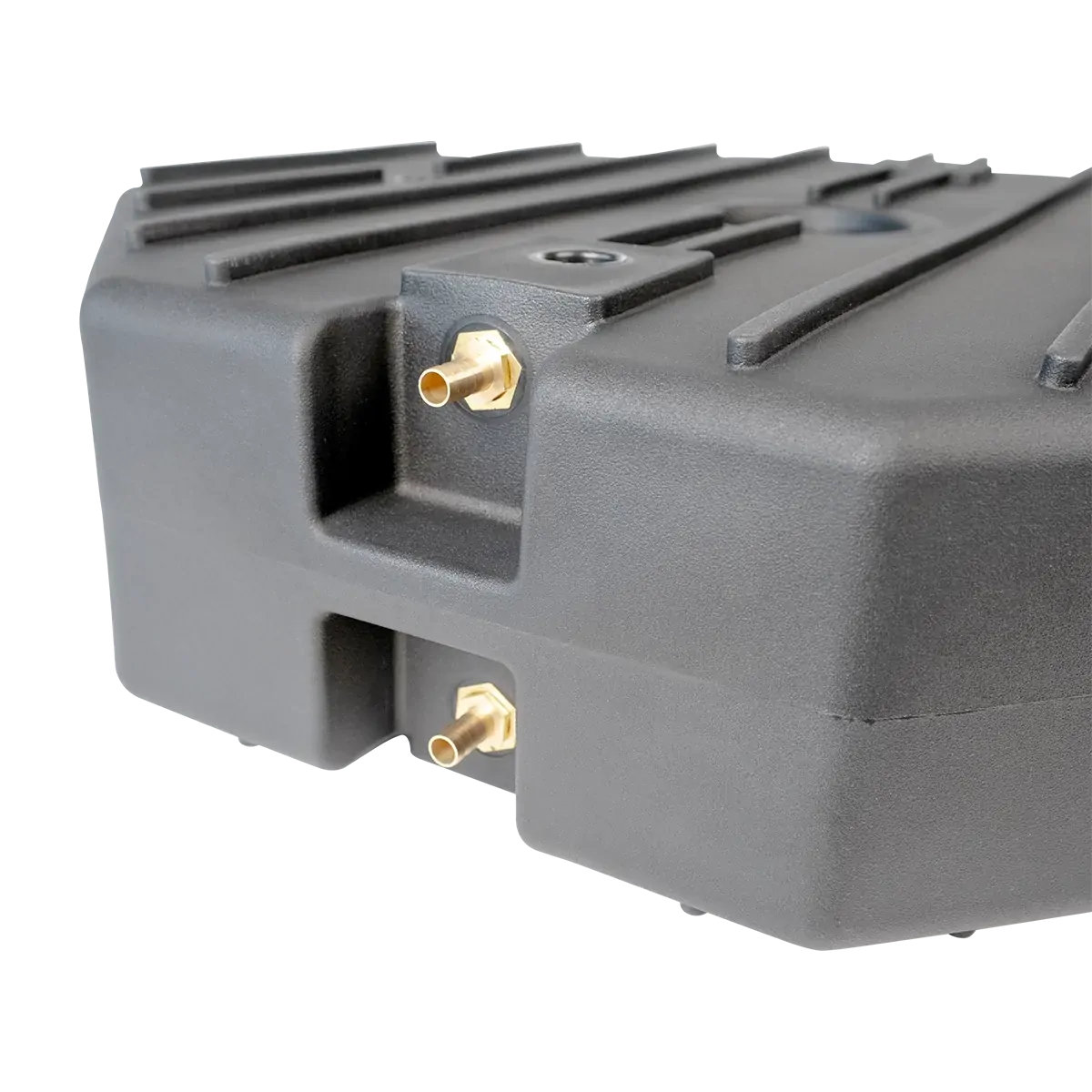

• Fittings Included: Comes with 2 x 13mm metal barb fittings for easy inlet or outlet connections
• Additional Accessories: Includes 2 adhesive rubber strips to reduce rubbing against your vehicle
• Inlet/Outlet Ports: Two ports for inlet or outlet installation, allowing customization based on your needs

Perfect for Larger Tires: If you’ve upgraded to larger tires and no longer have room for your spare wheel, the Tuff Terrain Underbody Water Tank fills that void. This tank utilizes the space previously occupied by the spare, offering you essential water storage without sacrificing valuable underbody clearance.

Special Instructions: Depending on your vehicle’s exhaust system, you may need to apply a heat shield to either the tank or the exhaust system. We recommend maintaining a 50mm gap between the exhaust and tank for optimal safety and performance.

The Tuff Terrain Underbody Spare Wheel Water Tank is the ultimate solution for those who need reliable water storage without sacrificing valuable cargo space. Whether you’re tackling the toughest trails or camping in the wilderness, this tank ensures that you have the water you need for the journey ahead.

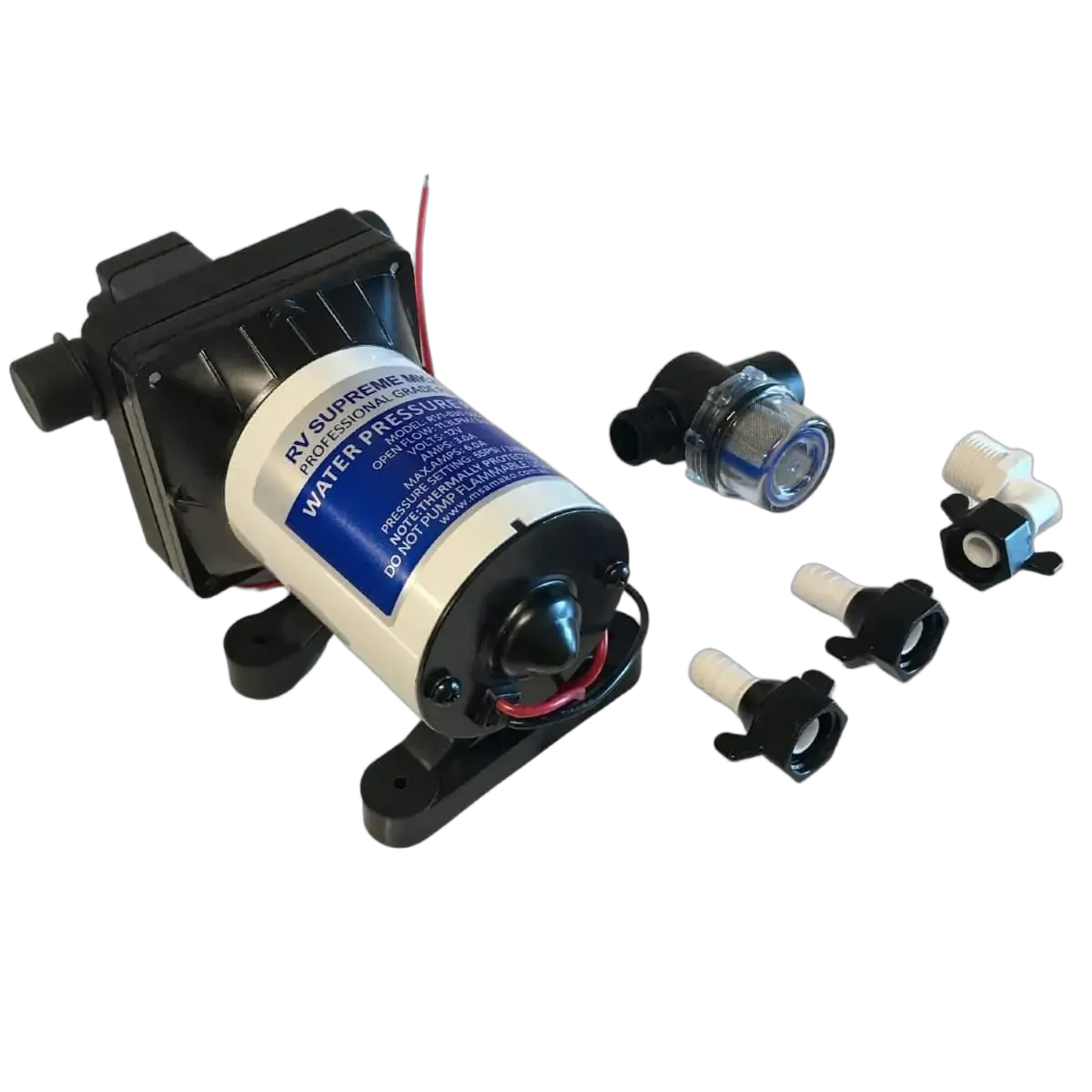

Seaflo RV1-030-055-42 RV Supreme MK2 12v Pump

The Seaflo Pump is a top quality RV pump that is self priming and run dry safe. It has a quiet operation and can be used on demand. It has an industry standard mounting pattern and is completely rubber mounted. It uses internal bypass technology to reduce cycling and has a 16 AWG, 9.4″ long power cord with an encapsulated switch. This pump is a great choice for your RV needs.

FEATURES AND BENEFITS:

• Up to 3.0 GPM
• Self priming
• Run dry safe
• Quiet operation
• On-demand use
• Industry Standard mounting pattern
• Completely rubber mounting-base
• Internal bypass technology reduces cycling
• 16 AWG, 9.4″ long with encapsulated switch

SPECIFICATIONS:

• Voltage 12V DC
• Max recommended temperature 60 degrees
• GPM/LPM 3.0/11.3
• PSI/BAR 55/3.8
• Max Draw (A) 6.0
• Valves EPDM
• Diaphragm Santoprene
• Ports 1/2″-14 MNPT
• Wire Connections 2-Pin/Leads
• Weight 1.9 kg

WHAT IS INCLUDED:

This pump comes in the retail box with detailed instructions, a filter plus 3 fittings ensuring an easy installation.

IMPORTANT INFORMATION:

Please note: the 1 x all-white round accessory is pre-installed by the manufacturer.

Seaflo RV1-030-055-42 RV Supreme MK2 Pump Specifications Sheet

FAQ on the Seflo RV Supreme MK2 12v

Is the Seaflo RV Supreme MK2 self-priming?

Yes, the Seaflo RV Supreme MK2 is a self-priming pump. That means it can automatically draw water up into itself after being installed, without needing to be manually filled first. This makes setup easier, especially when replacing an old pump or when your water tank is mounted lower than the pump. It also helps restart the system quickly after running dry or doing maintenance.

What makes the Seaflo RV Supreme MK2 a popular choice?

The Seaflo RV Supreme MK2 is rated as the quietest pump in the caravan industry. It has a flow rate of 9.5 liters per minute (LPM). The filter should be installed within 200 to 300 mm before the pump itself, not after it.

The pump uses the most popular mounting sizes. It self-primes and operates up to 55 PSI (3.8 BAR). The pump runs efficiently, using approximately 4.2 to 4.3 amps at full operation but can range from 3 to 6 amps depending on usage.

What is the difference between the Seaflo RV Supreme MK2 Shurflo 4009?

To compare them we've got the following table for you.

The Seaflo RV Supreme MK2 offers more features, higher efficiency, and quieter operation compared to the Shurflo 4009, making it a popular choice for many RV owners
