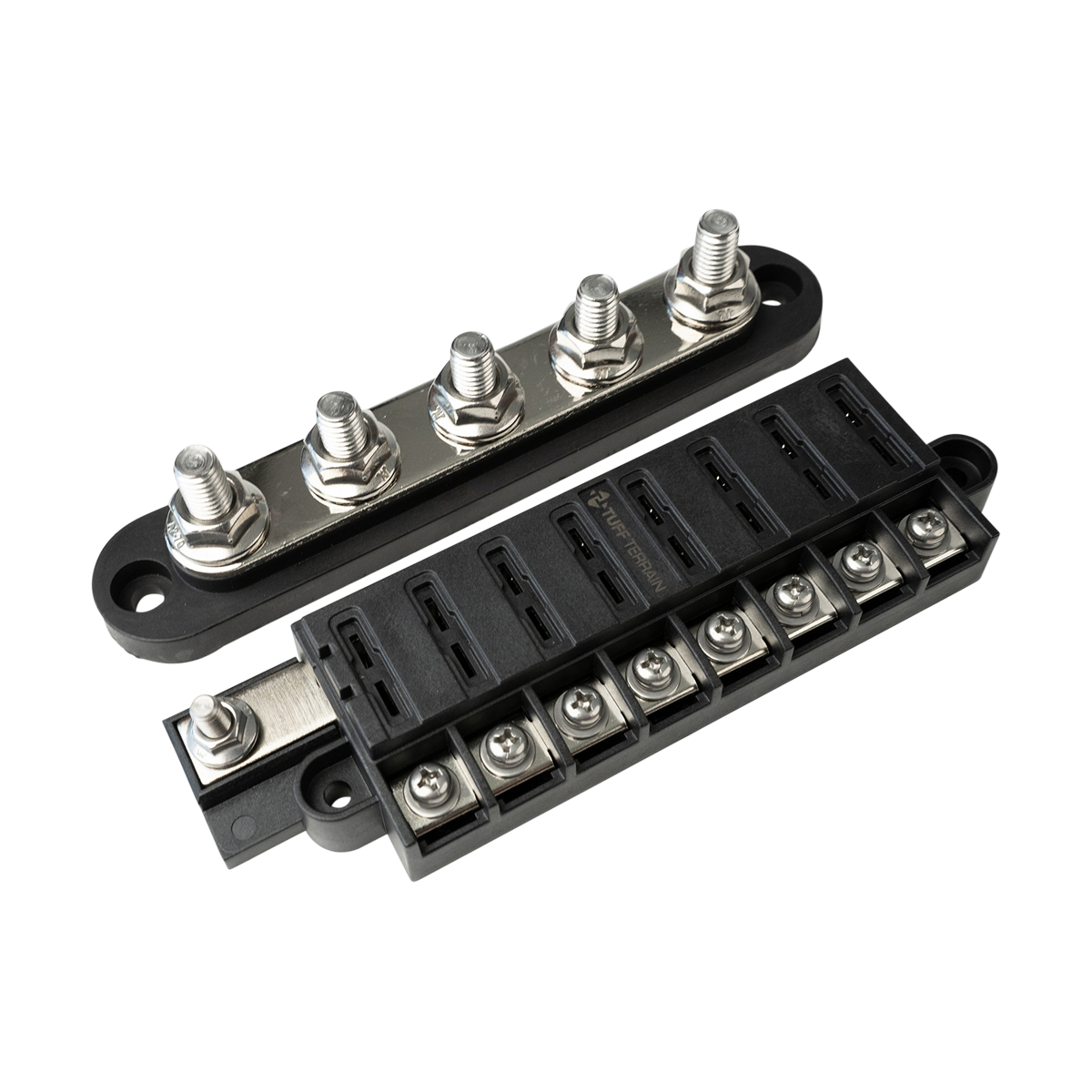

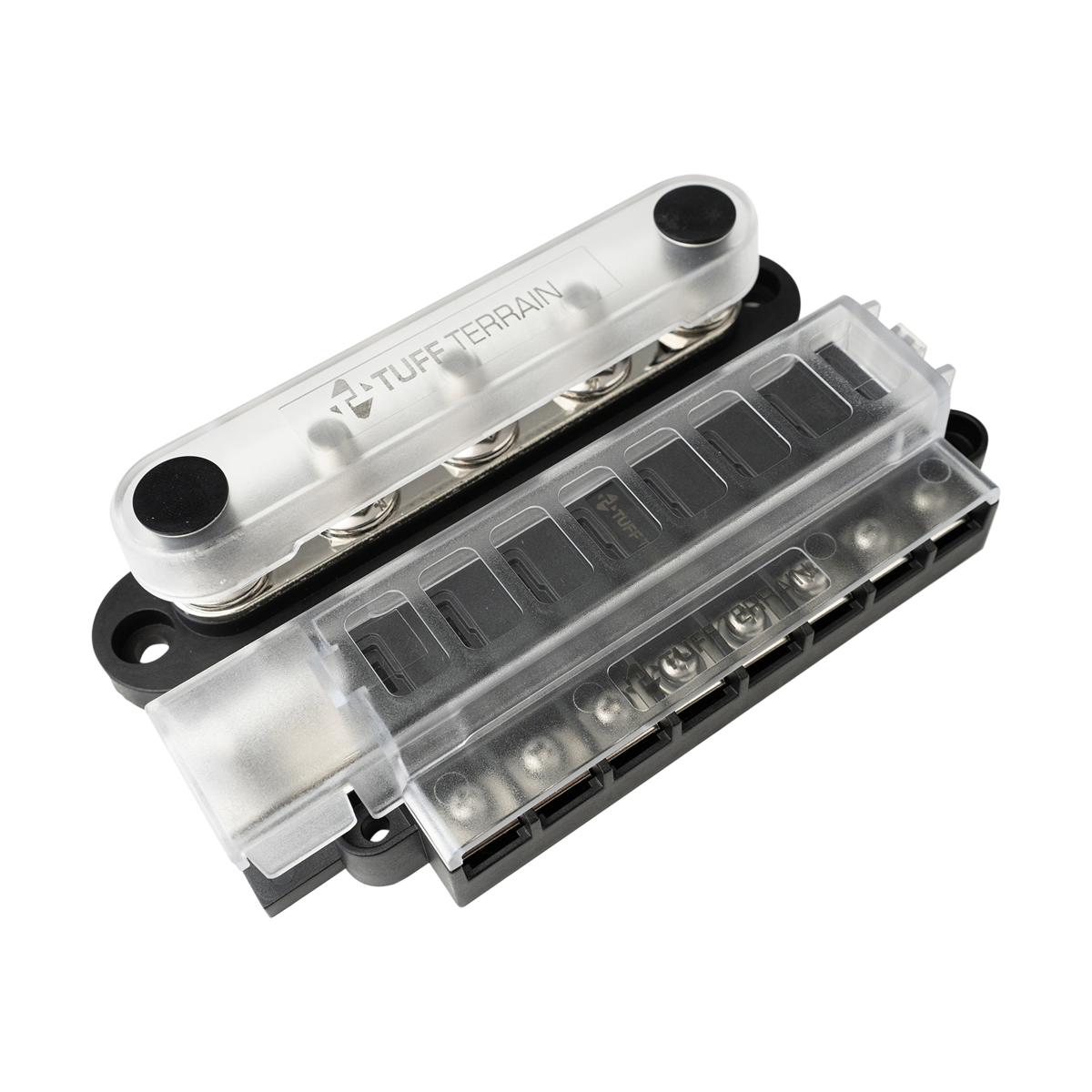

Tuff Terrain Fuse Block 8 Way Positive with Cover and Label Kit
Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint.
- Single side design allows wire entry from one side to minimize footprint
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes circuit labels
- Fuses sold separately
| max volts(V)32V max amps(A)100A bolt sizes M4 overall dimensions(L × W × H)146 x 44 x 33mm Max 30A per circuit |
Tuff Terrain 150A 5 Terminal Busbar – Negative
The Tuff Terrain 150A 5 Terminal Busbar provides a safe and reliable way to manage multiple positive power connections in your 4x4, marine, or electrical setup. Built tough with high-quality materials, it ensures long-lasting performance in harsh environments.
Features:
-
5 x 8mm studs – Designed to suit M8 terminals for secure connections
-
304 Stainless Steel studs – Corrosion resistant for durability and strength
-
Nickel plated brass bridge plate – Provides efficient conductivity and protection against wear
-
Push-on clear cover – Shields studs and wiring for added safety
-
Insulated Polypropylene/Nylon base – Strong and stable foundation, resistant to heat and impact
This busbar is the ideal solution for clean, safe, and reliable positive power distribution across multiple circuits.
| max volts(V) 48V max amps(A)150A bolt sizes (M8) Stud overall dimensions(L × W × H) 150*28*33MM |
| SKU | TT-CCTKIT-10 |
|---|---|
| Brand | Tuff Terrain |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
Tuff Terrain Fuse Block 8 Way Positive with Cover and Label Kit
Provides surface mount circuit protection for ATO/ATC Fuses in a compact footprint.
- Single side design allows wire entry from one side to minimize footprint
- Tin-plated copper buses and fuse clips
- Accepts ring or snap fork type terminals
- Includes circuit labels
- Fuses sold separately
| max volts(V)32V max amps(A)100A bolt sizes M4 overall dimensions(L × W × H)146 x 44 x 33mm Max 30A per circuit |
Tuff Terrain 150A 5 Terminal Busbar – Negative
The Tuff Terrain 150A 5 Terminal Busbar provides a safe and reliable way to manage multiple positive power connections in your 4x4, marine, or electrical setup. Built tough with high-quality materials, it ensures long-lasting performance in harsh environments.
Features:
-
5 x 8mm studs – Designed to suit M8 terminals for secure connections
-
304 Stainless Steel studs – Corrosion resistant for durability and strength
-
Nickel plated brass bridge plate – Provides efficient conductivity and protection against wear
-
Push-on clear cover – Shields studs and wiring for added safety
-
Insulated Polypropylene/Nylon base – Strong and stable foundation, resistant to heat and impact
This busbar is the ideal solution for clean, safe, and reliable positive power distribution across multiple circuits.
| max volts(V) 48V max amps(A)150A bolt sizes (M8) Stud overall dimensions(L × W × H) 150*28*33MM |
| SKU | TT-CCTKIT-10 |
|---|---|
| Brand | Tuff Terrain |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.200m |
