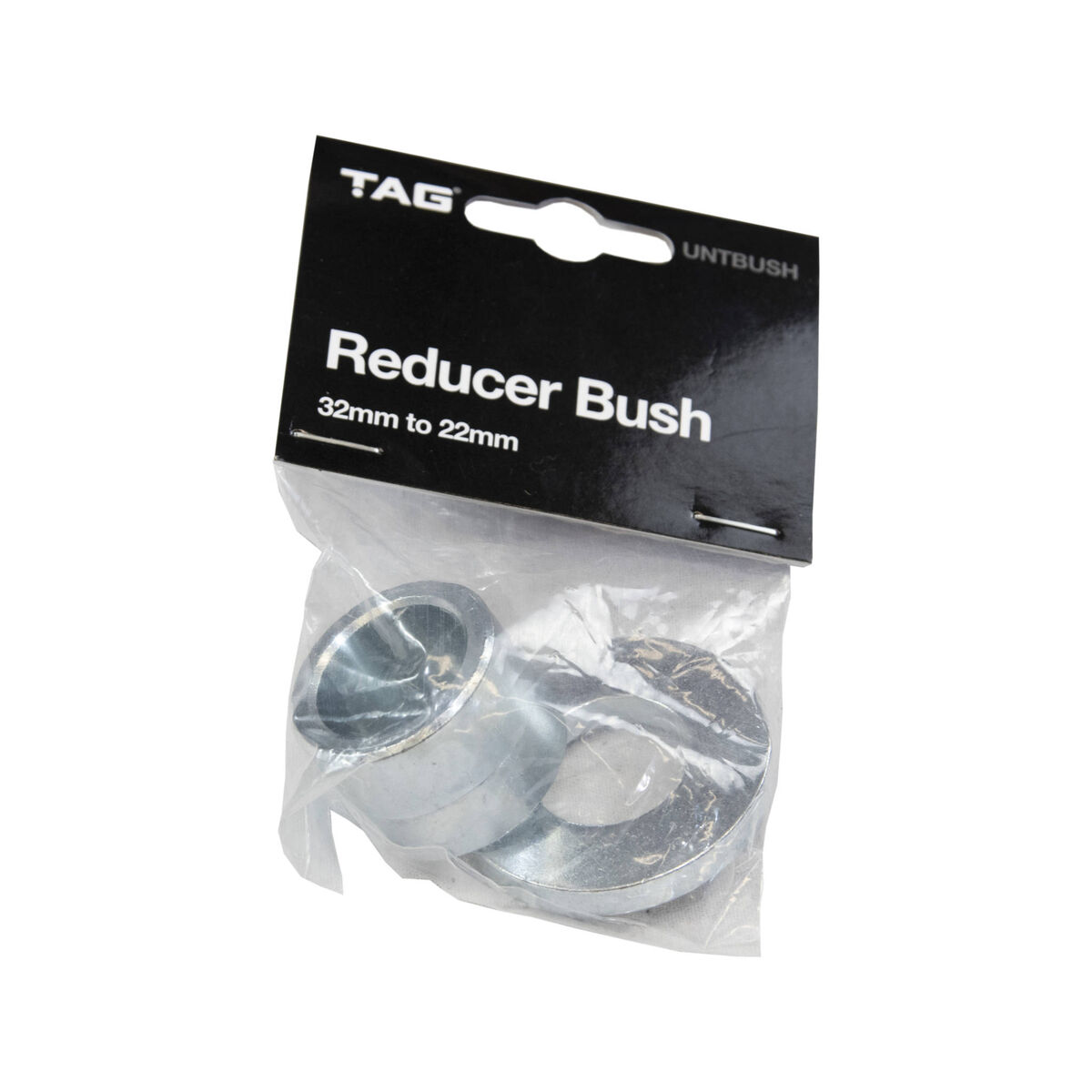

TAG Reducer Bush (32mm to 22mm) steps in when your towbar tongue has a 32 mm hole and your go-to tow ball runs a 22 mm shank. You drop the bush into a heavy-duty 70 mm mount, slide the 50mm ball through, and the gap is gone. The gear keeps the shank centred so the load runs straight through the tongue instead of flogging out a loose 32 mm bore.

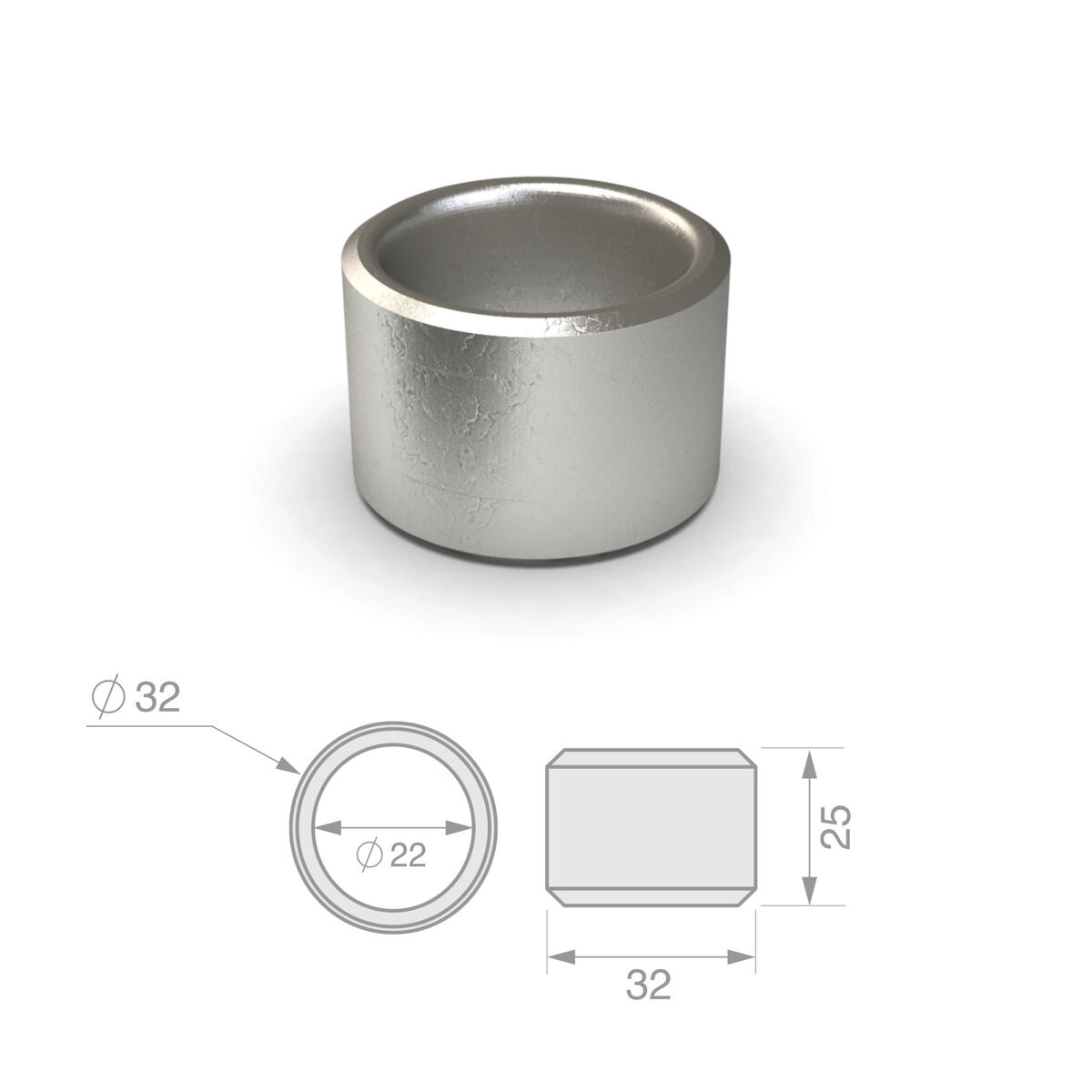

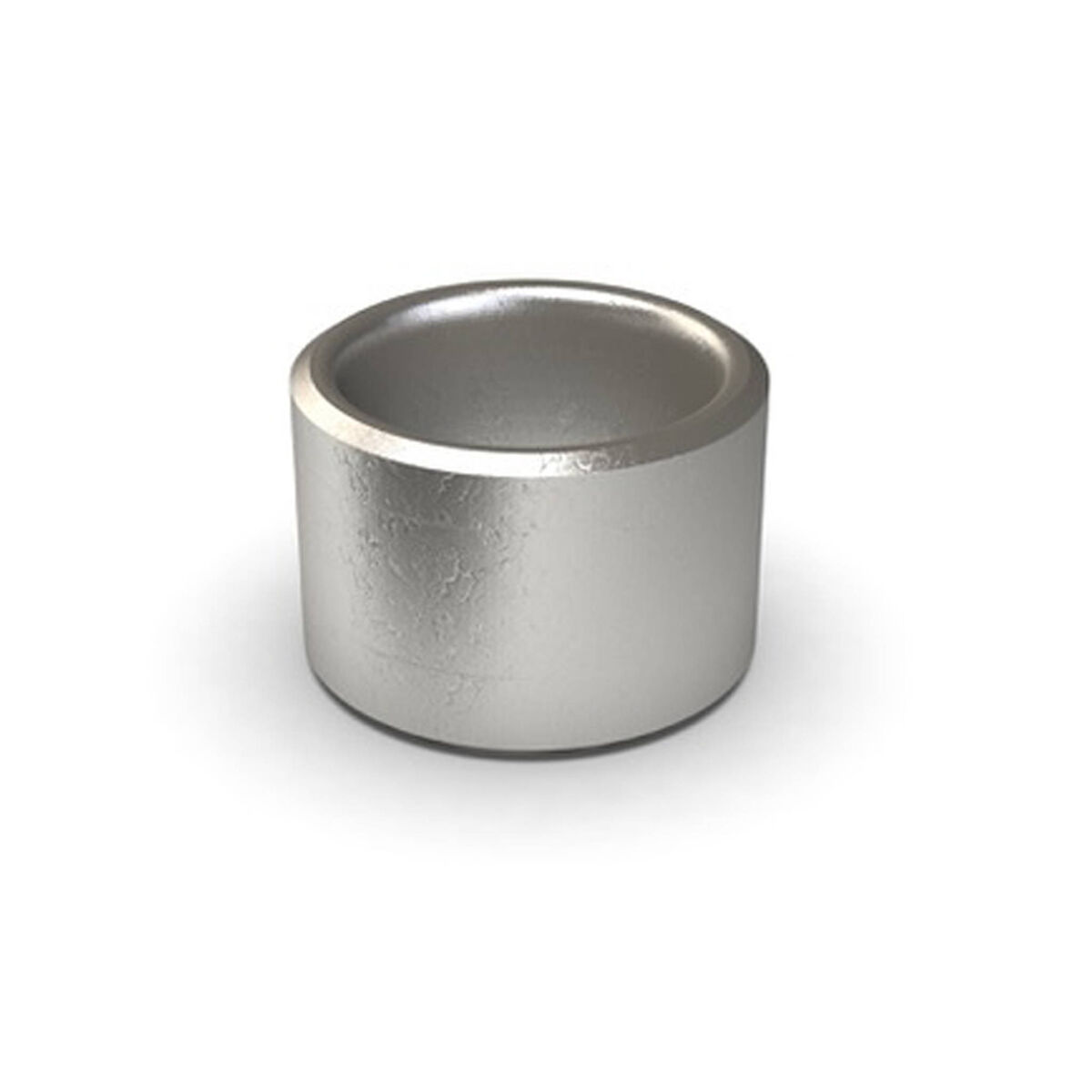

The reducer bush is stainless steel with a zinc coating that stands up to wet roads and coastal trips across thousands of kilometres. The outer diameter sits at 32 mm, the inner bore holds tight at 22 mm, and the 25 mm height supports the shank along its working length. Match it with TAG heavy-duty drop-forged mounts and you have a smart buy that lets one 50mm ball handle different setups.

• Allows use of 50mm tow ball in 70mm tow ball mount
• Reduces 32mm towbar tongue hole down to 22mm shank size
• Suits TAG heavy-duty drop-forged tow ball mounts
• Bush outer diameter 32mm for snug mount fit
• Inner bore 22mm matches common 50mm ball shanks
• Bush height 25mm and length 32mm for full shank support
• Stainless steel construction for strength under towing load
• Zinc coating adds corrosion resistance in wet conditions

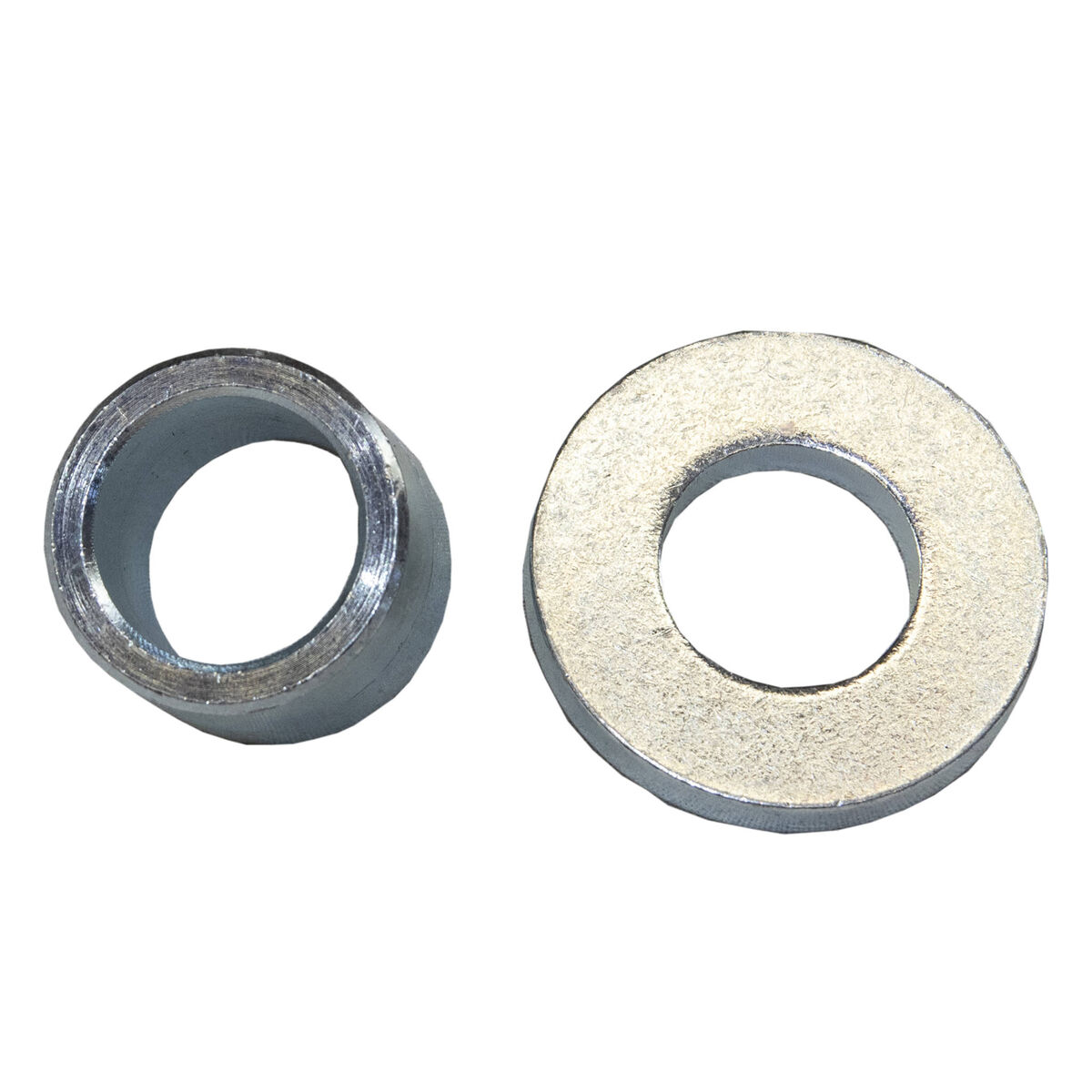

• Supplied with matching washer to spread clamp force
• Compact towing accessory that lives neatly in the toolbox

Q: Do I need any special tools to fit the TAG Reducer Bush?

No. You only need basic hand tools like a correctly sized spanner or socket for the tow ball nut. Slide the bush into the 32mm tongue hole, fit the 22mm shank tow ball through, add the washer, then tighten the nut. Always torque the nut to the vehicle or towbar manufacturer’s specification to keep the setup working as intended.

Q: Can this reducer bush be used with any 50mm tow ball?

It can be used with 50mm tow balls that have a 22mm shank. The bush inner diameter is machined to 22mm, so other shank sizes will not seat correctly. Check the markings or measure the shank before fitting. Using the right shank size keeps the load in line and avoids damage to the tongue or hardware.

Q: Is the TAG Reducer Bush suitable for coastal or beach trips?

Yes. The stainless steel body with zinc coating is suited to environments where salt and moisture are present. Rinse the towbar area with fresh water after beach work to clear salt and sand. Periodic checks for surface rust on surrounding hardware also help the rest of the towing setup go the distance.

Q: Will this bush change the towing capacity of my setup?

No. The bush does not increase the factory tow rating of the towbar or vehicle. The overall towing capacity is still limited by the lowest-rated component in the chain. Always check the compliance plate on the towbar and the vehicle owner’s manual. Staying within those ratings keeps the setup reliable on long hauls.

• Fits 70mm tow ball mounts that accept 50mm tow balls with 22mm shank
• Compatible with TAG heavy-duty drop-forged tow ball mounts
• Bush outer diameter 32mm suits 32mm mount hole
• Bush inner diameter 22mm matches 22mm tow ball shank
• Install bush into 32mm mount hole then fit 22mm shank tow ball through bush and washer
• Torque tow ball nut to vehicle or towbar manufacturer specifications
