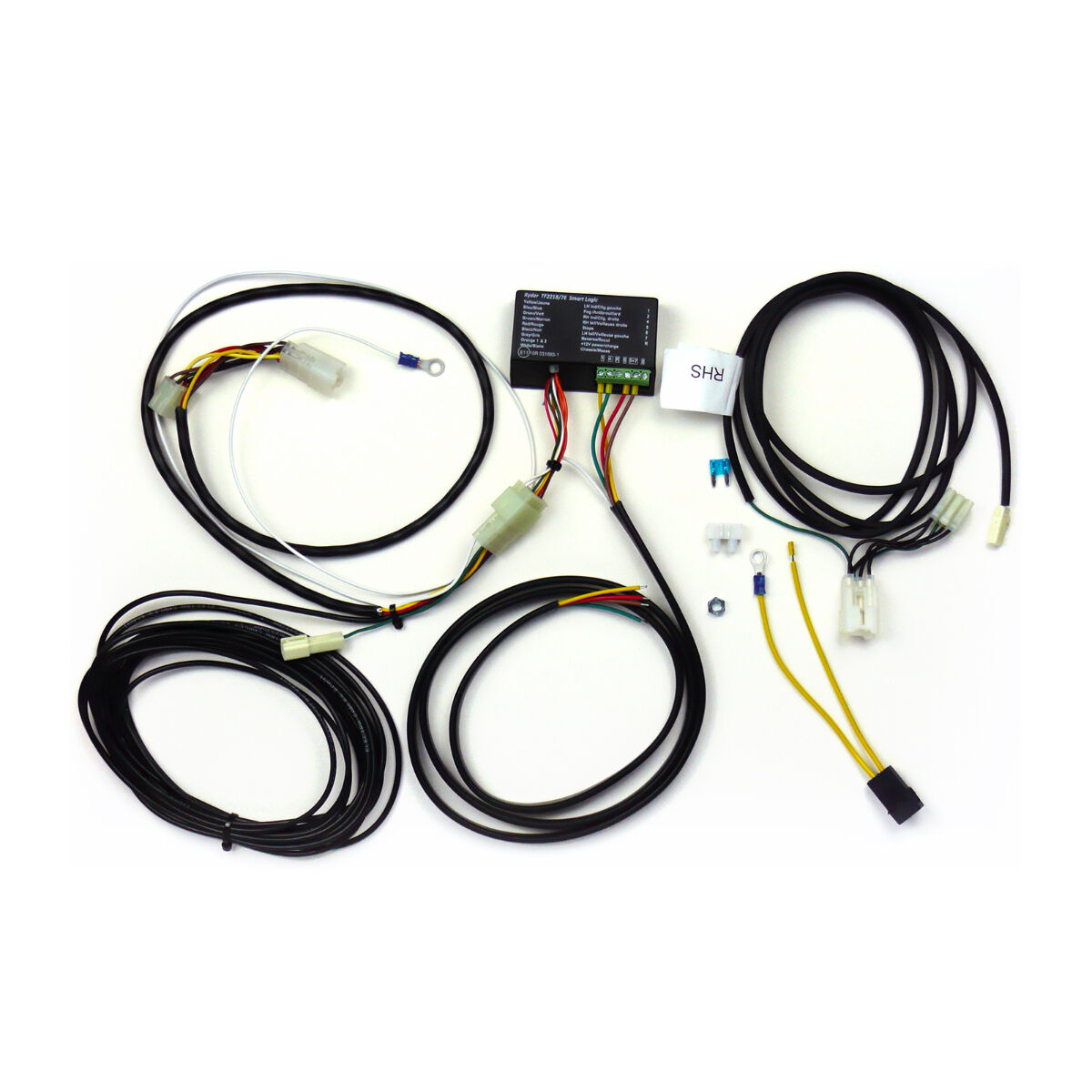

The TAG Direct Fit Wiring Harness for Toyota RAV4 takes care of trailer lights on rigs built from 11/2005 to 01/2013, so you can hook up and get out there without messing with factory wiring. The ECU style box manages the 12 V brake, tail and indicator circuits for standard trailer loads, keeping things tidy behind the bumper while you tackle regular towing duties around town or on 100 km/h highways.

This kit runs a direct fit ECU module matched to Toyota RAV4 wiring from that 11/2005–01/2013 window, so no diagnostic coding time gets added to the job. The harness is set up for standard trailer lighting currents on a 12 V system, working neatly with a suitable towbar and 7-pin style socket. It is a smart buy if you want tow wiring that just works across normal Aussie road and weather conditions.

• Towbar direct fit wiring harness
• Suits Toyota RAV4 built 11/2005–01/2013
• Direct Fit ECU style harness
• ECM box manages trailer light circuits
• Approximate installation time of 1 hour
• No diagnostic coding required after fitment
• Reverse sensor cut off not applicable
• Fog light cut off not applicable
• Suits standard 12V trailer lighting loads
• Intended to pair with compatible towbar and socket hardware

Q: Does this wiring harness require diagnostic coding after installation?

No, this harness does not require diagnostic coding. The direct fit ECU has been matched to the Toyota RAV4 electrical system for the 11/2005–01/2013 build range. That means once the harness is installed correctly, no extra scan tool work is listed as needed. This keeps workshop time down and makes planning the job more predictable.

Q: What vehicles does this TAG wiring harness suit?

This harness suits Toyota RAV4 vehicles built between November 2005 and January 2013. The ECU and connectors are set up around that specific model and year range. Using it outside that range may not match plug types or wiring layout. Always check the build plate on the vehicle before ordering the kit.

Q: What type of trailer lighting setup is this harness intended for?

This harness is intended for standard 12V trailer lighting loads. It manages brake, tail and indicator circuits through the ECU rather than loading the RAV4 lamp circuits directly. This is suitable for typical box trailers, bike trailers or camper trailers with normal light boards. High‑draw accessories should run on separate power feeds.

Q: How long should I allow to fit this harness?

The approximate fitting time listed is 1 hour. That estimate assumes normal workshop tools and access to the rear of the vehicle. Extra time may be needed if the towbar is being fitted at the same time. Planning around that one‑hour guide helps you book workshop space or schedule your weekend job.

Suits Toyota RAV4 vehicles built between November 2005 and January 2013. Harness uses a direct fit ECU style connection to integrate with the vehicle tail light circuits. Approximate installation time is 1 hour under normal workshop conditions. No diagnostic coding is required after fitment. Reverse sensor cut off and fog light cut off functions are not applicable for this harness.
